Isolation and Culture of Pulmonary Endothelial Cells from Neonatal Mice

Published: December 14, 2010 doi: 10.3791/2316

Summary

Here, we describe a protocol for isolation and culture of murine pulmonary endothelial cells. This method comprises mechanic and enzymatic lung tissue dissociation as well as a 2-step purification process using anti-PECAM-1 and anti-ICAM-2 antibodies conjugated to magnetic beads, which produces a pure endothelial cell population of mostly microvascular origin.

Abstract

Endothelial cells provide a useful research model in many areas of vascular biology. Since its first isolation 1, human umbilical vein endothelial cells (HUVECs) have shown to be convenient, easy to obtain and culture, and thus are the most widely studied endothelial cells. However, for research focused on processes like angiogenesis, permeability or many others, microvascular endothelial cells (ECs) are a much more physiologically relevant model to study 2. Furthermore, ECs isolated from knockout mice provide a useful tool for analysis of protein function ex vivo. Several approaches to isolate and culture microvascular ECs of different origin have been reported to date 3-7, but consistent isolation and culture of pure ECs is still a major technical problem in many laboratories. Here, we provide a step-by-step protocol on a reliable and relatively simple method of isolating and culturing mouse lung endothelial cells (MLECs). In this approach, lung tissue obtained from 6- to 8-day old pups is first cut into pieces, digested with collagenase/dispase (C/D) solution and dispersed mechanically into single-cell suspension. MLECS are purified from cell suspension using positive selection with anti-PECAM-1 antibody conjugated to Dynabeads using a Magnetic Particle Concentrator (MPC). Such purified cells are cultured on gelatin-coated tissue culture (TC) dishes until they become confluent. At that point, cells are further purified using Dynabeads coupled to anti-ICAM-2 antibody. MLECs obtained with this protocol exhibit a cobblestone phenotype, as visualized by phase-contrast light microscopy, and their endothelial phenotype has been confirmed using FACS analysis with anti-VE-cadherin 8 and anti-VEGFR2 9 antibodies and immunofluorescent staining of VE-cadherin. In our hands, this two-step isolation procedure consistently and reliably yields a pure population of MLECs, which can be further cultured. This method will enable researchers to take advantage of the growing number of knockout and transgenic mice to directly correlate in vivo studies with results of in vitro experiments performed on isolated MLECs and thus help to reveal molecular mechanisms of vascular phenotypes observed in vivo.

Protocol

1. Preparing anti-PECAM-1 antibody-conjugated magnetic beads (Dynabeads)

  1. Prepare 0.1% BSA in PBS by mixing 50 mg BSA in 50 ml PBS using a vortex until BSA dissolves. Sterilize by filtering through 0.22 μm syringe filter. Store at 4°C.
  2. In the TC hood, transfer 200 μl of well resuspended sheep anti-rat IgG Dynabeads into a 1.5 ml Eppendorf tube and wash the beads: Mount tube on MPC and let sit for about 1 min to allow the beads to sediment. Aspirate supernatant, remove the tube from MPC and resuspend the beads in 1 ml of sterile 0.1% BSA/PBS. Pipette up and down to resuspend beads.
  3. Repeat wash three more times, for a total of four washes.
  4. Remove tube from MPC and resuspend the beads in 500 μl of 0.1% BSA/PBS.
  5. Add 10 μl rat anti-mouse PECAM-1 (CD-31) antibody to the tube.
  6. Tumble overnight at 4°C in the cold room or 2 hrs at room temperature.
  7. Wash the beads with sterile 0.1% BSA/PBS as described in step 1.2 four times.
  8. Remove tube from MPC and resuspend the beads in 200 μl 0.1% BSA/PBS. Store anti-PECAM-1 antibody-conjugated Dynabeads at 4°C for up to 1 month.

2. Isolating mouse pulmonary endothelial cells from neonatal mice

Prior to proceeding with the tissue purification protocol, IACUC Committee approval of the procedure is required.

  1. Prepare the following:
    • 15 ml of 1 mg/ml C/D solution in DMEM. Filter with 0.22 μm syringe filter and warm to 37°C.
    • 50 ml conical tube with 15 ml DMEM, store on ice
    • Isolation Media (IM) containing 20% FBS and 1x penicillin/streptomycin in DMEM
    • 2% gelatin. Mix 2 g of bovine skin gelatin with 100 ml dd water, autoclave 15 minutes and store at 4°C. Warm to 37°C to liquefy before coating TC flasks.
  2. Anesthetize three 6-8 day old pups using an IP injection of Ketamine (100 mg/kg) and xylazine (10 mg/kg). Check for effectiveness of anesthesia and dissect animals one by one, as follows: Pin pups to board, soak skin with 70% Ethanol and remove skin from the chest area with sterile dissection scissors. Excise the rib cage to expose lungs.
  3. Aseptically excise individual lung lobes, being careful not to dissect the bronchi and any visible connective tissue around the lungs. Combine all lungs in ice-cold DMEM. Euthanize the pups.
  4. Working in the TC hood, remove lung lobes from DMEM, place in a 100 mm TC dish and aspirate excess DMEM.
  5. Using sterile scissors, mince the tissue finely by cutting ~100 times. Transfer to 15 ml warm C/D solution for enzymatic digestion. Incubate 45 minutes at 37°C on a rotator.
  6. In the TC hood, aspirate the digested tissue suspension into to a 20 ml syringe with 14 g cannula attached and triturate clumps into a single cell suspension, at least 12 times.
  7. Pass the tissue suspension through a 70 μm cell strainer and wash the strainer with 15 ml IM to stop digestion.
  8. Pellet cell suspension by centrifugation at 400x g for 5 minutes.
  9. Aspirate supernatant and resuspend pellet in 3 ml 0.1% BSA/PBS.
  10. Transfer cell suspension to 5 ml round-bottom polystyrene tube and add 22.5 μl anti-PECAM-1 antibody-conjugated Dynabeads. Tumble at room temperature for 12 minutes.
  11. Coat a T75 flask with 2 mL 2% gelatin and aspirate excess gelatin. Allow gelatin to dry inside the TC hood for about 30 minutes prior to plating cells.
  12. After bead incubation is complete (step 2.10), split cell suspension equally into three Eppendorf tubes and mount on the MPC.
  13. When the beads have sedimented using the MPC (~1 min), collect supernatant, remove tube from MPC, wash beads with ~1 ml 0.1% BSA/PBS, and then remount on the MPC.
  14. Repeat wash four times (total 5 washes)
  15. Resuspend beads in 1 ml of VascuLife with EnGS-Mv Life Factors Kit and 1x penicillin/streptomycin (VL) per tube, mixing well.
  16. Plate on a pre-coated T75 flask and bring total volume in each flask to 10 ml with VL.
  17. Change media the following day, allow 1 full day of growth, and then change half of the media every other day. When cells are >70-80% confluent or more (usually after 3-4 days of culture), they can be sorted with anti-ICAM-2 Dynabeads.

3. Preparing anti-ICAM-2 antibody-conjugated Dynabeads

  1. Anti-ICAM-2 antibody-conjugated Dynabeads are used to further purify cells that have been selected with anti-PECAM-1 antibody- conjugated Dynabeads and cultured until confluent. This procedure is performed as described for anti-PECAM-1 antibody-conjugated Dynabeads (1, above), except that anti-mouse ICAM-2 (CD-102) antibody is used instead of anti-PECAM-1 antibody.
  2. Anti-ICAM-2 antibody-conjugated Dynabeads can be stored at 4°C for up to 1 month.

4. Sorting Mouse Lung Endothelial Cells with anti-ICAM-2 Dynabeads

  1. Coat T75 tissue culture flask with 2% gelatin.
  2. Aspirate the media from the confluent T75 flask with cells and wash with 8 ml PBS.
  3. Aspirate PBS, add 2 ml 0.05% Trypsin/EDTA and let cells detach (about 5 minutes). Tap flasks lightly to aid detaching.
  4. When cells have detached, add 2 ml IM to inhibit trypsin and scrape cells to detach any remaining adherent cells. Transfer cell suspension to a 15 ml tube and spin down for 5 min at 400x g.
  5. Aspirate the media and resuspend cell pellet in 2 ml 0.1%BSA/PBS.
  6. Transfer to a 5 ml polystyrene round-bottom tube and add 10 μl anti-ICAM-2 Dynabeads. Tumble for 12 minutes at RT.
  7. Split cell suspension into two 1.5 ml Eppendorf tubes and mount on MPC.
  8. Aspirate supernatant after beads have adhered for one minute. Remove tubes from MPC and resuspend each tube in 1 ml 0.1% BSA/PBS. Remount on MPC.
  9. Repeat wash four times (total of 5 washes).
  10. Resuspend each tube with 1 ml VL and perform a cell count.
  11. Plate cells at 250-350K cells per T25 flask and/or 750K-1 million cells per T75 flask.
  12. Bring volume to 5 ml VL in T25 flasks, and 10 ml in T75 flasks.
  13. Change media every other day. Cells can be used for experiments when culture reaches about 80% confluency, usually in 2-3 days.

5. Representative Results

Typically, after 6-7 days from the initial preparation of the cells, we are able to obtain about 1.2 - 1.5 x 106 pulmonary endothelial cells from three 6-8 day old pups. Cells display typical "cobblestone" morphology under light microscopy and show VE-cadherin (CD144) staining at cell-cell junctions, which is characteristic for endothelial cells (Figure 1). Majority of MLECs express VE-cadherin and VEGFR2 as demonstrated by FACS analysis (Figure 2). Usually, we use them for experiments within two weeks after the initial MLEC isolation.

Figure 1
Figure 1. Microscopic analysis of confluent MLEC monolayer. (A) Light microscopy image shows cobblestone morphology of cultured cells typical for endothelial cells. Uniform round structures located in the perinuclear area of many cells are the magnetic beads used for MLEC isolation. (B) Endothelial-specific VE-cadherin is localized at the cell-cell junctions as shown using confocal microscopy. Bar is representative of 20μm.

Figure 2

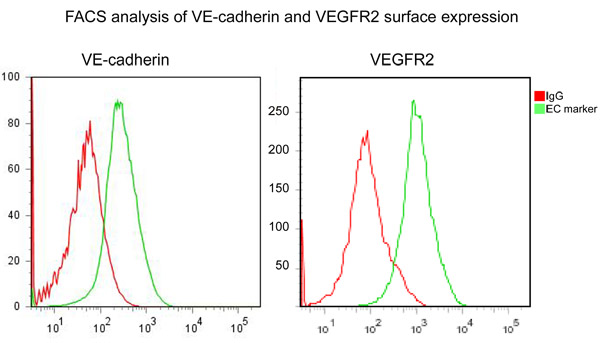

Figure 2. FACS analysis of cultured MLECs labeled with antibodies specific for endothelial-specific markers: VE-cadherin (CD144) or VEGFR2, as indicted, followed by phycoerythrin-conjugated secondary antibody, confirms endothelial identity of isolated MLECs. Red line indicates isotype-specific control, green line indicates anti -VE-cadherin or anti-VEGFR2 - specific-IgG.

Discussion

Microvascular ECs have proven to be a useful model in many areas of vascular biology and are believed to be more physiologically relevant to study (e.g. angiogenesis) than widely studied HUVECs 3. Previously, it has been reported that microvascular ECs can be obtained from kidney, heart, skin, retina, brain, gliomas, adipose tissue and also lung 2, 4-7, 10, 11. However, a consistent and reliable method for isolation of microvascular ECs is still required. The procedure presented here is a modification of a previously published protocol 2; it differs from most published procedures in that it uses pups instead of adult animals. This is crucial for the isolation success as cells from young animals have a higher proliferation potential and cultures derived from their tissues tend to yield higher number of cells. One week old animals seem to be optimal, but younger mice (4 day-old) can also be used. Also, higher or lower numbers of pups can be used if required, as we have been successful in isolating MLECs from one pup. However, while scaling up or down the isolation process, cell plating density must remain unchanged, as this is also critical for cell proliferation. The 2-step purification process of MLECs using magnetic beads conjugated first to anti-PECAM-1 and than anti-ICAM-2 antibodies is much more efficient at obtaining pure EC cultures than the previously described single-step purification procedures. This protocol eliminates the need to use very laborious manual techniques, gradient centrifugation and less efficient FACS sorting for discarding contaminating cells such as fibroblasts, blood cells and smooth muscle cells. The resulting MLEC population can be used for in vitro analysis of angiogenic responses, vascular permeability and leukocyte transmigration, wound healing as well as biochemical analysis of signaling pathways. If required, MLECs can be plated on different surfaces such as fibronectin or gelatin-coated coverslips for immunofluorescence or electrode arrays for trans-endothelial resistance (TER) measurements. Obtained results can be directly compared to the phenotypes observed in vivo, which is especially important in the context of the growing number of knockout and transgenic mouse lines. Successful implementation of this method for in vitro analysis of cellular mechanisms underlying defects observed in vivo, has already been presented 12.

Disclosures

Experiments on animals were performed in accordance with the guidelines and regulations set forth by Medical College of Wisconsin IACUC Committee under protocol AUA#00001206.

Acknowledgments

This research was supported in part by American Heart Association grant 0950118G.to M.C-W.

Materials

Name Company Catalog Number Comments
Spring scissors Fine Science Tools 15032-13
forceps Fine Science Tools 11223-20
14G cannula Fisher Scientific 1482516N
20 ml syringe BD Biosciences 309661
BSA Sigma-Aldrich A7030-100G
anti-rat IgG Dynabeads Invitrogen 110.35
Magnetic Particle Concentrator (MPC) Invitrogen 123-21D
anti-mouse PECAM-1 antibody (CD-31) BD Biosciences 553369
anti-mouse ICAM-2 antibody (CD-102) BD Biosciences 553326
Collagenase/Dispase (C/D) Roche Group 11097113001 100mg/ml stock solution can be prepared and stored at -20°C
DMEM Cellgro 10-013-CV
Bovine Skin Gelatin Sigma-Aldrich #G9391-100G
Vasculife EnGS-Mv complete kit (VL) Lifeline Cell Technology LL0004
0.05% Trypsin/EDTA Mediatech, Inc. 25-052-CI
Cell strainer 70 μm nylon Falcon BD 352350
tissue culture flask 75 cm2 Techno Plastic Products 90076

DOWNLOAD MATERIALS LIST

References

  1. Maruyama, Y. The human endothelial cell in tissue culture. Z Zellforsch Mikrosk. Anat. 60, 69-79 (1963).
  2. Lim, Y. C., Luscinskas, F. W. Isolation and culture of murine heart and lung endothelial cells for in vitro model systems. Methods Mol Biol. 341, 141-154 (2006).
  3. Aird, W. C. Phenotypic heterogeneity of the endothelium: I. Structure, function, and mechanisms. Circ Res. 100, 158-173 (2007).
  4. Fehrenbach, M. L., Cao, G., Williams, J. T., Finklestein, J. M., Delisser, H. M. Isolation of murine lung endothelial cells. Am J Physiol Lung Cell Mol Physiol. 296, L1096-L1103 (2009).
  5. Miebach, S., Grau, S., Hummel, V., Rieckmann, P., Tonn, J. C., Goldbrunner, R. H. Isolation and culture of microvascular endothelial cells from gliomas of different WHO grades. J. Neurooncol. 76, 39-48 (2006).
  6. Demeule, M., Labelle, M., Régina, A., Berthelet, F., Béliveau, R. Isolation of endothelial cells from brain, lung, and kidney: expression of the multidrug resistance P-glycoprotein isoforms. Biochem. Biophys. Res. Commun. 281, 827-834 (2001).
  7. Kajimoto, K., Hossen, N., Hida, K., Ohga, N., Akita, H., Hyodo, M., Hida, Y., Harashima, H. Isolation and culture of microvascular endothelial cells from murine inguinal and epididymal adipose tissues. J. Immunol. Methods. 357, 43-50 (2010).
  8. Breviario, F., Caveda, L., Corada, M., Martin-Padura, I., Navarro, P., Golay, J., Introna, M., Gulino, D., Lampugnani, M. G., Dejana, E. Functional properties of human vascular endothelial cadherin (7B4/cadherin-5), an endothelium-specific cadherin. Arterioscler Thromb Vasc Biol. 15, 1229-1239 (1995).
  9. Zachary, I., Gliki, G. Signaling transduction mechanisms mediating biological actions of the vascular endothelial growth factor family. Cardiovasc Res. 49, 568-581 (2001).
  10. Diglio, C. A., Grammas, P., Giacomelli, F., Wiener, J. Rat heart-derived endothelial and smooth muscle cell cultures: isolation, cloning and characterization. Tissue Cell. 20, 477-492 (1988).
  11. Petzelbauer, P., Bender, J. R., Wilson, J., Pober, J. S. Heterogeneity of dermal microvascular endothelial cell antigen expression and cytokine responsiveness in situ and in cell culture. J Immunol. 151, 5062-5072 (1993).
  12. Chrzanowska-Wodnicka, M., Kraus, A. E., Gale, D., White, G. C. 2nd, Vansluys, J. Defective angiogenesis, endothelial migration, proliferation, and MAPK signaling in Rap1b-deficient mice. Blood. 111, 2647-2656 (2008).
