Using Tg(Vtg1:mcherry) Zebrafish Embryos to Test the Estrogenic Effects of Endocrine Disrupting Compounds

doi: 10.3791/60462 Published: August 8, 2020

Summary

Present here is a detailed protocol for the use of zebrafish embryos Tg(vtg1: mCherry) for the detection of estrogenic effects. The protocol covers the propagation of the fish and treatment of embryos, and emphasizes the detection, documentation, and the evaluation of fluorescent signals induced by endocrine disrupting compounds (EDC).

Abstract

There are many endocrine disrupting compounds (EDC) in the environment, especially estrogenic substances. The detection of these substances is difficult due to their chemical diversity; therefore, increasingly more effect-detecting methods are used, such as estrogenic effect-sensitive biomonitor/bioindicator organisms. These biomonitoring organisms include several fish models. This protocol covers the use of zebrafish Tg(vtg1: mCherry) transgenic line as a biomonitoring organism, including the propagation of fish and the treatment of embryos, with an emphasis on the detection, documentation, and evaluation of fluorescent signals induced by EDC. The goal of the work is the demonstration of the use of the Tg(vtg1: mCherry) transgenic line embryos to detect estrogenic effects. This work documents the use of transgenic zebrafish embryos Tg(vtg1: mCherry) for the detection of estrogenic effects by testing two estrogenic substances, α- and β-zearalenol. The described protocol is only a basis for designing assays; the test method can be varied according to the test endpoints and the samples. Moreover, it can be combined with other assay methods, thereby facilitating the future use of the transgenic line.

Introduction

or Start trial to access full content. Learn more about your institution’s access to JoVE content here

There is a significant number of endocrine disrupting compounds (EDC) that are among the most hazardous substances in our environment. These are mainly estrogenic compounds that contaminate water from natural resources. The chemical diversity of the substances belonging to the group makes testing for their presence difficult, as different analytical methods are required for their detection. Based on their chemical structure it is very difficult to determine whether a substance is actually able to act as an estrogen. In addition, these substances are never present in a pure form in the environment, so their effects may be affected by other compounds, too1. This problem can be solved by effect-detecting methods, such as the use of biomonitor/bioindicator organisms that show estrogenic effects2,3,4,5.

Recently, a variety of cell line6 and yeast-based test systems2,3 have been developed to detect estrogenic effects. However, these are generally only able to detect the binding of the substance to the estrogen receptor2,3. In addition, they are unable to model complex physiological processes in the organism, or to detect hormone-sensitive phases of life stages; thus, they often lead to false results.

It is known that certain genes react sensitively to estrogen in living organisms7. The detection of gene products by molecular biology methods is also possible at the protein or mRNA level8,9, but usually involves animal sacrifice. Animal protection laws have become stricter, and there is a growing demand for alternative test systems that minimize the number and suffering of animals used in experiments or the replacement of the animal model with another model system10. With the discovery of fluorescent proteins and the creation of biomarker lines, transgenic technologies provide a good alternative11. With these lines, the activation of an estrogen-sensitive gene can be tested in vivo.

Among vertebrates, the potential of fish in environmental risk assessment is outstanding. They offer many advantages over mammalian models: being aquatic organisms, they are able to absorb pollutants through their entire body, produce a large number of offspring, and some of their species are characterized by short generation time. Their endocrine system and physiological processes show great similarities with other vertebrates and even with mammals, including humans12.

Several genes for the detection of estrogenic effects in fish are also known. The most important are the estrogen receptors aromatase-b, choriogenin-H, and vitellogenin (vtg)7,13. Recently, several estrogen-producing biosensor lines have also been created from fish models used in the laboratory, such as from zebrafish (Danio rerio)4,5,14,15,16,17. The main advantage of zebrafish in creating biosensor lines is the transparent body of the embryos and larvae, because the fluorescent reporter signal can then be easily studied in vivo without sacrificing the animal10. In addition to animal protection, it is also a valuable feature as it allows for studying the reaction of the same individual at different times of the treatment18.

These experiments use a vitellogenin reporter transgenic zebrafish line15. The transgene construct used for the development of Tg(vtg1:mCherry) has a long (3.4 kbp) natural vitellogenin-1 promoter. The estrogen receptor (ER) is an enhancer protein activated by ligands that is a representative of the steroid/nuclear receptor superfamily. ER binds to specific DNA sequences called estrogen response elements (EREs) with high affinity and transactivates gene expression in response to estradiol and other estrogenic substances, so the more ERE in the promoter causes a stronger response19. There are 17 ERE sites in the promoter region of the Tg(vtg1:mCherry) transgene construct and they are expected to mimic the expression of the native vtg gene15. There is a continuous expression of the fluorescent signal in sexually matured females. However, in males and embryo the expression in the liver is only visible upon treatment with estrogenic substances (Figure 1).

Figure 1
Figure 1: Red fluorescent signal in the liver of vtg1:mCherry transgenic adult zebrafish and 5 dpf embryos, following 17-ß-estradiol (E2) induction. In female and in male treated with E2 (25 µg/L exposure time:48hrs) strong fluorescence of the liver is visible even through the pigmented skin. No fluorescent signal is visible in untreated male (A). Following E2 induction (50 µg/L exposure time: 0-120 hpf), a red fluorescent signal in the liver of 5 dpf embryos can also be observed, which is not visible in control embryos (B). While the fluorescent signal is continuously present in adult females, primarily males and embryos of the line are suitable for detecting estrogenic effects. (BF: bright field, mCherry: red fluorescent filter view, single plain images, Scale bar A: 5mm, scale bar B: 250 µm) Please click here to view a larger version of this figure.

Similar to the endogenous vitellogenin, the mCherry reporter is only expressed in the liver. Because vitellogenin is only produced in the presence of estrogen, there is no fluorescent signal in the controls. Because the expression is only in the liver, the evaluation of the results is much easier15.

The sensitivity and usability of this line's embryos have been investigated on various estrogenic compound mixtures and also on environmental samples15,20, and in most cases dose-response relationships were documented (Figure 2). However, in the case of highly toxic, mainly hepatotoxic, substances (e.g., zearalenone), only a very weak fluorescent signal may be visible in the liver of treated embryos and the maximum intensity fluorescent signal caused can be reached within a very small concentration range, which makes it difficult to establish dose-effect relationships20.

Figure 2
Figure 2: Dose-response diagram (A) and fluorescent images (mCherry) of the liver (B) exposed to 17-α-ethynilestradiol (EE2), in 5 dpf vtg1:mCherry larvae. Results are expressed as integrated density generated from the signal strength and the size of the affected area (±SEM, n = 60). 100% refers to the observed maximum. Fluorescent signal intensity increased gradually with concentration. Scale bar = 250 µm. Please click here to view a larger version of this figure.

There are several estrogenic substances present in the environment, such as 17-β-estradiol (environmental concentration: 0.1–5.1 ng/L)21, 17-α-ethynylestradiol (environmental concentration: 0.16–0.2 µg/L)22, zearalenone (environmental concentration: 0.095–0.22 µg/L)23, bisphenol-A (environmental concentration: 0.45–17.2 mg/L)24. When testing these substances in a pure active form with the help of mCherry transgenic embryos, the lowest observed effect concentrations (LOEC) for fluorescent sign detection were 100 ng/L for 17-ß-estradiol, 1 ng/L for 17-α-ethynilestradiol, 100 ng/L for zearalenone, and 1 mg/L for bisphenol-A (96–120 hpf treatment), which is very close to or within the range of environmental concentrations of the substances15. The Tg(vtg1:mCherry) transgenic line can help detect estrogenicity in wastewater samples after direct exposure. The line is as sensitive as the commonly used yeast estrogen test, the bioluminiscent yeast estrogen (BLYES) assay15. With the help of this line, the protective effects of beta-cyclodextrins against zearalenone-induced toxicity has been confirmed using chemical mixtures20.

In a recent report, the in vivo use of the transgenic line was demonstrated with the help of two estrogenic zearalenone (ZEA) metabolites, α- and β-zearalenol (α-ZOL and β-ZOL)25. The protocol baseline is appropriate to study the estrogenic effects of several compounds or environmental samples on Tg(vtg1:mCherry) embryos.

Subscription Required. Please recommend JoVE to your librarian.

Protocol

or Start trial to access full content. Learn more about your institution’s access to JoVE content here

The Animal Protocol was approved under the Hungarian Animal Welfare Law and all studies were completed before the treated individuals would have reached the free feeding stage.

1. Embryo harvest and treatment

  1. Maintain Tg(vtg1:mCherry) zebrafish at 25.5 ± 0.5 °C, pH = 7 ± 0.2, conductivity between 525 ± 50 μS/m, oxygen level ≥80% of saturation, and 14 h light and 10 h dark cycle.
  2. Fill the mating tanks with system water and set up the fish for mating the afternoon before harvesting eggs.
  3. Place the male and female fish into the tank and separate them with the help of a divider.
  4. Remove the divider from the tanks as the light switches on next morning. Check the mating tanks for eggs every 15–20 min.
  5. Harvest all embryos using a tea strainer or densely woven fine mesh and combine them into one large Petri dish with E3 buffer (5 mM sodium chloride, 0.17 mM potassium chloride, 0.33 mM calcium chloride, 0.33 mM magnesium sulfate) or clear system water.
  6. Place the embryos in the incubator set to 25.5 ± 0.5 °C.
  7. After 1–1.5 h, remove and discard unfertilized or inadequately dividing eggs with a plastic transfer pipet under a dissecting microscope.
    NOTE: Unfertilized eggs are opaque; fertilized eggs are transparent. To start the treatment in a later stage of development, pay attention to the normal development of the individuals being treated.
  8. Place the selected embryos in the treatment vessels (e.g., in Petri dishes or tissue culture plates) that have already been labeled and filled with different concentrations of the test substance.
  9. Incubate the embryos at 25.5 ± 0.5 °C until the end of the experiment.
    NOTE: Embryos can react with significant individual sensitivity to various estrogenic compounds, so it is recommended to use at least 15 embryos in at least three repeat treatments in order to evaluate the experiment properly. When selecting the container, keep in mind that the development of an embryo requires at least 200 µL of water26. In this experiment the embryos were incubated until 120 hpf at 25.5 ± 0.5 °C.
  10. Refresh the test solution if it is neccesary to maintain the treatment concentration. Be careful when changing the test solution in order to avoid damaging the embryos.
    NOTE: It is also possible to investigate mortality or sublethal symptoms during the experiment. The concentrations used should remain as stable as possible to obtain reliable results. This can be easily achieved by refreshing the test solutions. The frequency of refreshing may vary depending on the test substance. Therefore, it is advisable to check the concentration of the test substance by analytical measurements to determine the frequency of the solution updates.

2. Larvae preparation for photography

  1. Prepare 4% methylcellulose with MS-222 (tricaine-methane-sulfonate) beforehand.
    1. To do so, add 4 mg/mL MS-222 to 100 mL double distilled water to a final concentration of 0.168 mg/mL, and bring the solution to 4 ˚C. Then add 4 g of methylcellulose. Stir it with a magnetic stirrer, then leave it in 4 ˚C overnight.
    2. Next day, stir it again and the solution should be ready to use. If the methylcellulose is not completely dissolved put it back at 4 ˚C and wait a few more hours.
  2. Place 5 day old larvae into a 5 cm Petri dish per treatment group with a Pasteur pipette.
  3. Remove the treatment solution from the larvae with a plastic pipette, then fill the Petri dish with 2 mL of 0.02% MS-222 anesthetic solution.
    NOTE: Anesthesia is usually effective in less than a minute. The larvae are anesthetized if they do not swim away in response to touch. An overdose of MS-222 can kill the larvae.
  4. Fill each square of a specially designed 10 cm Petri dish with 4% methylcellulose with MS-222 (Figure 3).
    NOTE: Glue two 1.5 x 1.5 cm square areas at the bottom of the Petri dish using plastic sheets (1 mm height, 5 mm wide). Twenty larvae can be placed next to each other in a square. Instead of a specially designed Petri dish, another low edge container can be used to fix the position of the embryos.

Figure 3

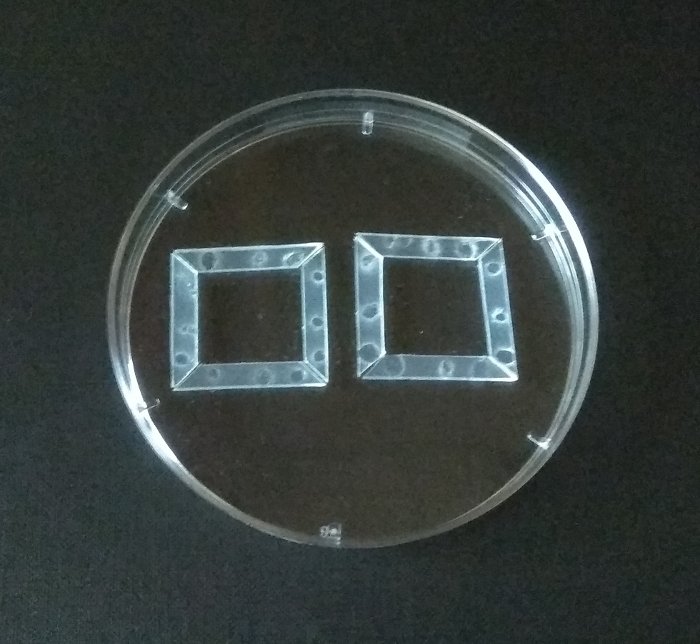

Figure 3: A 10 cm Petri dish with glued 1.5 x 1.5 cm wide, 1 mm thick plastic sheet squares for larvae preparation for photography. Please click here to view a larger version of this figure.
