Generation of Marked and Markerless Mutants in Model Cyanobacterial Species

Summary

Introducing multiple genomic alterations into cyanobacteria is an essential tool in the development of strains for industrial and basic research purposes. We describe a system for generating unmarked mutants in the model cyanobacterial species Synechocystis sp. PCC6803 and marked mutants in Synechococcus sp. PCC7002.

Abstract

Cyanobacteria are ecologically important organisms and potential platforms for production of biofuels and useful industrial products. Genetic manipulation of cyanobacteria, especially model organisms such as Synechocystis sp. PCC6803 and Synechococcus sp. PCC7002, is a key tool for both basic and applied research. Generation of unmarked mutants, whereby chromosomal alterations are introduced into a strain via insertion of an antibiotic resistance cassette (a manipulatable fragment of DNA containing one or more genes), followed by subsequent removal of this cassette using a negative selectable marker, is a particularly powerful technique. Unmarked mutants can be repeatedly genetically manipulated, allowing as many alterations to be introduced into a strain as desired. In addition, the absence of genes encoding antibiotic resistance proteins in the mutated strain is desirable, as it avoids the possibility of 'escape' of antibiotic resistant organisms into the environment. However, detailed methods for repeated rounds of genetic manipulation of cyanobacteria are not well described in the scientific literature. Here we provide a comprehensive description of this technique, which we have successfully used to generate mutants with multiple deletions, single point mutations within a gene of interest and insertion of novel gene cassettes.

Introduction

Cyanobacteria are an evolutionarily ancient and diverse phylum of bacteria found in nearly every natural environment on Earth. In marine ecosystems they are particularly abundant and play a key role in many nutrient cycles, accounting for approximately half of carbon fixation¹, the majority of nitrogen fixation² and hundreds of millions of tons of hydrocarbon production³ in the oceans annually. Chloroplasts, the organelle responsible for photosynthesis in eukaryotic algae and plants, are likely to have evolved from a cyanobacterium that was engulfed by a host organism⁴. Cyanobacteria have proved useful model organisms for the study of photosynthesis, electron transport⁵ and biochemical pathways, many of which are conserved in plants. In addition cyanobacteria are increasingly being used for production of food, biofuels⁶, electricity⁷ and industrial compounds⁸, due to their highly efficient conversion of water and CO₂ to biomass using solar energy⁹. Many species can be cultivated on non-arable land with minimal nutrients and seawater, suggesting that cyanobacteria could potentially be grown at large scale without affecting agricultural production. Certain species are also sources of natural products, including antifungal, antibacterial and anti-cancer compounds^10,11.

The ability to generate mutants is key to understanding cyanobacterial photosynthesis, biochemistry and physiology, and essential for development of strains for industrial purposes. The majority of published studies generate genetically modified strains by insertion of an antibiotic resistance cassette into the site of interest. This limits the number of mutations that can be introduced into a strain, as only a few antibiotic resistance cassettes are available for use in cyanobacteria. Strains containing genes conferring antibiotic resistance cannot be used for industrial production in open ponds, which is likely to be the only cost-effective means to produce biofuels and other low value products¹². The generation of unmarked mutants overcomes these limitations. Unmarked mutants contain no foreign DNA, unless intentionally included, and can be manipulated multiple times. Therefore it is possible to generate as many alterations in a strain as desired. In addition, polar effects on genes downstream of the modification site can be minimized, allowing more precise modification of the organism¹³.

To generate mutant strains, suicide plasmids containing two DNA fragments identical to regions in the cyanobacterial chromosome flanking the gene to be deleted (termed the 5' and 3' flanking regions) are first constructed. Two genes are then inserted between these flanking regions. One of these encodes an antibiotic resistance protein; the second encodes SacB, which produces levansucrase, a compound conferring sensitivity to sucrose. In the first stage of the process, marked mutants, i.e. strains containing some foreign DNA, are generated. The plasmid construct is mixed with the cyanobacterial cells and the DNA is taken up naturally by the organism. Transformants are selected by growth on agar plates containing the appropriate antibiotic and the mutant genotype verified by PCR. Suicide plasmids cannot replicate within the strain of interest. Therefore any antibiotic resistant colonies will result from a recombination event whereby the gene of interest in inserted into the chromosome. To generate unmarked mutants, the marked mutant is then mixed with a second suicide plasmid containing just the 5' and 3' flanking regions. However, if insertion of foreign DNA is required, a plasmid consisting of the 5' and 3' flanking regions with a cassette containing the genes of interest inserted between these DNA fragments, can be used. Selection is via growth on agar plates containing sucrose. As sucrose is lethal to cells when the sacB gene product is expressed, the only cells that survive are those in which a second recombination event has occurred, whereby the sucrose sensitivity gene, in addition to the antibiotic resistance gene, has been recombined out of the chromosome and onto the plasmid. As a consequence of the recombinational exchange, the flanking regions and any DNA between them are inserted into the chromosome.

We have successfully used these methods to generate multiple chromosomal mutations in the same strain of Synechocystis sp. PCC6803 (hereafter referred to as Synechocystis)^13,14, to introduce single point mutations into a gene of interest¹³ and for expression of gene cassettes. While generation of unmarked knockouts has been demonstrated prior to our work in Synechocystis^15,16, a detailed method, aided by a visual presentation of the critical steps, is not publicly available. We have also applied the same method for generation of marked knockouts in another model cyanobacterium, Synechococcus sp. PCC7002 (hereafter referred to as Synechococcus). This protocol provides a clear, simple method for generating mutants and a rapid protocol for validating and storing these strains.

Protocol

1. Preparation of Culture Media

1. Prepare BG11 medium according to Castenholz, 1988¹⁷.
   1. Prepare stock solutions of 100x BG11, trace elements and iron stock (Table 1).
   2. Prepare separate solutions of phosphate stock, Na₂CO₃ stock, N-[Tris(hydroxymethyl)methyl]-2-aminoethanesulfonic acid (TES) buffer and NaHCO₃ (Table 1).
   3. Autoclave the phosphate and Na₂CO₃ stocks. Filter-sterilize TES buffer and NaHCO₃ with 0.2 µm filters.
   4. Prepare BG11 by combining 976 ml of water, 10 ml of 100x BG11, 1 ml of trace elements and 1 ml of iron stock and autoclave the solution. After this solution has cooled to room temperature, add 1 ml of phosphate stock, 1 ml of Na₂CO₃ stock and 10 ml of NaHCO₃.
   5. For BG11 solid medium, add 15 g of agar and 700 ml of water to one flask. To the second flask, add 3 g of Na₂S₂O₃, 226 ml of water, 10 ml of 100x BG11, 1 ml of trace elements and 1 ml of iron stock. Autoclave both solutions. After these solutions have cooled to room temperature, combine them and add 1 ml of phosphate stock, 1 ml of Na₂CO₃ stock, 10 ml of TES buffer, and 10 ml of NaHCO₃.
      Note: Solutions are prepared separately to avoid precipitation of certain salts.
2. For selection on sucrose, prepare a 50% (w/v) sucrose solution. Filter sterilize the solution with 0.2 µm filters and add to BG11 (100 ml of 50% sucrose to 900 ml of BG11) to produce BG11/5% sucrose plates.
   Note: Do not add NaHCO₃ to BG11/5% sucrose agar plates. Add Na₂CO₃ as normal.
3. For culturing of Synechococcus add 10 ml of 1 M 4-(2-hydroxyethyl)piperazine-1-ethanesulfonic acid, N-(2-hydroxyethyl)piperazine-N′-(2-ethanesulfonic acid) (HEPES) and 1 ml of vitamin B₁₂ (Table 1) to 1 L of BG11 medium.
   Note: Transformation of strains cultured in commercially available BG11 media is significantly less efficient than in the BG11 media recipes described here and therefore is not recommended.

2. Growth of Cyanobacterial Strains

1. Culture strains in 100 ml conical flasks with a maximum volume of 50 ml and shake at 120 rpm. Seal BG11 plates with Parafilm and puncture three small holes in the side of the plate to allow gas exchange. Incubate all strains at 30 °C under fluorescent bulbs in a photobioreactor at a light intensity between 20-40 µmol photons m^-2 sec^-1.
2. Use best sterile techniques. Handle all cyanobacterial strains in a laminar flow hood.
   Note: This is especially important when strains are cultured with media containing sucrose, which can be easily contaminated.

3. Generation of Plasmid Constructs

1. Design sets of primers, including the required restriction enzyme sites, using primer design software such as Primer3 (http://frodo.wi.mit.edu/primer3/), to amplify two ~1 kb regions 5’ and 3’ of the gene of interest. Consult the genome sequence of the cyanobacterial species via Cyanobase (http://genome.kazusa.or.jp/cyanobase). See Table 2 for all primers used here. When designing primers consider the following factors:
   1. Ensure that amplified regions include 5' and 3' regions of the gene that will be mutated, e.g. Figure 1.
   2. Do not mutate intergenic regions to avoid unintended mutation of antisense and non-coding RNAs. For generation of mutants in Synechocystis, refer to the list of transcriptional start sites documented in Mitschke et al., 2011¹⁸, in order to avoid mutation of antisense or non-coding RNAs.
   3. When choosing flanking regions do not include the entire open reading frame of adjacent genes as expression of these genes in Escherichia coli may interfere with cloning.
2. Amplify products by PCR using high fidelity DNA polymerase according to the manufacturer's instructions.
   Note: In our experience this enzyme produces few errors.
   1. Set up 50 µl PCR reactions containing HF buffer and either 0, 1.5 or 3 µl of DMSO. Use 100 ng of genomic DNA per reaction. Use a program consisting of an initial denaturation step of 98 °C for 30 sec, 35 rounds of 98 °C for 10 sec, 67 °C for 30 sec, 72 °C for 30 sec, followed by a final extension step of 72 °C for 5 min. This typically gives consistent products.
3. Verify PCR products and samples digested with endonuclease enzymes for the correct size via gel electrophoresis. Run 1% (w/v) agarose gels containing 0.02% (v/v) ethidium bromide for 45 min at 100 V.
   CAUTION: Ethidium bromide is a potential mutagen and should be handled with appropriate protection.
4. Purify PCR products using a DNA purification kit according to the manufacturer's instructions. Also use this kit for purification of plasmid fragments, including pieces cut from agarose gels. Elute purified DNA in 14 µl of water.
5. For cloning steps, incubate restriction endonuclease reaction mixtures at 37 °C for >1 hr in a total volume of 30 µl according to the manufacturer's instructions.
6. For ligation steps, ligate DNA fragments at room temperature for >1 hr in a total volume of 20 µl, containing 5 µl of purified digested plasmid, 12 µl of purified digested insert, 2 µl of buffer and 1 µl of ligase.
7. Prepare Escherichia coli DH5α transformant cells according to the following method.
   1. Grow an overnight E. coli culture in 10 ml Luria Bertani (LB) media.
   2. Inoculate 400 ml LB in a 1 L conical flask containing 6 ml 1 M MgCl₂ (Table 1) with 1 ml of overnight culture.
   3. Grow the culture at 37 °C at 220 rpm for approximately 4 hr or until OD_600nm reaches 0.4-0.6.
   4. Place cells on ice for 1 hr.
   5. Centrifuge at 2,800 x g for 10 min to pellet cells at 4 °C.
   6. Remove supernatant and resuspend in 160 ml solution A (Table 1) and incubate on ice for 20 min.
   7. Centrifuge at 2,800 x g for 10 min to pellet cells at 4 °C.
   8. Remove supernatant and resuspend in 4 ml Solution A + glycerol (Table 1).
   9. Prepare 50 µl aliquots, freeze in liquid N₂, store at -80 °C.
   10. Mix 5 µl of ligation mixture with 50 µl of competent cells and incubate for 1 hr on ice.
   11. Heat shock the cells at 42 °C for 90 sec, followed by incubation on ice for 2 min.
   12. Add 950 µl of LB media (Table 1) and incubate at 37 °C for 1 hr.
   13. Aliquot 50 and 200 µl on plates with the appropriate antibiotic, either ampicillin (100 µg/ml) and/or kanamycin (30 µg/ml).
       CAUTION: Both kanamycin and ampicillin are toxic and should be handled with appropriate protection.
   14. Pick and incubate single colonies in 2 ml LB media inoculated with the appropriate antibiotic.
8. Purify all plasmids using a miniprep plasmid purification kit according to the manufacturer's instructions.
9. Generate plasmids, in this specific example for knocking out the cpcC1C2 genes, according to the following steps.
   1. Amplify the 1,012 bp 5' flanking region (left fragment) using primers cpcC1C2leftfor and cpcC1C2leftrev (See step 3.2, Table 2). Remove a small amount of the PCR reaction and confirm whether the correct size product has been amplified via gel electrophoresis (step 3.3). Digest this fragment and pUC19 with XbaI and BamHI (step 3.5).
   2. Purify both preparations (step 3.4), ligate (step 3.6), transform (step 3.7) and set up four 2 ml LB liquid cultures with ampicillin (100 µg/ml) from separate colonies for plasmid purification via minipreps (step 3.8).
   3. Check for insertion of the fragment into pUC19 via XbaI/BamHI digestion and gel electrophoresis (step 3.3). Bands of 2,660 bp and 1,012 bp indicate correct introduction of the insert into the plasmid.
   4. Amplify the 1,016 bp 3' flanking region (right fragment) using primers cpcC1C2rightfor and cpcC1C2rightrev (See step 3.2, Table 2). Remove a small amount of the PCR reaction and confirm whether the correct size product has been amplified via gel electrophoresis (step 3.3). Digest this fragment and pUC19 with SacI and EcoRI (step 3.5).
   5. Purify both preparations (step 3.4), ligate (step 3.6), transform (step 3.7) and set up four 2 ml LB liquid cultures with ampicillin (100 µg/ml) from separate colonies for plasmid purification via minipreps (step 3.8).
   6. Check for insertion of the fragment into pUC19 via SacI/EcoRI digestion (step 3.5) and gel electrophoresis (step 3.3). Bands of 2,660 bp and 1,016 bp indicate correct introduction of the insert into the plasmid.
      Note: XbaI/BamHI sites for cloning of the 5' region and SacI/EcoRI for cloning of the 3' region into pUC19 are used wherever possible. If feasible, always include a BamHI site on the reverse primer for the 5' region or the forward primer for the 3' region to ensure that later cloning steps are easier to perform.
   7. Sequence both inserts to determine if the sequence is correct using primers spanning the insertion site, e.g. M13 forward and M13 reverse (Table 2). The sequence must be correct to ensure no errors are introduced into flanking regions.
   8. Excise the left fragment from pUC19 via XbaI/BamHI digestion. Digest the pUC19 + right fragment with XbaI/BamHI (step 3.5).
   9. Purify the 1,012 bp left fragment and 3,676 bp pUC19 + right fragment from an agarose gel (step 3.3) via excision of the DNA using a scalpel blade.
   10. Purify both preparations (step 3.4), ligate (step 3.6), transform (step 3.7) and set up four 2 ml LB liquid cultures with ampicillin (100 µg/ml) from separate colonies for plasmid purification via minipreps (step 3.8).
   11. Check for insertion of the fragment into pUC19 + right fragment via XbaI/BamHI digestion (step 3.5) and gel electrophoresis (step 3.3). Bands of 3,676 bp and 1,012 bp indicate correct insertion of the insert into the plasmid (refer to this as plasmid B).
   12. Excise the npt1/sacB cassette from pUM24cm¹⁹ via BamHI digestion. Digest plasmid B with BamHI (step 3.5).
       Note: The npt1/sacB cassette does not have to be purified from agarose gels since pUM24cm encodes a protein conferring chloramphenicol resistance. Therefore if colonies are grown on LB/ampicillin/kanamycin agar plates the only possible combination that will lead to resistant colonies is incorporation of the npt1/sacB cassette into plasmid B.
   13. Purify both preparations (step 3.4), ligate (step 3.6), transform (step 3.7) and set up four 2 ml LB liquid cultures with ampicillin (100 µg/ml) and kanamycin (30 µg/ml) from separate colonies for plasmid purification via minipreps (step 3.8).
   14. Check for insertion of the npt1/sacB cassette into plasmid B via BamHI digestion (step 3.5) and gel electrophoresis (step 3.3). Bands of 4,688 bp and 3,894 bp indicate correct insertion of the insert into the plasmid (refer to this as plasmid A).
   15. Alternatively, blunt end the npt1/sacB cassette and clone into a different restriction endonuclease site between the left and right fragments in plasmid B. The npt1/sacB cassette must be cloned between the left and right fragments.
       Note: If expression of a foreign cassette is required then this should be inserted between the left and right fragments of plasmid B. This plasmid is then used in the unmarked knockout steps.

4. Generation of Marked Synechocystis and Synechococcus Mutants

1. Set up a fresh culture by inoculating a loop full of cells into 30-50 ml of BG11 medium. Grow the culture for 2-3 days to OD_750nm = 0.2 to 0.6.
   Note: Typically individual colonies are too small to use for inoculation and exposure of individual cells to even low levels of light will result in photoinhibition and selection for light resistant mutants.
2. Centrifuge 1-2 ml of the culture at 2,300 x g for 5 min and discard the supernatant. Do not centrifuge any cyanobacterial cultures at >2,300 x g as this may damage the cells. Wash the pellet once with BG11 medium.
   Note: Do not resuspend cells by vortexing as this may result in loss of pili which are essential for DNA uptake. Resuspend cells by gentle pipetting.
3. Add BG11 medium to a final volume of 100 µl. Transfer cells to a 14 ml round-bottom tube.
4. Add 1 µg of plasmid A to the cells and mix by gentle tapping. Add <10 µl of plasmid.
   Note: Preferably the plasmid should be at a concentration of >100 ng/µl but concentrations lower than this are adequate for successful transformation.
5. Lay tubes down horizontally in the incubator. Incubate cultures for 4-6 hr.
   Note: Cells can be briefly mixed by tapping every 1-2 hr but this is not essential. Samples can be placed in a shaking incubator although this does not significantly improve efficiency.
6. Spread aliquots of the cell culture/plasmid DNA mixture on BG11 agar plates without antibiotics. Typically 20 µl and 80 µl aliquots are spread on separate plates.
7. ~24 hr later, add 2.5-3 ml of 0.6% Agar solution in water containing kanamycin (per 20 ml: 0.12 g of agar, 100 µl of 100 mg/ml kanamycin) to the agar plate. Cool this solution to ~42 °C, and add to the edge of the agar plate. Tilt the plate so the solution forms an even 'top agar' layer on the surface.
8. Incubate agar plates for a further period of time. Colonies should be visible after approximately 7 days.
   Note: Agar plates can be stacked 3 high in an incubator. Typically hundreds of colonies are obtained per transformation.
9. Streak individual colonies on BG11 + kanamycin (30 µg/ml) agar plates. Divide the agar plate into 6 sectors and use a blunt end toothpick to streak out the colonies over each individual sector. Obtaining single colonies is not important, just growth of the transformants.
10. Confirm marked knockout by PCR using Taq DNA polymerase according to the manufacturer's instructions. Add 2 µl of MgCl₂ (25 mM) per reaction.
    1. Remove a small proportion of the cells and transfer into a tube containing 50 µl water and ~20 425-600 µm glass beads. Shake in a vibrator for 5 min at ~2,000 rpm. Centrifuge at 15,700 x g for 5 min and use 5 µl of supernatant per 50 µl PCR reaction.
       Note: Do not resuspend the solution. The cell debris needs to stay at the bottom of the tube.
11. Validate mutants
    1. Design primers which span the knockout region using primer design software (such as Primer3). Design primers starting at ~200 bp either side of the knockout region.
       Note: Primers for verifying the cpcC1C2 mutant are outlined in Table 2 and are termed cpcC1C2for and cpcC1C2rev.
    2. Amplify products using a program consisting of an initial denaturation step of 95 °C for 2 min, 35 rounds of 95 °C for 1 min, 60 °C for 1 min, 72 °C for 1 min per kb of sequence, followed by a final extension step of 72 °C for 5 min. Include a wild-type control. This typically gives consistent products.
    3. Verify the genotype via gel electrophoresis. Marked knockout transformants will show a band of ~4 kb (0.2 kb from both the left and right fragments plus the npt1/sacB cassette) and the absence of the wild-type band (Figure 2).
       Note: In certain cases a ~4 kb band is not observed in the marked mutant due to the large size of this PCR product. However, if a band corresponding to the expected size of the wild-type is not observed then typically this strain is a marked knockout.
12. If a wild-type band is still present then re-streak the strain on a fresh BG11 + kanamycin (30 µg/ml) agar plate and repeat the PCR. Repeat the re-streaking process until the mutant is segregated so that no wild-type band is observed in the PCR reaction.
    Note: Increasing the amount of kanamycin to a concentration of 50 µg/ml, then 100 µg/ml is sometimes essential in order to segregate a marked mutant fully.
13. If the strain shows a marked mutant profile via PCR, then re-streak on a fresh BG11 + kanamycin (30 µg/ml) agar plate. Use this strain to generate the unmarked knockout.
    Note: The protocol can be used to generate marked mutants with just an antibiotic resistance cassette. i.e. by replacing the npt1/sacB cassette with just the npt1 cassette from pUC18K²⁰ between the left and right fragments.

5. Generation of Unmarked Synechocystis Mutants

1. Set up a fresh culture of the marked knockout by inoculating a loop full of cells into 30-50 ml of BG11 medium. Grow the culture for 2-3 days to OD_750nm = 0.2 to 0.6.
2. Centrifuge 10 ml of the culture at 2,300 x g for 5 min and discard the supernatant. Wash once with BG11 medium.
   Note: Do not resuspend cells by vortexing as this may result in loss of pili which are essential for DNA uptake. Resuspend cells by gentle pipetting.
3. Add BG11 to a final volume of 200 µl. Transfer cells to a 14 ml round-bottom tube.
4. Add 1 µg of plasmid B DNA to the cells and mix by gentle tapping.
5. Incubate the samples for 4-6 hr. Lay tubes down horizontally.
   Note: Cells can be briefly mixed by tapping every 1-2 hr but this is not essential. Samples can be placed in a shaking incubator although this does not improve efficiency.
6. Add 1.8 ml of BG11 medium and incubate samples for a total of 4 days with shaking. This is sufficient time to allow recombination to occur in the multiple chromosomal copies.
7. Plate aliquots of the transformation mixture on BG11/5% sucrose agar plates. Plate 50 µl, 10 µl and 1 µl per agar plate. If a colony lawn appears on all these agar plates dilute the solution further and aliquot on fresh plates. Colonies should be visible after approximately 7 days.
8. Patch 30-50 individual colonies on BG11 + kanamycin (30 µg/ml) agar plates first and BG11/5% sucrose agar plates second, using a blunt end toothpick. Any bacteria that grow on BG11/5% sucrose plates but not BG11 + kanamycin plates are potential unmarked knockouts. Bacteria growing on both plates are likely to be sucrose resistant due to a mutation in the sacB gene.
9. Verify unmarked knockouts using the same primers and method as was used to check the marked knockouts. e.g. cpcC1C2for and cpcC1C2rev (Table 2) for verifying the cpcC1C2 unmarked knockout. An unmarked knockout will show a band on an agarose gel corresponding to the wild-type size minus the deleted region (Figure 2).
10. If the strain shows an unmarked mutant profile via PCR (step 4.11.2) and gel electrophoresis (Figure 2), then re-streak on a fresh BG11 agar plate without antibiotics.

6. Long-term Storage of Strains

1. Set up a fresh culture of the strain by inoculating a loop full of cells into 30-50 ml of BG11 medium. Grow the culture for 3-4 days to OD_750nm = 0.4 to 0.7.
2. Wash cells once with BG11 and resuspend in ~2 ml of BG11.
3. Add 0.8 ml of concentrated cells to one tube. Then add 0.2 ml of 80% filter sterilized glycerol.
4. Optional: Add 0.93 ml of concentrated cells to another tube. Add 0.07 ml of DMSO to this tube.
   CAUTION: DMSO is toxic and should be handled with appropriate protection.
5. Store both tubes at -80 °C. To revive strains remove the tube and scrape off some cells with a blunt toothpick onto an agar plate without antibiotics. Streak out as normal using a sterile loop.

Figure 1: Plasmid construction for generation of marked and unmarked knockouts, e.g. cpcC1 and cpcC2 in Synechocystis. (A) Region of the Synechocystis genome where (B) cpcC1 and cpcC2 and adjacent genes are located. Highlighted in black is the region of the genome to be deleted in the mutant. (C) Sites of the genome which are amplified by PCR. The 5' flanking region (indicated in blue) and 3' flanking region (indicated in red) are amplified with restriction endonuclease sites for cloning into pUC19. The 5' (or 3') flanking region is excised out of pUC19 and inserted into the pUC19 + 3' (or 5') flanking region plasmid to generate plasmid B. (D) The npt1/sacB cassette from pUM24 is excised via BamHI digestion and inserted between the 5' and 3' flanking regions to generate Plasmid A. Please click here to view a larger version of this figure.

Representative Results

Plasmid design is critical for successful generation of both marked and unmarked mutants. Figure 1 gives an example of plasmid A and B used to generate a deletion mutant in the Synechocystis genes cpcC1 and cpcC2¹³. In each case the 5' and 3' flanking regions are approximately 900-1,000 bp. Reduced flanking regions can be used although the smallest we have successfully trialed has been approximately 500 bp. Plasmid B can also contain a gene cassette between the 5' and 3' ~1 kb flanking regions or a modified version of the native gene sequence.

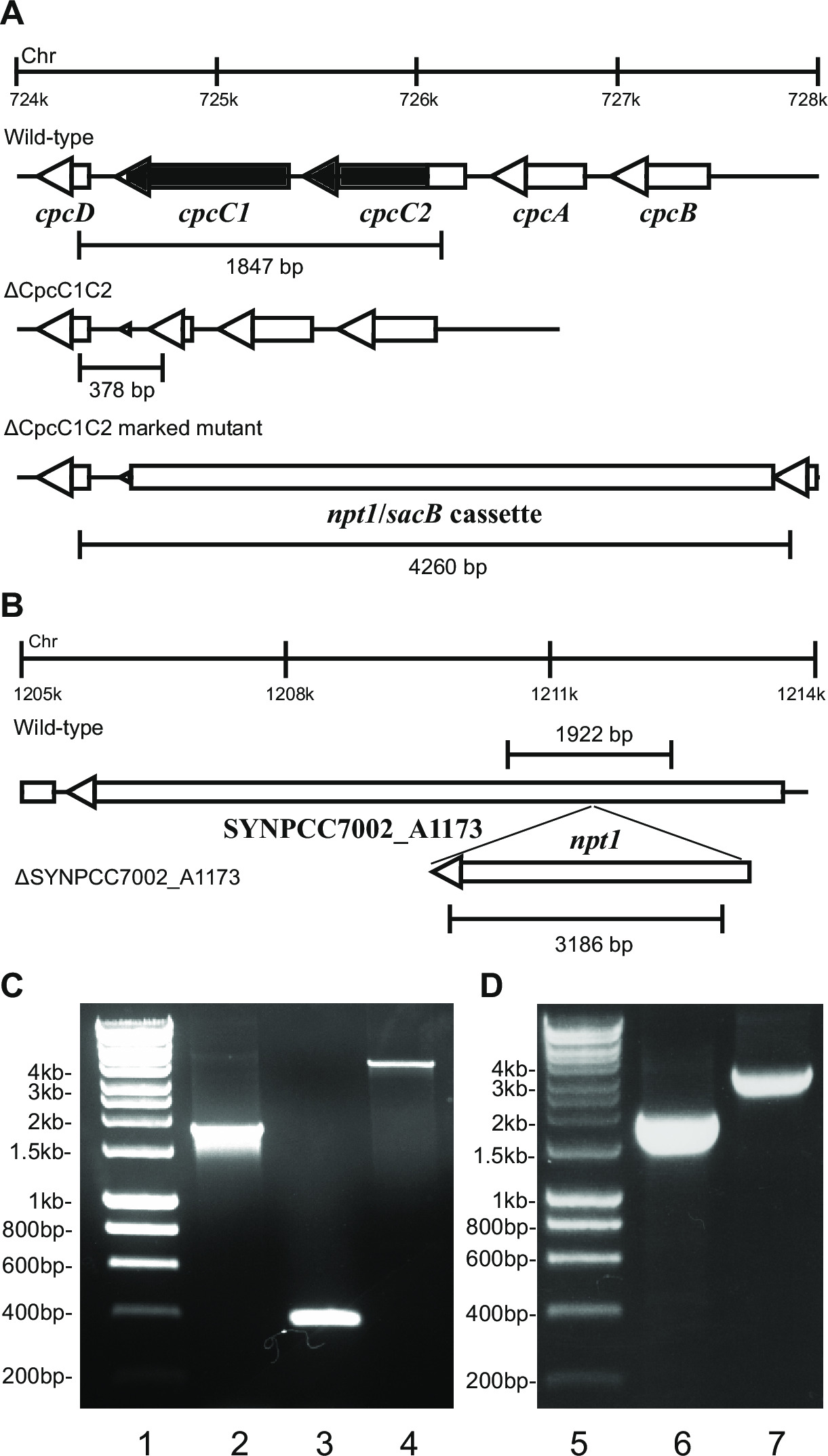

Figure 2: Verification of marked and unmarked mutants, e.g. cpcC1/cpcC2 in Synechocystis and SYNPCC7002_A1173 in Synechococcus. (A) The expected size of the wild-type Synechocystis (top), unmarked (middle) and marked knockout (bottom) amplicons generated using primers cpcC1C2for and cpcC1C2rev, approximately 200 bp on either side of the chromosomal region to be deleted. (B) The expected size of the wild-type Synechococcus (top) and marked knockout (bottom) amplicons generated using primers A1173for and A1173rev, approximately 200 bp on either side of the chromosomal region to be deleted. Agarose gel showing amplicons generated from (C) wild-type Synechocystis (lane 2), unmarked (lane 3) and marked cpcC1/cpcC2 knockouts (lane 4), and (D) wild-type Synechococcus (lane 6) and the marked SYNPCC7002_A1173 knockout (lane 7). Markers are shown in lanes 1 and 5. Please click here to view a larger version of this figure.

Upon transformation of plasmid A into the cells, typically several hundred colonies will appear on a plate after approximately 7-10 days. Colonies are <1 mm in diameter and will not increase in size for the next few weeks. Therefore it is critical to use a blunt end toothpick to remove the colony and streak it on a fresh BG11 + kanamycin agar plate. Approximately half the re-streaked colonies will grow after 4-6 days. If genes are non-essential and mutants demonstrate growth similar to the wild-type strain under continuous light of 20-40 µmol photons m^-2 sec^-1 (e.g. terminal oxidase mutants in Lea-Smith et al., 2013¹⁴) (Figure 3), then all the chromosomes should contain a copy of the npt1/sacB cassette inserted sequence, as determined via PCR. If genes are non-essential and mutants demonstrate a slow growth phenotype under continuous light of 20-40 µmol photons m^-2 sec^-1 (e.g. phycobilisome deficient mutants in Lea-Smith et al., 2014¹³) (Figure 3), then several rounds of re-streaking on BG11 agar plates with gradually increased amounts of kanamycin are essential in order to obtain a segregated marked mutant. Once a segregated mutant is obtained this should be re-streaked on a fresh BG11 plus kanamycin agar plate to ensure that segregation is complete. If repeated rounds of streaking do not result in a segregated marked mutant then the gene is likely essential for survival. Figure 4 gives an outline of the experimental steps involved in unmarked mutant generation.

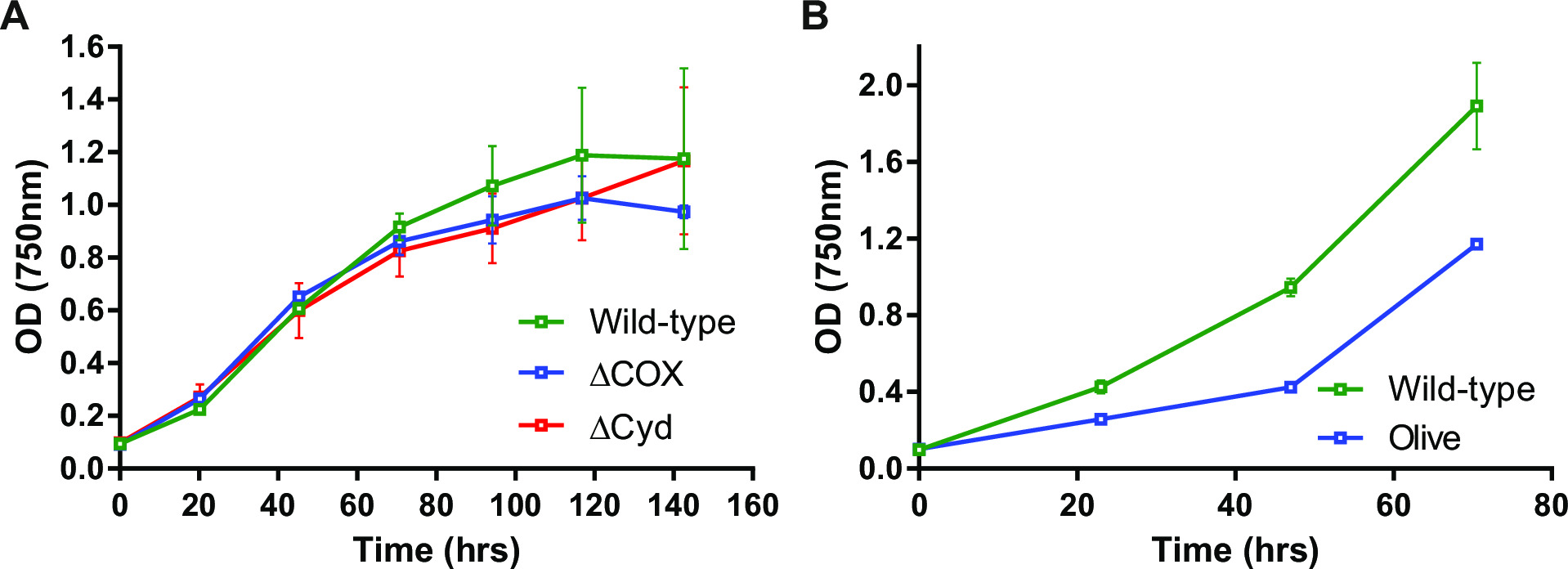

Figure 3: Growth of Synechocystis mutants. Examples of mutants which demonstrate (A) similar growth to wild-type and (B) slower growth than wild-type. The ΔCOX mutant lacks cytochrome oxidase due to deletion of the CtaC1D1E1 genes. The ΔCyd mutant lacks quinol oxidase due to deletion of the CydAB genes. The olive mutant lacks a portion of the phycobilisome due to deletion of the CpcABC1C2D genes. Samples in (B) were bubbled with air to facilitate growth. Reproduced from data published in Lea-Smith et al., 2013¹⁴ and 2014¹³ (www.plantphysiol.org; Copyright American Society of Plant Biologists). Please click here to view a larger version of this figure.

Generation of unmarked mutants is highly efficient. Upon transformation of plasmid B into the marked mutant, a four day incubation period and subsequent plating on BG11 plus sucrose agar plates, hundreds of colonies are obtained per 1-10 µl of transformed cell suspension. However a series of dilutions should be trialed, ranging from 0.1 to 100 µl, as an excessive amount leads to a reduced concentration of sucrose per cell, resulting in poor selection for unmarked mutants. If a lawn of cells is seen over the entire plate then lower concentrations should be tried. Once individual colonies are obtained on plates, patching on BG11 plus sucrose and BG11 plus kanamycin agar plates is an essential step. Typically for unmarked mutants where a region of the chromosome is being deleted, the majority of colonies will be kanamycin sensitive and sucrose resistant. PCR amplification of the target region in these colonies show that nearly 100% demonstrate the unmarked mutant profile, e.g. Figure 2. If a gene cassette is being inserted into the chromosome then typically a higher proportion of kanamycin resistant and sucrose resistant colonies are observed. These mutants can grow on sucrose due to a mutation in the sacB gene. If no kanamycin sensitive and sucrose resistant colonies are generated then the gene cassette is deleterious to the cell.

Figure 4: Generation of marked and unmarked mutants in Synechocystis. Schematic detailing (A) recombination and (B) experimental steps involved in mutant generation. Plasmid A is first mixed with cells. Following incubation on agar plates containing kanamycin, colonies in which a recombination event occurs between the 5' and 3' flanking regions (indicated in blue and red, respectively) and the homologous sequence in the chromosome, are isolated. In addition, the npt1/sacB cassette between the 5' and 3' flanking regions is inserted into the chromosome. Following segregation a marked mutant is generated. Marked mutant cells are then mixed with plasmid B which can contain either (C) 1: the 5' and 3' flanking regions; 2: the 5' and 3' flanking regions with an expression cassette containing genes of interest inserted between these sequences; 3: the 5' and 3' flanking regions with the wild-type sequence with the desired nucleotide alterations inserted between these sequences. A second homologous recombination event occurs between the 5' and 3' flanking regions and the homologous regions in the chromosome, resulting in removal of the npt1/sacB cassette and either the unmarked knockout or a mutant with an insertion or altered wild-type region introduced into the chromosome. Please click here to view a larger version of this figure.

Stock solution recipes
Chemical	Amount (g)
100x BG11 (per L)
NaNO3	149.6
MgSO4.7H2O	7.49
CaCl2.2H2O	3.6
Citric acid	0.6
Add 1.12 ml 0.25 M Na2EDTA, pH 8.0
0.25 M Na2EDTA, pH 8.0 (per 100 ml)
Na2EDTA	9.3
Trace elements (per 100 ml)
H3BO3	0.286
MnCl2.4H2O	0.181
ZnSO4.7H2O	0.022
Na2MoO4.2H2O	0.039
CuSO4.5H2O	0.008
Co(NO3)2.6H2O	0.005
Iron stock (per 100 ml)
Ferric ammonium citrate	1.11
Phosphate stock (per 100 ml)
K2HPO4	3.05
Na2CO3 stock (per 100 ml)
Na2CO3	2
TES buffer, pH 8.2 (per 100 ml)
TES	22.9
NaHCO3 stock (per 100 ml)
NaHCO3	8.4
HEPES, pH 8.2 (per 500 ml)
HEPES	119.15
Vitamin B12 (Per 50 ml)
Cyanocobalamin	0.02
Luria Bertani media (Per 500 ml)
Luria Bertani broth	12.5
1 M MgCl2 (Per 100 ml)
MgCl2.6H2O	20.33
Solution A (Per 200 ml)
MnCl2.4H2O	0.395
CaCl2.2H2O	1.47
2-(N-Morpholino)ethanesulfonic acid hydrate, 4-Morpholineethanesulfonic acid (MES)	0.4265
Solution A + glycerol
10 ml solution A
1.5 ml glycerol

Table 1: Solutions used in this study.

Primer	Sequence
cpcC1C2leftfor	GTACTCTAGAGCGGCTAAATGCTACGAC
cpcC1C2leftrev	GATCGGATCCGCGGTAATTGTTCCCTTTGA
cpcC1C2rightfor	GATCGAGCTCTGCACTGGTCAGTCGTTC
cpcC1C2rightrev	GACTGAATTCATCGTTGCTTGAACGGTCTC
M13 forward	TGTAAAACGACGGCCAGT
M13 reverse	CAGGAAACAGCTATGAC
cpcC1C2for	GTTTTCATTGGCATCGGTCT
cpcC1C2rev	ATGTCCCAGGAACGACTGAC
A1173for	AGCAAACCGTTTTTGTGACC
A1173rev	TGCAAGGTGGCGAACTGTAT

Table 2: Primers used in this study. Restriction endonuclease sites are underlined.

Discussion

The most critical steps in generation of unmarked mutants are: 1) careful plasmid design to ensure only the targeted region is altered; 2) ensuring that samples remain axenic, especially when cultured on sucrose; 3) plating transformed cells for marked mutant generation initially on BG11 agar plates lacking antibiotics, followed by addition of agar plus antibiotics 24 hr later; 4) culturing marked mutants for 4 full days prior to plating on BG11 plus sucrose agar plates: 5) ensuring that marked mutants are fully segregated and 6) thoroughly confirming the genotype of mutant strains. For this last step, additional primers designed to amplify part of the deleted region, can be used to ensure that it has been removed. Southern blotting, while laborious, can also be used. However, our experience is that the procedure outlined in this paper is sufficient for proper verification of mutants. This procedure has also been used to generate marked mutants in Synechococcus elongatus PCC7942. However, repeated transformation of this cyanobacterium has proved challenging.

If marked mutants cannot be segregated then different environmental conditions high CO₂, low light (<20 µmol photons m^-2 sec^-1) or additional nutrients (i.e. glucose) can be tested. For example, the addition of glucose is essential in order to generate photosystem II mutants²¹. If marked mutants never fully segregate then the gene is probably essential for viability. However, there are examples from the literature where some research groups have been unable to knockout a gene (For example, Vipp in Synechocystis)²², only for other groups to later show that the gene is not essential²³. This could be due to differences in the wild-type strains or incorrect plasmid design, resulting in polar effects on adjacent, essential genes. If a mutant does not fully segregate we would recommend that the plasmid containing the npt1 cassette from pUC18K²⁰ between the left and right fragments be used for transformation. It is easier to verify the presence of bands corresponding to the wild-type and mutant by PCR, since this fragment is approximately 1.2 kb, compared to the 3.8 kb npt1/sacB cassette. This result is an important piece of evidence demonstrating that the gene is essential.

Generation of unmarked mutants with inserted expression cassettes is generally more challenging than development of knockout strains. We generally express genes under control of the strong cpcBAC1C2D promoter¹³. In some cases this may decrease the chances of successful insertion of the gene cassette, if over-expression of a protein is deleterious to the cell. Weaker promoters should then be tested. In general we have observed that the larger the gene cassette is, the more difficult it is to insert it into the genome. We have not been able to insert gene cassettes larger than 5 kb. Care must also be taken in choosing sites to insert expression cassettes into the genome. Neutral sites that do not affect cell viability or growth should be used. Examples in Synechocystis include phaAB and phaCE, which encode the proteins encoding the polyhydroxybutyrate biosynthetic pathway^24,25. More recently an extensive list of neutral sites in Synechocystis has been identified²⁶.

Generation of unmarked mutants in cyanobacteria is a slow process, taking approximately 5-7 weeks if all steps are conducting properly. This is slower than the standard method of generating marked knockouts utilized by the majority of research groups investigating cyanobacteria. However, the flexibility of being able to introduce further mutations into unmarked mutants partially compensates for this, since additional plasmids containing a range of cassettes conferring resistance to different antibiotics, do not have to be constructed. For research purposes the ability to mutate multiple genes is sometimes necessary in order to fully characterize the functional role of proteins. For example, we identified a deleterious phenotype only upon deletion of the two terminal oxidase electron sinks localized to the thylakoid membrane, since loss of only one of these complexes could be compensated for by activity of the other¹⁴. Development of a strain for industrial applications will also require multiple modifications to a strain, not just for introduction of foreign genes but also to increase photosynthetic efficiency, light harvesting optimization and deletion of competing pathways for the desired substrate.

The major factor limiting the speed of unmarked mutant generation is the slow division time of model cyanobacterial species, between 8-20 hr depending on light conditions. Under higher light intensities and CO₂ concentrations, growth is faster. However, there is a risk that mutant strains which cannot tolerate either high light or CO₂ will be selected against, or that mutant strains will undergo undesirable alterations prior to phenotypic characterization. Therefore this is not recommended. However, it would be highly advantageous if a more rapid protocol to generate unmarked mutants was developed. Overall, this would facilitate the development of strains for both basic research and applied applications. Such strains could be used for biofuel, biomass or chemical production or in understanding many aspects of cyanobacterial biochemistry, genetics and physiology.

Materials

Name	Company	Catalog Number	Comments
NaNO3	Sigma	S5506
MgSO4.7H2O	Sigma	230391
CaCl2	Sigma	C1016
citric acid	Sigma	C0759
Na2EDTA	Fisher	EDT002
H3BO3	Sigma	339067
MnCl2.4H2O	Sigma	M3634
ZnSO4.7H2O	Sigma	Z4750
Na2MoO4.2H2O	Sigma	331058
CuSO4.5H2O	Sigma	209198
Co(NO3)2.6H2O	Sigma	239267
Ferric ammonium citrate	Sigma	F5879
K2HPO4	Sigma	P3786
Na2CO3	Fisher	SODC001
TES	Sigma	T1375
NaHCO3	Fisher	SODH001
HEPES	Sigma	H3375
cyanocobalamin	Sigma	47869
Na2S2O3	Sigma	72049
Bacto agar	BD	214010
Sucrose	Fisher	SUC001
Petri dish 90 mm triple vented	Greiner	633185
0.2 µm filters	Sartorius	16534
100 ml conical flasks	Pyrex	CON004
Parafilm M 100 mm x 38 m	Bemis	FIL003
Phusion high fidelity DNA polymerase	Phusion	F-530
Agarose	Melford	MB1200
DNA purification kit	MoBio	12100-300
Restriction endonucleases	NEB
T4 ligase	Thermo Scientific	EL0011
Luria Bertani broth	Invitrogen	12795-027
MES	Sigma	M8250
Kanamycin sulfate	Sigma	60615
Ampicillin	Sigma	A9518
GeneJET plasmid miniprep kit	Thermo Scientific	K0503
14 ml round-bottom tube	BD falcon	352059
GoTaq G2 Flexi DNA polymerase	Promega	M7805
425-600 µm glass beads	Sigma	G8772
Glycerol	Sigma	G5516
DMSO	Sigma	D8418
Fluorescent bulbs	Gro-Lux	69
HT multitron photobioreactor	Infors
