doi: 10.3791/61052 Published: June 14, 2020
Michael F. Curran1,2,3, Paddington Hodza4, Samuel E. Cox5, Shawn G. Lanning4, Blair L. Robertson6, Timothy J. Robinson7, Peter D. Stahl1,2,3

Abstract

Rangeland ecosystems cover 3.6 billion hectares globally with 239 million hectares located in the United States. These ecosystems are critical for maintaining global ecosystem services. Monitoring vegetation in these ecosystems is required to assess rangeland health, to gauge habitat suitability for wildlife and domestic livestock, to combat invasive weeds, and to elucidate temporal environmental changes. Although rangeland ecosystems cover vast areas, traditional monitoring techniques are often time-consuming and cost-inefficient, subject to high observer bias, and often lack adequate spatial information. Image-based vegetation monitoring is faster, produces permanent records (i.e., images), may result in reduced observer bias, and inherently includes adequate spatial information. Spatially balanced sampling designs are beneficial in monitoring natural resources. A protocol is presented for implementing a spatially balanced sampling design known as balanced acceptance sampling (BAS), with imagery acquired from ground-level cameras and unmanned aerial systems (UAS). A route optimization algorithm is used in addition to solve the ‘travelling salesperson problem’ (TSP) to increase time and cost efficiency. While UAS images can be acquired 2–3x faster than handheld images, both types of images are similar to each other in terms of accuracy and precision. Lastly, the pros and cons of each method are discussed and examples of potential applications for these methods in other ecosystems are provided.

Introduction

Rangeland ecosystems encompass vast areas, covering 239 million ha in the United States and 3.6 billion ha globally1. Rangelands provide a wide array of ecosystem services and management of rangelands involves multiple land uses. In the western US, rangelands provide wildlife habitat, water storage, carbon sequestration, and forage for domestic livestock2. Rangelands are subject to various disturbances, including invasive species, wildfires, infrastructure development, and natural resource extraction (e.g., oil, gas, and coal)3. Vegetation monitoring is critical to sustaining resource management within rangelands and other ecosystems throughout the world4,5,6. Vegetation monitoring in rangelands is often used to assess rangeland health, habitat suitability for wildlife species, and to catalogue changes in landscapes due to invasive species, wildfires, and natural resource extraction7,8,9,10. While the goals of specific monitoring programs may vary, monitoring programs that fit the needs of multiple stakeholders while being statistically reliable, repeatable, and economical are desired5,7,11. Although land managers recognize the importance of monitoring, it is often seen as unscientific, uneconomical, and burdensome5.

Traditionally, rangeland monitoring has been conducted with a variety of methods including ocular or visual estimation10, Daubenmire frames12, plot charting13, and line point intercept along vegetation transects14. While ocular or visual estimation is time-efficient, it is subject to high observer bias15. Other traditional methods, while also subject to high observer bias, are often inefficient due to their time and cost requirements6,15,16,17. The time required to implement many of these traditional methods is often too burdensome, making it difficult to obtain statistically valid sample sizes, resulting in unreliable population estimates. These methods are often applied based on convenience rather than stochastically, with observers choosing where they collect data. Additionally, reported and actual sample locations frequently differ, causing confusion for land managers and other stakeholders reliant upon vegetation monitoring data18. Recent research has demonstrated that image-based vegetation monitoring is time- and cost-effective6,19,20. Increasing the amount of data that can be sampled within a given area in a short amount of time should improve statistical reliability of the data compared to more time-consuming traditional techniques. Images are permanent records that can be analyzed by multiple observers after field data are collected6. Additionally, many cameras are equipped with global positioning systems (GPS), so images can be geotagged with a collection location18,20. Use of computer-generated sampling points, accurately located in the field, should reduce observer bias whether the image is acquired with a handheld camera or by an unmanned aerial system because it reduces an individual observer’s inclination to use their opinion of where sample locations should be placed.

Aside from being time-consuming, costly, and subject to high observer bias, traditional natural resource monitoring frequently fails to adequately characterize heterogeneous rangeland due to low sample size and concentrated sampling locations21. Spatially balanced sampling designs distribute sample locations more evenly across an area of interest to better characterize natural resources21,22,23,24. These designs can reduce sampling costs, because smaller sample sizes are required to achieve statistical accuracy relative to simple random sampling25.

In this method, a spatially balanced sampling design known as balanced acceptance sampling (BAS)22,24 is combined with image-based monitoring to assess rangeland vegetation. BAS points are optimally spread over the area of interest26. However, this does not guarantee that points will be ordered in an optimal route for visitation20. Therefore, BAS points are arranged using a route optimization algorithm that solves the travelling salesperson problem (TSP)27. Visiting the points in this order determines an optimal path (i.e., least distance) connecting the points. BAS points are transferred into a geographic information system (GIS) software program and then into a handheld data collection unit equipped with GPS. After BAS points are located, images are taken with a GPS-equipped camera as well as an unmanned aerial system operated using flight software. Upon entering the field, a technician walks to each point to acquire 1 m2 monopod-mounted camera images with 0.3 mm ground sample distance (GSD) at each BAS point while a UAS flies to the same points and acquires 2.4 mm-GSD images. Subsequently, vegetation cover data are generated using ‘SamplePoint’28 to manually classify 36 points/image. Vegetation cover data generated from the analysis of ground-level and UAS imagery is compared as well as reported acquisition times for each method. In the representative study, two adjacent, 10-acre rangeland plots were used. Finally, other applications of this method and how it may be modified for future projects or projects in other ecosystems is discussed.

Subscription Required. Please recommend JoVE to your librarian.

Protocol

1. Defining area of study, generating sample points and travel path, and field preparation

  1. Definition of the area of study
    1. Use a GIS software program to draw a polygon graphic(s) around the area(s) of interest. This study was conducted on two 10-acre plots within a grazing allotment in Laramie County, WY, USA (Figure 1).
    2. Ensure that those areas that are not intended to be within the sample frame are excluded from the polygon (e.g., water bodies, building structures, roadways, etc.). This will ensure that images will not be taken of these areas later.
    3. Convert the polygon graphic into a shapefile feature (.shp) in the GIS software program and ensure the shapefile is created in the desired coordinate system.

Figure 1

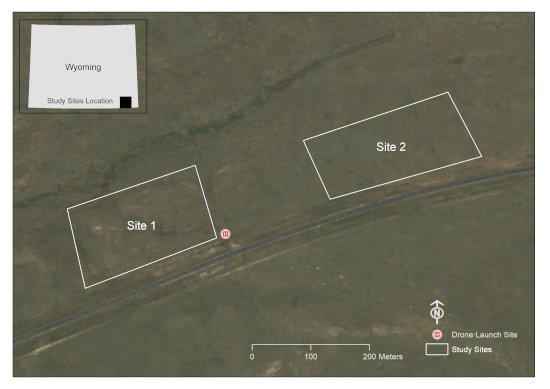

Figure 1: A depiction of the study areas of interest. This location is on a grazing allotment south of Cheyenne in Laramie County, WY, USA (Imagery Source: Wyoming NAIP Imagery 2017). Please click here to view a larger version of this figure.

  1. Generation of the BAS points and optimizing the travel path
    NOTE: The code is attached as ‘Supplemental_Code.docx’.
    1. Use the R package ‘rgdal’29 to convert the GIS polygon into a Program R readable file.
    2. Use the R package ‘SDraw’30 to generate the desired number of BAS points. This study used 30 BAS points per study area, though future research should be conducted to determine the optimal sampling intensity for areas of various size and vegetation composition.
    3. Use the R Package ‘TSP’27 to order the BAS points. Visiting the points in this order minimizes the time required to obtain samples at the BAS points.
  2. Preparation for handheld imagery acquisition
    1. Use the R package ‘rgdal’ to transfer the points from step 1.2.1 back into the GIS program.
    2. Edit the attribute table of the shapefile so the point ID field accurately reflects the optimized path order.
    3. Transfer the GIS polygon and point file into the GIS software running on a handheld unit.
    4. Ensure that the correct projected coordinate system for the area of interest is in place.
  3. Preparation for UAS imagery acquisition
    1. Use the R package ‘rgdal’ to transfer the points from step 1.2.1 back into the GIS software program.
    2. In the GIS software program, use the Add XY Coordinates tool to create and populate latitude and longitude fields in the waypoint attribute table.
    3. Export the waypoint attribute table containing Latitude, Longitude, and TSP columns to *.csv file format.
    4. Open the *.csv file in an appropriate software package.
    5. Sort waypoints by TSP identifier.
    6. Open Mission Hub app.
    7. Create arbitrary waypoint in Mission Hub.
    8. Export arbitrary waypoint as *.csv file.
    9. Open *.csv file in a spreadsheet program and delete arbitrary waypoint keeping column headings.
    10. Copy TSP-sorted waypoint coordinate pairs from step 1.2.3 into relevant columns in *.csv file from step 1.4.8.
    11. Import *.csv file from step 1.4.10 into Mission Hub as a new mission.
    12. Define the settings.
      1. Check the Use Online Elevation box.
      2. Specify Path Mode as Straight Lines.
      3. Specify Finish Action as RTH to enable the drone to Return to Home after the mission is complete.
    13. Click on individual waypoints and Add Actions by specifying the following parameters: Stay: 2 s (to avoid image blur); Tilt camera: -90° (Nadir); Take Photo.
    14. Save mission with an appropriate name.
    15. Repeat process for additional sites.

2. Field data collection and postprocessing

  1. Recording vegetation observed or expected in the study area
    1. Prior to acquiring images, create a list of vegetation observed within the study area. This can be done on a handwritten sheet or on a digital form to aid in photo identification later. It may be beneficial to include species that are likely to be expected in the area in the inventory even if they are not observed in the field (e.g., species within reclamation seed mixes)18.
  2. Ground-based image acquisition
    1. Attach a camera to a vertical monopod and point the camera down approximately 60°. The area of the image can be determined using the lens and resolution (megapixel) specifications of the camera and setting the monopod to a standard height. The height of the monopod coupled with the camera specifications will determine the ground sample distance (GSD). In this study, a 12.1-megapixel camera was used and the monopod was set at a constant 1.3 m above the ground to obtain Nadir images at ~0.3 mm GSD18.
    2. Tilt the monopod forward so the camera lens is in a Nadir position, and the angled monopod is not viewable in the image.
    3. Adjust the height of the monopod or the zoom on the lens to achieve a 1 m2 frameless plot size (or another desired plot size). For the most common 4:3 aspect ratio cameras, a plot width of 115 cm yields a 1 m2 image field of view. There is no need to place a frame on the ground; the entire image is the plot. If adjusting the zoom on the lens to accomplish this, use painter’s tape to prevent accidental changes in the zoom setting.
    4. If possible, set the camera to shutter-priority mode and set the shutter speed to at least 1/125 s to avoid blur in the image; faster if it is windy.
    5. Locate the first point in the optimized path order.
    6. Place the monopod on the ground at point 1 and tilt the monopod until the camera is in Nadir orientation. Ensure the operator's shadow is not in the image. Hold the camera steady to prevent motion blur. Acquire the image.
      NOTE: A remote trigger cable is useful for this step.
    7. Check image quality to ensure successful data capture.
    8. Navigate to the next point in the optimized path order and repeat the acquisition steps.
  3. UAS image acquisition
    1. Prior to launching the UAS, conduct a brief reconnoiter of the study area to ensure no physical obstacles are within the flight path. This reconnaissance exercise is also useful to locate a fairly flat area from which to launch the UAS.
    2. Ensure weather conditions are suitable for flying the UAS: a dry, clear day (>4.8 km visibility) with adequate lighting, minimal wind (<17 knots), and temperatures between 0 °C–37 °C.
    3. Follow legal protocols. For example, in the USA, Federal Aviation Administration policies should be followed.
    4. Utilize Mission Hub software (Figure 2) and a mission execution application accessible via mobile devices (Figure 3).
    5. Collect UAS imagery at each BAS point as described in step 1.4.
    6. Verify that all images were acquired utilizing the mobile device prior to changing locations.

Figure 2

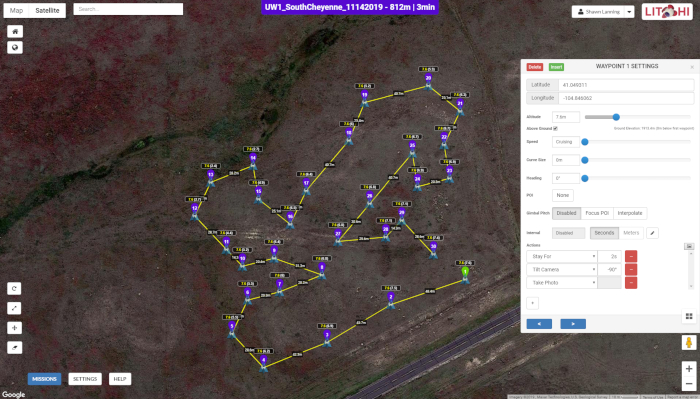

Figure 2: The user interface of Mission Hub. The map depicts the drone flight path along a series of 30 BAS points across one of the study sites while the popup window shows image acquisition parameters at each waypoint. Figure 2 is specific to Site 1, though it is similar in appearance to Site 2. Please click here to view a larger version of this figure.

Figure 3

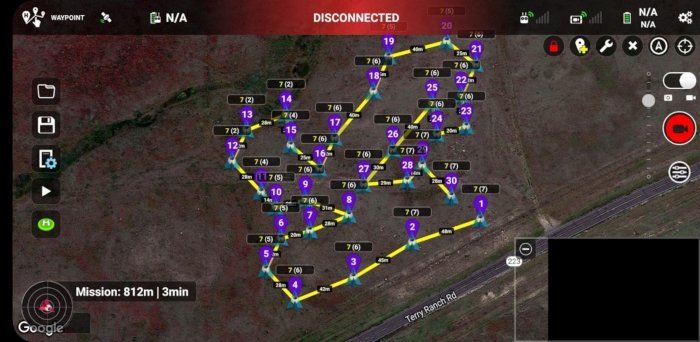

Figure 3: The waypoint flight mission in Litchi’s mission execution application running on an Android smartphone. Unique waypoint IDs are shown in purple and represent the relative order in which images were taken at various points in the study area. The numbers at each waypoint, such as 7(6), indicate the integer values of heights above the ground at which images were taken (first number) and heights above the home point or drone launch site (second number). Notice the distances between successive waypoints that are labeled on the map. Figure 3 is specific to Site 1, though it is similar in appearance to Site 2. Please click here to view a larger version of this figure.

  1. Ground-level image postprocessing.
    NOTE: Directions are available at www.SamplePoint.org in the tutorial section; a supplemental .pdf file is attached.
    1. Download images onto a computer with USB cable or SD card.
    2. Ensure images were taken at correct locations. Various software exists to place images into the GIS software based on the metadata within the geotagged images.
    3. If the images were acquired in multiple study areas, store them in separate folders for image analysis.
  2. UAS image postprocessing
    1. Transfer images saved on a removable microSD card from the UAS to the computer.
    2. Repeat steps 2.4.2 and 2.4.3.

3. Image analysis

NOTE: All Steps can be found in the ‘tutorial’ section on www.SamplePoint.org; a supplemental ‘tutorial.pdf’ file is attached.

  1. In SamplePoint, click Options | Database Wizard | Create/Populate Database.
  2. Name the database based on the study area.
  3. Navigate to the folder containing the desired study area samples and select those to be classified.
  4. Click Done.
  5. Click Options | Select Database and select the *.xls file that SamplePoint generates based on the image selection (this will be in the image).
  6. Confirm the correct number of images were selected in the database when prompted by SamplePoint.
  7. Select the desired number of pixels to be analyzed within each image. This can be done in a grid pattern or randomly. This study used a 6 x 6 grid to select a total of 36 pixels, though more or fewer pixels per image can be classified depending on the desired measurement precision for classification. A recent study found 20–30 pixels per image is adequate for sampling large areas31. The grid option assures pixels will be in the same position if the image is reanalyzed, whereas the random option will randomly generate pixels each time an image is reloaded.
  8. Create a custom Button file for species classification. This list can be generated from the vegetation list recorded in the field prior to image acquisition, or it can be based on other information pertinent to the study area (e.g., seed mix list on reclaimed sites, or ecological site description information, etc.). Ensure a button is created for Bare Ground or Soil and other potential nonvegetation items that may be encountered, such as Litter or Rock. Creating an Unknown button is recommended to allow the analyst to classify species at a later date. The Comment Box in SamplePoint can be used to note the pixels that used this option. Additionally, if the image resolution is not high enough to classify to species levels, creating buttons for functional groups (e.g., Grass, Forb, Shrub) is beneficial.
  9. Begin analyzing the images by clicking the classification button that describes the image pixel targeted by the red crosshair. Repeat this until SamplePoint prompts “That is all the points. Click next image.” Repeat this for all images within the database.
    NOTE: The Zoom feature can be used to help with classification.
  10. When all the images in the database are completely analyzed, SamplePoint will prompt “You have exhausted all the images.” At this point, select OK and then click Options | Create Statistics Files.
  11. Go to the folder containing the database and open the *.csv file that was just created to ensure that the data for all images are stored.

4. Statistical analysis

  1. Chi-square analyses to determine differences between sites
    1. Because the same number of images (primary sampling units) and pixels (secondary sampling units) are collected and analyzed at both sites, the comparison between the two sites can be considered a product of multinomial design.
    2. Using the *.csv file created in step 3.11, calculate the sum of points classified for each classification category.
    3. Perform chi-square analysis on the point sums. If Site 1 and Site 2 are similar to each other, an approximately equal number of pixels classified as each cover type will be evident on both sites18.
  2. Regression to compare UAS versus ground-level images
    1. Using the *.csv files created in step 3.11, copy and paste the average percent cover from each image and align the UAS image data with the ground-level image data.
    2. Perform regression analysis in a database program.

Subscription Required. Please recommend JoVE to your librarian.

Representative Results

UAS image acquisition took less than half the time of ground-based image collection, while the analysis time was slightly less with ground-based images (Table 1). Ground-based images were higher resolution, which is likely the reason they were analyzed in less time. Differences in walking path times between sites were likely due to start and end points (launch site) being located closer to Site 1 than Site 2 (Figure 1). Differences in acquisition time between platforms was principally due to the UAS flying speed being 2–3x faster than the technician walking speed (Figure 4).

Acquisition Time (mm:ss)/Site Analysis Time (mm:ss)/Site Analysis Time (mm:ss)/Image
Ground-level UAS Ground-level UAS Ground-level UAS
Site 1 18:24 8:14 45:14 47:28 1:31 1:35
Site 2 21:26 8:12 44:58 46:50 1:30 1:34
Mean 19:55 8:13 45:06 47:09 1:31 1:35

Table 1. The amount of time taken for image acquisition and analysis. The start and end times for image acquisition were recorded when the technician and UAV left and returned to the launch point. Image analysis time was based on the start and end of image classification. Time to create flight paths and custom button files in SamplePoint were not recorded.

Figure 4
Figure 4: Aside from waypoint 1, the UAS was able to reach all other waypoints accurately. The handheld imagery was far less accurate than the UAS at reaching waypoints, likely a combination of human error and a lower-quality GPS on the handheld equipment. Figure 4 is specific to Site 1, though performance on Site 2 was similar. Please click here to view a larger version of this figure.

Site 1 and Site 2 were significantly different (p < 0.0001) from each other in terms of vegetation cover, regardless of which image acquisition method was utilized (Table 2). Measured from both UAS and ground-level images, soil, fringed sage, and crested wheatgrass were different between sites (Table 2).

Method Soil Meadow Brome Thistle Fringed Sage Crested Wheatgrass Rock Litter
UAS (28.46)* (1.71) (0) (9.92)* (55.86)* (0.18) (3.69)
Handheld (31.67)* (1.85) (0.09) (8.84)* (53.1)* (0.09) (4.35)*

Table 2: Which categories drove significant differences between Site 1 and Site 2 when images were collected with the UAS and the handheld camera. In both instances sites were significantly different (p < 0.0001). Individual categories with a * are those that were responsible for the differences. Numbers in parentheses indicate the proportion of the chi-square statistics that were accounted for by each category.

All correlation coefficients were strong (>0.5). Litter on both sites was the weakest correlation between UAS vs. ground-level images with a 0.52 correlation coefficient on Site 1 and a 0.58 correlation coefficient on Site 2. This could be due to GSD differences and it being more difficult to assess live or dead litter with coarser GSD. All other ground cover categories had correlation coefficients greater than 0.8 in Site 2 and greater than 0.9 in Site 1 (Figure 5 and Figure 6). Site 1 had higher correlation coefficients than Site 2, likely due to Site 2 being more heterogeneous than Site 1.

Figure 5
Figure 5: Correlation plots for Site 1. The x- and y-axes represent percent total percent cover for each category. Please click here to view a larger version of this figure.

Figure 6
Figure 6: Correlation plots for Site 2. The x- and y-axes represent percent total percent cover for each category. Please click here to view a larger version of this figure.

Supplemental Files. Please click here to download these files.

Subscription Required. Please recommend JoVE to your librarian.

Discussion

The importance of natural resource monitoring has long been recognized14. With increased attention on global environmental issues, developing reliable monitoring techniques that are time- and cost-efficient is increasingly important. Several previous studies showed that image analysis compares favorably to traditional vegetation monitoring techniques in terms of time, cost, and providing valid and defensible statistical data6,31. Ground-level image acquisition can be conducted 7–10x faster than line point intercept18,31. This study and a recent study20 demonstrate that UAS imagery can be collected in 2–3x less time than it takes to acquire handheld imagery. Aerial images obtained from unmanned aerial systems or vehicles are becoming increasingly popular to assess a wide variety of environmental issues33, including habitat destruction and quality34,35, and other forms of vegetation surveys20,36. However, direct comparison of vegetation monitoring from ground-based and UAS-acquired images is not well studied20. These results suggest UAS and ground-based image analysis accuracy and precision are similar. Accounting for both acquisition and analysis, the UAS platform was faster than ground-based by 10 min/site. Because travel costs are the most expensive part of large-scale vegetation monitoring programs4, the ability to rapidly collect monitoring data is critical. The permanence of an image allows for analyses to be conducted long after it is collected6, which suggests that the methods proposed here could allow for robust amounts of data to be collected in short periods of time with the ability to analyze field data at a later date and potentially by multiple individuals or interest groups. Rapid field data collection is important not only for time- and cost-savings, but to ensure monitoring can be completed during short periods where plant phenology renders them readily identifiable (e.g., during blooming)18. While repeat photography has been utilized to study phenological trends over time37,38, the GPS capability of modern cameras and UAS systems can be used to further ensure image acquisition is occurring at the same location (or in very close proximity) over time, enhancing the ability to understand short- and long-term environmental changes.

Advantages of ground-level image collection compared to UAS image collection are: (1) higher resolution imagery, making species identification easier; (2) less concern about wind conditions with a handheld unit than with a UAS; (3) less preparation time needed for flight planning and field set up; (4) less concern about structure avoidance when walking than when flying; (5) less cost for equipment; and (6) less training required to operate the equipment. Advantages of the UAS include: (1) ability to fly at much higher speeds than bipedal locomotion, therefore reducing time to collect data; (2) higher spatial accuracy due to reduction of human error and increased GPS speed; (3) no sampling location bias (e.g., a technician may avoid an intended sample point if it is centered in a puddle, or may adjust the camera angle slightly to include more vegetation); (4) zero ground-disturbance sampling (e.g., obtaining quantitative data on an endangered plant species); (5) easier sampling in difficult terrain (e.g., steep, muddy, dense, or poisonous vegetation cover); (6) larger image size (i.e., images acquired from 7.6 m AGL capture more area than images acquired at 1.3 m AGL); and (7) consistent data collection speed and consistency over time. This study focused on two nearby locations on relatively unchallenging terrain, allowing the technician to avoid fatigue. However, if more walking or more difficult terrain was encountered, the technician’s speed would likely decrease.

Coupling spatially balanced sampling designs with rapid data collection devices like cameras should further increase time- and cost-savings associated with a variety of environmental monitoring programs. Although this study focused on rangelands, spatially balanced sampling designs are effective in other settings, such as clam bed monitoring39, soil sampling40, and reclamation monitoring18,20. The technique demonstrated within this manuscript is widely applicable to vegetation monitoring in other terrestrial ecosystems. It is, however, highly likely that modifications to the method will be required in other ecosystems (e.g., vegetation height, density, and diversity will require different image height and sampling intensities). Although only two dimensions were utilized, BAS is capable of operating in multiple dimensions22 and has been used for underwater surveys41. While coupling TSP with BAS and image analysis may improve time efficiencies for these surveys, camera techniques are likely to change in underwater surveys compared to terrestrial studies, which rely on Nadir imagery.

The results reported here are based solely upon the comparison of the images obtained using software specific to this study (see Supplemental Table, ‘SoftwareUsed.xlsx’). Given the wide-range of cost and capabilities available in the GPS and UAS marketplace, additional cost-benefit analyses to determine tradeoffs among different equipment and software will be useful. For the purposes of this study, images were also taken at predetermined heights based on a recent study20. Additionally, studies to determine optimal above-ground image heights for vegetation monitoring will likely benefit from future research and management. Finally, this study was limited to one timepoint in a fairly homogeneous vegetation community. Future studies in other ecosystems and long-term studies will increase universal understanding of advantages and limitations of UAS vegetation monitoring. Sample sizes in this study were consistent with a previous study18, but more work is likely necessary to determine optimal sampling units in different sized areas as well as in different ecosystems.

Subscription Required. Please recommend JoVE to your librarian.

Disclosures

The authors declare no conflict of interest. The software used in this study was available to authors either as open-source or through institutional permits. No authors are sponsored by any software used in this study and acknowledge that other software programs are available that are capable of doing similar research.

Acknowledgments

This research was funded in majority by Wyoming Reclamation and Restoration Center and Jonah Energy, LLC. We thank Warren Resources and Escelara Resources for funding the Trimble Juno 5 unit. We thank Jonah Energy, LLC for continuous support to fund vegetation monitoring in Wyoming. We thank the Wyoming Geographic Information Science Center for providing the UAS equipment utilized in this study.
