Kupffer Cell Isolation for Nanoparticle Toxicity Testing

doi: 10.3791/52989 Published: August 18, 2015


Liver macrophages, named Kupffer cells, are responsible for the capture of circulating nanoparticles. We describe here a method, of high cell purity and yield, for Kupffer cell isolation. The modified LDH assay is used here to measure the toxicity induced by carbon nanotubes in Kupffer cells.


The large majority of in vitro nanotoxicological studies have used immortalized cell lines for their practicality. However, results from nanoparticle toxicity testing in immortalized cell lines or primary cells have shown discrepancies, highlighting the need to extend the use of primary cells for in vitro assays. This protocol describes the isolation of mouse liver macrophages, named Kupffer cells, and their use to study nanoparticle toxicity. Kupffer cells are the most abundant macrophage population in the body and constitute part of the reticulo-endothelial system (RES), responsible for the capture of circulating nanoparticles. The Kupffer cell isolation method reported here is based on a 2-step perfusion method followed by purification on density gradient. The method, based on collagenase digestion and density centrifugation, is adapted from the original protocol developed by Smedsrød et al. designed for rat liver cell isolation and provides high yield (up to 14 x 106 cells per mouse) and high purity (>95%) of Kupffer cells. This isolation method does not require sophisticated or expensive equipment and therefore represents an ideal compromise between complexity and cell yield. The use of heavier mice (35-45 g) improves the yield of the isolation method but also facilitates remarkably the procedure of portal vein cannulation. The toxicity of functionalized carbon nanotubes f-CNTs was measured in this model by the modified LDH assay. This method assesses cell viability by measuring the lack of structural integrity of Kupffer cell membrane after incubation with f-CNTs. Toxicity induced by f-CNTs can be measured consistently using this assay, highlighting that isolated Kupffer cells are useful for nanoparticle toxicity testing. The overall understanding of nanotoxicology could benefit from such models, making the nanoparticle selection for clinical translation more efficient.


or Start trial to access full content. Learn more about your institution’s access to JoVE content here

The field of nanotoxicology research aims to characterize the biological effect of nanoparticles. Toxicological studies based on in vivo investigations remain the most accurate methods. However, their use is limited by their cost, labor and time requirements1. As alternatives, in vitro assays have been used because of their simplicity and the possibility of developing high-throughput in vitro testing platforms2 - so extending the number of conditions tested. Most nanotoxicological studies are performed using in vitro assays with immortalized cell lines. However, there are concerns regarding the extrapolation of these experimental findings to in vivo toxicological effects3. Indeed, the properties of immortalized cell lines can be significantly different from tissues they were derived from, e.g. genetic transformation4, deterioration of key morphological features5, loss of cellular polarity6 and functional alterations such as the regulation of inflammatory mediators7.

Kupffer cells are the most abundant macrophage population in the body and are directly in contact with blood by lining the wall of liver sinusoids. As part of the reticulo-endothelial system (RES), these macrophages are responsible for the capture of circulating nanoparticles and therefore, constitute a highly suitable model to study nanoparticle toxicity. In vivo8 and in vitro9 studies of inflammatory responses associated with Kupffer cells exposed to nanoparticles have been published elsewhere. Kupffer cells have also been involved in the pathogenesis of liver diseases such as alcoholic liver disease10, liver fibrosis11 or viral hepatitis12. It was reported that isolated Kupffer cells provide useful insight to describe cellular mechanisms involved in liver disruption13,14.

Several methods have been reported to isolate and purify Kupffer cells. Cell isolation can result from mechanical or enzymatic dissociation15. Collagenase digestion shows the advantage of conserving the functional integrity of Kupffer cells, while leading to high Kupffer cell yield16. Many experimental approaches, varying in complexity and costs, have been used to separate Kupffer cells from other liver cell populations. For example, Kupffer cell purity can be achieved by immunoaffinity17, flow electrophoresis18, selective adhesion16 or by centrifugal techniques16, which select cells according to their size and density. A combination of these methods can be chosen to increase the purity of the population16. There is no consensus about the ideal method for Kupffer cell isolation, as it mostly depends on the application and available equipment. However, in the case of nanoparticle toxicity testing, the simplicity and high yield of the technique associated with the functional preservation of Kupffer cells appeared to be most suitable for this application.

The Kupffer cell isolation method reported here is based on a 2-step perfusion method followed by purification on density gradient. The method was modified from the original protocol developed by Smedsrød et al.16 designed for rat liver cell isolation. Most studies reported and described the isolation of Kupffer cells from rat livers. Herein, we describe a method to isolate Kupffer cells from mouse liver, at a high yield and purity. The use of mice reduces the experiment cost and allows the processing of several livers to obtain large amounts of Kupffer cells for nanoparticle toxicity testing.

In the following protocol, Kupffer cells were incubated with functionalized carbon nanotubes (f-CNTs). The unique physico-chemical properties of CNTs –i.e. high length to diameter ratio and large surface area, have made CNTs interesting candidates as vectors for therapy and diagnosis purposes. However, concerns have been raised regarding the toxicity of CNTs19, and the development of new in vitro tests aims at increasing the understanding of CNT biological effect. Toxicity in Kupffer cell is associated with a lack of structural integrity of the cell membrane. This is measured by the loss of the cytoplasmic enzyme LDH from the cell into the supernatant. The principle of this method, therefore, is to remove any released LDH and measure what is left in the cells20. This is done in preference to measuring the released LDH in the supernatant because the presence of CNTs in the supernatant interferes with the assay21.

We propose the use of this simple and cost effective Kupffer cell isolation method to isolate high number of functional Kupffer cells. This allows the screening of toxicity of a range of nanoparticles, in a relevant primary macrophage model.

Subscription Required. Please recommend JoVE to your librarian.


or Start trial to access full content. Learn more about your institution’s access to JoVE content here

All animal experiments were executed in compliance with all relevant guidelines, regulations and regulatory agencies. The protocol being demonstrated was performed under the guidance and approval of the UK Home office regulation

1. Perfusion and Cell Collection (Figure 1)

Figure 1

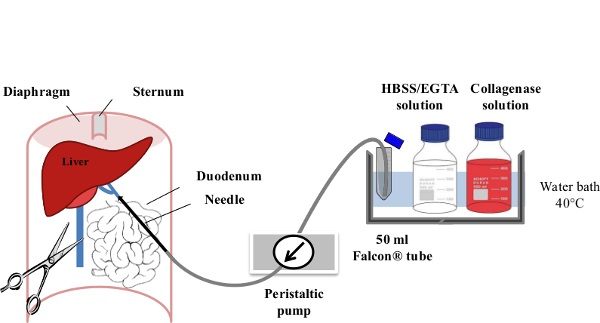

Figure 1: Liver Perfusion. After anaesthesia of the mouse, the digestive tract is laterally moved to the left of the abdomen in order to make the portal vein (PV) accessible. The PV is cannulated using a slow flow rate (1-3 ml/min) of EGTA/HBSS Solution and the inferior veina cava (IVC) is immediately ruptured to avoid any excess pressure within the liver. Within the first minute of perfusion, the flow rate is gradually increased to 7 ml/min. The Collagenase Solution is then perfused at 10 ml/min until its full digestion is achieved.

  1. Prepare freshly all reagents described in the material table.
  2. Warm the EGTA (Ethylene Glycol Tetra-acetic Acid)/HBSS (Hank's Balanced Salt Solution) Solution (50 ml per mouse) and the Collagenase Solution (100 ml per mouse) for 30 min at 40 °C.
  3. Rinse the pump flexible tubing first with 70% ethanol. Pour 40 ml of EGTA/HBSS Solution into a centrifuge tube immersed in the water bath and rinse the pump flexible tubing with pre-warmed EGTA/HBSS Solution.
  4. Perform terminal anesthesia using a barbiturate to reliably produce unconsciousness before respiratory depression and death. Inject phenobarbitone at 1 mg/kg, i.p. into a female or male CD1 mouse (35-45 g). Confirm the anesthesia by toe pinching.
  5. Shave abdominal hairs and sterilize the abdominal surface using 70% ethanol solution.
  6. Cut through the abdominal cavity and expose the portal vein and inferior vena cava by moving the intestine laterally to the left of the abdomen.
  7. Start the pump at a speed of 1-3 ml/min with EGTA/HBSS Solution and cannulate the portal vein using a 23 g butterfly needle (wings cut). Clamp the section of the portal vein cannulated with the 23 G needle and then flip the serrefine forceps at the surface of the opened mouse abdomen. The liver should quickly pale within the first 30 sec of EGTA/HBSS Solution perfusion.
  8. Rapidly incise the lower part of the inferior vena cava to avoid excess pressure building in the liver, and then increase the flow rate gradually to 7 ml/min, over the first minute of perfusion. The animal dies due to bleeding secondary to vena caval venipuncture.
  9. When less than 5 ml of EGTA/HBSS Solution is remaining into the centrifuge tube, fill it up with Collagenase Solution (40-50 ml). Increase the flow rate gradually to 10 ml/min, over 30 sec.
  10. Make the liver swell by applying pressure to the inferior vena cava, using tweezers, for 5-10 sec intervals. This can be done periodically (5-10 times during digestion). This step will improve the liver cell dissociation and reduce the perfusion time with collagenase.
  11. When less than 10 ml of Collagenase solution remains within the centrifuge tube, pour 40-50 ml of pre-warmed Collagenase solution into the centrifuge tube.
  12. After 10-15 min of perfusion and about 70-80 ml of Collagenase Solution perfused, apply a small pressure on the surface of the liver with a forceps. A print of the pressure indicates that liver cells are dissociated.
  13. Remove the liver from the abdominal cavity as one piece and place it in a centrifuge tube containing 20-30 ml of Kupffer Cells Isolation Medium. Keep liver cells on ice or at 4 °C for a maximum period of 3 hr to avoid affecting liver cell viability.
  14. Repeat the perfusion procedure on several animals if needed, while keeping the perfused liver on ice. Pool one to three livers for purification and proceed with stage 3.

2. Preparation of the Density Gradient for Centrifugation (Figure 2)

Figure 2

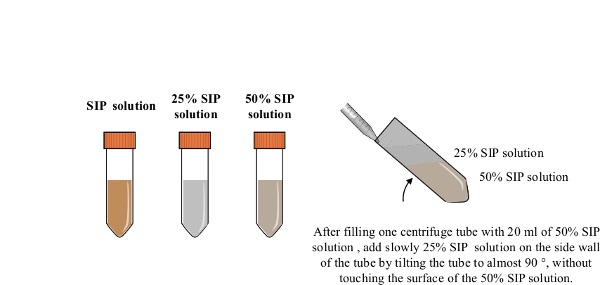

Figure 2: Preparation of the density gradient. All procedures are carried out under sterile condition. The SIP is prepared by mixing 15.3 ml of coated silica particle solution with 1.7 ml of 10 x PBS. A 5 ml of SIP are mixed with 15 ml of PBS to make 20 ml of 25% SIP solution. 10 ml of SIP are mixed with 10 ml of PBS to make 20 ml of 50% SIP solution. A centrifuge tube containing the 50% SIP solution (20 ml) is tilted and the 25% SIP solution (20 ml) is slowly added using a serological 25 ml pipette.

  1. Proceed with the following steps (section 2., 3. & 5.) under sterile condition and keep cells on ice or at 4 °C. Prepare the SIP (Solution of Isotonic coated silica Particles) by mixing 15.3 ml of coated silica particle solution with 1.7 ml of 10 x PBS.
  2. To make 20 ml of 25% SIP solution, mix 5 ml of SIP with 15 ml of PBS. To make 20 ml of 50% SIP solution, mix 10 ml of SIP with 10 ml of PBS.
  3. Fill one centrifuge tube with 20 ml of the 50% SIP solution. Tilt the centrifuge tube at an angle close to 90° and add slowly the 25% SIP solution (20 ml) on the side wall of the tube using a 25 ml serological pipette, without touching the surface of the 50% SIP layer. When adding the 25% SIP solution, progressively reduce the angle of the tube. Keep the density gradient on ice until use.

3. Kupffer Cell Purification (Figure 3)

Figure 3

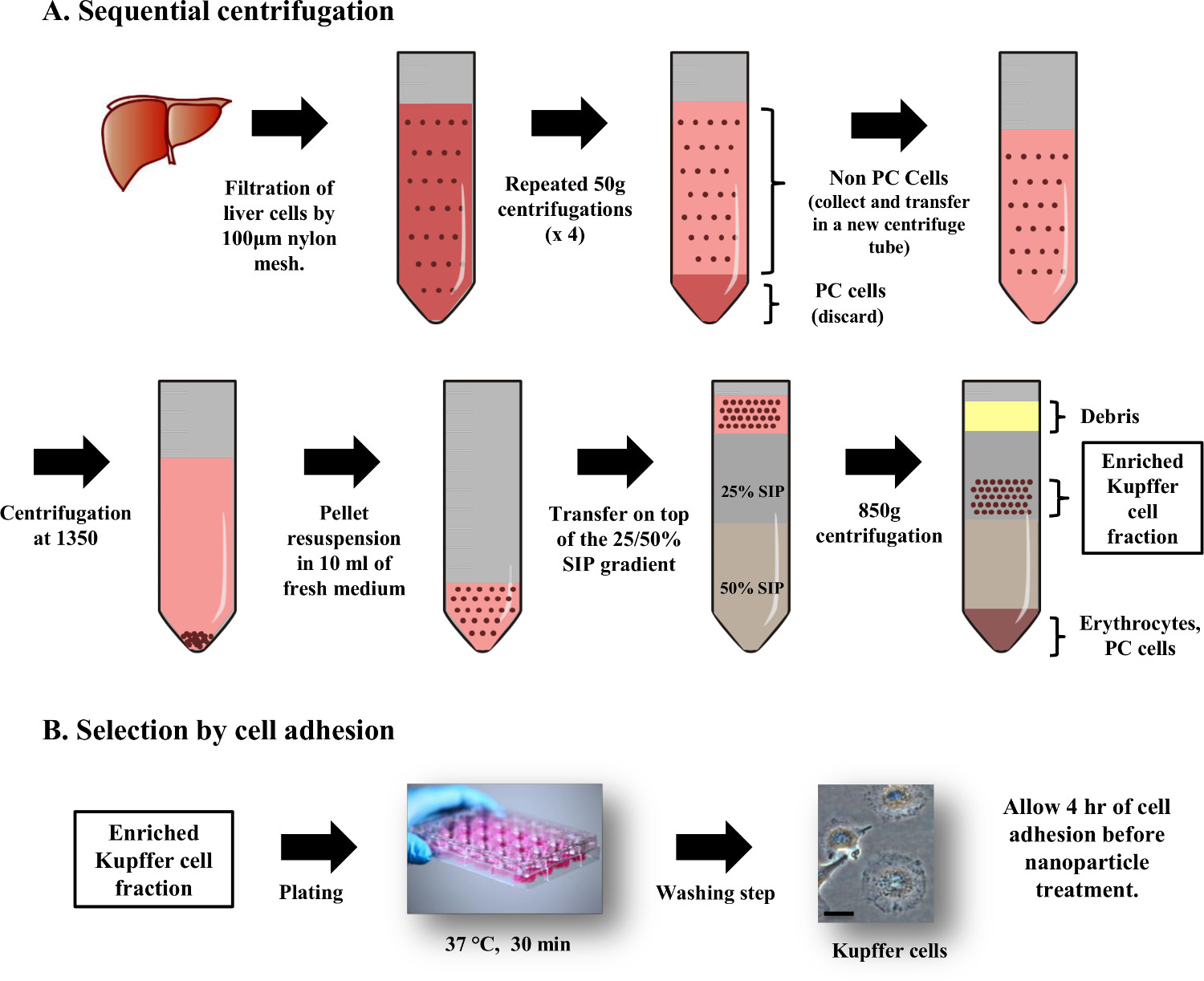

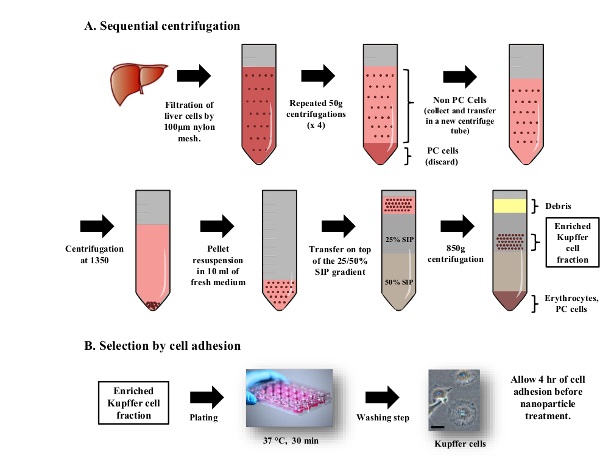

Figure 3: Purification of Kupffer Cells by density gradient centrifugation and cell adhesion. All procedures are carried out under sterile condition. (A) After rupture of the Glisson’s capsule, liver cells are filtered through a 100 µm strainer. The suspension is centrifuged at x 50 g to discard hepatocytes (pellets) and collect the non-parenchymal cell fraction (supernatant). This step is repeated 3 times. Non-parenchymal cells are added on top of a discontinuous isotonic gradient and centrifuged at 800 x g for 15 min. Kupffer cells collected from the 25% SIP cushion are purified further by cell adhesion selection. (B) Cells are plated in 24-well plate and incubated at 37 °C and 5% CO2 for 30 min. Non-adherent cells are washed once with 500 µl of HBSS. Kupffer cells display their adherent morphology 4 hr after plating, when f-CNTs can be added to the cells. The scale bar represents 25 µm. Please click here to view a larger version of this figure.
