Use of a Percutaneous Ventricular Assist Device/Left Atrium to Femoral Artery Bypass System for Cardiogenic Shock

Summary

The following article describes the stepwise procedure for placement of a device (e.g., Tandemheart) in cardiogenic shock (CS) that is a percutaneous left ventricular assist device (pLVAD) and a left atrial to femoral artery bypass (LAFAB) system that bypasses and supports the left ventricle (LV) in CS.

Abstract

The left atrial to femoral artery bypass (LAFAB) system is a mechanical circulatory support (MCS) device used in cardiogenic shock (CS) that bypasses the left ventricle by draining blood from the left atrium (LA) and returning it to the systemic arterial circulation via the femoral artery. It can provide flows ranging from 2.5-5 L/min depending on the size of the cannula. Here, we discuss the mechanism of action of LAFAB, available clinical data, indications for its use in cardiogenic shock, steps of implantation, post-procedural care, and complications associated with the use of this device and their management.

We also provide a brief video of the procedural component of device therapy, including the pre-placement preparation, percutaneous placement of the device via transseptal puncture under echocardiographic guidance and the post-operative management of device parameters.

Introduction

Cardiogenic shock (CS) is a state of tissue hypoperfusion with or without concomitant hypotension, in which the heart is unable to deliver sufficient blood and oxygen to meet the body's demands, resulting in organ failure. It is classified into stages A to E by the Society of Cardiovascular Angiography and Interventions (SCAI): stage A - patients at risk for CS; stage B - patients at beginning stage of CS with hypotension or tachycardia without hypoperfusion; stage C - classic CS with cold and wet phenotype requiring inotropes/vasopressors or mechanical support to maintain perfusion; stage D - deteriorating on current medical or mechanical support requiring escalation to more advanced devices; and stage E - includes patients with circulatory collapse and refractory arrhythmias who are actively experiencing cardiac arrest with ongoing cardiopulmonary resuscitation¹. The most common causes of CS are acute MI (AMI) representing 81% of cases in a recently reported analysis², and acute decompensated heart failure (ADHF). CS is classically characterized by congestion and impaired perfusion, manifested by elevated filling pressures (pulmonary capillary wedge pressure [PCWP], left ventricular end-diastolic pressure [LVEDP], central venous pressure [CVP], and right ventricular end-diastolic pressure [RVEDP]), decreased cardiac output (CO), cardiac index (CI), cardiac power output (CPO), and end-organ malfunction³. In the past, the only available treatments for AMI complicated by CS were early revascularization and medical management with inotropes and/or vasopressors⁴. More recently, with the advent of mechanical circulatory support (MCS) devices and the recognition that escalation of vasopressors is associated with increased mortality, there has been a paradigm shift in the treatment of both AMI and ADHF related CS^5,6.

In the current era of percutaneous ventricular assist devices (pVAD), there are a number of MCS device platforms/configurations available, which provide univentricular or biventricular circulatory and ventricular support with and without oxygenation capability⁷. Despite steady increases in the use of pVADs to treat both AMI and ADHF CS, mortality rates have remained largely unchanged⁵. With emerging evidence for possible clinical benefits to early unloading of the left ventricle (LV) in AMI⁸ and early use of MCS in AMI CS⁹, the use of MCS continues to increase.

The Left Atrial to Femoral Artery Bypass (LAFAB) MCS device bypasses the LV by draining blood from the left atrium (LA) and returning it to the systemic arterial circulation via the femoral artery (Figure 1). It is supported by an external centrifugal pump that offers 2.5-5.0 liters per minute (L/m) flow (new generation pump, designated as LifeSPARC, capable of up to 8 L/m flow) depending on the size of the cannulas. Once the blood is extracted from the LA via the transseptal venous cannula, it passes through the external centrifugal pump which recirculates the blood back into the patient's body via the arterial cannula placed in the femoral artery.

Figure 1: LAFAB setup. Image courtesy of TandemLife, a wholly owned subsidiary of LivaNova US Inc. Please click here to view a larger version of this figure.

Protocol

This procedure and protocol have been approved by the institutional review board and the United States Food and Drug Administration (FDA).

1. Patient criteria

1. Include patients with CS stage B and above as defined by the SCAI consensus statement¹.
2. Include as bridge to transplant or durable left ventricular assist system in stage D heart failure.
3. Include as bridge to recovery in AMI complicated by CS.
4. Exclude contra-indication to systemic anticoagulation.
5. Exclude life-expectancy <6 months (active malignancy).
6. Exclude if there is the presence of LA thrombus.
7. Exclude if patients have peripheral vascular disease (PVD) with small arteries that cannot accommodate the large cannulas.
8. Exclude if patients have an irreversible neurological injury/coma.
9. Exclude if patients have severe aortic insufficiency (AI).
10. Exclude if patients have a ventricular septal defect (VSD).
    NOTE: The placement of the LAFAB device includes three separate processes: 1) setting up the controller and the pump; 2) placement of arterial and venous cannulas and transeptal access under transesophageal echocardiogram (TEE) or intracardiac echocardiogram (ICE); and 3) connecting the system to the circuit.

2. Placement of the left atrium to femoral artery bypass device

1. Setting up the controller
   NOTE: This step can be performed as the patient is being transported to the lab and the table is being set up for the procedure. Usually, the device representative and perfusionist team is present to assist with the process.
   1. Open the box and initiate the controller setup with the following steps.
   2. Prior to powering on the controller, place 2 batteries in the controller by opening the battery door. Insert each battery by placing the logo facing away from the controller screen. The groove on the battery should align with the key battery housing. Make sure that the batteries are well seated.
   3. Install the other 2 batteries in the dock following the same process.
   4. Attach the controller to the dock, verify it is fully seated on the dock and connect the power cord to the power outlet and plug it in to the wall socket for AC power. The controller can operate in the dock connected to AC power or when separated from the dock, it can operate using battery power.
   5. Mount the dock and controller on an intravenous pole using the clamp.
   6. Turn on the controller using the buttons on the side.
2. Setting up the pump – Priming the system
   NOTE: Pump priming requires two people — the primary operator is scrubbed (sterile operator) and stays in the sterile field. The secondary operator (non-sterile operator) handles the controller in the non-sterile field. Pump de-airing is a crucial step and needs to be performed very carefully.
   1. Have the secondary operator open the package and present the priming tray to the primary operator. Have the primary operator then open the sterile drape and lay out the components of the priming tray on the sterile table. The pump, oxygenator and green oxygen tubing are included in the tray.
   2. Have the primary operator hand the pump driveline to the secondary operator who then plugs it to the controller.
   3. Have the sterile operator remove the protective caps on the tubing and inserts the ends to the basin. The blue tubing is the inflow tubing which goes into the blue port. The red tubing is the outflow tubing which goes into the red port of the basin.
   4. Place the basin in the fill ready position tilted back and away from the blue port.
   5. Have the secondary operator fill the basin with 4 liters of saline.
   6. Have the primary operator lift the basin and tilt it back to prime ready position to gravity prime the pump.
   7. Make sure that all the air has been removed from the tubing and the pump. Gently tap the tubing and the pump to remove any small air bubbles. This is a crucial step.
   8. Then turn on the pump from the non-sterile end.
   9. Remove any tiny air bubbles in the oxygenator by gently tapping the oxygenator and positioning the outflow tubing at a higher level (12 o’clock position) for the air bubbles to rise above and escape out.
   10. Stop the pump once all the air bubbles are removed.
   11. Clamp the inflow and outflow tubing. Remove the inflow and outflow tubing from the basin and then attach the green oxygen supply tubing to the gas in port on the oxygenator. The circuit is now ready.
3. Transseptal access^10,32
   1. Prepare and drape the patient in a sterile manner.
   2. Perform the procedure under general anesthesia with the anesthesia team.
   3. Once the patient is intubated and sedated adequately, pass the TEE probe into the esophagus and obtain the basic images. If using ICE, then obtain the images after venous access.
   4. Identify the ideal spot for septostomy on the inter-atrial septum (IAS) using TEE or ICE. Use the bicaval view on TEE showing the membranous part of the IAS at the region of the fossa ovalis to expose the IAS better.
   5. Confirm the absence of any thrombus in the LA where the inflow cannula will be positioned using TEE or ICE.
   6. Obtain femoral venous access via ultrasound guidance with modified Seldinger technique and insert an 0.035” guidewire
   7. Advance the guidewire to the inferior vena cava (IVC) – right atrial junction and then direct it towards the IAS under fluoroscopic and TEE or ICE guidance. Using multiple angiographic projections (Right or Left Anterior Oblique), identify the optimal site for transeptal puncture. Ideally, it should be done in the region of the foramen ovale to minimize complications.  In patients with thick or aneurysmal septa or an IAS which has been previously patched or instrumented surgically or closed percutaneously, one may consider use of an energized or radiofrequency transseptal needle to insure precise puncture without needle deflection.
   8. Anticoagulate the patient (ACT more than 250 seconds). Perform transseptal puncture using a transseptal needle, insert guidewire to the LA.
   9. Dilate the venous access and the IAS with a 2-stage dilator. Insert the transseptal cannula and advance it into LA, remove introducer and guidewire, wait for back-bleed, and clamp. Secure cannula to the patient.

Figure 2: TEE with biplane in the bicaval view showing the SVC to the right, the interatrial septum horizontal in the middle with the left atrium above and the right atrium below, and the IVC towards the left. (A) - Guidewire passing into the SVC. (B) - Sheath passing over the wire into the SVC. (C) - Transseptal needle passing through the sheath. (D) - Transseptal needle tenting the interatrial septum. (E) - Sheath passing through the interatrial septum into the left atrium, after the needle has been withdrawn. Picture courtesy⁴⁷
SVC – Superior Vena Cava, IVC – Inferior Vena Cava, RA – Right Atrium, LA – Left Atrium

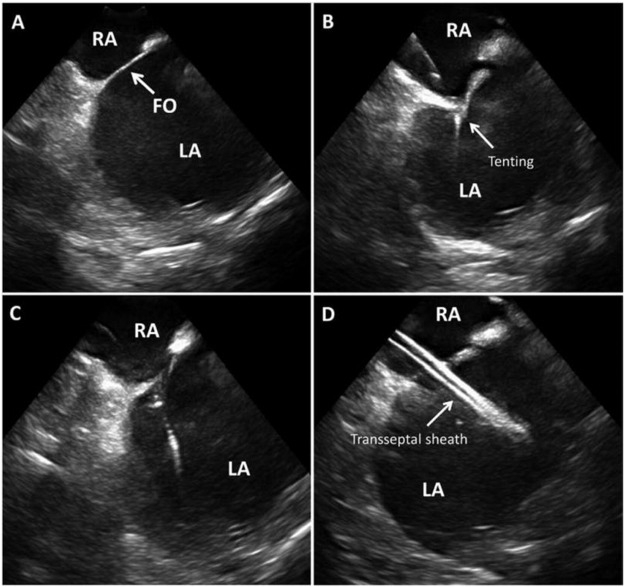

Figure 3: ICE for transeptal access ICE guided trans septal access showing inter-atrial septum and fossa ovalis (FO) in (A), septal tenting as the needle engages in (B), loss of tenting as the needle crosses in (C), transseptal sheath in the left atrium in D. Picture courtesy⁴⁸ .
RA – Right Atrium, LA – Left Atrium, FO – Foramen Ovale

4. Arterial access
   1. Obtain femoral arterial access via the modified Seldinger technique using ultrasound and angiographic guidance at the level of the femoral head. Insert an 0.035” guidewire.
   2. Consider use of “pre-closure” technique using the variously commercially available vascular access closure devices prior to upsizing arterial access.
   3. Serially dilate the arterial access site appropriate to the size of the arterial cannula selected. Insert the arterial cannula, remove the introducer and guidewire, wait for back-bleed, and then clamp. Secure the cannula to the patient using the holders.
5. Connecting the components
   1. Make wet-to-wet connections to the cannulas to avoid introduction of any air bubbles in the circuit. This is a crucial step.
   2. Use saline immersion or constant infusion of saline (“waterfall”) over the two ends of the cannulas as they are being connected.
   3. Connect the transseptal cannula (venous) to the pump inlet which is marked in blue and the arterial cannula to the pump outlet which is marked in red.
   4. First, remove the venous clamps and start the pump (from the controller box). Then release the other clamps sequentially, constantly checking for any air, releasing the arterial clamp last.
   5. Adjust pump speed (by adjusting the RPMs) to optimize flow. Confirm the position of the cannula under fluoroscopy and TEE or ICE and secure the circuit to patient.
   6. Maintain therapeutic anticoagulation (activated clotting time ACT at 180–220s or activated partial thromboplastin time aPTT at 65–80s) for as long as the pump is in place to prevent pump thrombosis and stroke. This is a crucial step.

3. Right Atrium to Pulmonary Artery Bypass (RAPAB) system placement

1. Initiate the controller, prime the lower chamber of the pump and check for any air bubbles - same steps described as above.
2. Prime the upper chamber of the pump, check for any air and clamp it - same steps described as above.
3. Patient procedure
   1. Obtain venous access at the right internal jugular (RIJ) vein via modified Seldinger technique under ultrasound guidance.
   2. Insert a Pulmonary Artery (PA) Catheter with a 0.035" lumen and advance it to the main PA just before the bifurcation. Insert a stiff-bodied 0.035" guidewire and remove the PA Catheter.
   3. Anticoagulate the patient (ACT > 250 s).
   4. Dilate the venous access site sequentially using the stepwise dilators provided in the package until the desired size is reached (29 French or 31 French).
   5. Insert the venous cannula (e.g., ProtekDuo) over the guidewire.
   6. Remove the guidewire, wait for back-bleed, and then clamp the distal port which is marked as "Distal."
   7. Remove the hemostasis cap, wait for back-bleed, and clamp the proximal port which is marked as "Proximal." Secure the cannula to patient via sutures.
   8. Verify the cannulas and make wet-to-wet connections from the pump to the cannula.
   9. Connect the proximal cannula to the pump inlet which is marked in blue and the distal cannula to the pump outlet which is marked in red. Turn on the pump (from the controller).
   10. Release clamps sequentially, constantly checking for any air bubbles. Adjust pump speed (by controlling the RPMs) to optimize flow.
   11. Confirm cannula position under fluoroscopy (may use TEE guidance to confirm position in the main PA) and secure the circuit to patient. Maintain therapeutic anticoagulation (ACT at 180-220 s; aPTT at 65-80 s).

4. Device removal

NOTE: Once the patient's end organ function has improved and hemodynamics have stayed stable with either LV recovery or advanced therapies such as durable LVAD placement/transplant, the device can be removed.

1. Before removing the device, slowly turn down the speed by 0.5 L/min in a stepwise manner, carefully observing the hemodynamics to make sure there is adequate CO and normal filling pressures with less support (also known as the ramp down or turn down study).
2. Turn off the pump once the turndown study is successful.
3. Make sure the ACT is < 150 seconds before removing the arterial cannula. Tighten the previously placed intravascular suture to occlude the arteriotomy site or manual pressure can be held for at least 40 minutes to ensure hemostasis.
4. Withdraw the transseptal cannula into the IVC and remove it slowly from the femoral vein. Apply a figure of 8 suture to the venous site and additionally, hold manual pressure over the site to achieve hemostasis.
   NOTE: The atrial septal defect (ASD) is usually small and is not closed routinely.
5. Post procedure, perform continuous monitoring of patient's hemodynamics and end organ function to ensure stability.
6. Removal of RAPAB.
   1. Similar to the LAFAB removal, when the patient's end-organ function has stabilized with recovery or advanced therapies, slowly turn down the pump by 0.5 L/min, carefully observing the hemodynamics.
   2. Turn off the pump when turn-down study is successful.
   3. Once ACT is < 150 seconds, remove the venous cannula from the neck and place a figure of 8 suture to secure the puncture site. Hold manual pressure in addition to the suture to achieve complete hemostasis.
   4. Post removal, closely monitor patient's hemodynamics and end-organ function to ensure stability.

Complication	Risk factors	Timing of occurrence	Precaution	Management
Cardiac perforation and tamponade	Inadvertent advancement of needle or dilator or sheath along the posterior free wall of left atrium.	During transseptal puncture, placement of inflow cannula	Accurate assessment of inter-atrial septum on TEE or ICE and optimizing the site and angle of transseptal puncture via angiography and echo.	Immediate pericardiocentesis to relieve tamponade. May need surgical intervention.
Acute limb ischemia distal to arterial cannulation	Small caliber vessels housing large cannulas, pre-existing peripheral arterial disease	Immediately post procedure	Peripheral angiogram prior to cannulation.	Placement of distal perfusion catheter, vascular surgery assistance in severe cases.
Hemolysis, retroperitoneal bleeding, vascular complications such as pseudoaneurysm formation.	Higher pump speeds, pump thrombosis, DIC, anticoagulation	Anytime on the pump	Optimize pump speed for every patient individually. Avoid supratherapeutic anticoagulation.	Reducing pump speed, maintaining therapeutic range of anticoagulation.
			Optimal site of arterial access at the femoral head in the common femoral artery.
Residual atrial septal defect	Multiple attempts for transseptal access	After decannulation		Hemodynamically significant defects can be closed percutaneously.

Table 1: Complications of LAFAB device³³.

Representative Results

Clinical applications of LAFAB device
The technique and feasibility of a percutaneous trans-atrial left ventricular bypass system were first described in the 1960s by Dennis et al.^11,12. However transseptal puncture was not initially widely adopted due to complications with the septostomy technique. Over the last decade, with advancements in the field of percutaneous interventions, operators have accumulated experience with atrial septostomy, which has led to a resurgence of the transseptal ventricular assist device or LAFAB device.

From the initial clinical studies conducted in the 1990s, the LAFAB strategy has demonstrated a high level of myocardial preservation with larger decrease in infarct size, and greater LV unloading in AMI CS, as compared to the intra-aortic balloon pump (IABP)¹³.

LAFAB device for cardiogenic shock
The LAFAB circuit is most widely used in the setting of CS, where it has been shown to be safe and effective in augmenting CO¹⁴. A 2006 randomized trial comparing the LAFAB device to IABP in CS¹⁵ in 42 patients demonstrated that the LAFAB device was more effective in lowering PCWP and improving CI (1.2 ± 0.8 [P < .05 vs baseline]), although mortality did not differ between the two groups. The incidence of severe adverse events was not significantly different between the two groups in this small cohort. Another trial comparing IABP and LAFAB showed significant improvement in cardiac power index with the LAFAB device (0.22 to 0.37 W/m², p<0.001), but with a trend towards more complications and no mortality benefit in the LAFAB group¹⁶. More patients in the LAFAB group experienced significantly higher acute limb ischemia necessitating revascularization (n=7 vs. n=0, P=0.009) and bleeding complications (n=19 vs. n=8, P=0.002). There was also a trend towards increased incidence of disseminated intravascular coagulopathy in the LAFAB group. More recently, Kar et al. published a study of 117 patients who underwent LAFAB implantation for severe CS refractory to IABP and vasopressor therapy¹⁸. Eighty patients had ischemic cardiomyopathy, and 37 had non-ischemic cardiomyopathy. There was an immediate improvement in hemodynamics and end organ perfusion in both groups. CI increased from 0.53 L/min·m² to 3.0 L/min·m², p<0.001 and PCWP decreased from 31.53 ± 10.2 mmHg to 17.29 ± 10.82 mmHg, p < 0.001). Mortality rates at 1 and 6 months were 40.2% and 45.3% respectively.

Parameter	Pre-implantation IABP	Pre-implantation VAD	P-value	Post-implantation IABP	Post-implantation VAD	P-value
Cardiac output (L/min)	3.0 (2.5–4.0)	3.5 (3.3–4.2)	0.29	3.3 (2.9–4.3)	4.5 (4.0–5.4)	0.007
CI (L/min/m2)	1.5 (1.3–2.0)	1.7 (1.5–2.1)	0.35	1.7 (1.5–2.1)	2.3 (1.9–2.7)	0.005
Blood pressure mean (mmHg)	64 (57–74)	63 (51–70)	0.50	67 (62–84)	74 (70–84)	0.38
CPI (W/m2)	0.22 (0.18–0.30)	0.22 (0.19–0.30)	0.72	0.28 (0.24–0.36)	0.37 (0.30–0.47)	0.004
SVR (dyn×s×cm−5)	1440 (1034–1758)	1049 (852–1284)	0.16	1388 (998–1809)	1153 (844–1425)	0.08
Heart rate (beats/min)	122 (92–130)	113 (107–121)	0.57	115 (90–125)	105 (100–116)	0.94
PCWP (mmHg)	27.0 (20.0–30.0)	20.0 (18.0–23.0)	0.02	21.5 (17.0–26.0)	16.0 (12.5–19.0)	0.003
Central venous pressure (mmHg)	13.0 (11.0–16.5)	11.0 (9.0–15.3)	0.29	12.0 (10.0–17.5)	10.0 (8.0–12.0)	0.06
PAP mean (mmHg)	32.5 (27.5–38.0)	28.0 (24.5–34.8)	0.45	28.5 (25.5–33.5)	24.5 (20.0–26.0)	0.007
Serum lactate (mmol/L)	3.8 (3.5–6.7)	4.5 (3.1–6.5)	0.53	3.25 (2.7–7.0)	2.8 (2.3–3.5)	0.03
Standard base excess (mmol/L)	−6.8 [−8.3–(−3.9)]	−5.1 [−7.5–(−4.4)]	0.74	−4.3 [−8.8–(−2.3)]	−4.3 [−6.1–(−3.3)]	0.28
pH	7.34 (7.28–7.38)	7.28 (7.24–7.36)	0.50	7.36 (7.28–7.41)	7.33 (7.31–7.40)	0.49

Table 2: Table of results for hemodynamic improvement post LAFAB compared with intra-aortic balloon pump. Adapted from Thiele et al.¹⁷.

A 10-patient report also demonstrated successful LAFAB device use in patients with severe aortic stenosis (AS) and CS¹⁷. In this case series, the LAFAB device was used as a temporizing measure to stabilize hemodynamics and end-organ function prior to definitive valve replacement. Eight patients received it in the cardiac catheterization lab before surgical valve replacement with improved renal function prior to surgery and 2 patients received the device support in the operating room after valve replacement. Overall, 3 patients died¹⁷.

LAFAB device as a bridge to transplant/durable VAD
Another important application of the LAFAB device is in end-stage heart failure, where they are used as a bridge to definitive therapy - durable left ventricular assist device (LVAD) or cardiac transplantation¹⁹.

In a series of 25 patients with CS²⁰, 44% of patients underwent placement of durable LVAD of which 30% recovered, and 36% died on support. The mean duration of LAFAB support was 4.8 ± 2.1 days. Fifty six % of patients experienced device-related complications, of which 90% were vascular access complications. Gregoric et al. reported a series of 9 patients with end-stage cardiomyopathy and refractory shock who were bridged with the LAFAB device to a durable LVAD. Eight of these 9 patients were supported with IABP prior to placement of LAFAB device. Mean duration to durable LVAD was 5.9 days. All 9 patients with CS who received the LAFAB device showed improvement in their hemodynamics and end-organ function on LAFAB support before undergoing LVAD implantation²¹.

In another series of 5 critically ill patients with CS²², the LAFAB device was placed emergently for LV support as a bridge to transplantation. The mean duration of support was 7.6 ± 3.2 days, and all 5 patients underwent cardiac transplantation successfully. No device-related complications were reported in this cohort.

Agarwal et al. in 2015 described a rare, interesting case of durable LVAD thrombosis with CS treated successfully with fibrinolytic therapy and temporary support with LAFAB²³.

LAFAB device for high-risk percutaneous interventions
The LAFAB device has been studied and utilized extensively for high-risk percutaneous coronary interventions (HRPCI)^25,26,27,28 with device-related vascular complications within acceptable ranges compared to other comparable devices. In a recent series of 37 patients who underwent LAFAB device placement for CS, 28 patients underwent HRPCI successfully while being supported with the LAFAB device. Seventy one percent of patients in the cohort were successfully discharged home. The mean EuroSCORE was 11 ± 3.4, indicating a high complexity of this critically ill cohort. The authors concluded that the LAFAB device could be used safely and effectively for HRPCI²⁹. In addition to HRPCI, the LAFAB device has also been used for high risk patients undergoing percutaneous aortic valve replacement, as demonstrated in one small series³⁰. Finally, there is also a small 2-patient report of successful LAFAB device use for post-cardiotomy shock³¹.

Discussion

Hemodynamics of LAFAB device:
The hemodynamic profile of the LAFAB device is distinct from other pVADs. By draining blood directly from the LA and returning it to the femoral artery, the device bypasses the LV completely. In doing so, it reduces LV end diastolic volume and pressure, contributing to improved LV geometry, and thereby effecting a decrease in LV stroke work. However, by returning the blood back into the iliac artery/descending aorta, afterload increases. This results in loading of the LV via elevated left ventricular end-systolic pressure (LVESP). Overall, the pressure-volume loop narrows and shifts modestly to the left³⁴. The result is a reduction in myocardial workload and decreased oxygen consumption³⁵. The LVEDP and LVESP may be optimized by increasing pump speed, further unloading the LV³⁶.

The advantages of the LAFAB device include decompression of the LV and decreased stroke work, leading to myocardial recovery. LAFAB unloads the LV indirectly by venting the LA (and does not require a separate device for LV unloading). It can provide cardiac support up to 4.5 L/min at the bedside, and its durability has been well established up to 2 weeks in vivo³⁷.

Disadvantages of LAFAB lie in the advanced procedural skills required for device placement, as transseptal puncture is not an ubiquitous cardiac catheterization lab skill. The need for TEE or ICE as well as fluoroscopy limits the use of this device at bedside in emergent situations. Femoral vascular access prevents ambulation and adversely affects patient rehabilitation. As with other MCS, both hemolysis and access site complications may also be significant when they occur. Residual ASD may also occur and adversely affect outcomes in patients bridged to recovery.

Contraindications to LAFAB device:
Absolute contraindications to LAFAB system use include pre-existing VSD, severe AI, LA thrombus, and severe PVD precluding device insertion³⁸.

Right Atrium to Pulmonary Artery Bypass (RAPAB) for right ventricular failure:
Right ventricular (RV) dominant or biventricular CS is fatal with in-hospital mortality rates ranging up to 75%³⁹. Various MCS devices have been successfully used in the management of RV CS. Similar to the LAFAB system, there is also a novel RV support device draining blood from the RA to the PA. It is called the ProtekDuo system (Figure 4), which can provide up to 4 Lpm of flow for the RV⁴⁰. It consists of a long 31 F (also available in smaller sizes) dual lumen cannula that can be positioned from the internal jugular vein through the RA and RV, into the main PA⁴¹. The system is supported by a centrifugal pump similar to the LAFAB system. It empties blood from the RA and returns it to the main PA, bypassing the RV. It may also be connected to an oxygenator for pulmonary support. The RAPAB system helps unload the RV and reduces RV stroke work⁴². This device is being used increasingly in RV CS⁴³, massive pulmonary embolism⁴⁴, and postcardiotomy RV failure after LVAD or transplant⁴⁵. The bulk of the data for RV support comes from the TandemHeart Experiences and Methods (THEME) registry⁴⁶, where the RAPAB system was used in 30 patients with RV failure of various etiologies, with a 30-day survival of 72.4%, and most patients being bridged to recovery.

Figure 4: Schematic of ProTek Duo system. Image courtesy of TandemLife, a wholly owned subsidiary of LivaNova US Inc. Please click here to view a larger version of this figure.

Use of the LAFAB circuit may provide differential benefit over a transvalvular axial flow pump such as Impella in a number of specific clinical scenarios. As stated previously, the LifeSPARC pump is capable of delivering supraphysiologic levels of flow (up to 8 L/min) with current cannula configurations and thus larger patients and those not adequately supported or fully unloaded on transvalvular axial flow pumps (Impella 2.5 L or CP 4 L) devices may benefit from LAFAB. Secondly, patients with prosthetic aortic valves or unfavorable aortic valve/root anatomy such as those with critical AS or aortic valve endocarditis and patients with LV thrombus may be preferentially considered for LAFAB. Finally, LAFAB may be part of a staged support strategy that began with TandemLife VA-ECMO for acute cardiopulmonary rescue followed by subsequent LA drainage into the circuit, thus effectively providing near-complete biventricular support plus oxygenation.

The LAFAB device is an effective and safe pVAD that can be used in acute or chronic LV failure providing up to 4.5 to 5 Lpm of circulatory support as well as indirect LV unloading via LA decompression. The need for transseptal access may limit the widespread use of this device for emergent LV support in CS. Although observational data suggests both safety and efficacy of the device in both CS and HRPCI, well-conducted large, randomized control trials are needed. In the meantime, results of the ongoing THEME registry may shed more light on the real-world outcomes in patients managed with the LAFAB device.
