Identification of Alternative Splicing and Polyadenylation in RNA-seq Data

doi: 10.3791/62636 Published: June 24, 2021
Gunjan Dixit1, Ying Zheng1, Brian Parker2, Jiayu Wen1

Abstract

As well as the typical analysis of RNA-Seq to measure differential gene expression (DGE) across experimental/biological conditions, RNA-seq data can also be utilized to explore other complex regulatory mechanisms at the exon level. Alternative splicing and polyadenylation play a crucial role in the functional diversity of a gene by generating different isoforms to regulate gene expression at the post-transcriptional level, and limiting analyses to the whole gene level can miss this important regulatory layer. Here, we demonstrate detailed step by step analyses for identification and visualization of differential exon and polyadenylation site usage across conditions, using Bioconductor and other packages and functions, including DEXSeq, diffSplice from the Limma package, and rMATS.

Introduction

RNA-seq has been widely used over the years typically for estimating differential gene expression and gene discovery1. In addition, it can also be utilized to estimate varying exon level usage due to gene expressing different isoforms, hence contributing to a better understanding of gene regulation at the post-transcriptional level. The majority of eukaryotic genes generate different isoforms by alternative splicing (AS) to increase the diversity of mRNA expression. AS events can be divided into different patterns: skipping of complete exons (SE) where a ("cassette") exon is completely removed out of the transcript along with its flanking introns; alternative (donor) 5' splice site selection (A5SS) and alternative 3' (acceptor) splice site selection (A3SS) when two or more splice sites are present on either end of an exon; retention of introns (RI) when an intron is retained within the mature mRNA transcript and mutual exclusion of exon usage (MXE) where only one of the two available exons can be retained at a time2,3. Alternative polyadenylation (APA) also plays an important role in regulating gene expression using alternative poly (A) sites to generate multiple mRNA isoforms from a single transcript4. Most polyadenylation sites (pAs) are located in the 3' untranslated region (3' UTRs), generating mRNA isoforms with diverse 3' UTR lengths. As the 3' UTR is the central hub for recognizing regulatory elements, different 3' UTR lengths can affect mRNA localization, stability and translation5. There are a class of 3' end sequencing assays optimized to detect APA that differ in the details of the protocol6. The pipeline described here is designed for PolyA-seq, but can be adapted for other protocols as described.

In this study, we present a pipeline of differential exon analysis methods7,8 (Figure 1), which can be divided into two broad categories: exon-based (DEXSeq9, diffSplice10) and event-based (replicate Multivariate Analysis of Transcript Splicing (rMATS)11). The exon-based methods compare the fold change across conditions of individual exons, against a measure of overall gene fold change to call differentially expressed exon usage, and from that compute a gene-level measure of AS activity. Event-based methods use exon-intron-spanning junction reads to detect and classify specific splicing events such as exon skipping or retention of introns, and distinguish these AS types in the output3. Thus, these methods provide complementary views for a complete analysis of AS12,13. We selected DEXSeq (based on the DESeq214 DGE package) and diffSplice (based on the Limma10 DGE package) for the study as they are amongst the most widely used packages for differential splicing analysis. rMATS was chosen as a popular method for event-based analysis. Another popular event-based method is MISO (Mixture of Isoforms)1. For APA we adapt the exon-based approach.

Figure 1

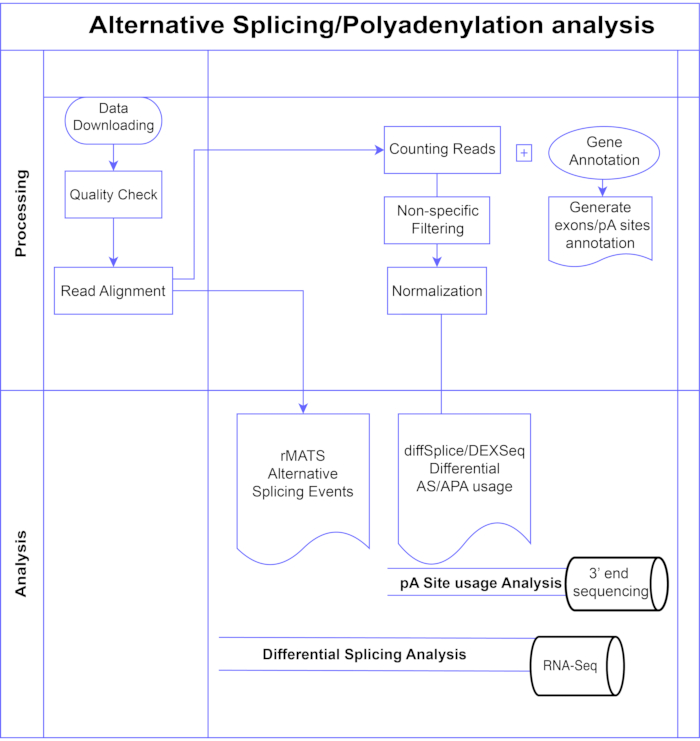

Figure 1. Analysis pipeline. Flowchart of the steps used in the analysis. Steps include: obtaining the data, performing quality checks and read alignment followed by counting reads using annotations for known exons, introns and pA sites, filtering to remove low counts and normalization. PolyA-seq data was analysed for alternative pA sites using diffSplice/DEXSeq methods, bulk RNA-Seq was analysed for alternative splicing at the exon level with diffSplice/DEXseq methods, and AS events analysed with rMATS. Please click here to view a larger version of this figure.

The RNA-seq data used in this survey was acquired from Gene Expression Omnibus (GEO) (GSE138691)15. We used mouse RNA-seq data from this study with two condition groups: wild-type (WT) and Muscleblind-like type 1 knockout (Mbnl1 KO) with three replicates each. To demonstrate differential polyadenylation site usage analysis, we obtained mouse embryo fibroblasts (MEFs) PolyA-seq data (GEO Accession GSE60487)16. The data has four condition groups: Wild-type (WT), Muscleblind-like type1/type 2 double knockout (Mbnl1/2 DKO), Mbnl 1/2 DKO with Mbnl3 knockdown (KD) and Mbnl1/2 DKO with Mbnl3 control (Ctrl). Each condition group consists of two replicates.

GEO Accession SRA Run number Sample name Condition Replicate Tissue Sequencing Read length
RNA-Seq GSM4116218 SRR10261601 Mbnl1KO_Thymus_1 Mbnl1 knockout Rep 1 Thymus Paired-end 100 bp
GSM4116219 SRR10261602 Mbnl1KO_Thymus_2 Mbnl1 knockout Rep 2 Thymus Paired-end 100 bp
GSM4116220 SRR10261603 Mbnl1KO_Thymus_3 Mbnl1 knockout Rep 3 Thymus Paired-end 100 bp
GSM4116221 SRR10261604 WT_Thymus_1 Wild type Rep 1 Thymus Paired-end 100 bp
GSM4116222 SRR10261605 WT_Thymus_2 Wild type Rep 2 Thymus Paired-end 100 bp
GSM4116223 SRR10261606 WT_Thymus_3 Wild type Rep 3 Thymus Paired-end 100 bp
3P-Seq GSM1480973 SRR1553129 WT_1 Wild type (WT) Rep 1 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp
GSM1480974 SRR1553130 WT_2 Wild type (WT) Rep 2 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp
GSM1480975 SRR1553131 DKO_1 Mbnl 1/2 double knockout (DKO) Rep 1 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp
GSM1480976 SRR1553132 DKO_2 Mbnl 1/2 double knockout (DKO) Rep 2 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp
GSM1480977 SRR1553133 DKOsiRNA_1 Mbnl 1/2 double knockout with Mbnl 3 siRNA (KD) Rep 1 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp
GSM1480978 SRR1553134 DKOsiRNA_2 Mbnl 1/2 double knockout with Mbnl 3 siRNA (KD) Rep 2 Mouse embryonic Fibroblasts (MEFs) Single-end 36 bp
GSM1480979 SRR1553135 DKONTsiRNA_1 Mbnl 1/2 double knockout with non-targeting siRNA (Ctrl) Rep 1 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp
GSM1480980 SRR1553136 DKONTsiRNA_2 Mbnl 1/2 double knockout with non-targeting siRNA (Ctrl) Rep 2 Mouse embryonic Fibroblasts (MEFs) Single-end 40 bp

Table 1. Summary of RNA-Seq and PolyA-seq datasets used for the analysis.

Subscription Required. Please recommend JoVE to your librarian.

Protocol

1. Installation of tools and R packages used in the analysis

  1. Conda is a popular and flexible package manager that allows convenient installation of packages with their dependencies across all platforms. Use 'Anaconda' (conda package manager) to install 'conda' which can be used to install the tools/packages required for the analysis.
  2. Download 'Anaconda' according to the system requirements from https://www.anaconda.com/products/individual#Downloads and install it by following the prompts in graphical installer. Install all required packages using conda by typing the following at the Linux command-line.
    conda install -c daler sratoolkit
    conda install -c conda-forge parallel
    conda install -c bioconda star bowtie fastqc rmats rmats2sashimiplot samtools fasterq-dump cutadapt bedtools deeptools
  3. To download all the R packages used in the protocol, type the following code in the R console (started on the Linux command-line by typing 'R') or Rstudio console.
    bioc_packages<- c("DEXSeq", "Rsubread", "EnhancedVolcano", "edgeR", "limma", "maser","GenomicRanges")
    packages<- c("magrittr", "rtracklayer", "tidyverse", "openxlsx", "BiocManager")
    #Install if not already installed
    installed_packages<-packages%in% rownames(installed.packages())
    installed_bioc_packages<-bioc_packages%in% rownames(installed.packages())
    if(any(installed_packages==FALSE)) {
    install.packages(packages[!installed_packages],dependencies=TRUE)
    BiocManager::install(packages[!installed_bioc_packages], dependencies=TRUE)
    }

    NOTE: In this computational protocol, commands will be given as either R Notebook files (files with extension ".Rmd"), R code files (files with extension ".R"), or Linux Bash shell scripts (files with extension ".sh"). R Notebook (Rmd) files should be opened in RStudio using File|Open File…, and individual code chunks (which may be R commands or Bash shell commands) then run interactively by clicking the green arrow at the upper right. R code files can be run by opening in RStudio, or on the Linux command-line by prefacing with "Rscript", e.g. Rscript example.R. Shell scripts are run on the Linux command-line by prefacing the script with the "sh" command e.g. sh example.sh.

2. Alternative splicing (AS) analysis using RNA-seq

  1. Data downloading and pre-processing
    NOTE: The code snippets annotated below are available in the supplementary code file "AS_analysis_RNASeq.Rmd", to follow the individual steps interactively, and are also provided as a bash script to be run in batch on the Linux command-line (sh downloading_data_preprocessing.sh).
    1. Downloading the raw data.
      1. Download the raw data from Sequence Read Archive (SRA) using the 'prefetch' command from SRA toolkit (v2.10.8)17. Give the SRA Accession IDs in sequence in the following command to download them in parallel using GNU parallel utility18. To download SRA files of accession ids from SRR10261601 to SRR10261606 in parallel, use the following on the Linux command-line.
        ​seq 10261601 10261606 | parallel prefetch SRR{}
      2. Extract the fastq files from the archive using 'fastq-dump' function from SRA toolkit. Use GNU parallel and give the names of all SRA files together.
        ​parallel -j 3 fastq-dump --gzip --skip-technical --read-filter pass --dumpbase --split-e --clip --origfmt {} ::: <name of sra files together>
      3. Download the reference genome and annotations for Mouse (Genome assembly GRCm39) from www.ensembl.org using the following at the Linux command-line.
        wget -nv -O annotation.gtf.gz http://ftp.ensembl.org/pub/release-103/gtf/mus_musculus/Mus_musculus.GRCm39.103.gtf.gz \ && gunzip -f annotation.gtf.gz
        wget -nv -O genome.fa.gz http://ftp.ensembl.org/pub/release-103/fasta/mus_musculus/dna/Mus_musculus.GRCm39.dna.primary_assembly.fa.gz \ && gunzip -f genome.fa.gz
        GTF=$(readlink -f annotation.gtf)
        GENOME=$(readlink -f genome.fa)
    2. Pre-processing and mapping reads to the genome assembly
      1. Quality Control. Assess the quality of raw reads with FASTQC (FASTQ Quality Check v0.11.9)19. Create an output folder and run fastqc with parallel on multiple input fasta files. This step will generate a quality report for each sample. Examine the reports to ensure the quality of reads is acceptable before doing further analysis. (Refer to the user manual for understanding the reports at https://www.bioinformatics.babraham.ac.uk/projects/fastqc/)
        mkdir fastqc_out
        parallel "fastqc {} -o fastqc_out" ::: $RAW_DATA/*.fastq.gz

        ​NOTE: If necessary, perform adapter trimming with 'cutadapt'20 or 'trimmomatic'21 to remove sequencing into flanking adapters, which varies based on RNA fragment size and read length. In this analysis we skipped this step as the fraction of reads affected was minimal.
      2. Read alignment. The next step in pre-processing includes mapping the reads to the reference genome. Firstly, build the index for the reference genome using the 'genomeGenerate' function of STAR22 and then align the raw reads to the reference (alternatively prebuilt indexes are available from the STAR website and can be used directly for alignment). Run the following commands at the Linux command-line.
        #Build STAR index
        GDIR=STAR_indices
        mkdir $GDIR
        STAR --runMode genomeGenerate --genomeFastaFiles $GENOME --sjdbGTFfile $GTF --runThreadN 8 --genomeDir $GDIR
        ODIR=results/mapping
        mkdir -p $ODIR
        #Align reads to the genome
        for fq1 in $RAW_DATA/*R1.fastq.gz;
        do
        fq2=$(echo $fq1| sed 's/1.fastq.gz/2.fastq.gz/g');
        OUTPUT=$(basename ${fq1}| sed 's/R1.fastq.gz//g');
        STAR --genomeDir $GDIR \
        --runThreadN 12 \
        --readFilesCommand zcat \
        --readFilesIn ${fq1}${fq2}\
        --outFileNamePrefix $ODIR\/${OUTPUT} \
        --outSAMtype BAM SortedByCoordinate \
        --outSAMunmapped Within \
        --outSAMattributes Standard
        Done

        ​NOTE: The STAR aligner will generate and sort BAM (Binary Alignment Map) files for each sample after read alignment. Bam files must be sorted before proceeding to further steps.
  2. Preparing Exon annotations.
    1. Run the supplementary code file "prepare_mm_exon_annotation.R" with the downloaded annotation in GTF (Gene transfer format) format to prepare the annotations. To run, type the following at the Linux command-line.
      Rscript prepare_mm_exon_annotation.R annotation.gtf
      ​NOTE: The GTF file contains multiple exon entries for different isoforms. This file is used to "collapse" the multiple transcript IDs for each exon. It is an important step to define exon counting bins.
  3. Counting Reads. The next step is to count the number of reads mapped to different transcripts/exons. See Supplementary file: "AS_analysis_RNASeq.Rmd".
    1. Load required libraries:
      packages<- c("Rsubread","tidyverse", "magrittr", "EnhancedVolcano", "edgeR","openxlsx")
      invisible(lapply(packages, library, character.only=TRUE))
    2. Load the processed annotation file obtained from previous step (2.2).
      load("mm_exon_anno.RData")
    3. Read all bam files obtained in step 2.2.2 as input for ‘featureCounts’ to count reads. Read the folder containing bam files by first listing each file from the directory that ends with .bam. Use 'featureCounts' from the Rsubread package which takes bam files and processed GTF annotation (reference) as input to generate a matrix of counts associated with each feature with rows representing exons(features) and columns representing samples.
      countData <- dir("bams", pattern=".bam$", full.names=T) %>%
      featureCounts(annot.ext=anno,
      isGTFAnnotationFile=FALSE,
      minMQS=0,useMetaFeatures=FALSE,
      allowMultiOverlap=TRUE,
      largestOverlap=TRUE,
      countMultiMappingReads=FALSE,
      primaryOnly=TRUE,
      isPairedEnd=TRUE,
      nthreads=12)
    4. Next, perform non-specific filtering to remove lowly expressed exons (“non-specific” indicates that the experimental condition information is not used in the filtering, to avoid selection biases). Transform the data from raw scale to counts per million (cpm) using the cpm function from 'edgeR' package23 and keep exons with counts greater than a settable threshold (for this dataset one cpm is used) in at least three samples. Also remove genes with only one exon.
      # Non-specific filtering: Remove the exons with low counts
      isexpr<- rownames(countData$counts)[rowSums(cpm(countData$counts)>1) >=3]
      countData$counts<-countData$counts[rownames(countData$counts) %in%isexpr, ]
      anno<-anno%>% filter(GeneID%in% rownames(countData$counts))
      # Remove genes with only 1 site and NA in geneIDs
      dn<-anno%>%group_by(GeneID)%>%summarise(nsites=n())%>% filter(nsites>1&!is.na(GeneID))
      anno<-anno%>% filter(GeneID%in%dn$GeneID)
      countData$counts<-countData$counts[rownames(countData$counts) %in%anno$GeneID, ]

      NOTE: Check the required parameters for featureCounts when using different data, for example, for single-end reads, set 'isPairedEnd = FALSE'. Refer to RSubread user-guide to choose the options for your data, and see the Discussion section below.
  4. Differential splicing and exon usage analysis. We describe two alternatives for this step: DEXSeq and DiffSplice. Either can be used and give similar results. For consistency, select DEXSeq if you prefer a DESeq2 package for DGE and use DiffSplice for a Limma-based DGE analysis. See Supplementary file: "AS_analysis_RNASeq.Rmd".
    1. Using DEXSeq package for differential exon analysis.
      1. Load library and create a sample table to define the experimental design.
        library(DEXSeq)
        sampleTable<-data.frame(row.names= c("Mbnl1KO_Thymus_1", "Mbnl1KO_Thymus_2", "Mbnl1KO_Thymus_3", "WT_Thymus_1", "WT_Thymus_2", "WT_Thymus_3"), condition= rep(c("Mbnl1_KO", "WT"),c(3,3)), libType= rep(c("paired-end")))

        NOTE: The row names should be consistent with the bam file names used by featureCounts to count the reads. sampleTable consists of details of each sample which includes: library-type and condition. This is required to define the contrasts or test group for detecting differential usage.
      2. Prepare the exon information file. Exon information in the form of GRanges (genomic ranges) objects (https://bioconductor.org/packages/release/bioc/html/GenomicRanges.html) is required as an input to create the DEXSeq object in the next step. Match the gene Ids with the read counts to create exoninfo object.
        exoninfo<-anno[anno$GeneID%in% rownames(countData$counts),]
        exoninfo<-GRanges(seqnames=anno$Chr,
        ranges=IRanges(start=anno$Start, end=anno$End, width=anno$Width),strand=Rle(anno$Strand))
        mcols(exoninfo)$TranscriptIDs<-anno$TranscriptIDs
        mcols(exoninfo)$Ticker<-anno$Ticker
        mcols(exoninfo)$ExonID<-anno$ExonID
        mcols(exoninfo)$n<-anno$n
        mcols(exoninfo)$GeneID<-anno$GeneID
        transcripts_l= strsplit(exoninfo$TranscriptIDs, "\\,")
        save(countData, sampleTable, exoninfo, transcripts_l, file="AS_countdata.RData")
      3. Create DEXSeq object using DEXSeqDataSet function. The DEXSeq object collects together read counts, exon feature information, and sample information. Use the read counts generated in step 3 and the exon information obtained from the previous step to create the DEXSeq object from the count matrix. The sampleData argument takes a data frame input defining the samples (and their attributes: library type and condition), 'design' uses sampleData to generate a design matrix for the differential testing using model formula notation. Note that a significant interaction term, condition:exon, indicates that the fraction of reads over a gene falling on a particular exon depends on the experimental condition i.e. there is AS. See DEXSeq documentation for a full description of setting the model formula for more complex experimental designs. For feature information, exon ids, corresponding gene and transcripts are required.
        ​dxd<-DEXSeqDataSet(countData$counts,sampleData=sampleTable, design=~sample+exon+condition:exon,featureID=exoninfo$ExonID,groupID=exoninfo$GeneID,featureRanges=exoninfo, transcripts=transcripts_l)
      4. Normalization and dispersion estimation. Next, perform normalization between samples and estimate the variance of the data, due to both Poisson count noise from the discrete nature of RNA-seq and biological variability, using the following commands.
        ​dxd %<>% estimateSizeFactors %>% estimateDispersions %T>% plotDispEsts
      5. Test for differential usage. After the estimation of variation, test for differential exon usage for each gene and generate the results.
        dxd%<>%testForDEU%>%estimateExonFoldChanges(fitExpToVar=
        "condition")#Estimate fold changes
        dxr=DEXSeqResults(dxd)
      6. Visualize splicing events for selected genes using the following command.
        plotDEXSeq(dxr,"Wnk1", displayTranscripts=TRUE, splicing=TRUE,legend
        =TRUE,cex.axis=1.2,cex=1.3,lwd=2)

        Examine the R Notebook file "AS_analysis_RNASeq.Rmd" to generate additional plots for genes of interest and to generate volcano plots at different thresholds.
    2. Using diffSplice from Limma to identify differential splicing. Follow the R Notebook file "AS_analysis_RNASeq.Rmd". Ensure steps 2.1-2.3 have been followed to prepare input files before proceeding further.
      1. Load libraries
        library(limma)
        library(edgeR)
      2. Non-specific filtering. Extract the matrix of read counts obtained in 2.3. Create a list of features using 'DGEList' function from edgeR package, where rows represent genes and columns represent samples.
        mycounts=countData$counts
        #Change the rownames of the countdata to exon Ids instead of genes for unique rownames.
        rownames(mycounts) = exoninfo$ExonID
        dge<-DGEList(counts=mycounts)
        #Filtering
        isexpr<- rowSums(cpm(dge)>1) >=3
        dge<-dge[isexpr,,keep.lib.sizes=FALSE]
        #Extract the exon annotations for only transcripts meeting non-specific filter
        exoninfo=anno%>% filter(ExonID%in% rownames(dge$counts))
        #Convert the exoninfo into GRanges object
        exoninfo1<-GRanges(seqnames=exoninfo$Chr,
        ranges=IRanges(start=exoninfo$Start, end=exoninfo$End, width=exoninfo$Width),strand=Rle(exoninfo$Strand))
        mcols(exoninfo1)$TranscriptIDs<-exoninfo$TranscriptIDs
        mcols(exoninfo1)$Ticker<-exoninfo$Ticker
        mcols(exoninfo1)$ExonID<-exoninfo$ExonID
        mcols(exoninfo1)$n<-exoninfo$n
        mcols(exoninfo1)$GeneID<-exoninfo$GeneID
        transcripts_l= strsplit(exoninfo1$TranscriptIDs, "\\,")

        NOTE: As a non-specific filtering step, counts are filtered by cpm < 1 in x out of n samples, where x is the minimum number of replicates in any condition. n = 6 and x = 3 for this example data.
      3. Normalize the counts across samples, with 'calcNormFactors' function from 'edgeR' package using Trimmed Mean of M values (TMM normalization method)24 It will compute scaling factors to adjust library sizes.
        ​dge<-calcNormFactors(dge)
      4. Use sampleTable as generated in step 2.4.1.1 and create the design matrix. The design matrix characterizes the design. See the Limma User Guide (https://www.bioconductor.org/packages/devel/bioc/vignettes/limma/inst/doc/usersguide.pdf) chapters 8 & 9 for details on design matrices for more advanced experimental designs.
        Treat<- factor(sampleTable$condition)
        design<- model.matrix(~0+Treat)
        colnames(design) <- levels(Treat)
      5. Fit a linear model per exon. Run 'voom' function of 'limma' package to process RNA-seq data to estimate variance and generate precision weights to correct for Poisson count noise, and transform the exon-level counts to log2-counts per million (logCPM). Then run linear modelling using 'lmfit' function to fit linear models to the expression data for each exon. Compute empirical Bayes statistics for fitted model using 'eBayes' function to detect differential exon expression. Next, define a contrast matrix for the experimental comparisons of interest. Use 'contrasts.fit' to obtain coefficients and standard errors for each pair of comparison.
        v<-voom(dge,design,plot=FALSE)
        fit<-lmFit(v,design)
        fit<-eBayes(fit)
        colnames(fit)
        cont.matrix<-makeContrasts(
        Mbnl1_KO_WT=Mbnl1_KO-WT,
        levels=design)
        fit2<-contrasts.fit(fit,cont.matrix)
      6. Differential splicing analysis. Run 'diffSplice' on the fitted model to test the differences in exon usage of genes between wild-type and knockout and explore the top ranked results using 'topSplice' function: test="t" gives a ranking of AS exons, test="simes" gives a ranking of genes.
        ex<-diffSplice(fit2,geneid=exoninfo$GeneID,exonid=exoninfo$ExonID)
        ts<-topSplice(ex,n=Inf,FDR=0.1, test="t", sort.by="logFC")
        ​tg<-topSplice(ex,n=Inf,FDR=0.1, test="simes")
      7. Visualization. Plot the results with the 'plotSplice' function, giving gene of interest in the geneid argument. Save the top results sorted by log Fold change into an object and generate a volcano plot to exhibit the exons.
        plotSplice(ex,geneid="Wnk1", FDR=0.1)
        #Volcano plot
        EnhancedVolcano(ts,lab=ts$ExonID,selectLab= head((ts$ExonID),2000), xlab= bquote(~Log[2]~'fold change'), x='logFC', y='P.Value', title='Volcano Plot', subtitle='Mbnl1_KO vs WT (Limma_diffSplice)', FCcutoff=2, labSize=4,legendPosition="right", caption= bquote(~Log[2]~"Fold change cutoff, 2; FDR 10%"))
    3. Using rMATS
      1. Ensure the latest version of rMATS v4.1.1 (also known as rMATS turbo due to the reduced processing time and less requirements of memory) is installed either using conda or github (https://github.com/Xinglab/rmats-turbo/releases/download/v4.1.1/rmats_turbo_v4_1_1.tar.gz) in the working directory. Follow the section 4.3 in "AS_analysis_RNASeq.Rmd".
      2. Go to the folder containing bam files obtained after mapping and prepare text files, as required by rMATS, for the two conditions by copying the name of bam files (along with the path) separated by ','. Following commands should be run at the Linux command-line:
        mkdir rMATS_analysis
        cd bams/
        ls -pd "$PWD"/*| grep "WT"| tr '\n'','> Wt.txt
        ls -pd "$PWD"/*| grep "Mb"| tr '\n'','> KO.txt
        mv *.txt ../rMATS_analysis
      3. Run rmats.py with the two input files generated in the previous step, along with the GTF file obtained in 2.1.1.3. This will generate an output folder 'rmats_out' containing text files describing statistics (p-values and Inclusion levels) for each splicing event separately.
        python rmats-turbo/rmats.py --b1 KO.txt --b2 Wt.txt --gtf annotation.gtf -t paired --readLength 50 --nthread 8 --od rmats_out/ --tmp rmats_tmp --task pos
        ​NOTE: The reference annotation in the form of a GTF file is also required. Check the parameters if the data is single-end, and change the -t option accordingly.
      4. Exploring rMATS results. Use Bioconductor package 'maser'25 to explore the rMATS results. Load the Junction and exon counts (JCEC) text files into 'maser' object and filter the result based on coverage by including at least five average reads per splicing event.
        library(maser)
        mbnl1<-maser("/rmats_out/", c("WT","Mbnl1_KO"), ftype="JCEC")
        #Filtering out events by coverage
        mbnl1_filt<-filterByCoverage(mbnl1,avg_reads=5)
      5. Visualizing rMATS results. Select the significant splicing events at False Discovery Rate (FDR) 10% and minimum 10% change in Percent Spliced In (deltaPSI) using 'topEvents' function from 'maser' package. Next, check the gene events for individual genes of interest (sample gene-Wnk1) and plot PSI values for each splicing event of that gene. Generate a volcano plot by specifying the event type.
        #Top splicing events at 10% FDR
        mbnl1_top<-topEvents(mbnl1_filt,fdr=0.1, deltaPSI=0.1)
        mbnl1_top
        #Check the gene events for a particular gene
        mbnl1_wnk1<-geneEvents(mbnl1_filt,geneS="Wnk1", fdr=0.1, deltaPSI=0.1)
        maser::display(mbnl1_wnk1,"SE")
        plotGenePSI(mbnl1_wnk1,type="SE", show_replicates
        =TRUE)
        ​volcano(mbnl1_filt,fdr=0.1, deltaPSI=0.1,type="SE")
        +xlab("deltaPSI")+ylab("Log10 Adj. Pvalue")+ggtitle("Volcano Plot of exon skipping events")
      6. Generate Sashimi plots for the splicing events result obtained with rMATS in the form of text files using 'rmats2shahimiplot' package. Run the python script at the Linux command-line.
        python ./src/rmats2sashimiplot/rmats2sashimiplot.py --b1 ../bams/WT_Thymus_1.bam,../bams/WT_Thymus_2.bam,../bams/WT_Thymus_3.bam --b2 ../bams/Mbnl1KO_Thymus_1.bam,../bams/Mbnl1KO_Thymus_2.bam,../bams/Mbnl1KO_Thymus_3.bam -t SE -e ../rMATS_analysis/rmats_out/SE.MATS.JC.txt --l1 WT --l2 Mbnl1_KO --exon_s 1 --intron_s 5 -o ../rMATS_analysis/rmats2shasmi_output
        ​NOTE: This process can be time-consuming as it will generate the Sashimi plot for all the results in the events file. Choose the top results (gene names and exons) as displayed by the topEvents function from 'maser' and visualize the corresponding Sashimi plot.

3. Alternative polyadenylation (APA) analysis using 3' end sequencing

  1. Data downloading and pre-processing
    NOTE: Refer to the supplementary R Notebook file "APA_analysis_3PSeq_notebook.Rmd" for the complete commands for data downloading and pre-processing steps, or run the supplementary bash file "APA_data_downloading_preprocessing.sh" on the Linux command-line.
    1. Download data from SRA with the Accession Ids (1553129 to 1553136).
    2. Trim adapters and reverse complement to obtain the sense strand sequence.
      NOTE: This step is specific to the PolyA-seq assay used.
    3. Map reads to mouse genome assembly using bowtie aligner26.
  2. Preparing pA sites annotations.
    NOTE: The processing of the pA site annotation file is performed firstly using supplementary R Notebook file "APA_analysis_3PSeq_notebook.Rmd" (2.1 - 2.6), and then using bash file "APA_annotation_preparation.sh".
    1. Download pA sites annotation from the PolyASite 2.0 database6.
    2. Select pA site annotations to retain 3'-untranslated region (UTR) pA sites, which are annotated as Terminal Exon (TE) or 1000 nt downstream of an annotated terminal exon (DS) for downstream analysis.
    3. Obtain pA site peaks. Anchor at each pA cleavage site, and visualize the average read coverage using bedtools and deeptools27,28. The results showed that the peaks of the mapped reads were mainly dispersed within ~60 bp upstream of the cleavage sites (figure 5 and supplementary figure 5). Therefore, the coordinates of pA sites were extended from the annotation file to 60 bp upstream of their cleavage sites. Depending on the specific 3' end sequencing protocol used, this step will need to be optimized for assays other than PolyA-seq.
  3. Counting reads
    1. Prepare the pA sites annotation file.
      anno<- read.table(file= "flanking60added.pA_annotation.bed",
      stringsAsFactors=FALSE, check.names=FALSE, header=FALSE, sep="")
      colnames(anno) <- c("chrom", "chromStart", "chromEnd", "name", "score", "strand", "rep", "annotation", "gene_name", "gene_id")
      anno<- dplyr::select(anno,name,chrom, chromStart,chromEnd, strand,gene_id,gene_name,rep)
      colnames(anno) <- c("GeneID", "Chr", "Start", "End", "Strand", "Ensembl", "Symbol", "repID")
    2. Apply 'featureCounts' to acquire raw counts. Save the count table as the RData file "APA_countData.Rdata" for APA analysis using different tools.
      countData<- dir("bamfiles", pattern="sorted.bam$", full.names=TRUE) %>%
      # Read all bam files as input for featureCounts
      featureCounts(annot.ext=anno, isGTFAnnotationFile= FALSE,minMQS=0,useMetaFeatures= TRUE,allowMultiOverlap=TRUE, largestOverlap= TRUE,strandSpecific=1, countMultiMappingReads =TRUE,primaryOnly= TRUE,isPairedEnd= FALSE,nthreads=12)%T>%
      save(file="APA_countData.Rdata")

      ​NOTE: Be conscious to change any of the parameters listed in the 'featureCounts' function. Modify the 'strandSpecific' parameter to ensure it is consistent with the sequencing direction of the 3' end sequencing assay used (empirically, visualizing the data in a genome browser over genes on plus and minus strands will clarify this).
    3. Apply non-specific filtering of countData. Filtering can significantly improve the statistical robustness in differential pA site usage tests. First, we removed those genes with only one pA site, on which differentially pA site usage cannot be defined. Second, we apply non-specific filtering based on coverage: counts are filtered by cpm less than 1 in x out of n samples, where x is the minimum number of replicates in any condition. N = 8 and x = 2 for this example data.
      load(file= "APA_countData.Rdata")# Skip this step if already loaded
      # Non-specific filtering: Remove the pA sites not differentially expressed in the samples

      countData<-countData$counts%>%as.data.frame%>% .[rowSums(edgeR::cpm(.)>1) >=2, ]
      anno%<>% .[.$GeneID%in% rownames(countData), ]
      # Remove genes with only 1 site and NA in geneIDs
      dnsites<-anno%>%group_by(Symbol)%>%summarise(nsites=n())%>% filter(nsites>1&!is.na(Symbol))
      anno<-anno%>% filter(Symbol%in%dnsites$Symbol)
      countData<-countData[rownames(countData) %in%anno$GeneID, ]
  4. Differential polyadenylation site usage analysis using DEXSeq and diffSplice pipelines.
    1. Using DEXSeq package
      NOTE: As a contrast matrix cannot be defined for the DEXSeq pipeline, the differential APA analysis of each two experimental conditions has to be performed separately. The differential APA analysis of the condition WT and the condition DKO is performed as an example to explain the procedure. Refer to the supplementary file "APA_analysis_3PSeq_notebook.Rmd" for the step-by-step workflow of this section and the differential APA analysis of other contrasts.
      1. Load library and create a sample table to define the experimental design.
        c("DEXSeq", "GenomicRanges") %>% lapply(library, character.only=TRUE) %>%invisible
        sampleTable1<- data.frame(row.names= c("WT_1","WT_2","DKO_1","DKO_2"),
        condition= c(rep("WT", 2), rep("DKO", 2)),
        ​libType= rep("single-end", 4))
      2. Prepare the pA sites information file using Bioconductor package GRanges.
        # Prepare the GRanges object for DEXSeqDataSet object construction
        PASinfo <- GRanges(seqnames = anno$Chr,
        ranges = IRanges(start = anno$Start, end = anno$End),strand = Rle(anno$Strand))
        mcols(PASinfo)$PASID<-anno$repID
        mcols(PASinfo)$GeneEns<-anno$Ensembl
        mcols(PASinfo)$GeneID<-anno$Symbol
        # Prepare the new feature IDs, replace the strand information with letters to match the current pA site clusterID
        new.featureID <- anno$Strand %>% as.character %>% replace(. %in% "+", "F") %>% replace(. %in% "-", "R") %>% paste0(as.character(anno$repID), .)
      3. Use the read counts generated in step 3.3 and the pA site information obtained from the previous step to create the DEXSeq object.
        # Select the read counts of the condition WT and DKO
        countData1<- dplyr::select(countData, SRR1553129.sorted.bam, SRR1553130.sorted.bam, SRR1553131.sorted.bam, SRR1553132.sorted.bam)
        # Rename the columns of countData using sample names in sampleTable
        colnames(countData1) <- rownames(sampleTable1)
        dxd1<-DEXSeqDataSet(countData=countData1,
        sampleData=sampleTable1,
        design=~sample+exon+condition:exon,
        featureID=new.featureID,
        groupID=anno$Symbol,
        featureRanges=PASinfo)
      4. Define the contrast pair through defining the levels of conditions in DEXSeq object.
        dxd1$condition<- factor(dxd1$condition, levels= c("WT", "DKO"))
        # The contrast pair will be "DKO - WT"
      5. Normalization and dispersion estimation. Similar to RNA-seq data, for 3' end sequencing data perform normalization between samples (column-wise median of ratios for each sample) using the 'estimateSizeFactors' function, and estimate the variation of the data using with the 'estimateDispersions' function, then visualize the dispersion estimation result using the 'plotDispEsts' function.
        ​dxd1 %<>% estimateSizeFactors %>% estimateDispersions %T>% plotDispEsts
      6. Differential pA site usage testing for each gene using the function 'testForDEU', then estimate the fold change of pA site usage using the function 'estimateExonFoldChanges'. Check the results using the function 'DEXSeqResults' and set 'FDR < 10%' as the criterion for significantly differential pA sites.
        dxd1 %<>% testForDEU %>% estimateExonFoldChanges(fitExpToVar = "condition")
        dxr1 <- DEXSeqResults(dxd1)
        dxr1
        mcols(dxr1)$description
        table(dxr1$padj<0.1) # Check the number of differential pA sites (FDR < 0.1)
        table(tapply(dxr1$padj<0.1, dxr1$groupID, any)) # Check the number of gene overlapped with differential pA site
      7. Visualization of the differential pA site usage results using differential APA plots generated by the function 'plotDEXSeq' and volcano plot by the function 'EnhancedVolcano'.
        # Select the top 100 significant differential pA sites ranked by FDR
        topdiff.PAS<- dxr1%>%as.data.frame%>%rownames_to_column%>%arrange(padj)%$%groupID[1:100]

        # Apply plotDEXSeq for the visualization of differential polyA usage
        plotDEXSeq(dxr1,"S100a7a", legend=TRUE, expression=FALSE,splicing=TRUE, cex.axis=1.2, cex=1.3,lwd=2)

        # Apply perGeneQValue to check the top genes with differential polyA site usage
        dxr1%<>% .[!is.na(.$padj), ]
        dgene<- data.frame(perGeneQValue= perGeneQValue (dxr1)) %>%rownames_to_column("groupID")

        dePAS_sig1<-dxr1%>% data.frame() %>%
        dplyr::select(-matches("dispersion|stat|countData|genomicData"))%>%
        inner_join(dgene)%>%arrange(perGeneQValue)%>%distinct()%>%
        filter(padj<0.1)

        # Apply EnhancedVolcano package to visualise differential polyA site usage
        "EnhancedVolcano"%>% lapply(library, character.only=TRUE) %>%invisible
        EnhancedVolcano(dePAS_sig1, lab=dePAS_sig1$groupID, x='log2fold_DKO_WT',
        y='pvalue',title='Volcano Plot',subtitle='DKO vs WT',
        FCcutoff=1,labSize=4, legendPosition="right",
        caption= bquote(~Log[2]~"Fold change cutoff, 1; FDR 10%"))
    2. Using diffSplice package. Refer to the supplementary R Notebook file "APA_analysis_3PSeq_notebook.Rmd" for the step-by-step workflow of this section.
      1. Define contrasts of interest for differential pA usage analysis.
        NOTE: This step should be performed after the construction and processing of the DGEList  object, which is included in the R Notebook file "APA_analysis_3PSeq_notebook.Rmd".
        contrast.matrix<-makeContrasts(DKO_vs_WT=DKO-
        WT,Ctrl_vs_DKO=Ctrl-DKO,
        KD_vs_Ctrl=KD-Ctrl,KD_vs_DKO=KD-DKO,levels=design)
        fit2<-fit%>%contrasts.fit(contrast.matrix)%>%eBayes
        summary(decideTests(fit2))
        ex<-diffSplice(fit2,geneid=anno$Symbol,exonid=new.featureID)
        topSplice(ex) #Check the top significant results with topSplice
      2. Visualize the result of contrasts of interest (here "DKO - WT") using differential APA plots by the function 'plotSplice' and volcano plots with the function 'EnhancedVolcano'. Refer to the R Notebook file "APA_analysis_3PSeq_notebook.Rmd" 4.2.7 - 4.2.9 for the visualization of other contrast pairs.
        sig1<-topSplice(ex,n=Inf,FDR=0.1,coef=1, test="t", sort.by="logFC")
        sig1.genes<-topSplice(ex,n=Inf,FDR=0.1,coef=1, test="simes")
        plotSplice(ex, coef=1,geneid="S100a7a", FDR = 0.1)
        plotSplice(ex,coef=1,geneid="Tpm1", FDR = 0.1)
        plotSplice(ex,coef=1,geneid="Smc6", FDR = 0.1)
        EnhancedVolcano(sig1, lab=sig1$GeneID,xlab= bquote(~Log[2]~'fold change'),
        x='logFC', y='P.Value', title='Volcano Plot', subtitle='DKO vs WT',
        FCcutoff=1, labSize=6, legendPosition="right")

Subscription Required. Please recommend JoVE to your librarian.

Representative Results

After running the above step-by-step workflow, the AS and APA analysis outputs and representative results are in the form of tables and data plots, generated as follows.

AS:
The main output of the AS analysis (Supplementary Table 1 for diffSplice; Table 2 for DEXSeq) is a list of exons showing differential usage across conditions, and a list of genes showing significant overall splicing activity of one or more of its constituent exons, ranked by statistical significance. Supplementary Table 1, tab 2 shows significant exons, with columns showing differential FC of exon versus rest, per-exon unadjusted p-value, and adjusted p-value (Benjamini-Hockberg correction). Thresholding on the adjusted p-values will give a set of exons with defined FDR. Supplementary Table 1, tab 3 shows a ranked list of genes showing significance of overall splicing activity, with a column showing gene-level adjusted p-value computed using Simes method. Similar data are shown in Table 2 for DEXSeq. Supplementary Figure 1 and Supplementary Figure 2 show differential splicing pattern in Mbnl1, Tcf7 and Lef1 genes which have been experimentally validated in the published article presented with the data15. The authors have shown experimental validation of five genes- Mbnl1, Mbnl2, Lef1, Tcf7 and Ncor2. Our approach detected differential splicing pattens in all these genes. Here we present the FDR levels for each gene using DEXSeq, diffSplice and rMATS respectively as obtained in Supplementary Tables 1-3: Mbnl1 (0, 6.6E-61 ,0), Mbnl2 (0,0.18,0), Lef1 (1.4E-10, 1.3E-04, 0), Tcf7 (0, 1.1E-6, 0) and Ncor2 (9.2E-11, 1.6E-06, 0).

Figure 2 displays a comparison between outputs obtained from three different tools and illustrates alternative splicing patterns in Wnk1 gene. The volcano plots are shown in Figure 2A (diffSplice) and Figure 2B (DEXSeq). An additional three highly ranked genes are shown in Supplementary Figure 1 (diffSplice) and Supplementary Figure 2 (DEXSeq). The y-axis shows statistical significance (-log10 P-values) and the x-axis shows effect size (fold change). Genes located at the top left or right quadrants indicate substantial FC and strong statistical evidence of genuine differences.

Figure 2
Figure 2. Comparison of alternative splicing results obtained from diffSplice, DEXSeq and rMATS. |
(A) Volcano plot (left) of RNA-Seq from Limma diffSplice analysis: The x-axis shows log exon fold change; the y-axis shows -log10 p-value. Each point corresponds to an exon. Horizontal dashed line at p-value=1E-5; vertical dashed lines at two fold change (FC). Red exons show substantial FC and statistical significance. Differential splicing plot (right): Splicing patterns are exhibited for an example gene Wnk1 where the x-axis shows exon id per transcript; the y-axis shows exon relative log fold change (the difference between the exon's logFC and the overall logFC for all other exons). Exons highlighted in red show statistically significant differential expression (FDR < 0.1).
(B) Volcano plot (left) and Differential exon usage (right) of RNA-Seq obtained from DEXSeq analysis. Wnk1 gene shows significant differential usage of exons between WT and Mbnl1 knock-out highlighted in pink, which correspond to the same differential exons in (A).
(C) Volcano plot (left) and Sashimi plot (right) for Wnk1 obtained from rMATS analysis. Volcano plot depicting significant skipped (cassette) exon (SE) event in wild-type compared to knockout at 10% FDR with change in percent spliced in (PSI or ΔΨ) values > 0.1. The x-axis shows change in PSI values across conditions, and the y-axis shows log P-Value. The Sashimi plot shows a skipped exon event in the Wnk1 gene, corresponding to a significant differential exon in (A) and (B). Each row represents an RNA-Seq sample: three replicates of wild-type and Mbnl1 knock-out. The height shows read coverage in RPKM and the connecting arcs depict junction reads across exons. Annotated gene model alternative isoforms are shown at the bottom of the plot. The bottom panel of C illustrates junction reads used to compute the PSI statistic.
(D) Venn diagram comparing the number of significant differential exons obtained by the different methods. Please click here to view a larger version of this figure.

Figure 2 A (right-panel) shows a diagrammatic display of exon differences of one of the top ranked genes, showing logFC on the y-axis and exon number on the x-axis. This example shows a cassette exon varying between conditions for gene Wnk1. The differential exon usage plot from DEXSeq shows evidence of differential splicing at five exon sites near Wnk1.6.45. The highlighted exons in pink are likely to be spliced out in Mbnl1 KO samples compared to WT. These exons are complementary to the results obtained by diffSplice which shows a similar pattern at the specific genomic position. More examples are shown in Supplementary Figure 1 and Supplementary Figure 2. A more detailed view to confirm interesting results can be given by comparing coverage (wiggle) tracks in RPM (Reads per million) units in the UCSC (University of Santa Cruz) or IGV (Integrative Genomics Viewer) genome browsers (not shown), along with visual correlation with other tracks of interest, such as known gene models, conservation, and other genome-wide assays.

rMATS output table lists significant alternative splicing events categorized by type (Supplementary Table 3). Figure 2C shows a volcano plot of genes that are alternative spliced, with the effect size measured by the differential "percent spliced in" (PSI or ΔΨ) statistic of11.

PSI refers to the percentage of reads consistent with the inclusion of a cassette exon (i.e., reads mapping to the cassette exon itself or junction reads overlapping the exon) compared with reads consistent with exon exclusion i.e. junction reads across adjacent upstream and downstream exons (The bottom panel of Figure 2C). The right panel of Figure 2C shows sashimi plot of Wnk1 gene with differential splicing event overlaid on coverage tracks for the gene, with a skipped exon in Mbnl1 KO. Arcs joining exons show the number of junction reads (reads crossing a spliced-out intron). Different tabs of Supplementary Table 3 show significant reads of each type of event that spans junctions with exon boundaries (junction counts and exon counts (JCEC)). Figure 2D compares the significant differentially spliced exons detected by the three tools.

Figure 3
Figure 3. Alternative splicing events acquired by rMATS analysis. A) Types of AS events. This figure is adapted from rMATS documentation11 explaining the splicing event with constitutive and alternatively spliced exons. Labeled with the number of each event at FDR 10%. B) Sashimi plot of Add3 gene exhibiting skipped exon (SE). C) Sashimi plot of Baz2b gene exhibiting alternative 5' splice site (A5SS). D) Sashimi plot of Lsm14b gene exhibiting alternative 3' splice site (A3SS). E) Sashimi plot of Mta1 gene exhibiting mutually exclusive exons (MXE). F) Sashimi plot of Arpp21 gene exhibiting retained intron (RI). Red rows represent three replicates of wild-type and orange rows represent Mbnl1 knock-out replicates. The x-axis corresponds to genomic coordinates and strand information, y-axis shows coverage in RPKM. Please click here to view a larger version of this figure.

Figure 3 illustrates types of splicing events SE, A5SS, A3SS, MXE and RI with the help of Sashimi plots of the top significant genes of those events. On comparing the three replicates of both WT and Mbnl1_KO, a total of 1272 SE events, 130 A5SS, 116 A3SS, 215 MXE and 313 RI events were detected at FDR 10%. Sashimi plot illustrates the type of event using top genes as an example.

APA:
The output from the APA analysis is similar to the exon-level AS analysis. A table of top genes ranked by differential APA activity in the 3'UTR is provided (Supplementary Table 4 and Supplementary Table 5). Figure 4A shows the volcano plots of genes by differential APA activity in 3'UTRs generated using diffSplice and DEXSeq separately. Figure 4B displays the Venn plot comparing the significantly differential pA site usage results acquired from different pipelines. Figure 4C and 4D show the diagrammatic representation of differential pA site usage in the 3'UTR of gene Fosl2 (Figure 4C) and Papola (Figure 4D) generated using both diffSplice and DEXSeq, which are experimentally validated to show significant distal to proximal shift (Fosl2) and significant proximal to distal shift (Papola) of pA site usage in DKO, respectively. More examples are shown in Supplementary Figure 3 and Supplementary Figure 4.

Figure 4
Figure 4. Alternative polyadenylation plots by diffSplice and DEXSeq. A) Volcano plots of PolyA-seq data generated using diffSplice and DEXSeq. X-axis shows log pA site fold change; y-axis shows -log10 p-value. Each point corresponds to a pA site. Horizontal dashed line at p-value=1E-5; vertical dashed lines at 2-fold FC. Red exons show substantial FC and statistical significance. B) Venn plot comparing the significant differential pA site usage results acquired from different pipelines. C-D) Differential APA plots generated using diffSplice and DEXSeq showing the proximal, internal and distal pA sites for the Fosl2 and Papola gene. Figures are generated by same function as Figure 2 (B) but with pA sites replacing exons. Please click here to view a larger version of this figure.

Figure 5 is a diagnostic plot to confirm the expected read distribution around annotated pA cleavage sites for the PolyA-seq assay used. It shows the mean coverage in flanking regions anchored at known pA cleavage sites on the genome-wide level. In this case, the expected pileup of reads upstream of the sites is visualized. The read distributions anchored at pA sites for all PolyA-seq samples are shown in Supplementary Figure 5.

Figure 5
Figure 5. Mean coverage plot around pA cleavage sites. The cleavage site for PolyA-seq data is shown by vertical dashed line. X-axis shows base position relative to pA cleavage sites, up to 100 nucleotides upstream and downstream; y-axis shows the mean read coverage over all pA cleavage sites, normalized by library size in CPM. Please click here to view a larger version of this figure.

The differential APA results of different contrasts generated by the same pipeline can be compared and verified by visualizing the read coverage of representative significantly differential pA sites in the genome browser. Figure 6A is the Venn plot comparing the significantly differential pA site usage of different contrasts acquired from diffSplice. Figure 6B-D are the IGV snapshots of the read coverage at pA sites for different genes, which show the patterns consistent with those discovered in the APA analysis using diffSplice. Figure 6B validates the significant proximal to distal shift of pA site usage for gene Paip2, which is uniquely detected in the contrast DKO vs WT, but not in other two contrasts KD vs WT, and Ctr vs WT. Figure 6C validates the significant distal to proximal shift of pA site usage for gene Ccl2 detected uniquely in the contrast KD vs WT, while Figure 6D validates the significant differential pA usage of all the contrasts for gene Cacna2d1.

Figure 6
Figure 6. Contrast comparison and verification of diffSplice results. A) Venn diagram comparing significant differential pA site usage results of different contrasts acquired from diffSplice. B-D) IGV snapshot visualizing pA peaks coverage of genes Paip2, Ccl2 and Cacna2d1 across conditions. Each track represents the read coverage in a specific condition. Please click here to view a larger version of this figure.

Supplementary Figure 1. RNA-Seq analysis of differential splicing with Limma diffSplice. (A) Volcano plot of RNA-Seq from Limma diffSplice analysis: The x-axis shows log exon fold change; the y-axis shows -log10 p-value. Each point corresponds to an exon. Horizontal dashed line at p-value=1E-5; vertical dashed lines at two-fold change (FC). Red exons show substantial FC and statistical significance. (B-D) Differential splicing plots: Splicing patterns are exhibited for example genes Mbnl1, Tcf7, and Lef1, respectively, where the x-axis shows exon id per transcript; the y-axis shows exon relative log fold change (the difference between the exon's logFC and the overall logFC for all other exons). Exons highlighted in red show statistically significant differential expression (FDR < 0.1). Please click here to download this File.

Supplementary Figure 2. RNA-Seq analysis of differential exon usage with DEXSeq.  (A) Volcano plot. (B-D) Differential exon usage of RNA-Seq obtained from DEXSeq analysis. Genes Mbnl1, Tcf7, and Lef1, respectively, show significant differential usage of exons between WT and Mbnl1 knock-out highlighted in pink, which correspond to the same differential exons in Supplementary figure 1. Please click here to download this File.

Supplementary Figure 3. Alternative polyadenylation plots by diffSplice.  A) Volcano plots of PolyA-seq data generated using diffSplice in three contrast pairs obtained from the mouse PolyA-seq data, including double knockout (DKO) vs wild-type (WT), knock-down (KD) vs WT, and control (Ctrl) vs WT. X-axis shows log pA site fold change; y-axis shows -log10 p-value. Each point corresponds to a pA site. Horizontal dashed line at p-value=1E-5; vertical dashed lines at 2-fold FC. Red pA sites show substantial FC and statistical significance. B) Differential APA plots generated using diffSplice showing the proximal, internal and distal pA sites for the highly ranked genes S100a7a, Tpm1, and Smc6Please click here to download this File.

Supplementary Figure 4. Differential pA usage analysis by DEXSeq pipeline.  A) Volcano plots of PolyA-seq data generated using DEXSeq in three pairs obtained from the mouse PolyA-seq data, including double knockout (DKO) vs wild-type (WT), knock-down (KD) vs WT, and control (Ctrl) vs WT. X-axis shows log pA site fold change; y-axis shows -log10 p-value. Each point corresponds to a pA site. Horizontal dashed line at p-value=1E-5; vertical dashed lines at 2-fold FC. Red pA sites show substantial FC and statistical significance. B) Differential APA plots generated using DEXSeq showing the proximal, internal and distal pA sites for the highly ranked genes S100a7a, Tpm1, and Smc6Please click here to download this File.

Supplementary Figure 5. Mean coverage plot and heatmaps around pA cleavage sites.  Coverage shown for four conditions, with genes on forward and reverse strands shown separately. X-axis shows base position relative to pA cleavage sites, up to 100 nucleotides upstream and downstream; y-axis refers to the mean coverage at corresponding relative base positions across all pA cleavage sites. Heatmaps provide an alternative view, with each pA cleavage site shown as a separate row on the x-axis, ordered by coverage. Intensity shows read coverage (see legend). Please click here to download this File.

Supplementary Table 1. diffSplice output of the AS analysis. First tab defines the column names for the original outputs presented in second (exon-level) and third (gene-level) tabs. Please click here to download this Table.

Supplementary Table 2. DEXSeq output of the AS analysis. First tab defines the column names for the original output presented in second (exon-level) and third (gene-level) tabs. Please click here to download this Table.

Supplementary Table 3. rMATS output of the AS analysis. First tab defines the column names for the summary file (tab 2) and the JCEC files for each event (tab 3-7). Please click here to download this Table.

Supplementary Table 4. diffSplice output of the APA analysis. First tab defines the column names for the original output presented in second (pA site-level) and third (gene-level) tabs. Please click here to download this Table.

Supplementary Table 5. DEXSeq output of the APA analysis. First tab defines the column names for the original output presented in second (pA site-level) and third (gene-level) tabs. Please click here to download this Table.

Supplementary Table 6. A summary of number of significantly changed exons for AS and pA sites for APA. Please click here to download this Table.

Supplementary Table 7. A summary of tools and packages used in the AS/APA analysis. Please click here to download this Table.

Subscription Required. Please recommend JoVE to your librarian.

Discussion

In this study, we evaluated exon-based and event-based approaches to detect AS and APA in bulk RNA-Seq and 3' end sequencing data. The exon-based AS approaches produce both a list of differentially expressed exons and a gene-level ranking ordered by the statistical significance of overall gene-level differential splicing activity (Tables 1-2, 4-5). For the diffSplice package, differential usage is determined by fitting weighted linear models at an exon-level to estimate the differential log fold-change of an exon against the average log fold-change of the other exons within the same gene (called per exon FC). The gene-level statistical significance is computed by combining individual exon-level significance tests into a gene-wise test by the Simes method10. This ranking by gene-level differential splicing activity can subsequently be used to perform a gene set enrichment analysis (GSEA) of key pathways involved10. DEXSeq uses a similar strategy, by fitting a generalized linear model to measure differential exon usage, though differing in certain steps such as filtering, normalization and dispersion estimation. On comparing the top 500 ranked exons showing AS activity and APA using DEXSeq and DiffSplice, we found an overlap of 310 exons and 300 pA sites, respectively, demonstrating the concordance of the two exon-based approaches, which was also demonstrated in a previous study 29. It is recommended to use a combination of both an exon-based (either DEXSeq or diffSplice) and an event-based approach for comprehensive detection and classification of AS. For APA, users can choose either DEXSeq or diffSplice: both methods have been shown to perform well across a wide range of transcriptomics experiments29.

In preparing the RNA-seq library for an AS analysis, it is important to use a strand-specific bulk RNA-seq protocol8, as a large fraction of genes in vertebrate genomes overlap on different strands, and a non-strand-specific protocol is unable to distinguish these overlapping regions, confounding final exon detection. Another consideration is read depth, with splicing analyses requiring deeper sequencing than DGE, e.g. 30-60 million reads per sample, versus 5-25 million reads per sample for DGE (https://sapac.support.illumina.com/bulletins/2017/04/considerations-for-rna-seq-read-length-and-coverage-.html). All the tools demonstrated in the protocol support both single-end and paired-end sequencing data. If only known gene annotations are used to detect junction reads then single-ended shorter reads (≥ 50 bp) can be used, though de novo detection of novel splice junctions benefits from paired-end and longer (≥ 100bp) reads30,31. The choice of RNA extraction protocol - either polyA selection or rRNA depletion-- depends on the quality of RNA and the experimental question- see31 for a discussion. Depending on the details of the library construction, modifications will be required to the example scripts given here for the parameters of read alignment, feature counting and rMATS. In computing the initial exon level read counts using featureCounts, or similar methods, care must be taken to configure the function options correctly for counts and strandedness: in featureCounts, we set the "strandSpecific" argument appropriately for the strand-specific RNA-seq protocol used; and for exon-level quantification it is expected that a read will map over adjacent exons, and so we set the allowMultiOverlap parameter to TRUE. For APA, there are different 3' end sequencing protocols6 which vary in the precise location of peaks relative to the pA site. For our example data we determine the peak is 60 bp upstream of the pA site as shown by Figure 5, and this analysis will need to be adapted for other 3' end sequencing protocols.

In this protocol we limit the scope to the discussion of differential analyses at the level of individual exons, and splicing events consisting of adjacent exon-intron combinations. We do not discuss the class of analyses based on isoform de novo reconstruction such as Cufflinks, Cuffdiff32, RSEM33, Kallisto34 which aim to detect and quantify the absolute and relative expression of entire alternative isoforms. The exon and event-based methods are more sensitive for detecting individual splicing events30 and in many cases provide all the information needed for further analysis, without a need for isoform-level quantification.

The latest version of the source files in this protocol are available at https://github.com/jiayuwen/AS_APA_JoVE

Subscription Required. Please recommend JoVE to your librarian.

Disclosures

The authors have nothing to disclose.

Acknowledgments

This study was supported by an Australian Research Council (ARC) Future Fellowship (FT16010043) and ANU Futures Scheme.

Materials

Name Company Catalog Number Comments
Not relevent for computational study

DOWNLOAD MATERIALS LIST

References

  1. Katz, Y., Wang, E. T., Airoldi, E. M., Burge, C. B. Analysis and design of RNA sequencing experiments for identifying isoform regulation. Nature Methods. 7, (12), 1009-1015 (2010).
  2. Wang, Y., et al. Mechanism of alternative splicing and its regulation. Biomedical Reports. 3, (2), 152-158 (2015).
  3. Mehmood, A., et al. Systematic evaluation of differential splicing tools for RNA-seq studies. Briefings in Bioinformatics. 21, (6), 2052-2065 (2020).
  4. Movassat, M., et al. Coupling between alternative polyadenylation and alternative splicing is limited to terminal introns. RNA Biology. 13, (7), 646-655 (2016).
  5. Tian, B., Manley, J. L. Alternative polyadenylation of mRNA precursors. Nature Reviews Molecular Cell Biology. 18, (1), 18-30 (2017).
  6. Herrmann, C. J., et al. PolyASite 2.0: a consolidated atlas of polyadenylation sites from 3' end sequencing. Nucleic Acids Research. 48, (1), 174-179 (2020).
  7. Liu, R., Loraine, A. E., Dickerson, J. A. Comparisons of computational methods for differential alternative splicing detection using RNA-seq in plant systems. BMC Bioinformatics. 15, (1), 364 (2014).
  8. Conesa, A., et al. A survey of best practices for RNA-seq data analysis. Genome Biology. 17, (1), 13 (2016).
  9. Anders, S., Reyes, A., Huber, W. Detecting differential usage of exons from RNA-seq data. Genome Research. 22, (10), 2008-2017 (2012).
  10. Ritchie, M. E., et al. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Research. 43, (7), 47 (2014).
  11. Shen, S., et al. rMATS: Robust and flexible detection of differential alternative splicing from replicate RNA-Seq data. Proceedings of the National Academy of Sciences. 111, (51), 5593-5601 (2014).
  12. Mehmood, A., et al. Systematic evaluation of differential splicing tools for RNA-seq studies. Briefings in bioinformatics. 21, (6), 2052-2065 (2020).
  13. Kanitz, A., et al. Comparative assessment of methods for the computational inference of transcript isoform abundance from RNA-seq data. Genome biology. 16, (1), 1-26 (2015).
  14. Love, M. I., Huber, W., Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biology. 15, (12), 550 (2014).
  15. Sznajder, L. J., et al. Loss of MBNL1 induces RNA misprocessing in the thymus and peripheral blood. Nature Communications. 11, 1-11 (2020).
  16. Batra, R., et al. Loss of MBNL leads to disruption of developmentally regulated alternative polyadenylation in RNA-mediated disease. Molecular Cell. 56, (2), 311-322 (2014).
  17. Leinonen, R., Sugawara, H., Shumway, M., et al. The sequence read archive. Nucleic acids research. 39, suppl_1 19-21 (2010).
  18. Tange, O. GNU parallel-the command-line power tool. 36, 42-47 (2011).
  19. Andrews, S. FastQC: a quality control tool for high throughput sequence data. Bioinformatics. Available from: http://www.bioinformatics.babraham.ac.uk/projects/fastqc/2010 (2011).
  20. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet journal. 17, (1), 10-12 (2011).
  21. Bolger, A. M., Lohse, M., Usadel, B. Trimmomatic: a flexible trimmer for Illumina sequence data. Bioinformatics. 30, (15), 2114-2120 (2014).
  22. Dobin, A., et al. STAR: ultrafast universal RNA-seq aligner. Bioinformatics. 29, (1), Oxford, England. 15-21 (2013).
  23. Robinson, M. D., McCarthy, D. J., Smyth, G. K. edgeR: a Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics. 26, (1), 139-140 (2010).
  24. Robinson, M. D., Oshlack, A. A scaling normalization method for differential expression analysis of RNA-seq data. Genome Biology. 11, (3), 25 (2010).
  25. Veiga, D. F. T. maser: Mapping Alternative Splicing Events to pRoteins. R package version 1.4.0. (2019).
  26. Langmead, B., Trapnell, C., Pop, M., Salzberg, S. L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biology. 10, (13), 25 (2009).
  27. Quinlan, A. R., Hall, I. M. BEDTools: a flexible suite of utilities for comparing genomic features. Bioinformatics. 26, (6), 841-842 (2010).
  28. Ramírez, F., Dündar, F., Diehl, S., Grüning, B. A., Manke, T. deepTools: a flexible platform for exploring deep-sequencing data. Nucleic acids research. 42, (1), 187-191 (2014).
  29. Merino, G. A., Conesa, A., Fernández, E. A. A benchmarking of workflows for detecting differential splicing and differential expression at isoform level in human RNA-seq studies. Briefings in bioinformatics. 20, (2), 471-481 (2019).
  30. Chhangawala, S., Rudy, G., Mason, C. E., Rosenfeld, J. A. The impact of read length on quantification of differentially expressed genes and splice junction detection. Genome biology. 16, (1), 1-10 (2015).
  31. Conesa, A., et al. A survey of best practices for RNA-seq data analysis. Genome Biol. 17, 13 (2016).
  32. Trapnell, C., et al. Differential gene and transcript expression analysis of RNA-seq experiments with TopHat and Cufflinks. Nat Protoc. 7, (3), 562-578 (2012).
  33. Li, B., Dewey, C. N. RSEM: accurate transcript quantification from RNA-Seq data with or without a reference genome. BMC Bioinformatics. 12, 323 (2011).
  34. Bray, N. L., Pimentel, H., Melsted, P., Pachter, L. Near-optimal probabilistic RNA-seq quantification. Nat Biotechnol. 34, (5), 525-527 (2016).
This article has been published
Video Coming Soon
PDF DOI DOWNLOAD MATERIALS LIST

Cite this Article

Dixit, G., Zheng, Y., Parker, B., Wen, J. Identification of Alternative Splicing and Polyadenylation in RNA-seq Data. J. Vis. Exp. (172), e62636, doi:10.3791/62636 (2021).More

Dixit, G., Zheng, Y., Parker, B., Wen, J. Identification of Alternative Splicing and Polyadenylation in RNA-seq Data. J. Vis. Exp. (172), e62636, doi:10.3791/62636 (2021).

Less
Copy Citation Download Citation Reprints and Permissions
View Video

Get cutting-edge science videos from JoVE sent straight to your inbox every month.

Waiting X
Simple Hit Counter
