Dissection of Hippocampal Dentate Gyrus from Adult Mouse

JoVE Journal


A dissection technique for removal of the dentate gyrus from adult mouse under a stereomicroscope was demonstrated in this video-recorded protocol.

Cite this Article

Copy Citation | Download Citations | Reprints and Permissions

Hagihara, H., Toyama, K., Yamasaki, N., Miyakawa, T. Dissection of Hippocampal Dentate Gyrus from Adult Mouse. J. Vis. Exp. (33), e1543, doi:10.3791/1543 (2009).


The hippocampus is one of the most widely studied areas in the brain because of its important functional role in memory processing and learning, its remarkable neuronal cell plasticity, and its involvement in epilepsy, neurodegenerative diseases, and psychiatric disorders. The hippocampus is composed of distinct regions; the dentate gyrus, which comprises mainly granule neurons, and Ammon's horn, which comprises mainly pyramidal neurons, and the two regions are connected by both anatomic and functional circuits. Many different mRNAs and proteins are selectively expressed in the dentate gyrus, and the dentate gyrus is a site of adult neurogenesis; that is, new neurons are continually generated in the adult dentate gyrus. To investigate mRNA and protein expression specific to the dentate gyrus, laser capture microdissection is often used. This method has some limitations, however, such as the need for special apparatuses and complicated handling procedures. In this video-recorded protocol, we demonstrate a dissection technique for removing the dentate gyrus from adult mouse under a stereomicroscope. Dentate gyrus samples prepared using this technique are suitable for any assay, including transcriptomic, proteomic, and cell biology analyses. We confirmed that the dissected tissue is dentate gyrus by conducting real-time PCR of dentate gyrus-specific genes, tryptophan 2,3-dioxygenase (TDO2) and desmoplakin (Dsp), and Ammon's horn enriched genes, Meis-related gene 1b (Mrg1b) and TYRO3 protein tyrosine kinase 3 (Tyro3). The mRNA expressions of TDO2 and Dsp in the dentate gyrus samples were detected at obviously higher levels, whereas Mrg1b and Tyro3 were lower levels, than those in the Ammon's horn samples. To demonstrate the advantage of this method, we performed DNA microarray analysis using samples of whole hippocampus and dentate gyrus. The mRNA expression of TDO2 and Dsp, which are expressed selectively in the dentate gyrus, in the whole hippocampus of alpha-CaMKII+/- mice, exhibited 0.037 and 0.10-fold changes compared to that of wild-type mice, respectively. In the isolated dentate gyrus, however, these expressions exhibited 0.011 and 0.021-fold changes compared to that of wild-type mice, demonstrating that gene expression changes in dentate gyrus can be detected with greater sensitivity. Taken together, this convenient and accurate dissection technique can be reliably used for studies focused on the dentate gyrus.


Dissection of hippocampal dentate gyrus

  1. In a deeply anesthetized mouse, carefully dissect the brain out from the skull and place it into ice-cold phosphate-buffered saline (PBS).
  2. In a Petri dish containing ice-cold PBS, cut the brain along the longitudinal fissure of the cerebrum using a surgical knife, and cut off the regions posterior to lambda (midbrain, hindbrain, and cerebellum).
  3. Place the cerebral hemisphere medial side up and, using forceps, carefully remove the diencephalon (thalamus and hypothalamus) under a dissection microscope. This will expose the medial side of the hippocampus, allowing for visualization of the dentate gyrus. The dentate gyrus is distinguishable from Ammon's horn by the gaps between them. Injury to the hippocampus or surrounding area will make it more difficult to isolate the dentate gyrus.
  4. Insert a sharp needle-tip (e.g., 27-gauge needle) into each side of the dentate gyrus (boundaries of the dentate gyrus and Ammon's horn; Figure 1), and slide the needles superficially along the septo-temporal axis of hippocampus to isolate the dentate gyrus.
  5. Pick up the isolated dentate gyrus using a needle or forceps and place it in a sample tube. The thus-obtained dentate gyrus tissue sample can be used immediately for any assay or stored in a deep-freezer for later use.
  6. Isolate the dentate gyrus from the other cerebral hemisphere using the same method.

Quantitative real-time PCR

The dentate gyrus was isolated using the above-mentioned method and the remaining hippocampus was dissected out as the Ammon's horn sample from wild-type mice. Real-time PCR of beta-actin, TDO2, Dsp, Mrg1b and Tyro3 were performed with the dentate gyrus and the Ammon's horn samples as described previously1. Primers 5'-CTGGCGAGATCACGATGACG and 5'-AAGCTACGCTGTTGTCTAACC were used for Mrg1b, and GCCTCCAAATTGCCCGTCA and 5'-CCAGCACTGGTACATGAGATCA for Tyro3.

Microarray analysis

Microarray experiments were performed with male wild-type mice and mice heterozygous for the alpha-isoform of calcium/calmodulin-dependent protein kinase II (alpha-CaMKII+/- mice) as described previously1. Briefly, RNA isolated from the whole hippocampus or dentate gyrus of wild-type and mutant mice was hybridized with a Mouse Genome 430 2.0 Array (Affymetrix, Santa Clara, CA), and each GeneChip was scanned by an Affymetrix GeneChip Scanner 3000 (GCS3000). GeneChip analysis was performed with Microarray Analysis Suite version 5.0.


The dentate gyrus occupies approximately 25% to 30% of the volume of the hippocampal formation2,3. It has a unique cell composition and plays crucial roles in various brain functions. Therefore, techniques to isolate the dentate gyrus are useful for analyzing the events that occur specifically in this region.

Here, we demonstrated a procedure to efficiently dissect the dentate gyrus from adult mouse hippocampus and confirmed the precision of the technique. First, histologic study revealed that the dentate gyrus was separated without contamination by other regions (Figure 1), indicating that a pure dentate gyrus sample can be prepared.

Second, we confirmed that the dissected tissue is dentate gyrus by conducting real-time PCR of dentate gyrus-specific genes, TDO2 and Dsp, and Ammon's horn enriched genes, Mrg1b and Tyro34 (Figure 2). The mRNA expressions of TDO2 (p=0.000023; n's=4 and 4, respectively) and Dsp (p=0.0000030; n's=4 and 4, respectively) in the dentate gyrus samples were detected at obviously higher levels, whereas Mrg1b (p=0.000080; n's=4 and 4, respectively) and Tyro3 (p=0.00017; n's=4 and 4, respectively) were lower levels, than those in the Ammon's horn samples. Beta-actin expression levels did not differ in these samples (p=0.11; n's=4 and 4, respectively). Thus, we could check whether or not the dentate gyrus was accurately dissected out by conducting such simple real-time PCR experiments.

Third, to assess the usefulness of this dissection method, we compared the mRNA expression level of whole hippocampus with that of dentate gyrus. Whole hippocampus and dentate gyrus obtained from wild-type (n's=9 and 4, respectively) and alpha-CaMKII+/- mice (n's=18 and 4, respectively) were processed for microarray analysis, and for all genes scored, the fold-change was calculated by dividing the mutant value by the wild-type value. The results indicated that the changes in mRNA expression, especially of dentate gyrus-specific molecules such as Dsp and TDO2, were detected with up to a 5-fold increase in sensitivity in dentate gyrus samples compared to whole hippocampal samples (Table 1). We previously demonstrated that alpha-CaMKII+/- mice exhibit behaviors related to human psychiatric disorders such as working memory deficits and an exaggerated infradian rhythm1,5. Furthermore, morphologic and electrophysiologic features of the dentate gyrus neurons in mutant mice are strikingly similar to those of immature dentate gyrus neurons in normal rodents, indicating that the neurons in these mutant mice fail to develop to maturity1. The immature dentate gyrus and down-regulated expression of Dsp and TDO2 mRNA in alpha-CaMKII+/- mice are consistent with the finding that Dsp and TDO2 can be used as markers of mature granule cells in the dentate gyrus (Ohira et al., unpublished data).

Taken together, this convenient and accurate dissection technique can be reliably used for studies focused on the dentate gyrus. Dentate gyrus tissue obtained using this method is applicable to other types of analyses as well, including proteomic and cell biology analyses.

figure 1
Figure 1. Verification of the isolated dentate gyrus by histologic study. A coronal section of the brain after isolating dentate gyrus was processed for Nissl staining (left panel), and a schematic diagram adapted from the mouse brain atlas6 represents the approximately the same level of the section shown in the left panel (right panel). Arrows indicate the directions of the needle-tip insertion. Scale bar, 1 mm.

figure 2

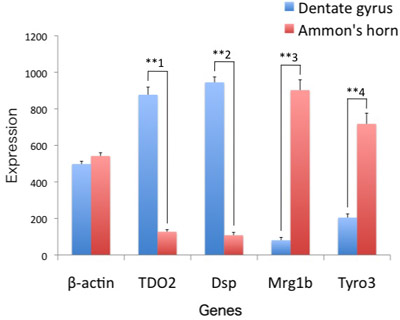

Figure 2. Verification of the isolated dentate gyrus by real-time PCR. The dentate gyrus and the Ammon s horn obtained from four wild-type mice were processed for real-time PCR of beta-actin, TDO2, Dsp, Mrg1b and Tyro3. Results are presented as means ± SEM. For statistical analysis, Student s t test was employed, and p values are followed: beta-actin, p=0.11; TDO2, p=0.000023 (**1); Dsp, p=0.0000030 (**2); Mrg1b, p=0.000080 (**3); and Tyro3, p=0.00017 (**4).

Table 1. Microarray analysis of whole hippocampus and dentate gyrus. Genes differentially expressed in dentate gyrus and whole hippocampus of alpha-CaMKII+/- mice were determined by calculating the fold-change from that detected in wild-type mice. Data were analyzed for statistical significance using the Student s t test between wild-type and alpha-CaMKII+/- mice. Among the genes whose expression exhibited p<0.05 in the dentate gyrus of alpha-CaMKII+/- mice compared to that of wild-type mice, the top 50 genes are listed. Note that the numbers of samples for dentate gyrus are much less than those for whole hippocampus. AffyID, Affymetrix probe identifier; CKII, alpha-CaMKII+/- mice; WT, wild-type mice.

        Dentate gyrus (p <0.05)
WT: n=4, CKII+/-: n=4
  Whole hippocampus
WT: n=9, CKII+/-: n=18
Gene Title Genebank AffyID   Fold change p value   Fold change p value
desmoplakin AV297961 1435494_s_at   0.011018913 7.02694E-06   0.037021003 1.86126E-13
desmoplakin AV297961 1435493_at   0.014369734 7.86747E-06   0.04232106 1.00579E-12
tryptophan 2,3-dioxygenase AI098840 1419093_at   0.020986484 5.23546E-09   0.101037776 4.14823E-13
nephronectin AA223007 1452106_at   0.075479901 1.05191E-08   0.234001154 1.66301E-15
nephronectin AA223007 1452107_s_at   0.079457767 1.40433E-07   0.177974715 3.9758E-12
thyrotropin releasing hormone receptor M59811 1449571_at   0.103105815 0.003093796   0.801412732 0.283994361
ryanodine receptor 1, skeletal muscle X83932 1427306_at   0.104825517 3.38513E-07   0.650685017 0.000308462
nescient helix loop helix 1 NM_010916 1419533_at   9.431896 6.7979E-06   4.078815314 5.27E-11
copine family member IX BB274531 1454653_at   9.159157 7.99492E-06   1.797304153 0.000296375
doublecortin-like kinase 3 BB326709 1436532_at   0.109336662 1.95278E-07   0.56697229 2.62633E-08
calpain 3 AF127766 1426043_a_at   0.111269769 8.07053E-06   0.370956608 2.04421E-14
Adult male corpus striatum cDNA, RIKEN full-length enriched library, clone:C030023B07 product:unclassifiable, full insert sequence BB357628 1460043_at   0.118712341 6.16926E-07   0.682339204 2.33001E-06
collagen and calcium binding EGF domains 1 AV264768 1437385_at   0.124043978 3.65669E-05   0.488394112 4.05538E-06
amyloid beta (A4) precursor protein-binding, family A, member 2 binding protein AK013520 1431946_a_at   7.7986307 1.2098E-06   2.099164713 1.67047E-06
calbindin-28K BB177770 1456934_at   0.130255444 3.32186E-06   0.572605751 1.99157E-10
Transcribed locus AV328597 1443322_at   0.133290835 5.43583E-06   0.562767164 7.56544E-06
neuropeptide Y receptor Y2 NM_008731 1417489_at   0.135319609 0.000113407   0.781498474 0.00394504
ras responsive element binding protein 1 BE197381 1428657_at   0.138235114 7.93691E-07   0.651220705 2.94209E-05
glial cell line derived neurotrophic factor family receptor alpha 2 BB284482 1433716_x_at   0.139062563 2.35371E-06   0.669544709 0.000214146
preproenkephalin 1 M13227 1427038_at   6.9850435 2.39074E-08   1.766018828 0.000250501
RIKEN cDNA 1810010H24 gene BI729991 1428809_at   6.8658915 1.88516E-05   2.77573142 6.81865E-09
ryanodine receptor 1, skeletal muscle BG793713 1457347_at   0.151364292 3.35612E-05   0.503144617 4.32907E-05
protocadherin 21 NM_130878 1418304_at   0.152671849 8.57783E-06   0.670714726 1.56309E-05
cornichon homolog 3 (Drosophila) NM_028408 1419517_at   0.153724144 8.90755E-06   0.95780695 0.661055608
harakiri, BCL2 interacting protein (contains only BH3 domain) BQ175572 1439854_at   0.154284407 2.0118E-05   0.56516812 4.86925E-09
carbohydrate (N-acetylgalactosamine 4-0) sulfotransferase 9 AK017407 1431897_at   0.155238951 5.37423E-06   1.14910007 0.215637733
calpain 3 AI323605 1433681_x_at   0.160871988 1.07655E-05   0.477164757 1.33753E-11
zinc finger, CCHC domain containing 5 BQ126004 1437355_at   0.161812078 3.08262E-06   0.421252632 0.01152969
loricrin NM_008508 1448745_s_at   0.165129967 1.86362E-05   0.639733409 0.000729772
spondin 1, (f-spondin) extracellular matrix protein BC020531 1451342_at   0.168035879 6.67867E-07   0.821042412 0.023650765
RIKEN cDNA A930035E12 gene AV348640 1429906_at   5.9086795 1.747E-07   1.470383201 0.104085454
BB247294 RIKEN full-length enriched, 7 days neonate cerebellum Mus musculus cDNA clone A730018G18 3', mRNA sequence. BB247294 1447907_x_at   5.9047494 1.04931E-05   1.968147585 0.00010636
FERM domain containing 3 BB099015 1437075_at   5.860216 0.000345581   2.780297178 1.83072E-06
neuronal pentraxin 2 /// hypothetical protein LOC100044234 NM_016789 1420720_at   5.7568517 1.34227E-06   2.652516957 0.000206279
Transcribed sequences BG076361 1460101_at   5.657735 2.5015E-06   1.296248831 0.22870031
spondin 1, (f-spondin) extracellular matrix protein BC020531 1424415_s_at   0.17783576 1.01658E-06   0.836181248 0.001380141
calbindin-28K BB246032 1448738_at   0.180317904 1.35961E-05   0.647334052 4.12268E-09
MARCKS-like 1 AV110584 1437226_x_at   0.186235935 1.47067E-06   0.499291387 2.34984E-08
matrilin 2 BB338441 1455978_a_at   0.187783528 6.19122E-05   0.8967688 0.282337853
matrilin 2 BC005429 1419442_at   0.188195795 0.000105295   0.915528892 0.35282097
spondin 1, (f-spondin) extracellular matrix protein BQ175871 1442613_at   0.189956563 9.41195E-06   0.861033222 0.1394266
arrestin 3, retinal NM_133205 1450329_a_at   5.2130346 2.90599E-05   3.944218329 1.07437E-07
RIKEN cDNA A330050F15 gene AV325555 1457558_at   0.19186781 0.000119342   0.660282035 2.47342E-05
contactin 3 BB559510 1438628_x_at   0.194404608 4.08641E-07   0.918742591 0.022545297
calbindin-28K BB246032 1417504_at   0.196381321 2.24182E-05   0.619305124 3.6222E-06
gastrin releasing peptide BC024515 1424525_at   4.9436426 3.00588E-05   2.752845903 5.72954E-07
sortilin-related VPS10 domain containing receptor 3 AK018111 1425111_at   4.885766 1.03645E-05   1.29051599 0.029733649
dopamine receptor D1A BE957273 1455629_at   4.869493 3.77525E-05   1.815881979 0.000516498
proprotein convertase subtilisin/kexin type 5 BB241731 1437339_s_at   0.210528027 7.83039E-05   0.574126078 9.15496E-05
interleukin 1 receptor, type I NM_008362 1448950_at   0.210572243 9.64524E-06   0.241135352 2.79816E-08


Animal experiments were performed in accordance with the National Institute of Health Guide for Care and Use of Laboratory Animals, and approved by the animal care and use committee at Fujita Health University.


We thank Dr. Yoko Nabeshima at Kyoto University for her instruction on the dissection technique and Ms. Aki Miyakawa at Fujita Health University for her support to film. This work was supported by the Program for Promotion of Fundamental Studies in Health Sciences of the National Institute of Biomedical Innovation, a Grant-in-Aid for Scientific Research on Priority Areas -Integrative Brain Research (Shien)- from MEXT in Japan, and by a Grant-in-Aid from CREST of the Japan Science and Technology Agency.


  1. Yamasaki, N., Maekawa, M., Kobayashi, K., Kajii, Y., Maeda, J., Soma, M., Takao, K., Tanda, K., Ohira, K., Toyama, K., Kanzaki, K., Fukunaga, K., Sudo, Y., Ichinose, H., Ikeda, M., Iwata, N., Ozaki, N., Suzuki, H., Higuchi, M., Suhara, T., Yuasa, S., Miyakawa, T. Alpha-CaMKII deficiency causes immature dentate gyrus, a novel candidate endophenotype of psychiatric disorders. Mol. Brain. 1, 6-6 (2008).
  2. Insausti, A. M., Megias, M., Crespo, D., Cruz-Orive, L. M., Dierssen, M., Vallina, I. F., Insausti, R., Florez, J. Hippocampal volume and neuronal number in Ts65Dn mice: a murine model of Down syndrome. Neurosci. Lett. 253, 175-175 (1998).
  3. Redwine, J. M., Kosofsky, B., Jacobs, R. E., Games, D., Reilly, J. F., Morrison, J. H., Young, W. G., Bloom, F. E. Dentate gyrus volume is reduced before onset of plaque formation in PDAPP mice: a magnetic resonance microscopy and stereologic analysis. Proc. Natl. Acad. Sci. U.S.A. 100, 1381-1381 (2003).
  4. Lein, E. S., Zhao, X., Gage, F. H. Defining a molecular atlas of the hippocampus using DNA microarrays and high-throughput in situ hybridization. J. Neurosci. 24, 3879-3879 (2004).
  5. Matsuo, N., Yamasaki, N., Ohira, K., Takao, K., Toyama, K., Eguchi, M., Yamaguchi, S., Miyakawa, T. Neural activity changes underlying the working memory deficit in alpha-CaMKII heterozygous knockout mice. Front. Behav. Neurosci. 3, 20-20 (2009).
  6. Franklin, K. B. J., Paxinos, G. The Mouse Brain in Stereotaxic Coordinates. Academic Press Inc.. San Diego. (1997).



  1. excellent!

    Posted by: Anonymous
    January 27, 2010 - 10:39 AM
  2. That's Excellent. I am going to apply this method in my research, which is on hippocampus in general with some portion emphasizing Dentate gyrus role in Alzheimer's disease....and the effect of some natural compounds/extracts on it.

    Posted by: Anonymous
    March 6, 2010 - 11:38 AM
  3. Do you try to dissect CA3 and CA1? could you please give me some tips at this. Thank you very much

    Posted by: Anonymous
    May 26, 2010 - 11:52 AM
  4. Excellent!!!
    It has been already asked, but do you dissect CA3 and CA1? could you please give me some tips. Thank you!

    Posted by: Anonymous
    June 17, 2010 - 1:56 AM
  5. I am sorry for the delay in my response.
    I dissect CA which include both CA3 and CA1, but have not done the separation of CA3 and CA1. I also would like to try this. Thank you!

    Posted by: Anonymous
    June 18, 2010 - 6:35 AM
  6. You are very good! I am going to try it too.

    Posted by: Anonymous
    August 17, 2010 - 9:30 AM
  7. I would like to make a few comments on the progress related to this article.

    1. We confirmed the TDO², a dentate gyrus (DG) specific gene, is expressed mostly in the mature granule cells, but not in the immature granule cells in DG (Ohira et al., Molecular Brain, ²010;²6 ) and so TDO² can serve as a marker for a mature granule cell marker.

    ². We have demonstrated that chronic fluoxetine (a SSRI; Prozac) treatment causes "dematuration" of almost all DG granule cells, causing dramatic changes of electrophysiological properties of DG neurons and resulting in a phenotype we call "immature dentate gyrus (=iDG)" (Kobayashi et al., PNAS, ²010). TDO², DSP and calbindin are dramatically decreased by this treatment.

    3. Among the 16 different kinds of hyperactive mice (mutant mouse strains / pharmacological manipulations), we found that 8 of them seems to show this iDG phenotype in which TDO² and DSP is dramatically decreased by using the real-time PCR method we show here (unpublished observation in my lab).

    So, if you find any hyperactive mice or want to see the effects of substances like anti-depressant drugs, use the methods shown here to check iDG phenotype!

    Posted by: Anonymous
    September 9, 2010 - 9:47 PM
  8. Thanks for prepraring this nice video. It is very helpful!

    Posted by: Anonymous
    November 19, 2010 - 8:16 AM
  9. Excellent presentation and dissection!
    A brief question regarding microarray on whole hippocampus versus dentate gyrus:
    Do you see also an increase in expression of neurogenic genes like NeuroD1/Doublecortin/...which are supposed to be expressed in the subgranular layer?

    Posted by: Anonymous
    December 15, 2010 - 8:13 AM
  10. Sorry, we have not done that experiment.
    FYI, doublecortin but not NeuroD1 is significantly increased in the hippocampus of alpha-CaMKII +/- mice.

    Posted by: Anonymous
    December 15, 2010 - 7:51 PM
  11. How can I distinguish the boundary of dentate gyrus and CA3 region? Thank you !

    Posted by: Anonymous
    December 23, 2010 - 7:58 PM
  12. It is not so difficult to do. If you turn a illumination light on and adjust focus on the surface of dentate gyrus, you can see the groove along the anterior border of dentate gyrus under stereo microscope. In order to identify the boundary clearly, it is important not to injure the hippocampus and its surrounding area.

    Posted by: Hideo H.
    December 24, 2010 - 5:26 AM
  13. Its a very useful video.

    Posted by: Anonymous
    January 2, 2011 - 10:33 AM
  14. It is a nice video but the regions are labeled incorrectly. For instance, the shaded region is not the dentate gyrus. It is the CA3/CA1 segment and part of the subiculum. The dentate gyrus is the ventral unshaded portion that is just above the earlier dissected diencephalon . Second, the segment of tissue that is isolated and removed from the brain is not the dentate gyrus but rather the CA3/CA3 segment. The dentate gyrus is still remaining in the sagittal slab.

    Posted by: Anonymous
    September 3, 2011 - 4:49 PM
  15. It is a nice video but the regions are labeled incorrectly. For instance, the shaded region is not the dentate gyrus. It is the CA3/CA1 segment and part of the subiculum. The dentate gyrus is the ventral unshaded portion that is just above the earlier dissected diencephalon . Second, the segment of tissue that is isolated and removed from the brain is not the dentate gyrus but rather the CA3/CA1 segment. The dentate gyrus is still remaining in the sagittal slab.

    Posted by: Anonymous
    September 3, 2011 - 4:52 PM
  16. Thank you for your comment. Indeed it may be confusing, but the shaded region is the dentate gyrus. A part of CA3 can be seen at the ventral unshaded portion.
    We examined whether the isolated tissue is dentate gyrus by several kinds of experiments. For instance, as shown in Figure 1, most of the dentate gyrus is removed but CA3/CA1 segment is remaining. Furthermore, Figure ² shows that dentate gyrus enriched genes, tdo² and desmoplakin, are concentrated in such removed dentate gyrus.

    Posted by: Anonymous
    September 6, 2011 - 1:21 PM
  17. Thank you . It's nice video. where or which company can buy the custom brain slice holding chamber?
    We will try to do this method.

    Posted by: CHIA S.
    March 25, 2013 - 11:20 PM
  18. what was the age of the mice when you dissected the dentage gyrus for real time PCR ? and which strain did you use?

    Posted by: Emilie P.
    May 23, 2016 - 4:37 PM
  19. Five-month-old male C57/BL6 mice were used. Thank you!

    Posted by: Hideo H.
    May 24, 2016 - 4:08 AM
