An Intravital Microscopy-Based Approach to Assess Intestinal Permeability and Epithelial Cell Shedding Performance

Summary

Taking advantage of intravital microscopy, the method presented here enables real-time visualization of intestinal epithelial cell shedding in living animals. Therefore, topically stained intestinal mucosa (acriflavine and rhodamineB-dextran) of anesthetized mice is imaged up to single-cell resolution using confocal microscopy.

Abstract

Intravital microscopy of the gut using confocal imaging allows real time observation of epithelial cell shedding and barrier leakage in living animals. Therefore, the intestinal mucosa of anesthetized mice is topically stained with unspecific staining (acriflavine) and a fluorescent tracer (rhodamine-B dextran), mounted on a saline solution-rinsed plate and directly imaged using a confocal microscope. This technique can complement other non-invasive techniques to identify leakage of intestinal permeability, such as transmucosal passage of orally administered tracers. Besides this, the approach presented here allows the direct observation of cell shedding events at real-time. In combination with appropriate fluorescent reporter mice, this approach is suitable for shedding light into cellular and molecular mechanisms controlling intestinal epithelial cell extrusion, as well as to other biological processes. In the last decades, interesting studies using intravital microscopy have contributed to knowledge on endothelial permeability, immune cell gut homing, immune-epithelial communication and invasion of luminal components, among others. Together, the protocol presented here would not only help increase the understanding of mechanisms controlling epithelial cell extrusion, but could also be the basis for the developmental of other approaches to be used as instruments to visualize other highly dynamic cellular process, even in other tissues. Among technical limitations, optical properties of the specific tissue, as well as the selected imaging technology and microscope configuration, would in turn, determine the imaging working distance, and resolution of acquired images.

Introduction

The intestine is a highly specialized organ with a tightly regulated function enabling conflicting processes, namely nutrition and protection against harmful luminal substances. Lining between the human body and the environment, the intestinal epithelium acts as a physical and immunological barrier and contributes to the maintenance of mucosal homeostasis in the gut^1,2. Loss of epithelial integrity and increased tight junction permeability is well known to be associated with Inflammatory Bowel Disease (IBD)^3,4,5,6. Epithelial alterations are then considered as causes and secondary amplifiers for chronic intestinal inflammation in IBD. Thus, an improved understanding of early epithelial alterations in the gut of IBD patients would be of immense value for the development of new strategies to restore epithelial integrity for reliable prediction and subsequent prevention of IBD relapses.

Intestinal epithelium follows a complex and tightly regulated turnover process. From the crypt bottom, terminally differentiated intestinal epithelial cells (IECs) derived from pluripotent stem cells migrate upwards to the villus tip, where aged/damaged cells are shed into the lumen⁷. The equilibrium between division and cell extrusion enables the maintenance of intestinal epithelial cell numbers, avoiding the formation of gaps and leakage, as well as the accumulation of epithelial cells potentially leading to cell masses and tumorigenesis^8,9,10. Despite the key role of epithelial cell shedding in the physiological renewal of the gut epithelium, the knowledge about the molecular mechanisms driving the extrusion of cells at the villus tip is limited. Thus, there is a need for basic research providing a precise description of the sequence of molecular events involved in epithelial cell shedding.

Complex interactions between different cell types within the intestinal mucosa are key to understand the molecular mechanisms regulating epithelial turnover and intestinal homeostasis. Thus, in vivo studies offer high advantages over in vitro and ex vivo approaches in this context. Moreover, real-time imaging techniques permit the description of the sequence of events controlling specific phenomena. In this context, the study of highly dynamic processes demands the use of optimized high resolution techniques for the direct observation of the tissue. Intravital imaging techniques appear as unique suitable tools for the study of epithelial cell shedding in the gut.

The term "intravital microscopy" refers to experimental approaches taking advantage of high-resolution imaging techniques (multiphoton or confocal microscopy) to directly visualize cells and tissues in their native environs within a living animal¹¹. It enables real time acquisition of in vivo information up to single-cell resolution, and entails clear advantages over static or low resolution methods. Intravital microscopy provides complementary information and overcome some limitations from classical and/or high-end techniques, such as artifacts due to tissue processing. In contrast, the main limitation of intravital microscopy is that the tissue should be directly exposed to the microscope, which in most cases requires surgery. Although sophisticated approaches preserve the vitality and minimize the impact of the imaged tissue (skinfold chambers and imaging windows)^12,13, in most cases a simple skin incision is performed for the externalization of the tissue (skin flaps)¹⁴. In the last decade, these approaches have contributed key evidence about highly dynamic processes, which were previously inscrutable. Translationally, real-time imaging provided new biological insights on stem cell and leukocytes homing¹⁵, as well as cancer dissemination and metastasis formation^13,16. In the clinical context, endomicroscopy is currently exploited as a diagnostic tool of cancer¹⁷ and gastrointestinal diseases, such as IBD^18,19; while confocal mosaicking microscopy became a rapid pathology tool during surgery²⁰. Together, intravital microscopy has lately emerged as a valuable and versatile tool for biomedical research and future application in the clinic.

Intravital microscopy is here implemented for real-time visualization of intestinal epithelial leakage and observation of epithelial cell shedding events. Leakage of intestinal permeability can be identified by other in vivo noninvasive techniques, such as quantification of orally administration of fluorescent tracers in serum²¹. However, this technique does not allow the direct observation of shedding performance nor the segregation between para- and trans-cellular permeability. The combination of standard tracer experiments and intravital microscopy represents a suitable approach to: i) identify disturbances in intestinal permeability, and ii) segregate between para- and trans-cellular epithelial permeability. Besides cell shedding, intravital microscopy in combination with in vivo fluorescence labelling enables the study of other cellular and molecular mechanisms (e.g., tight junction redistribution during cell shedding using fluorescent reporter mice²² or interactions between IECs and other cells within the intestinal mucosa²³).

The method presented here represents an adaptation of intravital microscopy to enable real-time observation of intestinal mucosa, using confocal laser scanning microscopy (CLSM). Therefore, we use conditional knock-out mice of GGTase (Geranylgeranyltransferase) in intestinal epithelial cells (IECs) in (Pggt1b^iΔIEC mice), since they suffer from a severe intestinal disease and increased epithelial permeability²⁴. Surgical preparation of the mouse and staining of the intestinal mucosa, as well as appropriate settings used for imaging acquisition and post-acquisition analysis are described. This protocol could enable future studies contributing to the current knowledge about dynamics and kinetics of intestinal epithelial cell shedding. Moreover, the protocol could serve as a basis for various adaptations to study other phenomena occurring at the surface of the intestinal mucosa, and even at other tissues.

Protocol

The following protocol has been approved by the relevant local authorities in Erlangen (Regierung von Unterfranken, Würzburg, Germany). Mice were housed under specific pathogen-free conditions.

NOTE: Inhibition of GGTase-mediated prenylation within IECs causes a severe alteration of intestinal permeability in Pggt1b^iΔIEC mice²⁴. Therefore, this mouse model was used to demonstrate how the protocol can be useful to study intestinal barrier defects. However, this protocol could be used for the study of any other mouse line.

1. Surgical preparation and mouse intestinal mucosa staining

NOTE: The surgical preparation is based on previously described protocols²⁵. Keep the anesthetized mouse under a red lamp during the surgical preparation, to avoid a drop in body temperature.

1. Anesthetize mouse by intraperitoneal injection of ketamine/xylazin (96 mg/kg ketamine; and 12.8 mg/kg xylazin). Verify the anesthesia by checking for the lack of an eyelid reflex.
2. Apply eye protection cream using a cotton bud.
3. Make an incision (1 cm) on the left ventral area using standard forceps and straight fine scissors.
4. Exteriorize a segment of the intestine (5-7 cm, approximately).
5. Open the exteriorized intestinal segment longitudinally by electrocauterization at the antimesenteric side.
6. Expose the mucosa and rinse shortly with saline solution to remove fecal content.
   NOTE: Optionally, apply xylazin directly on the gut to avoid motion artifacts due to peristalsis.
7. Stain the surface of the intestinal mucosa with acriflavine and rhodamine-B dextran (10 kDa).
   1. Apply the 1 mg/mL acriflavine solution (100 µL) by pipetting drop by drop on the mucosa and incubate for 3 min. Wash out the remaining solution with PBS.
   2. Apply the 2 mg/mL rhodamine-dextran solution (100 µL) by pipetting drop by drop on the mucosa and incubate for 3 min. Wash out the remaining solution with PBS.
      NOTE: Optionally, remove blood from the preparation using aseptic cotton.
8. Place the anesthetized mouse supine on a cover slide mounted in a chamber rinsed with pre-warmed saline solution (37 °C).
   NOTE: The opened intestinal segment is then placed luminal surface down, on the cover slide.
9. Place the preparation (anesthetized mouse in the chamber) on the inverted microscope stage.
10. Cover the animal with an isothermal pad (approx. 37 °C).
11. Proceed immediately to intravital microscopy.
    NOTE: Keep the surgical preparation rinsed with pre-warmed saline solution to avoid dehydration of the tissue and cell death.

2. Intravital microscopy

NOTE: Perform step 2.1 before starting the surgical preparation, to avoid long waiting times between anesthesia, surgery and image acquisition. If necessary, additional doses of anesthetics can be given to surgically prepared animals to keep them under anesthesia for the imaging experiments.

1. Set up the CLSM microscope.
   1. Start the CLSM microscope by turning on the microscope base and the scanner box. Turn on the computer by pressing the Start button.
   2. Launch the image acquisition software (e.g., LAS X) by double clicking on the icon. Select the appropriate configuration (Configuration: machine; Microscope: DMI6000) and click OK.
      1. Define the appropriate Resolution. Go to Configuration | Hardware | Resolution | Bit depth. Select 12.
   3. Go to the Acquisition menu. Select xyzt for the image acquisition mode from the drop-down menu. Select the objective from the drop-off menu (20x or 40x).
   4. Design the sequential acquisition setting. Click on Seq. Add a second sequence, by clicking on the add button (+). Select Between frames.
      1. Configure Sequence 1 (detection of acriflavine; 416 nm excitation; 514 nm emission). Turn on the visible laser box. Activate the PMT1 (ON). Define the emission wavelength window (490-550 nm).
      2. Configure Sequence 2 (detection of rhodamineB-dextran; 570 nm excitation; 590 nm, emission). Turn on the visible laser box. Activate the PMT2 (ON). Define the emission wavelength window (550-760).
   5. Activate the corresponding lasers (488 and 552). Go to Configuration | Lasers. Activate 488 and 552 nm lasers (turn ON).
2. Adjust the setting to the specific features of the current experiment.
   1. Turn ON the light source (press power). Place the preparation (anesthetized mouse in the chamber) on the microscope stage and change the xy position until the illumination axis is focused on the tissue preparation.
   2. Select the field of interest using the standard light source and the eyepieces.
      1. Select the filter cube (I3). Open the shutter. Focus on the surface of the intestinal mucosa by using the macro- and micro-wheel. Search for an area where several villi can be visualized within the field of view by changing the XY position.
   3. Verify that the rhodamine-dextran staining is also visible in that area. Change the filter cube (N2.1). Check the image through the eyepieces.
   4. Start the CLSM image acquisition from the software. Optimize settings for the two sequences.
      1. Select Sequence 1. Adjust laser power, gain and offset for Sequence 1.
      2. Select Sequence 2. Adjust laser power, gain and offset for Sequence 2.
   5. Define the z stack range.
      1. Open the Z-stack drop-off menu. Focus on the surface of the mucosa using the z-axis control. Press Begin.
      2. Focus on the bottom limit where the signal is still detectable. Press End.
      3. Define the numbers of z stacks (10). Avoid time lapses longer than 2 min for two consecutive time points.
   6. Define the time settings. Go to the Time menu. Click Minimize. Select Acquire until stopped.
   7. Define the line average. Select Seq 1. Select Line Average 2. Select Seq 2. Select Line Average 2.
3. Acquire corresponding images.
   1. Select Format (1024 x 1024) and Speed (400). Press Start.
   2. Press Stop after the desired image acquisition time.
4. Save the file. Go to Project. Right click on the corresponding file. Press Save as.
   1. Name the file appropriately. Select the adequate folder. Press Save.
5. Euthanize the animal (cervical dislocation) and collect tissues for ulterior analysis, if needed.

3. Image analysis: Determine cell shedding rate and the intestinal epithelium

1. Cell shedding rate
   1. Launch the image acquisition software.
   2. Go to Open projects. Select the appropriate file.
   3. Define the total time of image acquisition.
      1. Select the last complete z stack. Select the last Z position from the previously selected time point. Read the time on the right bottom corner of the screen (total time of image acquisition).
   4. Select a villus.
      1. Select the appropriate Z stack position (surface of the villus, but deep enough to avoid the interference with already shed cells and other components present at the lumen).
      2. Measure the length of basal membrane. Select the ruler tool. Divide the villus in several lines to cover or draw the whole villus perimeter. Add the different values (total length of the basal membrane). Delete the segments of the Ruler tool.
   5. Count the number of events occurring during the whole duration of the image acquisition.
      1. Divide the villus into segments with an adequate size. Analyze the sequence of events/segment by sliding the bar through the different time points. Annotate the identified cell shedding events.
   6. Calculate the number of shedding events/time/length of basal membrane, which indicates the cell shedding rate. Count up to 5 villi/video, and at least two videos/mouse. Calculate the mean of these 10 measurements.
2. Leakage
   1. Select a villus.
   2. Select the appropriate Z stack position (surface of the villus, but deep enough to avoid the interference with already shed cells and other components present at the lumen). Count total number of epithelial cells/villus.
   3. Count the number of leakage points (Para-cellular presence of rhodamine dextran. This event is transitory, which can be confirmed by checking previous and ulterior acquired pictures).
   4. Calculate the number of leakage/total number of epithelial cells. Analyze 10 different villus/sample/video and calculate the average number of leakage and permeable cells/villus.

Results

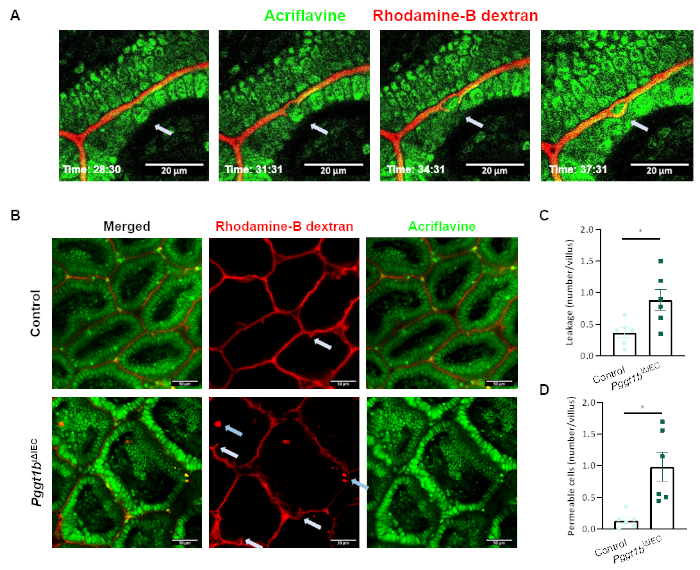

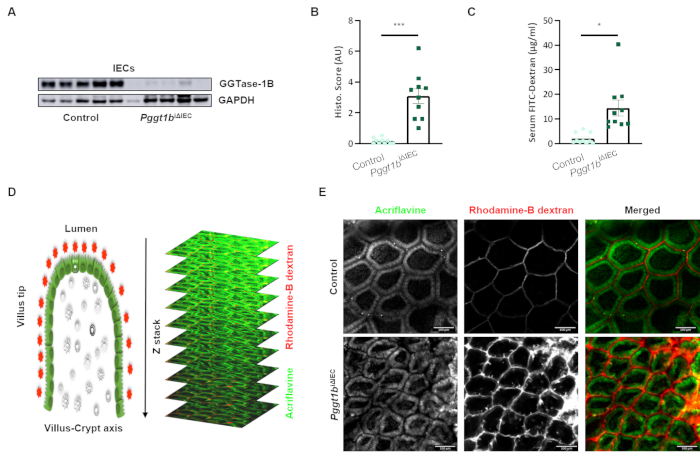

The protocol presented here describes an intravital microscopy-based approach to visualize intestinal epithelial leakage and observe cell shedding performance in the gut in real-time. Briefly, mice are anesthetized and submitted to surgical preparation in order to expose the surface of the small intestine mucosa. IECs are then stained via topical application of acriflavine; while luminal rhodamine B-dextran is used as tracers to detect transmucosal passage from the lumen to the sub-epithe...

Discussion

Although technically challenging, intravital microscopy-based methodology represents a unique experimental approach to visualize highly dynamic cellular process in real time, such as cell shedding performance. Thus far, there is no alternative experimental approach to visualize cell extrusion in vivo. We believe that this protocol can contribute to the description of diverse cellular processes playing a role in the maintenance of intestinal homeostasis.

Taking advantage of intravital microscop...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
Acriflavine hydrochloride	Sigma Aldrich	A8251	1 mg/mL solution in PBS
Deltaphase isothermal pad	BrainTree	B-DP-PAD	-
Gemini Cautery System	BrainTree	B-GEM-5917	-
Ketamin	WDT	9089.01.00
LAS X	Leica	-	-
LSM microscope SP8	Leica	-	-
PBS	Biochrom	L182
Rhodamine B dextran	Invitrogen	D1824	10,000 kDa MW; 2 mg/mL solution
Standard forceps (Dumont SS)	Fine Science Tools	11203-23	-
Straight fine scissors	Fine Science Tools	14060-10	-
Tamoxifen	Sigma Aldrich	T5648	50 mg/mL in ethanol
Xylazin	Bayer	1320422
