We describe a method for the preparation and live imaging of undiluted cytoplasmic extracts from Xenopus laevis eggs.
Traditionally used for bulk biochemical assays, Xenopus laevis egg extracts have emerged as a powerful imaging-based tool for studying cytoplasmic phenomena, such as cytokinesis, mitotic spindle formation and assembly of the nucleus. Building upon early methods that imaged fixed extracts sampled at sparse time points, recent approaches image live extracts using time-lapse microscopy, revealing more dynamical features with enhanced temporal resolution. These methods usually require sophisticated surface treatments of the imaging vessel. Here we introduce an alternative method for live imaging of egg extracts that require no chemical surface treatment. It is simple to implement and utilizes mass-produced laboratory consumables for imaging. We describe a system that can be used for both wide-field and confocal microscopy. It is designed for imaging extracts in a 2-dimensional (2D) field, but can be easily extended to imaging in 3D. It is well-suited for studying spatial pattern formation within the cytoplasm. With representative data, we demonstrate the typical dynamic organization of microtubules, nuclei and mitochondria in interphase extracts prepared using this method. These image data can provide quantitative information on cytoplasmic dynamics and spatial organization.
The cytoplasm constitutes the main volume of a cell and has a distinct organization. The ingredients of the eukaryotic cytoplasm can self-assemble into a wide range of spatial structures, such as microtubule asters and the Golgi apparatus, which in turn are dynamically arranged and turned over depending on the cell's identity and physiological state. Understanding the spatial organization of the cytoplasm and its link to cellular functions is thus important for understanding how the cell works. Xenopus laevis egg extracts have traditionally been used for bulk biochemical assays1,2,3,4,5,6,7,8, but recent work establishes them as a powerful live imaging system for mechanistic studies of cytoplasmic structures and their cellular functions9,10,11,12,13,14,15,16,17,18. These undiluted extracts preserve many structures and functions of the cytoplasm, while allowing direct manipulations of cytoplasmic contents not achievable in conventional cell-based models19,20. This makes them ideal for characterizing cytoplasmic phenomena and dissecting their mechanistic underpinnings.
Existing methods for imaging extracts require chemical surface modifications, or fabrication of microfluidic devices. One coverslip-based method requires polyethylene glycol (PEG) passivation of glass coverslips21. A microemulsion-based method requires vapor deposition of trichloro(1H,1H,2H,2H-perfluorooctyl)silane on glass surfaces22,23. Microfluidic-based systems allow precise control of the volume, geometry and composition of extract droplets, but require specialized microfabrication facilities11,12,24.
Here we introduce an alternative method for imaging egg extracts that is easy to implement and utilizes readily available, low-cost materials. This includes preparation of an imaging chamber with a slide and a coverslip coated with fluorinated ethylene propylene (FEP) tape. The chamber can be used for imaging extracts with a variety of microscopy systems, including stereoscopes and upright and inverted microscopes. This method requires no chemical treatment of surfaces while achieving similar optical clarity obtained with existing glass-based methods discussed above. It is designed to image a layer of extracts with a uniform thickness across a 2D field, and can be easily extended to image a 3D volume of extracts. It is well suited for time-lapse imaging of collective cytoplasmic behavior over a large field of view.
We have used interphase-arrested egg extracts to demonstrate our imaging method. The extract preparation follows the protocol of Deming and Kornbluth19. Briefly, eggs naturally arrested in metaphase of meiosis II are crushed by a low speed spin. This spin releases the cytoplasm from meiotic arrest and allows the extract to proceed into interphase. Normally, cytochalasin B is added prior to the crushing spin to inhibit F-actin formation. However, it can be omitted if F-actin is desired. Cycloheximide is also added prior to the crushing spin to prevent the interphase extract from entering the next mitosis. The extracts are subsequently placed in the aforementioned imaging chambers and placed on a microscope. Finally, images are recorded over time at defined intervals by a camera connected to the microscope, producing time-lapse image series that capture the dynamical behavior of the extract in a 2D field.
All methods described here have been approved by the Institutional Animal Care and Use Committee (IACUC) of Stanford University.
1. Preparation of slides and coverslips
2. Preparation and live imaging of interphase-arrested egg extracts
NOTE: The following protocol is adapted from Deming and Kornbluth19, Murray20, and Smythe and Newport25 with modifications. All steps should be performed at room temperature unless otherwise noted.
Xenopus laevis egg extracts can be used to study the self-organization of the cytoplasm during interphase. Figure 2A shows results from a successful experiment. We supplemented interphase-arrested extracts with demembranated Xenopus laevis sperm nuclei19 at a concentration of 27 nuclei/µL and 0.38 µM purified GST-GFP-NLS27,28,29,30 (fusion protein consisting of glutathione-S-transferase, green fluorescent protein, and a nuclear localization sequence) to allow reconstitution and visualization of interphase nuclei. We also added 1 µM fluorescently labeled tubulin to visualize microtubules, and 500 nM MitoTracker Red CMXRos to visualize mitochondria. Moments after the extract was placed in the imaging chamber, the cytoplasm appeared disorganized. In the course of the next 30 minutes at room temperature, the cytoplasm started to self-organize into cell-like compartments. Microtubule asters grew from centrosomes introduced with the sperm nuclei, and formed microtubule-depleted border zones when met with microtubules from neighboring asters. GST-GFP-NLS protein translocated into the round interphase nuclei self-assembled from the added demembranated sperm nuclei. Areas depleted of light scattering cytoplasmic components were visible in both bright-field and mitochondria channels (Figure 2A, 20 min and 35 min). Mitochondria also became depleted from the borders established by microtubules, and became enriched in isolated compartments that aligned with microtubule compartments. By 60 min at room temperature, a spatial pattern consisting of cell-like compartments should be well-established, with microtubules forming a hollow wreath-like structure, and mitochondria clearly partitioned into each compartment (Figure 2A, 53 min).
Figure 2B compares extract performance in imaging chambers with and without FEP tapes on glass. We supplemented interphase-arrested extracts with demembranated Xenopus laevis sperm nuclei19 at a concentration of 27 nuclei/µL and 0.35 µM GST-mCherry-NLS27,28,29,30 (fusion protein consisting of glutathione-S-transferase, mCherry fluorescent protein, and a nuclear localization sequence) to allow reconstitution and visualization of interphase nuclei. We also added 1 µM fluorescently labeled tubulin to visualize microtubules. Differences in dynamics became obvious by approximately 20 min at room temperature. In the chamber made with FEP-taped glass, the extract self-organized into normal cell-like patterns (Figure 2B, images in rows 1 and 3). However, in the chamber where glass surfaces were not covered by the FEP tape (unpassivated), the extract showed abnormal bright-field and microtubule patterns that became increasingly disrupted over time (Figure 2B, images in rows 2 and 4). No significant differences were observed in nuclear import of the GST-mCherry-NLS protein (Figure 2B, images in rows 5 and 6).
Figure 1: Schematics and photos related to the experimental procedure. (A) Schematic diagram for preparing FEP tape-coated glass coverslips and slides. (B) Xenopus laevis eggs deposited in egg laying buffer, with examples of poor-quality eggs indicated by arrows. Yellow arrows, examples of eggs that look like white puffy balls. Red arrows, examples of eggs that appear in a string. (C) Examples of Xenopus laevis eggs with normal appearance. (D) Examples of poor-quality eggs with irregular or mottled pigment. (E) A deteriorating egg with a growing white region. (F) An egg that shows darkened and contracted pigmented area, possibly due to parthenogenetic activation. (G) The layers formed by ruptured Xenopus laevis eggs after the 12,000 x g centrifugation in step 2.11. (H) Schematics for preparing extract imaging chamber in step 2.15. (I) A photo of a prepared imaging chamber with an egg extract inside. (C) and (D) share the same scale bar at the bottom of (D). (E) and (F) share the same scale bar at the bottom of (F). The scale bars in (B) (C) (D) (E) (F) and (I) are approximate. Please click here to view a larger version of this figure.

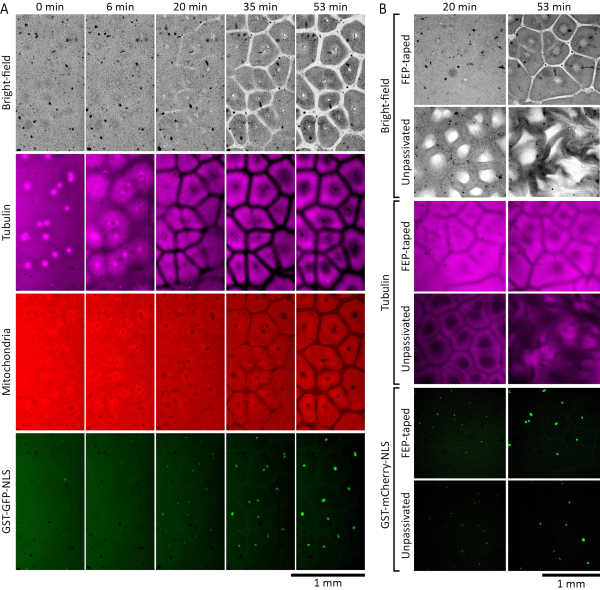

Figure 2: Interphase-arrested egg extracts self-organize into cell-like compartments. (A)Time-lapse montage of self-organized pattern formation in a thin layer (120 µm) of interphase-arrested Xenopus laevis egg extract. The extract was supplemented with 27 nuclei/µL of demembranated Xenopus laevis sperm nuclei to allow reconstitution of the interphase nuclei. Microtubules were visualized by HiLyte 647-labeled tubulin (shown in magenta), mitochondria by MitoTracker Red CMXRos (shown in red), and nuclei by GST-GFP-NLS (shown in green). (B) Self-organized pattern formation in interphase-arrested Xenopus laevis egg extracts placed in chambers with and without FEP-tape covered glass surfaces. The extracts were supplemented with 27 nuclei/µL of demembranated Xenopus laevis sperm nuclei to allow reconstitution of the interphase nuclei. Microtubules were visualized by HiLyte 488-labeled tubulin (shown in magenta) and nuclei by GST-mCherry-NLS (shown in green). Please click here to view a larger version of this figure.

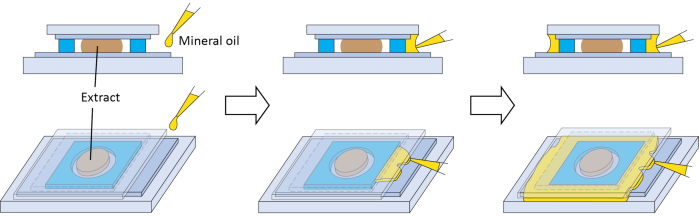

Figure 3: Optional secondary seal for the imaging chamber. Schematics for preparing an optional secondary seal with mineral oil to prevent the extract from prolonged contact with air. Please click here to view a larger version of this figure.
Xenopus laevis egg extracts have emerged as a powerful model system for imaging-based studies of various subcellular structures10,14,15,16,17,18,21,31,32,33,34,35,36 and cytoplasmic organization on a whole cell scale9. Here we have described a live imaging method suitable for visualizing dynamic cytoplasmic organization in 2D. The effectiveness of the method is demonstrated by representative results.
Several steps are critical to the success of the method. Egg quality is important for extracts, so steps 2.3 and 2.7 are critical. In our experience, the animal hemisphere of high-quality eggs has uniform pigmentation, a distinct white dot at the center (indicative of germinal vesicle breakdown, GVBD), and a clear border with the vegetal hemisphere (Figure 1C). The extracts made from high-quality eggs have better performance under our imaging conditions. If more than 5% of the eggs have mottled pigment (Figure 1D), have darkened and contracted pigmented area (Figure 1F), look like white puffy balls (Figure 1B), appear in a string (Figure 1B), or show signs of deterioration after the washes in steps 2.6 and 2.7 (Figure 1E), then the whole batch of eggs should be discarded. The extracts retain remarkable biological activity because they are essentially undiluted cytoplasm. Therefore, the step that aims to minimize dilution of the extract (step 2.9) is important for the success of the experiment. For imaging, extracts are handled in very small volumes, and will evaporate quickly if in prolonged contact with air. This will negatively affect their activity. Therefore, in step 2.15, after the extract is deposited, it must be sealed with the FEP tape-coated side of the coverslip as soon as possible. Sealing can be visually confirmed by the texture change at the contact site between the adhesive on the spacer and the coverslip. The spacer should be able to create a complete seal if applied properly. However, if an additional seal is desired, mineral oil can be dispensed between the overhang of the coverslip and the glass slide. The oil can form an additional seal around the spacer by capillary action (Figure 3). Passivation of glass surfaces can reduce non-specific adsorption of molecules, and it is important for interphase microtubule asters in extracts21,37. The application of FEP tape over a glass surface described here appears to offer similar benefits, as suggested by the assembly of normal interphase microtubule asters (Figure 2, 6 min). Therefore, step 1.1 is also critical.
We demonstrated the application of an imaging method using interphase-arrested egg extracts following the protocol of Deming and Kornbluth19. By default, the protocol supplements the extracts with the actin polymerization inhibitor cytochalasin B to prevent gelation-contraction in the extracts after extended incubation at room temperature26. To allow actin polymerization and observe actin dynamics, one can leave out the cytochalasin B in step 2.10 of the protocol9. A modification we have made to the Deming and Kornbluth protocol is that we do not supplement extracts with an energy mix to regenerate ATP19. This is because in our hands, in extracts supplemented with this ATP-regenerating mix19 and sperm nuclei, microtubules occasionally form a crosslinked lattice that interferes with cytoplasmic pattern formation. Therefore, the protocol does not include the step that adds the energy mix to the extracts19.
The interphase extract protocol relies on crushing eggs in EGTA-free buffer to release them from meiotic arrest (CSF-arrest)37. The extracts subsequently progress into interphase, and are kept in interphase by cycloheximide. There are other established methods for preparing interphase extracts. Some methods first prepare extracts that maintain meiotic arrest by crushing eggs in lysis buffer with EGTA38, and then release the arrest by adding calcium, driving the extract into interphase21,37,39. The extracts can be subsequently held in interphase by addition of protein synthesis inhibitors such as cycloheximide37,39. Other methods parthenogenetically activate eggs with calcium ionophore (A23187) or electric shock to release them from meiotic arrest, before crushing the eggs in the absence of EGTA20,28 (reviewed in Field et al.37). These extracts can enter interphase but typically will not stay there as they are able to undergo multiple cell cycles. Likewise, well-established methods optimized for preparing extracts with intact actin cytoskeleton have been developed10,37,39. The imaging method may be suitable for these types of extracts, but we have not tested it with them.
For the purpose of imaging the internal organization of the cytoplasm, the imaging system presented here are relatively easy to set up, requiring only applying an FEP tape to glass surfaces. It allows assembly of cytoskeletal structures in extracts9 reported in more sophisticated imaging systems where glass surfaces are passivated with poly-L-lysine-g-polyethylene glycol (PLL-g-PEG) treatment or coated with supported lipid bilayers10,21. The method allows the extract layer to form with a defined thickness (determined by the depth of the spacer, which is 120 µm for the system shown in Figure 1A, 1H, 1I, and Figure 2). We can adjust the thickness by stacking additional spacers. We have stacked up to 6 such spacers (720 µm thick) and the compartments formed normally. This flexibility enables future applications such as imaging of the extracts in 3D using confocal or light-sheet microscopy.
The authors have nothing to disclose.
We thank J. Kamenz, Y. Chen, and W. Y. C. Huang for comments on the manuscript. This work was supported by grants from the National Institutes of Health (R01 GM110564, P50 GM107615, and R35 GM131792) awarded to James E. Ferrell, Jr.
