3-D Imaging and Analysis of Neurons Infected In Vivo with Toxoplasma gondii

Summary

Using this protocol, we were able to image 160 µm thick brain sections from mice infected with the parasite Toxoplasma gondii, which enables visualization and analysis of the spatial relationship between the encysting parasite and the infected neuron.

Abstract

Toxoplasma gondii is an obligate, intracellular parasite with a broad host range, including humans and rodents. In both humans and rodents, Toxoplasma establishes a lifelong persistent infection in the brain. While this brain infection is asymptomatic in most immunocompetent people, in the developing fetus or immunocompromised individuals such as acquired immune deficiency syndrome (AIDS) patients, this predilection for and persistence in the brain can lead to devastating neurologic disease. Thus, it is clear that the brain-Toxoplasma interaction is critical to the symptomatic disease produced by Toxoplasma, yet we have little understanding of the cellular or molecular interaction between cells of the central nervous system (CNS) and the parasite. In the mouse model of CNS toxoplasmosis it has been known for over 30 years that neurons are the cells in which the parasite persists, but little information is available about which part of the neuron is generally infected (soma, dendrite, axon) and if this cellular relationship changes between strains. In part, this lack is secondary to the difficulty of imaging and visualizing whole infected neurons from an animal. Such images would typically require serial sectioning and stitching of tissue imaged by electron microscopy or confocal microscopy after immunostaining. By combining several techniques, the method described here enables the use of thick sections (160 µm) to identify and image whole cells that contain cysts, allowing three-dimensional visualization and analysis of individual, chronically infected neurons without the need for immunostaining, electron microscopy, or serial sectioning and stitching. Using this technique, we can begin to understand the cellular relationship between the parasite and the infected neuron.

Introduction

The overall goal of this method is to obtain high resolution, three-dimensional images of individual neurons that are infected by the obligate intracellular parasite Toxoplasma gondii.

Toxoplasma is often considered one of the most successful parasites because of its large intermediate host range, which includes humans and rodents. In both humans and rodents, after acute infection through ingestion of contaminated food or water, Toxoplasma is able to cause a persistent infection of the CNS by converting from its fast replicating form (the tachyzoite) to its slow-replicating and encysting form (the bradyzoite). In immunocompetent individuals, this latent CNS infection is thought to be relatively asymptomatic, but in immunocompromised individuals such as AIDS patients or transplant recipients, recrudescence of the parasite can lead to fatal toxoplasmic encephalitis^1,2. In addition, recent studies have shown that latent infection with Toxoplasma can lead to behavioral changes in rodents^3,4, though the mechanism remains unknown.

Surprisingly, despite these data highlighting the importance of the CNS-Toxoplasma interaction, relatively little is known about this relationship, especially at the cellular and molecular level. The ability to study even simple aspects of the brain-parasite interaction has been hampered in part by technologic limitations. For example, the majority of the work showing that neurons are the cells in which cysts persist has been done with electron microscopy (EM)^5,6. Though EM gives high resolution, it is time consuming, labor intensive, and expensive. Immunofluorescence (IF) assays have recently been used in conjunction with confocal microscopy to confirm the work done by EM⁷. IF assays are technically easy to perform and relatively inexpensive, but using these techniques to understand the spatial relationship between the cyst and the infected neuron requires serial reconstruction, which is time consuming, technically difficult, and may lead to loss of valuable information. Thus, we have developed a method that can be used with the mouse model of CNS toxoplasmosis and allows us to image the entirety of infected neurons without EM or immunohistochemistry (IHC). By developing such a technique, we can begin to explore the cellular relationship between the infected cell and the cyst in a relatively quick and inexpensive manner.

The method we developed combines newer techniques for optically clearing and imaging thick brain sections by confocal microscopy⁸ with a system which marks in vivo cells that have been injected with parasite proteins^9,10. In this system, we infect Cre-reporter mice that express a green fluorescent protein (GFP) only after Cre-mediated recombination¹¹ with Toxoplasma strains that express a red fluorescent protein (RFP) and inject Cre recombinase into host cells⁹. This combination allows us to harvest the infected mouse brain after CNS infection is established, cut thick brain sections, and rapidly identify pertinent areas to image by finding the RFP⁺ cysts. It is important to note that as host cell expression of GFP depends solely on the injection of Cre by parasites, and not on infection, a number of the GFP⁺ cells do not contain parasites¹⁰. As the goal of this protocol is to be able to image whole infected neurons, the focus is only on GFP⁺ neurons that also contain an RFP⁺ cyst, but the protocol can also be used to image the GFP⁺/RFP^- neurons.

Once the infected brain is harvested and sectioned, the sections are rendered transparent by glycerol clearing. Appropriate regions of sections are then imaged with confocal microscopy, allowing unprecedented visualization of infected host cells and the encysted parasites in their entirety. Here we provide a complete protocol for identifying, optically clearing, and imaging infected neurons.

Protocol

NOTE: Mice were bred and maintained in a temperature and humidity controlled room with 12 hr reversed light/dark cycles with food and water available ad libitum at the University of Arizona. Experiments were conducted under guidelines and approval of the Institutional Animal Care and Use Committee of the University of Arizona. All efforts were made to minimize suffering. The Cre-reporter mice are on a C57BL/6 background¹¹ and are commercially available.

1. Mouse Infection

NOTE: The method of mouse infection with Toxoplasma gondii described below has been used in studies previously published^10–12.

1. Grow Toxoplasma strains in human foreskin fibroblasts (HFFs) cultured in Dulbecco's High Glucose Modified Eagles Medium (DMEM) supplemented with 10% FBS, 100 U/ml penicillin, 100 mg/ml streptomycin, and 2 mM L-glutamine (cDMEM) in a T-25 flask inside a 5% CO₂ incubator until parasites have formed large parasitophorous vacuoles.
2. Syringe-release parasites by scraping cells from the bottom of the flask and passing the resulting solution through a 25 gauge needle connected to a 3 ml syringe 2 times inside the flask then transfer all solution to a 5ml syringe case connected to a 27 gauge needle that has been placed upside down inside a 15 ml conical tube. Connect the plunger to the syringe and pass the parasite solution into the conical tube.
3. Centrifuge the tube for 10 min at 300 x g. Aspirate the supernatant then resuspend the pellet in 4-6 ml sterile USP grade 1x Phosphate Buffered Saline (PBS) pH 7.4 (Stock Solution).
4. Load a hemocytometer with 10 µl of stock solution, wait 5-10 min for the parasites to settle then count the number of parasites in the four corner and center squares of the middle large square.
5. Dilute parasites to appropriate inoculum size of 100K/200 µl 1x PBS then inject mice intraperitoneally (i.p.) with a total volume of 200 µl.
   NOTE: For this procedure, mice were inoculated with 100K Type III (CEP)¹³ tachyzoites in 200 µl 1x PBS. When infecting mice with other strains of Toxoplasma, concentration of inoculum may need to be adjusted to account for level of virulence.

2. Perfusion and Brain Harvesting

NOTE: This protocol was conducted at 21 days post infection (dpi) as this represents the time point at which peak numbers of cysts are found in the mouse brain, but other time points may be used. Size, number, location, and presence or absence of cysts depends on many factors including mouse strain, parasite strain type as well as inoculum size^7,14–17. Investigators will need to individually determine the appropriate inoculum for the mouse and Toxoplasma strain he/she uses.

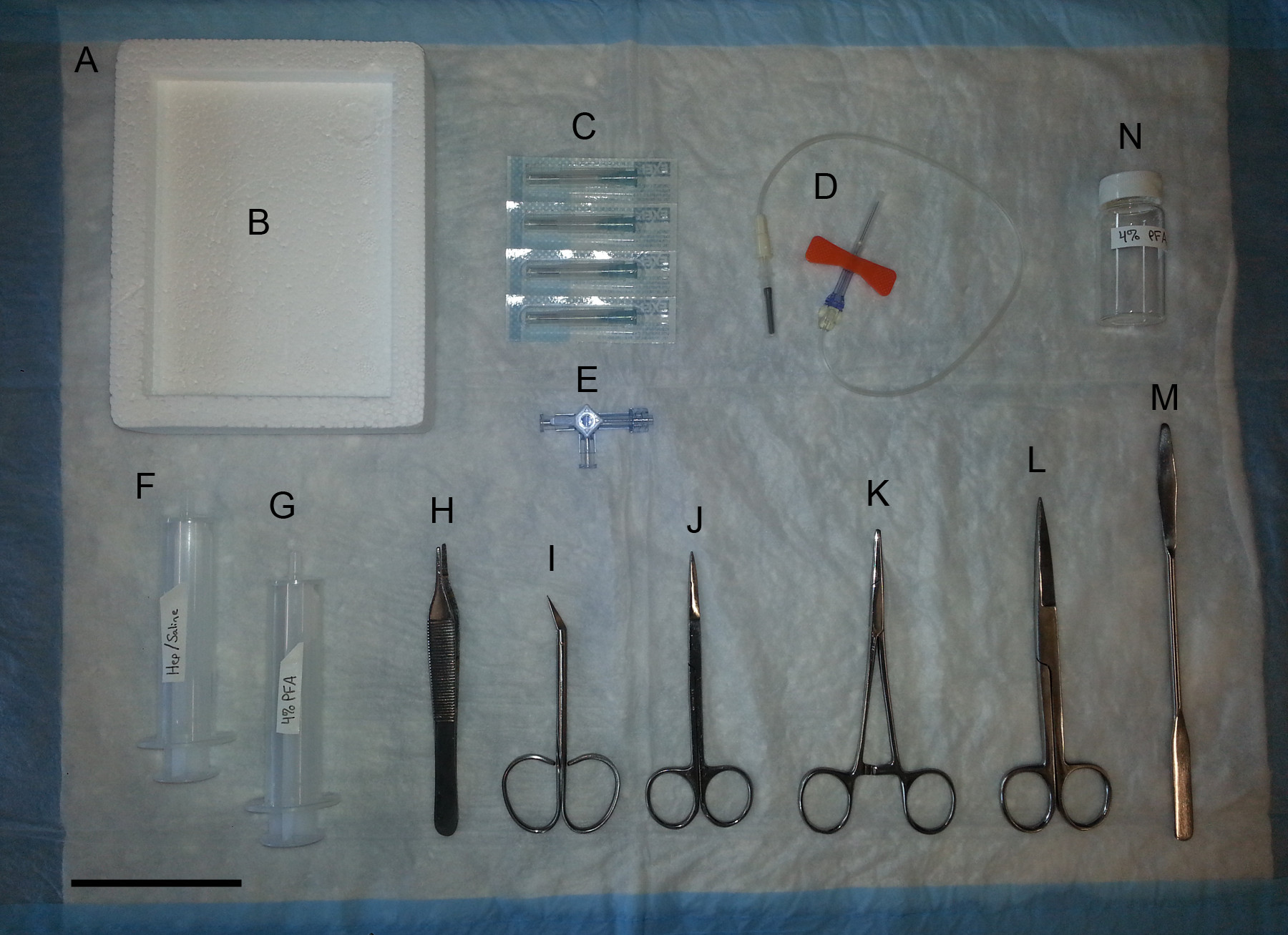

1. Setup all surgical harvesting tools (Figure 1).
2. For each mouse, prepare and keep on ice: 20ml syringe filled with 0.9% Sodium Chloride (NaCl) + 10 U/ml Heparin in 1x sterile USP grade PBS (Heparin/Saline); 20 ml syringe filled with 4% Paraformaldehyde (PFA); Scintillation vial with 15 ml 4% PFA. For multiple mice, prepare a beaker filled with the entire amount of each solution needed for all mice then draw up a fresh syringe full of solution for each perfusion.
3. Anesthetize the mouse i.p with 200 µl/25 g of body weight of Ketamine/Xylazine cocktail (24 mg/ml & 4.8 mg/ml respectively) on the day of interest. Monitor the mouse for level of anesthesia by checking toe pinch reflex. Continue with protocol only once the mouse shows no response to a firm toe pinch.
   NOTE: Other methods of anesthesia may be used as long as the appropriate level of anesthesia is reached before proceeding with the protocol.
4. Place the mouse in supine position on the covered foam platform. Pin all four limbs out at the feet then spray the chest and abdomen with 70% Ethanol (EtOH) (Figure 2A). Addition of several sterile paper towels under the mouse may be used to help absorb overflow of perfusion fluids.
5. Lift skin just below the sternum with forceps then use scissors to make an incision. Pull skin back to expose the chest (Figure 2B).
6. Lift xiphoid process and make an abdominal incision just below the diaphragm, exposing the liver which is bluntly dissected away from the diaphragm. Make two incisions, one on the left and one on the right through the diaphragm and the bottom of the ribs. Extend the left and right incisions approximately 1/2-2/3 way up the ribcage, which is then reflected back to open the chest cavity (Figure 2C).
   NOTE: Take care not to cut any organs or major blood vessels during this procedure as doing so will compromise the quality of perfusion.
7. Perfuse transcardially with 10-20 ml Heparin/Saline followed by 10-20 ml 4% PFA.

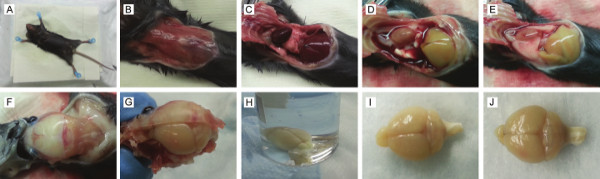

   NOTE: If the perfusion is done properly, the liver will turn from red to tan (Figure 2D). If not done properly, blood vessels will be visible (Figure 2E).
8. Turn the mouse over onto its abdomen, re-pin feet then spray head and neck with 70% EtOH. Lift skin from the base of the neck and make an incision. Remove skin to expose skull (Figure 2F). Decapitate head at the level of the shoulders. Remove the skull, gently remove the brain, and place it into a scintillation vial filled with 4% PFA (Figure 2G-H).
   NOTE: If well perfused, the brain will appear white with no visible blood vessels (Figure 2I). If the brain is not well perfused, blood vessels will be visible (Figure 2J).
9. Place the scintillation vial with brain in 4% PFA at 4 °C overnight, covered from light. Rinse the brain in non-USP grade 1x PBS and transfer to a new scintillation vial filled with chilled 1x PBS. Store the brain in 1x PBS at 4 °C, covered from light.
   NOTE: Successful clearing and imaging has been accomplished with sections stored in 1x PBS for up to one month but it is best to section the brain within a few days as prolonged storage in PBS will reverse the PFA fixation and could lead to less than optimal images. Autofluorescence and increased blur have been noted in some sections imaged after storage in 1x PBS for one month or longer.

3. Brain Sectioning

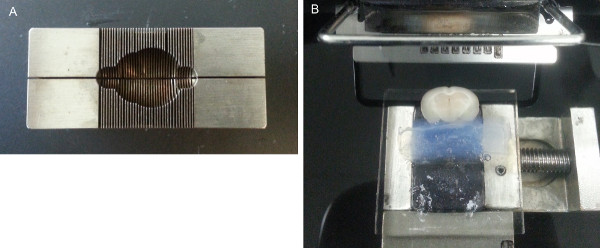

1. Remove the brain from 1x PBS and place it into a brain matrix (Figure 3A) to allow for more precise and even cuts through the brain. Trim off the cerebellum and olfactory bulbs, if present, and then cut the brain coronally into 2 or 3 sections.
   NOTE: Trimming and cutting of the brain may be done without the aid of a brain matrix. Number of sections cut coronally will depend on the cutting distance of the Vibratome being used. The brain can be sectioned in any orientation, though sagittal and coronal sections are most commonly used for neuroanatomical identification.
2. Affix each brain section onto a specimen mounting block with cyanoacrylate. Affix a small block of 5% agarose gel behind the brain section for support (Figure 3B).
   NOTE: Other support mechanisms may be used, but without support, the Vibratome may push on the brain causing uneven sectioning.
3. Cut tissue into 160 µm (working distance of the objective used for imaging) thick sections with the Vibratome set to a speed of 4 and amplitude of 9.
   NOTE: The settings for speed and amplitude may be adjusted depending on the particular machine being used in order to obtain even, smooth sections. If the settings are not correct, the result can be uneven sections, tearing of tissue or chatter marks.
4. Collect tissue sections into a scintillation vial filled with fresh, chilled 1x PBS if they are going to be cleared within one week. If sections are not going to be cleared within one week, place sections into 1.5 ml microcentrifuge tubes filled with cryopreservative solution and store at -20 °C.

4. Optical Clearing of Brain Tissue Sections

NOTE: This protocol has been modified from a previously published method ⁸.

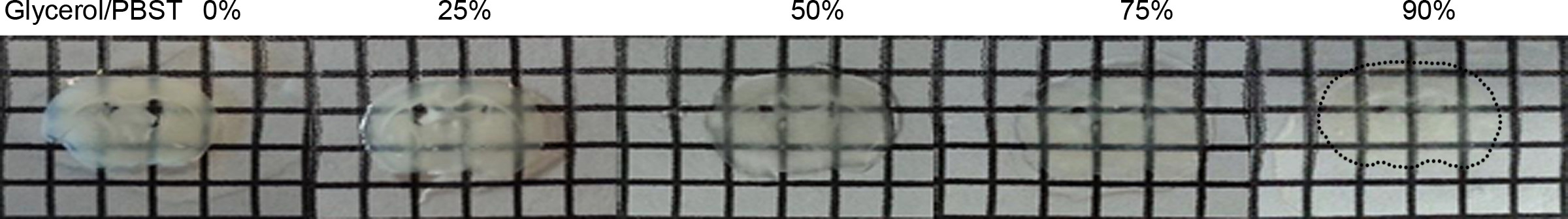

1. Prepare 25%, 50%, 75% and 90% vol/vol Glycerol in 1x PBS + 2% Tween-20 (Gl/PBST).
2. Remove sections from 1x PBS or, if in cryopreservative, rinse in 1x PBS and transfer to a scintillation vial containing 10 ml of 25% Gl/PBST. Place vial on a shaker at 4 °C, covered from exposure to light, for 12 hr.
3. Confirm that all sections have sunk to the bottom of the vial. Aspirate the 25% Gl/PBST, leaving just enough to cover the sections then fill the vial with 10 ml 50% Gl/PBST and place on a shaker at 4 °C, covered from exposure to light, for 12 hr. Repeat this process for the 75% Gl/PBST then the 90% Gl/PBST. Leave sections in the 90% Gl/PBST for 24 hr to reach maximal clearing. Over the course of the clearing process, observe gradual optical clearing (Figure 4).
   NOTE: This process may be expedited if solutions are changed immediately after sections have sunk to the bottom of the vial. In 75% & 90% solutions, sections will not sink all the way to the bottom of the vial but will float in the middle.

5. Mounting Brain Tissue Sections

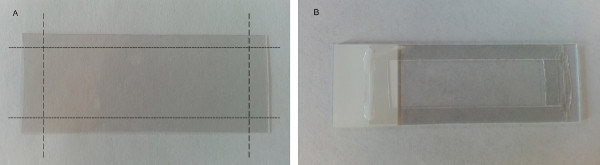

1. Cut a No. 1.5 coverslip into 5 pieces to create a spacer. Use a ruler and diamond-tipped pencil to score and break the coverslip along the dashed lines shown in Figure 5A. Discard the center piece, arrange the 4 outer pieces on a plain glass slide to create a window, and then brush clear nail polish onto the seams to adhere the pieces of the spacer to the slide in the correct configuration (Figure 5B).
   NOTE: The spacer will be used to create the necessary space between the slide and the coverslip for mounting the cleared sections. The coverslip may be cut in different ways to create any size window necessary. Pre-cut foam spacers are also commercially available. To allow nail polish to dry completely, it is best to make slides with spacers at least one day prior to mounting sections.
2. Transfer sections to a slide using a plastic transfer pipet with the tip cut off. Make sure to fill in surrounding area with 90% Gl/PBST. Carefully lower a coverslip over the sections making sure not to introduce any bubbles. Excess Gl/PBST may be wicked away with a lint-free wipe.
3. Image GFP⁺ neurons containing RFP⁺ Toxoplasma gondii cysts with a confocal microscope immediately (Figure 7A-B) then store slides flat and covered from light at 4 °C.
   NOTE: Alternatively, seal slides completely around all edges to store and imaged at a later time. Use of clear nail polish to seal slide is optional and may make it more difficult to remove coverslip if one were to remove sections from the slide at a later date for further processing.

6. Imaging

NOTE: Any microscope may be used that has the capability of obtaining high-resolution z-stacks.

1. After initially finding the focal plane at 10X, change to a 20X objective and scan through the section to identify a cyst located inside a GFP⁺ cell. Center the region of interest (ROI) in the field of view.
2. Change to a 40X objective. Focus up and down through the entire ROI to make sure that the entire cell and cyst are visible.
   NOTE: Images were obtained using a confocal microscope with a 40X/1.30 Oil DIC M27 objective.

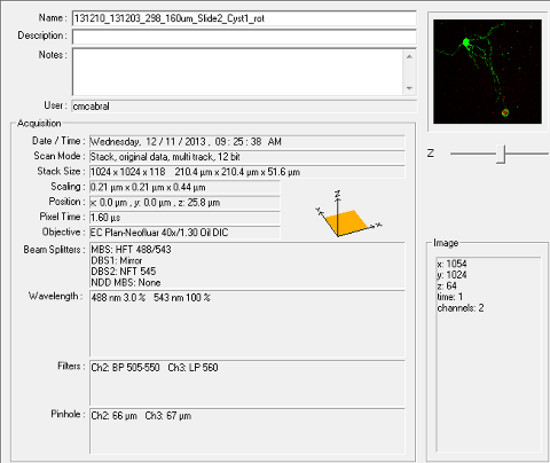

3. Using the installed imaging software, obtain a z-stack that includes the entire cell with cyst. Average settings used to obtain images are shown in Figure 6.
   NOTE: Settings may need to be adjusted depending on each investigators tissue sections and microscope capabilities.
4. Obtain a maximum projection image of the z-stack by setting the number of projections to 1. Obtain a full rotational view by setting the number of projections to 64.
   NOTE: Other software packages are available and may be used to obtain maximum projection, rotational as well as other views of z-stack images.
5. Analyze image with imaging analysis software.

Results

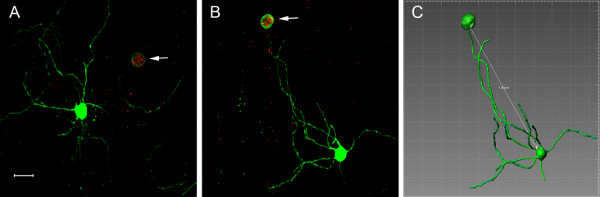

Figure 7 includes representative images of two cyst-containing GFP⁺ neurons from two different 160 µm thick sections as well as a representative measurement of the distance from cyst-to-cell-body for Figure 7B. Figures 7 A and B illustrate that this new protocol allows for visualization of the infected neuron in its entirety. Figure 7C shows that with this imaging technique, it is now possible to quantify the distance between ...

Discussion

Given that cellular changes in infected host cells have been linked to disease outcomes in infections with other intracellular organisms such as HIV, Rabies, and Chlamydia^18,19, we developed a technique that would allow us to study the intimate interactions that occur between the CNS host cell and Toxoplasma. The method described here accomplishes this goal by enabling efficient imaging of chronically infected neurons. Prior to the development of this method, such imaging was time consuming, costly, o...
