Injections of Lipopolysaccharide into Mice to Mimic Entrance of Microbial-derived Products After Intestinal Barrier Breach

Summary

Here a protocol to mimic the entrance of bacterial-derived compounds after intestinal barrier breach is presented. A low sublethal dose of lipopolysaccharide was injected systemically into mice, which were monitored for 24 h post-injection. The expression of pro-inflammatory cytokines was determined at several time points in spleen, liver, and colon.

Abstract

The intestinal epithelial barrier separates the host from the microbiota that is normally tolerated or ignored. The breach of this barrier results in the entrance of bacteria or bacteria-derived products into the host, accessing the host circulation and inner organs leading to the uncontrolled inflammation as observed in patients with inflammatory bowel disease (IBD), that are characterized by an increased intestinal epithelial permeability.

To mimic the entrance of bacterial-derived compounds into the host, an endotoxemia model has been adopted in which lipopolysaccharide (LPS), a component of the outer cell wall of Gram-negative bacteria, were injected into mice. In this study, a sublethal dose of LPS was intraperitoneally injected and the mice were subsequently monitored for 8 h using a disease score. Furthermore, the expression levels of the inflammatory cytokines Il6, Il1b, and Tnfa were analyzed in the spleen, liver and colon by qPCR at different time points post LPS injection. This model could be useful for the studies involving investigation of immune responses after the invasion of microorganisms or bacterial-derived products caused by a barrier breach of body surfaces.

Introduction

The human intestine is colonized with a large consortium of microorganisms that forms the microbiota, who has developed a mutually beneficial relationship with the host during the evolution. In this relationship, the host provides a secure niche for the microbiota, whereas the microbiota provides vitamins, nutrient digestion and protection from pathogens to the host, where the microbiota resides¹. When this beneficial relationship between the host and the microbiota is disturbed, diseases can develop, such as inflammatory bowel disease (IBD). IBD is a multifactorial chronic inflammatory disease of the intestine caused by genetic and environmental factors that occur in two major forms, Crohn's disease (CD) and ulcerative colitis (UC). Despite similarities between the two IBD forms, they are characterized by certain differences in the location and nature of inflammatory modifications. CD is a relapsing transmural inflammatory disorder that can potentially extend to any part of the gastrointestinal tract, while UC is non-transmural and is restricted to the colon. Furthermore, mutations in Nucleotide-binding oligomerization domain-containing protein 2 (NOD2), a pattern recognition receptor (PRR) that recognizes muramyl dipeptide (MDP), a component of the cell wall of most Gram-positive and - negative bacteria, is associated with CD². Furthermore, Escherichia coli (E. coli), Listeria and Streptococci and their products were all found within macrophages in CD patients that have entered the host after a barrier breach³. When bacteria or their products enter the host during the development of CD, the immune system develops a response leading to the production of circulating anti-bacterial antibodies⁴. Maybe, the most convincing evidence for the role of the microbiota in the pathogenesis of IBD stems from mouse models. When animals are treated with antibiotics, or when mice are kept in germ-free (GF) conditions, the severity of the disease is reduced in most colitis models, such as in IL-10-/- mice that do not develop colitis in GF facilities^5,6. Furthermore, colitis also disturbs the composition of the microbiota, which is characterized by an imbalanced composition and reduced richness called dysbiosis⁷. The consequence of IBD can be an increased intestinal permeability that can lead to the entrance of microbes and microbial-derived products into the host.

In animals, the application of Dextran Sodium Sulfate (DSS) induces an intestinal epithelial breach leading to an increased permeability of the epithelial barrier⁸. Portal LPS concentrations are elevated in animals with DSS colitis⁹. Interestingly, animals lacking the C type lectin receptor specific intracellular adhesion molecule-3 grabbing nonintegrin homolog-related 1 (SIGN-R1) are protected from DSS colitis and LPS-induced endotoxemia¹⁰. To further disseminate into the host, bacteria or bacteria derived products have to pass the vascular barrier¹¹, the peritoneal cavity, in which the small and large intestine is located, the mesenteric lymph nodes and/or the liver¹². To reduce the complexity of this system, a defined bacterial-derived compound was used. LPS, which causes endotoxemia after intraperitoneal (i.p.) or intravenous (i.v.) injection¹³ was injected into mice, to study the expression of the interleukins Il6 and Ilb and the cytokine Tnfa in response to LPS.

LPS is a pathogen-associated molecular pattern (PAMP) expressed as a cell-wall component of Gram-negative bacteria, that consists of lipid A (the main PAMP in the structure of LPS), a core oligosaccharide and an O side chain¹⁴. Toll-like receptor 4 (TLR4) expressed by dendritic cells, macrophages, and epithelial cells recognizes LPS¹⁵, that requires co-receptors for appropriate binding. The acute phase protein LPS-binding protein (LBP) binds LPS to form a complex that transfers LPS to the cluster of differentiation 14 (CD14), a glycosylphosphatidylinositol-anchored membrane protein. CD14 further shuttles LPS to Lymphocyte antigen 96 or also known as MD-2, which is associated with the extracellular domain of TLR4. The binding of LPS to MD-2 facilitates the dimerization of TLR4/MD-2 to induce conformational changes to recruit intracellular adaptor molecules to activate the downstream signaling pathway¹⁴, which includes the myeloid differentiation primary response gene 88 (MyD88)-dependent pathway and the TIR domain-containing adaptor-inducing interferon-β (TRIF)-dependent pathway¹⁶. The recognition of LPS by TLR4 then activates the NF-κB pathway and induces the expression of proinflammatory cytokines, such as TNFα, IL-6, and IL-1β¹⁷.

In particular, when LPS is injected into animals, the concentration of LPS given to the animals, the genetic background of the animal and the diet has to be considered. High concentrations of LPS leads to a septic shock, characterized by hypotension and multiple organ failures, and finally to death¹⁸. Mice are less sensitive to LPS compared to humans, where LPS concentrations between 2-4 ng/kg body weight (BW) are able to induce a cytokine storm¹⁹. For mice, the lethal dose (LD50), which induces death in half of the mice ranges from 10-25 mg/kg BW²⁰ depending on the mouse strain used. For the commonly used mouse strains, C57Bl/6 and BALB/c, the lethal dose 50% (LD50) is 10 mg/kg BW. In contrast, the strains C3H/HeJ and C57BL/10ScCr are protected from LPS induced endotoxemia, which is due to mutations in Tlr4²¹. Consequently, Tlr4-deficient mice are hyporesponsive to injections with LPS²². Other genetically modified mouse lines, such as PARP1-/- mice²³ are resistant to LPS-induced toxic shock.

The mouse model described here uses a sublethal dose of LPS administered systemically to mimic the consequences of LPS dissemination after a barrier breach of the body`s surfaces. The chosen LPS concentration (2 mg/kg BW) did not induce mortality in C56Bl/6 mice, but the induced release of pro-inflammatory cytokines.

Protocol

Mice were bred and kept under specific pathogen-free (SPF) conditions in the animal facility of Department of Biomedicine, University of Basel (Basel, Switzerland). All mouse experiments were performed in accordance with the Swiss Federal and Cantonal regulations (animal protocol number 2816 [Canton of Basel-Stadt]).

1. Preparation of LPS Solution

1. Open the stock of LPS purified from Escherichia coli 0111:B4 under sterile conditions and reconstitute it in water to the concentration of 5 mg/mL.
2. Dilute the LPS stock with the sterile phosphate buffered saline (PBS) to the working concentration of 0.2 µg/µL.

2. Intraperitoneal Injection of LPS to Mice

1. Aspirate the LPS working solution in a 0.5 mL syringe with a 30 G needle in a laminar air flow.
2. Weigh female C57Bl/6 mice (six to 10 weeks of age) and calculate the amount of LPS that will be injected: 10 µL (2 µg)/g body weight.
   NOTE: For example, if a mouse weighs 20 g, then 20 g x 10 µL = 200 µL LPS working solution needs to be injected.
3. Handle the mouse gently but firmly and restrain the animal in one hand. Ensure that the animal is able to breathe normally but not to twist and turn during the restraint.
4. Tilt the mouse nose slightly towards the floor to expose the abdomen for injection. Locate the midline of the abdomen and the injection place in the low abdomen left or right from the midline. Inject i.p. PBS instead of LPS into control mice.
5. With the free hand, inject the appropriate volume (the volume calculated in step 2.2) of the LPS working solution. Make sure that the needle has entered the peritoneal cavity as otherwise, mis-injections into the abdominal muscle layer may occur. Still, do not go too deep with the needle into the peritoneal cavity to avoid injuring inner organs located in that area.
6. Return the animal carefully to the cage with up to 5 mice per cage.

3. Monitor the Mice

1. Monitor the animals at the time of injection and every 2 h after the injection for 8 h for the occurrence and severity of endotoxemia. Therefore, use a score sheet (Table 1) that has been adapted from a previously published manuscript ²⁴.
2. Score the LPS injected mice for the following parameters listed in Table 1
   1. Check for the appearance of the fur which is normally smooth. If the fur appears ruffled, spiky or puffy fur which indicates discomfort and/or pain, score them as 1, 2, or 3.
   2. Check for the activity of the mouse.
      NOTE: Mice normally move freely around the whole cage eating, drinking, climbing, but suppressed or restricted activity could be a sign of pain.
   3. Check for the level of consciousness.
      NOTE: Mice are very curious, and they normally move around the cage investigating the surrounding. Lack of or reduced movement can suggest pain and discomfort.
   4. Check the eyes.
      NOTE: Fully open eyes are expected in healthy mice, but partially or fully closed eyes, possibly with secretion, can be an indication of pain.
   5. Check for the respiration rate.
      NOTE: Healthy mice usually have a normal and rapid respiration rate, a reduced respiration rate could be an indication of discomfort).
   6. Check for the respiration quality.
      NOTE: Labored breathing with or without gasping is a sign of pain.

4. Tissue Sampling for Ribonucleic Acid (RNA) Extraction and Homogenization

1. Prepare the collection/homogenization tubes: Add 1 mL single-step RNA isolation reagent to 2 mL tubes prefilled with 1.4 mm ceramic spheres.
2. At the appropriate time points (before (0 h) and 2 h, 4 h and 8 h after LPS injection) euthanize the mouse with anesthetic overdose (isoflurane) followed by exsanguination and proceed with the dissection.
3. Cut the skin and the muscle layer exposing the abdominal cavity with the inner organs with a pair of scissors.
4. Carefully dissect the spleen, liver, and colon, clean the organs from fat and keep them in PBS on ice.
5. Cut out a small piece (about 0.5 cm long) from each organ using scissors or scalpel.
   NOTE: It is important to always take the piece from approximately the same part of the organ in each mouse (same lobe of liver, proximal or distal part of the colon).
6. Shortly dry the tissue on a piece of paper tissue and place it in the collection/homogenization tube making sure that it is completely immersed in RNA isolation reagent.
7. Homogenize the tissue in a high-speed benchtop homogenizer. For soft tissues like spleen, liver, and colon use 1 cycle of homogenization at speed 6.00 for 30 s.
8. Incubate the samples for 5 min at room temperature.
9. Carefully place the tube in the liquid nitrogen to snap freeze the tissue lysate. Store the snap frozen lysate at -80 °C until the RNA isolation.

5. RNA Extraction from Tissue

NOTE: RNA isolation reagents, chloroform, and alcohols are considered as hazardous material. Perform RNA extraction under a chemical hood. Use certified RNase-free reagents and equipment to maintain an RNase-free environment.

1. Phase separation
   1. Thaw the frozen tissue lysate on ice.
   2. Centrifuge the sample on 1,000 x g for 5 min at 4 °C to pellet the remaining tissue particles that might be left.
   3. Transfer the supernatant to a new nuclease-free 1.5 mL tube.
   4. Add 200 µL ice-cold chloroform per 1 mL RNA isolation Reagent and shake vigorously by hand for 10-15 s.
   5. Incubate for 2-3 min at room temperature.
   6. Centrifuge at 12, 000 x g for 15 min at 4 °C.
      NOTE: The sample will now contain 3 phases: lower red phenol-chloroform phase, the interphase and the upper colorless aqueous phase. The RNA is present in the upper aqueous phase.
   7. Collect the upper aqueous phase ( 50% of total volume) and transfer into a new nuclease-free 1.5 mL tube.
2. RNA precipitation
   1. Add 0.5 mL ice-cold isopropanol per 1 mL RNA isolation reagent and mix gently by inverting the tube 5-6 times.
   2. Incubate for 10-15 min at room temperature.
   3. Centrifuge at 12,000 x g for 10 min at 4 °C.
      NOTE: RNA pellet should be visible at this stage.
3. Washing of RNA pellet
   1. Completely remove the supernatant containing the isopropanol without disturbing the pellet.
   2. Wash the pellet with 1 mL ice-cold 75% ethanol per 1 mL RNA isolation reagent used for the initial lysis.
   3. Vortex the sample briefly.
   4. Centrifuge the sample at 7,500 (or 12,000) x g for 5 min at 4 °C.
4. Dissolving RNA
   1. Completely remove the ethanol in the supernatant without disturbing the pellet.
   2. Leave the opened tube under the chemical hood for 3-5 min to air-dry the RNA pellet at room temperature (do not over-dry as in that case it will be difficult to dissolve RNA).
   3. Dissolve the RNA pellet in 20-50 µL nuclease-free water by pipetting carefully up and down.
   4. Incubate the sample at 55 °C for 10-15 min to further improve the solution of the RNA.
      NOTE: At this stage, RNA can be stored at -80 °C till further analysis.

6. Digestion of Remaining DNA

1. Measure the RNA concentration with a spectrophotometer by pipetting an aliquot (2 µl) into the spectrophotometer and adjust to the recommended concentration.
2. Start the digestion of contaminating DNA with max. 10 µg RNA in 50 µL nuclease-free water.
3. Add 0.1 volume of 10x DNase I Buffer and 1 µL rDNase I per sample and mix gently by pipetting up and down.
4. Incubate at 37 °C for 20-30 min.
5. Vortex DNase Inactivation Reagent and add 0.1 volume to the sample mixing well with the pipette.
6. Incubate for 5 min at room temperature mixing occasionally by hand.
7. Centrifuge at 10,000 x g for 1.5 min.
8. Transfer the supernatant containing DNA-free RNA into the new nuclease-free tube.
9. Measure the RNA concentration and quality by spectrophotometer.

7. Reverse Transcription

1. Use a commercially available Deoxyribonucleic acid cDNA reverse transcription (RT) kit for reverse transcription.
   NOTE: Here, up to 2 µg of RNA can be reversed transcribed.
2. Calculate the volume, which contains 2 µg RNA. Pipette 2 µg RNA in a new PCR tube.
3. Add nuclease-free water to the sample in the PCR tube to the final volume of 10 µL.
4. Prepare 2x Master Mix by mixing the following components listed in Table 2
5. Add 10 µL 2x Master Mix to 10 µl RNA to obtain 1x Master Mix in the total volume of 20 µL.
6. Close the polymerase chain reaction (PCR) tube and spin down the sample briefly.
7. Place the samples in a PCR Thermocycler and set the settings listed in Table 3.
8. Store the generated cDNA at -20 °C for further analysis.

8. Quantitative PCR (qPCR)

1. Perform the qPCR reaction with a commercially available kit.
2. Self-design and test the intron-spanning primers, before usage, with different concentrations of template cDNA. Analyze the efficacy of the primer by creating a standard curve and use the primers with high efficacy and correct melting curves.
   NOTE: The sequences of primers used in this experiment are listed in Table 2.
3. Prepare the quantitative polymerase chain reaction (qPCR) reaction in the 384-well plate with the reaction setup described in Table 4.
4. Keep all solutions and the plate on ice using aluminum foil to prevent the plate getting wet when the reaction mixture is prepared.
5. Perform all the reactions in triplicates.
6. Carry out the PCR reaction on a thermocycler using the setting listed in Table 5.
7. Calculate the average Ct value for all reactions from the triplicates. Normalize all target genes to the expression level of glycerinealdehyde-3-phosphate-dehydrogenase (Gapdh) housekeeping gene by calculating 2^(-ΔCt).
   NOTE: All the target genes with the average Ct >35 were considered to be under the detection limit.

Results

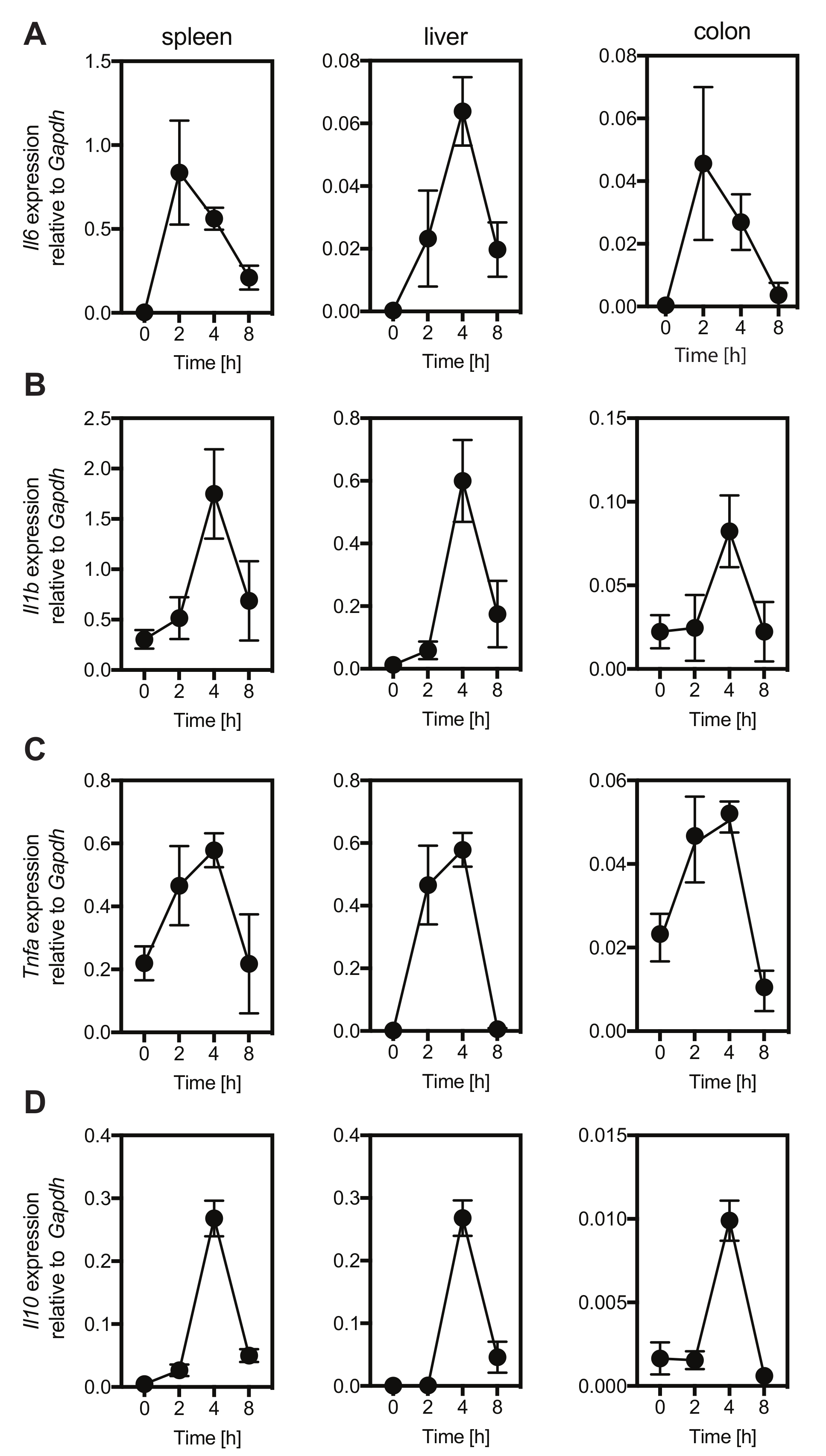

To mimic the consequences for the host after the entrance of bacteria or bacterial-derived products that occurs after intestinal barrier breach, LPS was injected into C57Bl/6 mice in a sublethal dose (2 µg/g body weight). Every single mouse was monitored and scored for the occurrence of endotoxemia with parameters listed in score sheet that includes, the appearance of the mice, the activity of the animals, the condition of eyes, and the respiration rate and quality (Table 1

Discussion

This protocol mimics immunological processes that occur after the invasion by microbial-derived products. Critical steps within the protocol are the selection of the mouse line, the hygiene status of the mice, the dose of LPS, the monitoring of the animals for the occurrence of endotoxemia, and the time point of experiment termination. Most importantly, the genetic background of the mouse strain has to be considered. Different mouse strains have different susceptibility to LPS. For example, the C3H/HeJ and C57BL/10ScCr m...

Materials

List of materials used in this article

Name	Company	Catalog Number	Comments
DreamTaq Green PCR Master Mix (2x)	Thermo Fisher Scientific, Waltham, MA, USA	K1081
High Capacity cDNA Reverse Transcription Kit,	Applied Biosystems, Foster City, CA, USA	4368813
RNase-Free DNase Set,	Qiagen, Hilden, Germany	79254
LPS Escherichia coli O111:B4	Invivogen, San Diego, CA, USA.	tlrl-eblps
Omnican 50 Single-use insulin syringe	B. Braun Melsungen, Melsungen, Germany	9151125
Bioanalyzer 2100	Agilent Technologie, Santa Clara, USA	not applicable
Centrifuge 5430	Eppendorf, Hamburg, Germany	not applicable
Centrifuge Mikro 220R	Hettich, Kirchlengern, Germany	not applicable
Dissection tools	Aesculap, Tuttlingen, Germany	not applicable
Fast-Prep-24 5G Sample Preparation System	M.P. Biomedicals, Santa Ana, CA, USA	not applicable
NanoDrop ND-1000	NanoDrop Products, Wilmington, DE, USA	not applicable
TRI Reagent	Zymo Research, Irvine, CA, USA	R2050-1
