Lipidomics and Transcriptomics in Neurological Diseases

Summary

This article presents a modular protocol for tissue lipidomics and transcriptomics, and plasma lipidomics in neurological disease mouse models targeting lipids underlying inflammation and neuronal activity, membrane lipids, downstream messengers, and mRNA-encoding enzymes/receptors underlying lipid function. Sampling, sample processing, extraction, and quantification procedures are outlined.

Abstract

Lipids serve as the primary interface to brain insults or stimuli conducive to neurological diseases and are a reservoir for the synthesis of lipids with various signaling or ligand function that can underscore the onset and progression of diseases. Often changing at the presymptomatic level, lipids are an emerging source of drug targets and biomarkers. Many neurological diseases exhibit neuroinflammation, neurodegeneration, and neuronal excitability as common hallmarks, partly modulated by specific lipid signaling systems. The interdependence and interrelation of synthesis of various lipids prompts a multilipid, multienzyme, and multireceptor analysis in order to derive the commonalities and specificities of neurological contexts and to expedite the unravelling of mechanistic aspects of disease onset and progression. Ascribing lipid roles to distinct brain regions advances the determination of lipid molecular phenotype and morphology associated with a neurological disease.

Presented here is a modular protocol suitable for the analysis of membrane lipids and downstream lipid signals along with mRNA of enzymes and mediators underlying their functionality, extracted from discrete brain regions that are relevant for a particular neurological disease and/or condition. To ensure accurate comparative lipidomic profiling, the workflows and operating criteria were optimized and standardized for: i) brain sampling and dissection of regions of interest, ii) co-extraction of multiple lipid signals and membrane lipids, iii) dual lipid/mRNA extraction, iv) quantification by liquid chromatography multiple reaction monitoring (LC/MRM), and v) standard mRNA profiling. This workflow is amenable for the low tissue amounts obtained by sampling of the functionally discrete brain subregions (i.e. by brain punching), thus preventing bias in multimolecular analysis due to tissue heterogeneity and/or animal variability. To reveal peripheral consequences of neurological diseases and establish translational molecular readouts of neurological disease states, peripheral organ sampling, processing, and their subsequent lipidomic analysis, as well as plasma lipidomics, are also pursued and described. The protocol is demonstrated on an acute epilepsy mouse model.

Introduction

Recent advances in the function of lipids and their role in the onset and progression of neurological diseases open new research and development venues of new therapeutic targets and disease mechanism elucidation¹. Documented differences in lipid composition in different brain regions, emphasized by modern molecular imaging techniques such as mass spectrometry imaging and advanced mass spectrometry profiling, shifts the paradigm of lipid investigation from whole brain toward functionally distinct and discrete brain regions. The fact that lipid composition varies in different brain regions prompts new conceptualization of both membrane lipid sensitivity and downstream lipid signaling in response to a brain insult or stimuli across the functionally distinct brain regions. Hence, lipid protocols require new developments to address the challenge of low tissue amounts for higher spatial resolution detection and quantification, and concurrently, analysis of multiple lipid components of cell membranes and signaling pathways. Also, determination of enzymes, lipid ligands, and receptors involved in the regulation of their levels and function is paramount to elucidate the signaling pathways affected in a neurological disease and guide new mechanistic investigations in a pathophysiological context.

In addition to the increased brain spatial resolution, there are two major difficulties challenging the development of new neurolipidomic approaches. First, the lipid signaling molecules are typically of very low abundance compared to membrane constitutive lipids. Second, the lipidome exhibits a high structural heterogeneity, difficult to dissect using a single analytical approach. Hence, extraction and analytical methods are tailored to different lipid categories and commonly performed in distinct tissue samples². Shotgun lipidomic methods³ are excellent tools to rapidly reveal a broad profile of membrane lipids, while increased sensitivity and selectivity afforded by the targeted discovery and quantification mass spectrometric methods are capitalized upon for investigation of low abundant signaling lipids including: i) inflammatory lipids and ii) lipids involved in the modulation of neuronal activity, such as endocannabinoids (eCBs), amino acid-linked lipids, etc.^4,5. To encompass lipid changes at both the cell membrane and signaling level occurring in brain regions of neurological disease models, typically the lipid extraction and analysis are carried out in distinct tissue samples, obtained from distinct animal batches or from different hemispheres, or by dissecting a larger tissue region into multiple pieces. When mRNA levels of enzyme receptors are also of interest, their investigation typically requires the procurement of a distinct tissue sample. For example, the investigation of membrane lipids, endogenous cannabinoids, and mRNA would require three different tissue samples, (e.g., two samples for the two lipid extraction methods-membrane lipids and signaling lipids- and subsequent two lipid analysis methods- and one sample for mRNA analysis). Investigation of inflammatory lipids and endogenous cannabinoids require two distinct tissue samples, extraction methods, and analysis methods, respectively. Another example is the investigation of mRNA and of any lipid category in a brain punch or laser microdissection sample which consequently requires two distinct animals to procure two samples per brain (sub)region. A substantial extent of variability and/or poor reproducibility of the results frequently occur in such cases, originating from biological variability and/or tissue heterogeneity. Guided by these practical limitations of multimolecular analysis, occurring particularly at high spatial resolution in the brain, a three-module neurolipidomics protocol was designed encompassing: 1) coextraction and co-analysis by LC/MRM of inflammatory lipids (e.g., eicosanoids (eiCs)) and lipids involved in modulation of neuronal activity, such as eCBs²; 2) co-extraction of phospholipids (PLs) and eCBs with subsequent multiscan LC/MRM and precursor/neutral loss scan analysis²; and 3) dual extraction of membrane (phospho)lipids and eCBs as well as mRNA, with subsequent LC/MRM and qPCR or RNA sequencing analysis⁶. Depending on the biological question to be addressed in a neurological disease and the brain region of interest, a combination of the first and the second protocol, or the first and the third protocol, can be applied on the same tissue specimen for tissues weighing around 4 mg. The first and third protocols can be independently applied for tissues around 2 mg. The second protocol can be applied for tissues weighing as little as 0.5 mg. Irrespective of the neurolipidomic protocol module selected, the tissue sampling and pre-analytical processing, the brain isolation and region dissection, as well as the procedure for sacrificing the animal model are standardized and identical for all three modules of the protocol. In our investigation of neurological diseases, peripheral organs that are relevant for the pathological consequences of the disease are always also collected and analyzed using these modular protocols. Additionally, blood is regularly sampled for plasma lipidomics to serve as a readout tool of neurological diseases with a view on prospective translational applications. The here presented modular lipidomics protocol is very versatile: scaleable to larger tissue amounts and readily applicable for virtually any tissue type and disease. For the application of the modular protocol (Figure 1) in neurological diseases, any standardized rodent model of onset and progression of neurological disorders, such as traumatic brain injury, Parkinson's disease, Alzheimer's disease, or epilepsy are amenable.

These protocols have been extensively applied to study changes in the tissue lipidome and/or transcriptome at the acute phase of epilepsy in the kainic acid (KA)-induced mouse model of epilepsy^2,7, a model widely used in preclinical studies due to the resemblance to human temporal lobe epilepsy (TLE)^8,9,10,11. Using these protocols, the therapeutic potential of drugs such as Palmitoylethanolamide (PEA)^12,13 was assessed in the same mouse model of epilepsy. The study identified lipid and mRNA changes at high and low spatial resolution in the brain and periphery, at the time point of maximal acute seizure intensities (at 60 min postseizure induction), and upon subchronic and acute treatment with PEA at four different timepoints (20, 60, 120, and 180 min) post KA-seizure induction, a time-window covering the acute phase of epilepsy. Plasma, brains, and peripheral organs of untreated KA-injected mice, acute and subchronically PEA-treated mice, as well as vehicle and PEA-vehicle control mice, were collected at each time point^12,13, and investigated with this molecular analysis. The molecular data were correlated with behavioral phenotypes obtained by seizure scoring, as well as with immunohistochemistry-derived data on neurodegenerative processes, in order to unravel the progression of the acute epilepsy phase and PEA's potential to alleviate it.

Protocol

All experimental procedures described here are in accordance with The European Community's Council Directive of 22 September 2010 (2010/63EU) and were approved by the local animal committee of the state Rhineland-Palatinate, Germany (file reference: 23 177-07/G16-1-075).

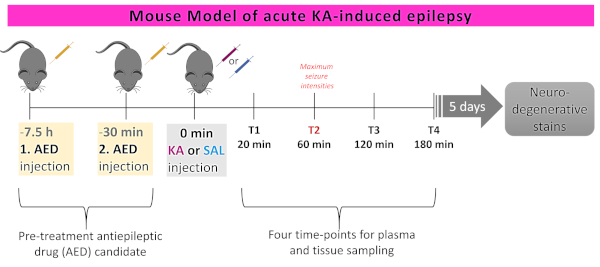

1. Animal model of acute and prophylactically treated KA-induced epilepsy

1. Perform seizure induction, treatment, and behavioral scoring.
   1. Separate mice (minimum n = 6 mice per group) in single cages.
   2. Prepare seizure-induction injection solution and the corresponding vehicle (see Table 1), as well as treatment injection solution and the corresponding vehicle (see Table 2).
   3. Inject mice intraperitoneally (i.p.) (10 mL/kg mouse body mass) without anesthesia according to their group identity: disease, treated, or vehicle treated (i.e., KA, PEA-treated KA, and the two vehicle groups). See Figure 2, Table 1, and Table 2.

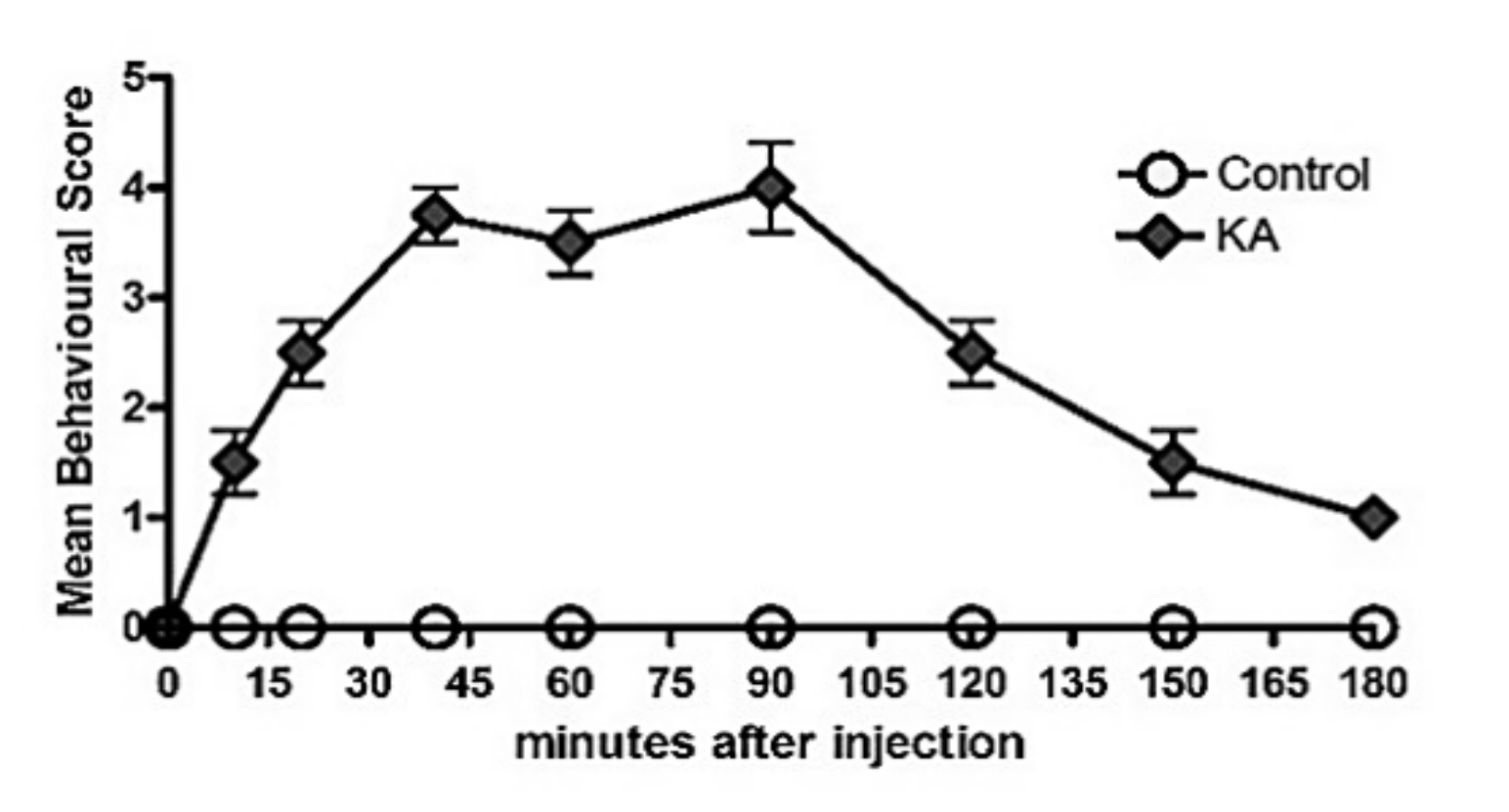

   4. Monitor and score the behavior according to the following standardized seizure intensity scale: 0 = no response; 1 = immobility and staring; 2 = forelimb and/or tail extension, rigid posture; 3 = repetitive movements, head bobbing; 4 = rearing and falling; 5 = continuous rearing and falling; 6 = severe clonic-tonic seizures; 7 = death^14,15 (Figure 3).
2. Perform sacrificing procedure for lipidomic and transcriptomic analysis.
   1. At four timepoints (i.e., 20, 60, 120, and 180 min post KA- or vehicle injection respectively), sacrifice six mice from each of the following groups: PEA treated, PEA-untreated epileptic vehicle 1, and vehicle 2, following IACUC approved protocols.
   2. Ten seconds after each time point is reached, anesthetize the mice using an isoflurane-soaked tissue in a glass chamber. Confirm anesthesia by the loss of the righting reflex, indicated by the inability to move while slowly overturning the glass chamber. Decapitate mice using surgical scissors and collect plasma, brain, and peripheral organs (see steps 2.2.2−2.2.4).
      CAUTION: Ethical regulations for sacrificing procedures vary between local animal committees. Make sure to check and follow the regulations issued by the local animal committee.
3. Follow sacrificing procedure for immunohistochemistry analysis.
   1. For immunohistochemical staining¹³, behaviorally score three mice from each of the following groups: PEA treated, PEA-untreated epilepsy, and vehicle groups, over the entire time course (180 min).
   2. Sacrifice and perfuse mice 5 days later. Deeply anesthetize mice (see step 1.3.1 for the mouse groups) by i.p. injection of pentobarbital (100 mg/kg) and buprenorphine (0.1 mg/kg) as narcotic drugs. Confirm deep anesthesia by the loss of reflex between the toes.
   3. Fix the mouse on a polystyrene plate and immediately open the thorax using fine scissors and standard forceps. Set the butterfly in the left heart ventricle and cut the right atrium using fine scissors.
   4. Adjust the speed and pressure of the pump to a constant peristaltic flow with a rate of 2−3 mL/min. Perfuse with ice-cold phosphate buffered saline (PBS) for ~5 min. If necessary, replace the butterfly.
      NOTE: With proper perfusion, the inner organs (except the spleen) start to bleach out within 1−2 min.
   5. Switch perfusion to ice-cold 4% paraformaldehyde (PFA) solution for ~5 min. Isolate whole brains as described in step 2.2.2 and fix for 24 h in 4% PFA solution at 4 °C.
   6. Incubate brains in 30% sucrose solution for 48 h at 4 °C. Remove the leftover sucrose with a dry tissue paper and freeze the brains on a metal plate (-80 °C). Store the brains at -80 °C for the staining procedures¹³.

2. Sampling procedures for lipidomic/transcriptomic analysis

1. Prepare for sampling.
   1. Precool EDTA-tubes for plasma sampling to 4 °C. Precool the centrifuge and vortex apparatus to 4 °C. Precool the metal plate covered with aluminum foil (to snap frozen brain and/or other tissues of interest) on dry ice (-80 °C). Precool the labeled 2 mL and 5 mL tubes on dry ice (-80 °C) for plasma aliquots, frozen tissue, and brain collection, respectively. Use amber tubes to protect light sensitive molecules, such as eiCs.
   2. Clean the tissue sampling and isolation equipment (surgical scissors, straight sharp fine scissors, straight smooth standard forceps, fine forceps with mirror finish, curved forceps and spatula, polystyrene foam plate, and needles for fixation) with a disinfectant (e.g., 70% ethanol).
2. Sampling protocols
   1. Determine the order of sampling.
      1. Collect blood immediately after decapitation in precooled 1 mL EDTA tubes (see step 2.2.3).
      2. Remove the whole brain and snap freeze immediately after removal. This step will take 1−2 min. Store frozen brains at -80 °C for further processing (see step 2.2.2).
      3. Remove peripheral organs of interest (e.g., lung, heart, liver), within 5 min post brain removal, and snap freeze and store at -80 °C for further processing (see step 2.2.4).
   2. Remove brain for dissection or punching procedures. This procedure takes 1−2 min/brain.
      1. After decapitation (see step 1.2), start making a midline incision in the skin using fine scissors. Free the skull by flipping the skin over the eyes. Reach to the top of the skull and make a small caudal incision starting at the level of the intraparietal bone. Avoid cutting through the brain.
      2. Cut firmly through the most anterior part of the skull between the eyes to ease brain removal. Tilt one side of the parietal bone using curved narrow pattern forceps and break off. Repeat the last step for the other side.
      3. Remove the brain meninges. Slide a spatula under the anterior part of the brain (i.e., the olfactory bulb) and tilt the brain gently upward. Slide the spatula further down to break the optic and other cranial nerves.
      4. Lift the brain out of the skull and snap freeze the whole brain immediately on a precooled (-80 °C) metal plate with the ventral side facing the metal plate (dorsal up).
      5. Allow the brains to completely freeze and transfer into precooled 5 mL tubes and store at -80 °C until the dissection of the brain regions or the punching procedure (see steps 3.1. and 3.2).
   3. Perform plasma sampling.
      1. Spike precooled EDTA-tubes with 10 µL of freshly prepared indomethacin-dilution to a target concentration of 10 µM.
      2. Collect the trunk blood immediately after decapitation by gentle squeezing of the body into precooled EDTA tubes to a maximum blood volume of 1 mL.
         NOTE: In case of proper blood pressure, squeezing is not required. If blood volume is less than 1 mL, decrease the isoflurane incubation time to enable proper blood flow.
      3. Immediately centrifuge blood tubes at 2,000 x g for 10 min at 4 °C.
      4. Remove the resulting upper plasma phase and for the purpose of multilipid analysis aliquot defined plasma volumes in precooled 2 mL tubes as follows: 50 µL for eCBs/eiCs analysis, 30 µL for PLs analysis, and the remaining plasma volume as the backup sample or for other types of analysis.
      5. Store the plasma samples at -80 °C for further extraction (see steps 4.1.2 and 4.1.4).
   4. Perform peripheral organ sampling.
      NOTE: Use mouse anatomy references¹⁶ and documentation provided for the obligatory courses (FELASA) attended by animal investigators to identify the individual organs, their connective tissues, and/or blood vessels.
      1. Immobilize the mouse torso to ease organ removal using needles. Make a ventral midline incision using a straight sharp scissor at the height of the pubis. Use blunt standard forceps to fixate the abdominal wall while cutting to open the abdominal cavity.
      2. Immobilize the skin to allow abdominal organ removal using blunt forceps. For heart or lung removal, continue medial cut in the direction of the breast cave. Remove the lung and/or heart using fine forceps.
      3. Open the breast cavity carefully to avoid bleeding. Cut the connective tissues and blood vessels anchoring the respective organ without cutting through the organ.
      4. Transfer tissue pieces immediately on precooled metal plates (-80 °C) and allow to completely freeze. Transfer tissue pieces to precooled tubes and store at -80 °C for further processing (see step 4.1).

3. Biological material processing

NOTE: For co-extraction of eCBs/eiCs use 2 mL amber tubes as extraction tubes and add in each tube seven precooled steel balls. For co-extraction of PLs/eCBs and for dual lipid and RNA co-extraction, use 2 mL of RNAse-free extraction tubes spiked with ceramic beads (Table of Materials).

1. Perform brain dissection and peripheral organ processing.
   NOTE: Use magnifying lamps to increase the visibility of the brain for dissection.
   1. Clean the surgical tools, including the forceps with super fine tips, 2x with 70% ethanol.
   2. Transfer the frozen brains from -80 °C to a Petri dish containing precooled physiological buffer (pH 5.5) Ensure the Petri dish is at 4 °C. Allow brains to completely unfreeze to allow dissection. Test carefully using forceps.
      CAUTION: Do not keep brains at 4 °C longer than required for thawing.
   3. Precool a metal plate on ice (4 °C) and cover it with wet tissues soaked in ice-cold physiological buffer (pH 5.5) and transfer the brain with ventral side up carefully onto a precooled (4 °C) metal plate on ice. Cover it with wet tissues soaked in ice-cold physiological buffer (pH 5.5).
   4. Dissect brain regions within a maximum of 5 min using super fine tip forceps. Start with the hypothalamus (HYP) and turn the dorsal side up to proceed with the right side. Isolate the hippocampus (HCr), prefrontal cortex (PFCr), striatum (STRr), and cerebral cortex (cCTXr). Then dissect the left side. Isolate the hippocampus (HCl), prefrontal cortex (PFCl), striatum (STRl), and cerebral cortex (cCTXl). Dissect the cerebellum and the thalamic region. Use published anatomical references^16,17 for brain region identification.
   5. Transfer each dissected piece directly on an aluminum foil-covered, precooled metal plate (-80 °C). Allow freezing and transfer the isolated brain regions in the labeled precooled 2 mL tubes.
   6. Pulverize the tissue pieces using a tissue pulverizer (at -80 °C), avoiding the thawing of the tissue. In the cold room, aliquot tissue powder in labeled, precooled extraction tubes containing ceramic beads or steel balls. For the dual lipidomics/transcriptomics analysis, weigh the tissue powder aliquots in the cold room. For lipidomics-only analysis, choose between normalization to the tissue weight or protein content. For the latter, proceed further without tissue weighing.
   7. Cut the peripheral organ tissues in pieces with a maximum weight of 20 mg. Proceed with tissue pulverization as in step 3.1.6.
   8. Proceed with the extraction of tissue samples (see steps 4.1.1, 4.1.3, or 4.1.5) or store tubes at -80 °C for later extraction.
      NOTE: The brain matrix can also be used if the study design permits. However, the method is more suitable for a discrete and limited number of brain regions, and it is not practical to dissect and isolate all of the above-mentioned brain regions within the set time-frame.
2. Perform brain punching.
   1. Mount the whole, frozen brains onto the mounting system (Table of Materials) in the cryostat. Set the thickness to 50 µm and slice in trim-mode close to the region of interest.
   2. Stain brain slice (18−20 µm) using toluidine blue (0.1%−1%) as a reference to localize the subregion of interest. Inspect the stained slices using a microscope to identify the regions of interest to be punched. Use a mouse atlas as reference to find the appropriate brain anatomical regions¹⁶. Take punches with a 0.8−1.0 mm diameter using sample corers in precooled tubes.
   3. Weigh frozen punches in the cold room in labeled, precooled 2 mL extraction tubes containing ceramic beads or steel balls. Use amber tubes for eCBs and eiCs co-extraction.
   4. Start the extraction (see steps 4.1.1, 4.1.3, or 4.1.5) or store tubes at -80 °C for further extraction.
3. Perform plasma processing.
   1. Place the frozen plasma samples on ice (4 °C) and let them thaw (~20 min).
   2. Ensure that the plasma is entirely unfrozen before starting extraction.
   3. Proceed with the plasma extraction procedure (see steps 4.1.2 or 4.1.4).
      NOTE: Plasma samples should remain at -80 °C until extraction. Avoid cycles of thawing and refreezing.

4. Extraction procedures

1. Carry out Liquid-Liquid (LLE) lipid co-extraction protocols.
   1. Perform co-extraction of eCBs and eiCs from brain pieces, punches, or tissue powder samples.
      NOTE: Accurate pipetting is required throughout the procedure.
      1. Place the extraction tubes containing the tissue samples and seven steel balls on ice (4 °C). Add 600 µL of ice-cold MTBE and 50 µL of ACN/H₂O (1:1; v/v) containing the internal standards. The target concentration of the internal standards in the final volume for analysis (50 µL) is as follows: 1 ng/mL AEA-d4, 125 ng/mL 2-AG-d5, 3,000 ng/mL AA-d8, 2 ng/mL OEA-d4; PEA-d4, 12.5 ng/mL 1-AG-d5, 2.5 ng/mL PGF2α-d4 and 5 ng/mL for PGD2-d4; PGE2-d9; 5(S)-HETE-d8; 12(S)-HETE-d8; 20-HETE-d6, and TXB2-d4, respectively.
      2. Add 400 µL of 0.1 M formic acid and homogenize with a tissue lyser (30 s-1 min). Centrifuge the homogenate for 15 min at 5,000 x g at 4 °C. Allow freezing of the aqueous lower phase for 10 min at -80 °C to ease the transfer of the upper organic phase.
      3. Transfer the organic phase in new tubes. Evaporate under a gentle stream of N₂ at 37 °C and reconstitute in 50 µL of ACN/H₂O (1:1; v/v) for further analysis.
      4. Store the aqueous phase at -20 °C or -80 °C for further protein content analysis.
   2. Perform co-extraction of eCBs and eiCs from plasma samples.
      1. Thaw plasma aliquots at 4 °C. Add 800 µL of MTBE and 50 µL of ACN/H₂O (1:1; v/v) containing the internal standards (analogous to those used for tissue analysis, see step 5.1.1). Optimize the internal standard concentration for spiking using reference plasma samples.
      2. Add 600 µL of 0.1 M formic acid and vortex samples at 4 °C for 2 min. Centrifuge samples at 4,000 x g for 15 min at 4 °C.
      3. Transfer the organic phase into new tubes, evaporate under a gentle stream of N₂ at 37 °C, and reconstitute in 50 µL of ACN/H₂O (1:1; v/v) for LC/MRM analysis.
         NOTE: If possible, avoid storage of dried extracts of eiCs and proceed immediately to LC/MRM analysis. If storage cannot be avoided, resort to short-time storage for only 2−3 days at 4° C with samples in LC injection solvent.
   3. Perform co-extraction of PLs and eCBs from brain regions, punches, or other tissue powder samples.
      1. Place the extraction tubes containing the tissue samples and ceramic beads on ice (4 °C). Add 800 µL of MTBE/MeOH (10:3; v/v) and 10 µL of MeOH containing the internal standards. The target concentration of the internal standards in the final volume for analysis (100 µL) is as follows: 150 ng/mL for PC 17:0/14:1, PE 17:0/14:1, PA 17:0/14:1, 100 ng/mL PG 17:0/14:1; PS 17:0/14:1; PI 17:0/14:1; LPC 17:0; LPA 17:0; SM d18:1/12: 0,1 ng/mL AEA-d4, 60 ng/mL 2-AG-d5, 4,000 ng/mL AA-d8, 2 ng/mL OEA-d2 and 3 ng/mL PEA- d4 respectively.
      2. Add 200 µL of 0.1% formic acid containing 25 µM tetrahydrolipstatin/URB597 and 50 µg/mL BHT. Homogenize with the tissue homogenizer (Table of Materials) and centrifuge at 5,000 x g and 4 °C for 15 min.
      3. Recover the upper organic phase in new tubes and evaporate under a gentle stream of N₂ at 37 °C. Reconstitute in 90 µL of MeOH and either store at -20 °C or -80 °C or proceed with next step.
      4. Add 10% H₂O to an aliquot of lipid extract (4.1.3.3) and inject 10 µL in the LC/MS for PLs analysis. For further eCB analysis proceed with step 4.3.5.
      5. Take an aliquot of the extract (4.1.3.3), evaporate to dryness and reconstitute in ACN/H₂O (1:1; v/v). Use 20 µL for LC/MS injection for eCB analysis.
   4. Perform co-extraction of PLs and eCBs from plasma samples.
      1. Thaw plasma aliquots at 4 °C, add 1,000 µL of MTBE/methanol (10:3; v/v) and 10 µL MeOH containing internal standards (analogous to step 4.1.3) and vortex at 4 °C for 1 min.
      2. Add 250 µL of H₂O and vortex for 45 min at 4 °C. Centrifuge samples for 15 min at 5,000 x g and 4 °C. Recover the upper organic phase, evaporate under a gentle stream of N₂ at 37 °C, and reconstitute in 90 µL of methanol for further LC/MS analysis. Store at -20 °C or -80 °C or proceed to the next step.
      3. For PLs analysis, add 10% water to an aliquot of lipid extract (4.1.2.2).
      4. For eCB analysis, add 10% water to an aliquot of the lipid extract (see 4.1.4.3), evaporate to dryness, and reconstitute in 50% ACN/H₂O (1:1; v/v).
   5. Perform dual extraction of RNA and lipids (co-extraction of PLs and eCBs) from tissue samples.
      CAUTION: Ensure working under RNA-free conditions to avoid RNA degradation.
      1. Thaw tissue powder aliquots or brain bunches (at 4 °C) and add 600 µL of RLT buffer containing 5 µM THL/URB597, 10 µg/mL BHT, and 1% β-mercaptoethanol (for percentages of the final volume of homogenization buffer, see step 4.1) together with 200 µL of chloroform to extraction tubes containing frozen brain punches and ceramic beads.
      2. Spike samples with 10 µL of internal standard mixture for PLs and eCB co-extraction (see step 4.1.3) and homogenize via tissue homogenizer (high speed, 20 s).
      3. Transfer lysates into new centrifuge tubes and centrifuge for 5 min at full speed and 4 °C to enable the phase separation.
      4. Recover and use the upper phase for RNA extraction using standard RNA extraction procedure kits (Table of Materials). Elute RNA in a total volume of 50 µL of RNase-free water and store at -80 °C.
         NOTE: The sample at step 4.1.5.4 is amenable for both RNA sequencing and qPCR using the appropriate methods and instrumentation.
      5. Use the lower chloroform-containing phase for lipid extraction. Add 800 µL of MTBE/methanol (10:3; v/v) and 200 µL of 0.1% formic acid and vortex for 45 min at 4 °C. Recover the upper organic phase and evaporate under a gentle stream of N₂ at 37 °C.
      6. Reconstitute in 90 µL of methanol for further LC/MS analysis. Store at -20 °C or -80 °C or proceed to step 5.
      7. Add 10% H₂O to an aliquot of lipid extract (see above step 4.1.5.6) and inject 10 µL in the LC/MS for PLs analysis. For further eCB analysis proceed with step 5.7.
      8. Take an aliquot of the extract (see above step 4.1.5.6) evaporate to dryness and reconstitute in ACN/H₂O (1:1; v/v). Use 20 µL for LC/MS injection for eCB analysis (analogous to step 4.3.5).

5. LC/MRM qualitative and quantitative profiling

1. Prepare LC solvent systems, calibration solutions, and quality control samples.
   1. For PLs, prepare mobile phase A: methanol/water (1:1; v/v) containing 7.5 mM ammonium formate and 0.1% TEA. Prepare mobile phase B: methanol/isopropanol (2:8; v/v) containing 7.5 mM ammonium formate and 0.1% TEA. Store solvents in LC bottles.
   2. For eCB and eiC separation, prepare the following LC-solvents: 0.1% formic acid as mobile phase A, and 100% ACN containing 0.1% formic acid as mobile phase B. Store solvents in LC bottles.
   3. Prepare quality controls using the calibration standards and internal standards (Table 3) in an equimolar or user-defined concentration.
   4. Prepare calibration curves with seven concentration points. Use the same internal standard batch to spike in the calibration curve solution and in samples to be analyzed.
2. Use the LC-MRM method for qualitative and quantitative lipid profiling.
   1. Open the Build Acquisition Method tab in the commercial software (e.g., Analyst) and select LC/MRM mode with polarity switching. Set in the method the ion transitions (as given in Table 3) for quantitative profiling. Set settling time to 50 ms.
   2. For PLs profiling, set the following ion source parameters: curtain gas = 40 psi; source heater temperature = 550 °C; ion spray voltage = -4,500 V in negative ion mode and = +5,200 V in positive ion mode.
   3. For co-analysis of eCBs and eiCs, set the following parameters: curtain gas = 40 psi; source heater temperature = 550 °C; ion spray voltage = -4,500 V in negative ion mode and = +4,500 V in positive ion mode.
   4. For PL analysis, set the column heating to 45 °C and flow rate to 200 µL/min and set the following gradient: min 0 = 40% B; min 3 = 40% B; min 42 = 90% B; min 43 = 99% B; min 50 = 99% B, and min 52 = 40% B. Set injection volume to 10 µL.
   5. For eCBs and eiCs analysis, set the column temperature at room temperature and set the following gradient: min 0 = 20% B; min 1 = 20% B; min 5 = 50% B, min 12 = 50% B; min 13 = 90% B, min 17 = 90% B; min 17.5 = 20% B; min 20 = 20% B. Set injection volume to 20 µL.
      NOTE: MRM conditions may vary between instrumental platforms, hence fragmentation and MRM conditions have to be experimentally inferred and ionization parameters should be tested and adjusted if needed in order to get maximum sensitivity and selectivity.
3. Perform batch analysis.
   1. Open Build Acquisition batch and fill in the required parameters for sample description, location in autosampler's sample rack, and acquisition method (set as step 5.2).
   2. Always include quality controls at the beginning and end of the analysis and within the batch. After every 25−30 samples, include at least three calibration curves within the batch and include a wash step with a solvent of choice after every quality control sample, calibration curve, and at the end of the sample batch.
   3. Transfer samples obtained at step 4 in LC/MS vials. Place the samples in the loading racks of the LC autosampler according to the position defined in the batch and load the sample rack in the LC autosampler.
   4. Submit batch and start queue analysis.
4. Lipid quantification
   1. Use the commercial software (e.g., Analyst) and the embedded quantification module for eCBs and eiCs quantification and commercial software (e.g., Multiquant) for PLs quantification.
      NOTE: The second software can also be used for eCBs and eiCs, particularly when one internal standard is used for the quantification of multiple analytes.
   2. Open Build Quantification Method and fill in the parameters for analytes, internal standards, MRM transitions, and ascribe the internal standards to the analytes to be quantified (Table 3). Set the minimum peak height to 500 cps.
   3. Use the following criteria or combination thereof for lipid identity assignment and subsequent quantification⁶: retention time matching of lipid endogenous analytes with calibration standards, and/or deuterated internal standards, where available; fragment ion matching by positive and negative ion mode fragmentation for a given m/z of lipid analytes for which no standards are provided; literature-inferred elution behavior of lipids under similarly employed LC conditions to dissect isomeric and/or isobaric structures; and, where available, LC/MS and MS/MS analysis with high resolution mass spectrometry, using similar LC conditions as for targeted analysis (using LC/MRM), to accurately identify the identity and elution behavior of endogenous lipids of interest^18,19.
   4. For the validation of batch analysis, use the following criteria: accuracy of quantification ≤ ±20%; regression coefficient ≥0.97 (ideally ≥0.99).
      NOTE: Follow the guidelines for bioanalytical method development and validation to ensure a reliable, reproducible analysis of the target molecules.

Results

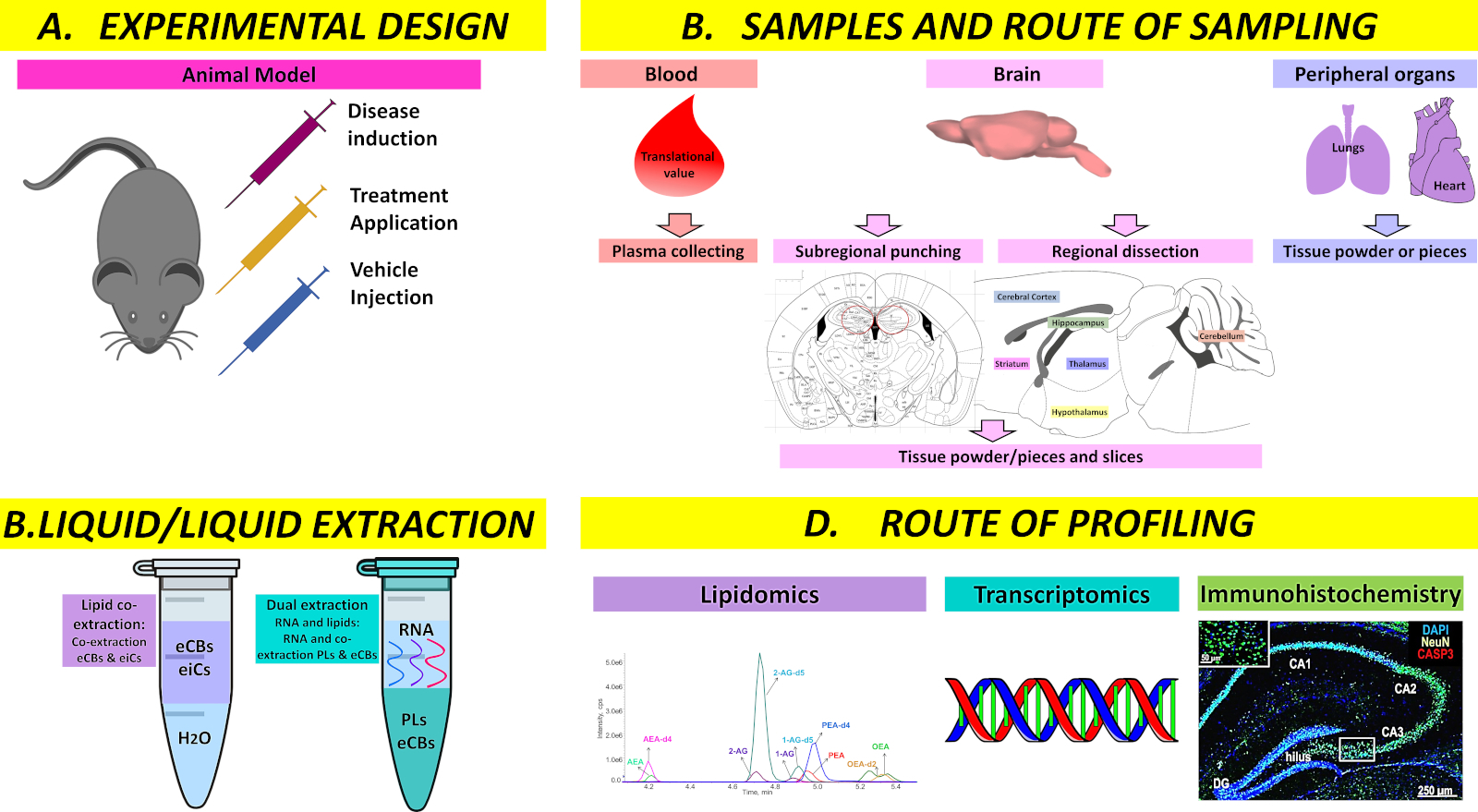

The set of described protocols may be combined on different levels in an aim-specific fashion, such as choice of animal model, route of sampling, method of extraction and profiling (Figure 1).

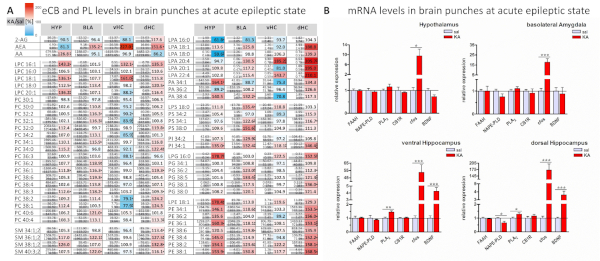

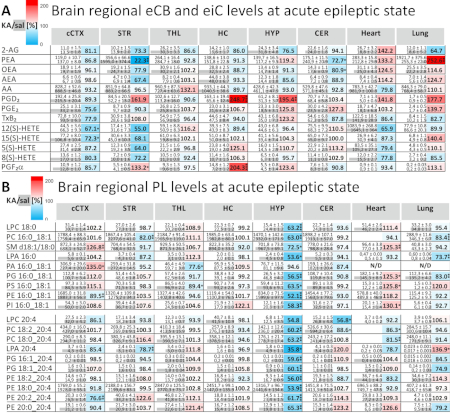

In order to determine lipid level changes in the brain and periphery over a time course of an acute epileptic seizure state and to unravel the potential antiepileptic effect¹³ of PEA an...

Discussion

The neurolipidomic and transcriptomic methodology described here is a viable mean to investigate any disease or healthy development at high and low spatial resolution in the brain and peripheral organs. Due to the optimized plasma sampling and handling procedures, plasma lipidomic analysis can also be carried out from the same animals sacrificed for tissue lipidomics and transcriptomics, thus improving the reliability of tissue blood molecular correlates and biomarker discovery. The provision of a broad set of data by ap...
