Determining the Functional Status of the Corticospinal Tract Within One Week of Stroke

Summary

This protocol is for evaluating corticospinal tract function within 1 week of stroke. It can be used to select and stratify patients in trials of interventions designed to improve upper limb motor recovery and outcomes and in clinical practice for predicting upper limb functional outcomes 3 months after stroke.

Abstract

High interindividual variability in the recovery of upper limb (UL) function after stroke means it is difficult to predict an individual's potential for recovery based on clinical assessments alone. The functional integrity of the corticospinal tract is an important prognostic biomarker for recovery of UL function, particularly for those with severe initial UL impairment. This article presents a protocol for evaluating corticospinal tract function within 1 week of stroke. This protocol can be used to select and stratify patients in trials of interventions designed to improve UL motor recovery and outcomes after stroke. The protocol also forms part of the PREP2 algorithm, which predicts UL function for individual patients 3 months poststroke. The algorithm sequentially combines a UL strength assessment, age, transcranial magnetic stimulation, and stroke severity, within a few days of the stroke. The benefits of using PREP2 in clinical practice are described elsewhere. This article focuses on the use of a UL strength assessment and transcranial magnetic stimulation to evaluate corticospinal tract function.

Introduction

Upper limb function is commonly impaired after stroke, and recovery of UL function is important for regaining independence in daily living activities¹. Stroke rehabilitation trials are often aimed at improving UL recovery and outcomes after stroke. The majority of stroke rehabilitation research is conducted with patients at the chronic stage (>6 months poststroke), yet most rehabilitation occurs early after stroke^2,3. More research needs to be conducted with patients soon after a stroke to build an evidence base for rehabilitation practice.

One of the greatest challenges when conducting research soon after the stroke is detecting the effects of the intervention against the background of recovery occurring during the initial weeks and months after the stroke. High intersubject variability in clinical presentation and recovery creates noise that can obscure the beneficial effects of interventions. Intervention and control groups are typically balanced on clinical measures of initial neurological impairment. However, these measures are often poor predictors of the patient's potential for subsequent recovery, particularly those with severe initial impairment^4,5. This means that groups can be matched for baseline clinical measures and not matched for their recovery potential, which makes it more difficult to ascertain the intervention's effects. Biomarkers can address this challenge by identifying an individual patient's potential for motor recovery, so that groups can be accurately matched and stratified^6,7,8. Biomarkers can also be used to select patients who are most likely to respond to the intervention's known or hypothesized mechanisms of action⁶.

The functional integrity of the corticospinal tract (CST) is a key biomarker that predicts recovery of UL function after stroke^{5,8,9,10,11,12}. The CST conveys descending motor output from the primary motor cortex to the spinal cord and is essential for coordination and fine motor control. Patients with a functional CST after stroke are more likely to regain strength, coordination, and dexterity than patients without. A clinical assessment can be sufficient to confirm that the CST is functional in mildly impaired patients^13,14,15. However, patients with more severe initial impairment may or may not have a functional CST, and a neurophysiological assessment using transcranial magnetic stimulation (TMS) is needed^{9,10,11,16,17}.

TMS is a noninvasive and painless technique that can be used to test CST function¹⁸. The TMS coil delivers a magnetic stimulus over the primary motor cortex that generates a descending volley in the CST, eliciting a motor-evoked potential (MEP) in the muscles of the contralateral limb¹⁹. The presence of a MEP in the paretic arm or hand (MEP+) indicates a functional CST and is associated with greater potential for recovery of UL function. Patients who are MEP- are most likely to have worse UL recovery, with no return of coordinated and dexterous hand function^4,6,9,12,16.

Testing all patients with TMS is impractical and unnecessary, as those with mild initial impairment most likely have a functional CST¹⁷. Therefore, a hierarchical approach is needed so that TMS is only used for patients with more severe initial impairment. The PREP2 algorithm was developed using a combination of clinical measures and TMS to evaluate CST function and predict likely UL outcome at 3 months poststroke (Figure 1)¹⁷. PREP2 starts at day 3 poststroke by testing the strength of shoulder abduction and finger extension in the paretic arm (SAFE score), using Medical Research Council grades. If the sum of these grades is 5 or more out of 10, it is "safe" to assume the patient is MEP+. These patients are expected to have a good or excellent UL outcome by 3 months poststroke, depending on their age¹⁷. These patients do not need TMS to determine MEP status, minimizing cost and unnecessary testing for the patient.

Patients with a SAFE score of less than 5 on day 3 poststroke require TMS to determine the functional integrity of their CST. If a MEP can be elicited from the paretic extensor carpi radialis (ECR) or first dorsal interosseus (FDI) muscles, the patient is MEP+ and is expected to recover fine motor control of the hand by 3 months poststroke. Approximately half of patients with a SAFE score less than 5 on day 3 poststroke are MEP+. Importantly, patients can have a SAFE score as low as zero and be MEP+. This illustrates the need for TMS in this subgroup of patients, as clinical assessment alone cannot distinguish between patients with and without a functional CST. Patients who are MEP- have significant CST damage. These patients are expected to have a limited or poor UL functional outcome depending on their overall stroke severity, measured with the National Institute of Health Stroke Scale (NIHSS) (Figure 1)¹⁷. These MEP- patients are not expected to regain coordinated and dexterous finger control and can be grouped together for research purposes.

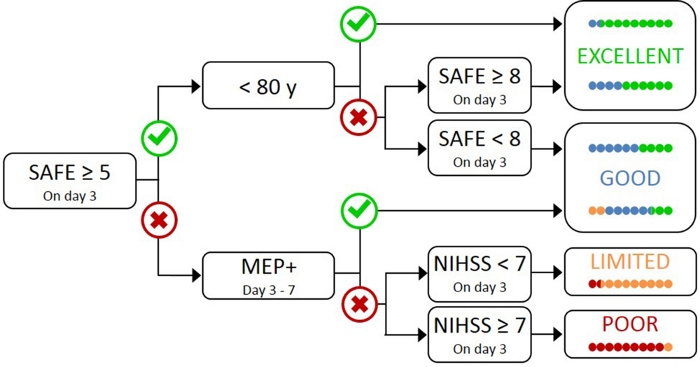

Figure 1: The PREP2 algorithm. SAFE = Shoulder Abduction, Finger Extension score, which is the sum of the Medical Research Council grades for each of these movements out of 5, for a total SAFE score out of 10. MEP+ = Motor Evoked Potentials can be elicited from the paretic extensor carpi radialis (ECR) and/or first dorsal interosseous (FDI) muscles of the paretic UL using transcranial magnetic stimulation. NIHSS = National Institutes of Health Stroke Scale. The algorithm predicts one of four possible UL functional outcomes at 3 months poststroke. Each prediction category is associated with a rehabilitation focus that can be used to tailor UL therapy². The colored dots represent, proportionally, PREP2 algorithm accuracy. The dots are color-coded based on the outcome category actually achieved 3 months poststroke (Green = Excellent; Blue = Good; Orange = Limited; Red = Poor). Figure reproduced from Stinear et al.¹⁷. Please click here to view a larger version of this figure.

In clinical practice, PREP2 predicts one of four outcome categories that can be used to tailor rehabilitation for individual patients and help patients and families to understand what they can expect for their UL recovery. To date, PREP2 is the only externally validated UL prediction tool that combines clinical assessment and biomarker information in a decision tree¹⁷. It is also the only UL prediction tool with research on the effects of implementation in clinical practice^20,21. PREP2 predictions are accurate for about 75% of patients, too optimistic for 17% and too pessimistic for 8% of patients at 3 months poststroke¹⁷. Accuracy is highest for MEP- patients (accurate for 90% of MEP- patients), highlighting the value of using TMS to identify these patients with severe damage to the descending motor pathways¹⁷. PREP2 remains correct for around 80% of patients at 2 years poststroke²². This supports the use of PREP2 to predict UL functional motor outcomes at 3 months and longer term. Information about delivering PREP2 predictions and using them in clinical practice is outside the scope of this methods paper, but detailed resources are available online²³.

PREP2 provides researchers with a tool to select and stratify patients for clinical trials. This allows patients to be grouped not only according to baseline clinical characteristics, but also their neurobiological potential for UL recovery. Despite the mounting evidence for the use of TMS as a prognostic biomarker for UL recovery, lack of familiarity with TMS protocols in hospital settings with subacute stroke patients may be a barrier to its use in research. Therefore, this protocol aims to demonstrate how to use the SAFE score and TMS to evaluate CST function in patients in a hospital setting early after stroke.

Protocol

All research conducted with human participants must have human ethics approval by the appropriate institutional ethics committee and the study must be conducted in accordance with the declaration of Helsinki.

1. Patient Screening

1. Screen all patients for PREP2 suitability within 72 h of stroke onset.
   NOTE: Patients are suitable if they have had a unilateral ischemic or hemorrhagic stroke within the last 72 h, have new UL weakness, and are 18 years or older.

2. SAFE Score

NOTE: Ensure that patients with inattention or fatigue are focused on the arm to enable an accurate assessment of strength.

1. Position the patient with their back fully supported and upright either in bed or in a chair and their paretic arm by their side with the elbow in extension.
2. Demonstrate shoulder abduction. Ask the patient to lift their arm sideways and up towards their ear. Use the Medical Research Council (MRC) grades to score shoulder abduction strength.
   NOTE: MRC grades are described as follows: 0 = no palpable muscle activity; 1 = palpable muscle activity but no movement; 2 = limited range of movement without gravity; 3 = full range of motion against gravity but no resistance; 4 = full range of motion against gravity and resistance but weaker than the other side; 5 = normal power.
3. To score shoulder abduction grades 4 or 5, place your hand over the patient's arm, proximal to the elbow and apply resistance.
   NOTE: The patient must be able to achieve full range of motion against resistance to be awarded a score of 4 or higher.
4. Place the paretic forearm in pronation with the fingers fully flexed and provide support under the wrist.
5. Demonstrate finger extension. Ask the patient to straighten their fingers and use the Medical Research Council grades to score finger extension strength.
6. To score finger extension grades 4 or 5, apply resistance over the dorsum of the fingers, distal to the metacarpophalangeal joints, throughout the movement.
   NOTE: The patient must be able to achieve full extension against resistance to be awarded a score of 4 or higher.
7. To score fingers with unequal strength, use the majority rule. If three fingers have the same score, use this score. If two fingers have a lower score than the other two fingers, use the lower score.
8. Add the MRC grades for shoulder abduction and finger extension together for a SAFE score out of 10. If the patient has a SAFE score of 5 or more on day 3 poststroke they can be assumed to have a functional corticospinal tract and TMS is not required. If the patient has a SAFE score less than 5 on day 3 poststroke, TMS is required to determine their MEP status.

3. Transcranial Magnetic Stimulation (TMS)

1. Evaluate patient suitability for TMS.
   1. Complete a TMS safety checklist with the patient to identify absolute and relative contraindications to TMS²⁴.
      NOTE: This information should be gathered through patient and family interview and from the medical records. See representative results section for more detail.
   2. Ask the patient's physician to review the TMS checklist and approve it if appropriate.
   3. On the day of the TMS test, review the patient's medical status with the clinical team and the patient to ensure there have been no changes since the checklist was signed.
      NOTE: Events to consider include fall with head injury, seizure, if the patient has become medically unwell, is hypoglycemic, or has unstable blood pressure. Ensure the patient has taken all prescribed medication prior to the test.
2. Prepare the environment.
   1. Remove furniture from around the bed. Move the bed away from the wall to allow space for the TMS unit.
   2. Place the TMS unit at the head of the bed towards the side opposite the paretic limb. Angle the TMS unit so that the person delivering TMS can easily see the screen.
   3. Test the TMS setup to check it is working appropriately.
      NOTE: This protocol uses a single-pulse TMS unit. The electromyography (EMG) signal can be sampled at 2 kHz and filtered with 10 Hz high-pass and 1,000 Hz low-pass filters. The EMG equipment needs to be triggered by the TMS unit such that the EMG trace begins at least 50 ms prior to the TMS stimulus and ends at least 50 ms after the TMS stimulus.
   4. Ensure familiarity with the protocol for summoning emergency assistance in the TMS assessment room in case this is required.
3. Prepare the patient.
   NOTE: Patients with intravenous (IV) lines, nasogastric feeding, or low concentrations of supplementary oxygen via a nasal cannula can be tested with TMS provided that they are considered medically stable by the treating physician. Supplemental oxygen should continue throughout the TMS session. Suspending and disconnecting nasogastric feeding and non-essential fluids through IV lines will make it easier to conduct the TMS assessment.
   1. Remove any clothing covering the forearms. Remove any items covering the paretic wrist such as a watch or identification bracelet to enable the EMG electrode placement.
   2. Position the paretic arm on a pillow with the forearm pronated and fully supported from the elbow to the hand.
   3. Palpate the paretic forearm to locate the muscle belly for the extensor carpi radialis (ECR) muscle. Identify positions for two surface EMG electrodes over the muscle belly, allowing for factors such as the position of IV cannula or dressings.
      NOTE: It is essential that at least one electrode is positioned over the muscle belly. This may require discussion with the nursing staff about repositioning dressings before the test if possible.
   4. Clean the skin at each electrode site with an alcohol skin-cleansing wipe. Shave each electrode site to remove any hair. Lightly abrade the electrode sites with an abrasive cream or tape. Take care with patients who have fragile skin and avoid any areas of broken skin.
   5. Securely apply self-adhesive disposable recording electrodes to each site.
   6. Locate the electrode sites for the first dorsal interosseus muscle (FDI). One electrode will be placed on the FDI muscle belly and one on the dorsum of the hand.
      NOTE: Electrode placement may vary depending on patient factors such as the position of an IV cannula or dressings.
   7. Prepare the skin and apply the self-adhesive recording electrodes as previously described.
   8. Place the reference electrode strap around the arm just proximal to the elbow. Alternatively, prepare the skin and place a self-adhesive reference electrode over the lateral epicondyle of the humerus.
4. Position the patient in bed for the test.
   1. Lower the bed rails. Move the patient as high up the bed as possible and towards the edge of the bed on the non-paretic side.
      NOTE: The patient should only be moved by trained staff.
   2. Put the bed rail back up on the paretic side for safety. Remove the headboard of the bed if possible and remove any unused IV poles attached to the bed that may obstruct the coil position.
   3. Raise the head of the bed as high as possible. Position pillows behind the patient's back to bring them into an upright sitting position without their head contacting the bed. Do not put a pillow behind the head. If possible, raise the knees to prevent the patient from slipping down the bed during testing.
   4. Ensure the paretic forearm is in pronation and fully supported by a pillow from the elbow to the wrist. Check for adequate TMS coil access by holding the TMS coil against the patient's head. Make adjustments to the patient's position as required.
5. Position the patient in a chair or wheelchair for the test (alternative option).
   1. Ensure the patient is sitting upright and comfortably in the chair. Place a pillow under each arm. Ensure the paretic forearm is pronated and fully supported by the pillow.
6. Check the EMG trace: Connect the cables between the patient and the EMG unit. Check to make sure the EMG signal is free from any electrical noise.
7. Deliver TMS.
   1. Two trained staff should be present for the TMS test. Instruct the patient to look straight ahead, keeping their head still and eyes open.
   2. The person holding the coil should stand next to the patient's head on their non-paretic side and position the center of the coil over the location of the primary motor cortex of the stroke-affected hemisphere. This is approximately 4 cm lateral from the vertex on the interaural line.
      NOTE: Another way to identify the starting coil position is to measure approximately a third of the distance from the vertex to the front of the ear.
   3. Orient the coil with the handle pointing backwards, at an approximately 45° angle in the midsagittal plane to produce a posterior-to-anterior current in the underlying tissue.
      NOTE: The coil used in this protocol is a flat figure-eight coil, but a branding coil or circular coil can also be used.
   4. Adjust the bed height for the coil holder's comfort. Use a step if necessary. The second person (not the coil holder) is responsible for monitoring patient comfort throughout the TMS session. They may stand at the foot of the bed to monitor the patient and ensure the patient maintains a neutral head position or monitor the patient from the bedside while adjusting the TMS unit controls as necessary.
      NOTE: This will depend on the individual TMS setup used. The patient should be monitored for comfort levels, alertness, and any adverse effects such as vasovagal responses to the TMS.
   5. Begin with a stimulus intensity of 30% maximum stimulator output (MSO). Increase intensity in 10% MSO steps with three to five stimuli at each intensity and scalp location.
   6. Move the coil systematically in 1 cm steps in each direction (anterior, posterior, medial, lateral) to find the optimal location for producing MEPs in the recorded muscles. Small adjustments to the coil rotation may also be necessary.
   7. Continue increasing the stimulus intensity and moving the coil until the MEPs are consistently observed in one or both muscles or until 100% MSO is reached.
   8. If 100% MSO is reached with no MEPs observed, use active facilitation to increase corticomotor excitability and the likelihood of eliciting a MEP. Ask the patient to hug a pillow to their chest with both arms, attempting to activate their paretic UL as much as possible. For patients with no distal UL activity, ask them to elevate and retract at the shoulder girdle.
8. Classify the MEP status of the patient.
   1. Classify the patient as MEP+ if MEPs of any amplitude are observed with a consistent latency in response to at least five stimuli. This can be either at rest or during voluntary facilitation. FDI latencies are typically 20–30 ms while ECR latencies are typically 15–25 ms. MEPs do not have to exceed a peak-to-peak amplitude of 50 µV.
   2. Classify the patient as MEP- if a MEP cannot be elicited at 100% MSO either at rest or while attempting voluntary facilitation.
9. Remove electrodes and wipe the skin with an alcohol wipe. The skin may be slightly red but this usually resolves without any treatment.

Results

The SAFE score and TMS can be used to ascertain the functional status of the CST within one week of stroke. Patients who have a SAFE score of at least 5 on day 3, or are MEP+ when tested with TMS, have a functional CST and are expected to regain at least some coordination and dexterity. Patients who are MEP- do not have a functional CST and therefore are likely to be limited to improvements in proximal arm movements and gross movements of the hand. The functional status of the CST can therefore be used to select patients...

Discussion

CST function evaluated with MEP status is a key prognostic biomarker for UL recovery and outcome after stroke. A total of 95% of patients with a functional CST at 1 week poststroke achieve an Action Research Arm Test (ARAT) score of at least 34 out of 57 by 3 months poststroke¹⁷. Conversely, 100% of patients without a functional CST at 1 week poststroke achieve an ARAT score of less than 34 by 3 months poststroke¹⁷. Evaluating CST function within a week poststroke may impro...
