Biochemistry

Extraction and Purification of FAHD1 Protein from Swine Kidney and Mouse Liver

Published: February 18, 2022 doi: 10.3791/63333

Summary

This protocol describes how to extract fumarylacetoacetate hydrolase domain-containing protein 1 (FAHD1) from swine kidney and mouse liver. The listed methods may be adapted to other proteins of interest and modified for other tissues.

Abstract

Fumarylacetoacetate hydrolase domain-containing protein 1 (FAHD1) is the first identified member of the FAH superfamily in eukaryotes, acting as oxaloacetate decarboxylase in mitochondria. This article presents a series of methods for the extraction and purification of FAHD1 from swine kidney and mouse liver. Covered methods are ionic exchange chromatography with fast protein liquid chromatography (FPLC), preparative and analytical gel filtration with FPLC, and proteomic approaches. After total protein extraction, ammonium sulfate precipitation and ionic exchange chromatography were explored, and FAHD1 was extracted via a sequential strategy using ionic exchange and size-exclusion chromatography. This representative approach may be adapted to other proteins of interest (expressed at significant levels) and modified for other tissues. Purified protein from tissue may support the development of high-quality antibodies, and/or potent and specific pharmacological inhibitors.

Introduction

or Start trial to access full content. Learn more about your institution’s access to JoVE content here

The eukaryotic FAH domain-containing protein 1 (FAHD1) acts as bi-functional oxaloacetate (OAA) decarboxylase (ODx)1 and acylpyruvate hydrolase (ApH)2. It is localized in mitochondria2 and belongs to the broad FAH superfamily of enzymes1,2,3,4,5,6. While its ApH activity is only of minor relevance, the ODx activity of FAHD1 is involved in the regulation of the TCA cycle flux1,7,8,9. OAA is not only required for the central citrate synthase reaction in the tricarboxylic acid cycle but also acts as a competitive inhibitor of succinate dehydrogenase as part of the electron transport system and as a cataplerotic metabolite. Downregulation of FAHD1 gene expression in human umbilical vein endothelial cells (HUVEC) resulted in a significant reduction in the rate of cell proliferation10, and significant inhibition of mitochondrial membrane potential, associated with a concomitant switch to glycolysis. The working model refers to mitochondrial dysfunction associated senescence (MiDAS)11-like phenotype8, where mitochondrial OAA levels are tightly regulated by FAHD1 activity1,8,9.

Recombinant protein is easier to obtain via expression and purification from bacteria12 rather than from tissue. However, a protein expressed in bacteria may be biased by possible lack of post-translational modifications, or may simply be problematic (i.e., due to plasmid loss, bacterial stress responses, distorted/unformed disulfide bonds, none or poor secretion, protein aggregation, proteolytic cleavage, etc.). For certain applications, protein needs to be obtained from cell lysate or tissue, in order to include such modifications and/or to exclude possible artifacts. Purified protein from tissue supports the development of high-quality antibodies, and/or potent and specific pharmacological inhibitors for selected enzymes, such as for FAHD113.

This manuscript presents a series of methods for the extraction and purification of FAHD1 from swine kidney and mouse liver. The described methods require fast protein liquid chromatography (FPLC) but otherwise use common laboratory equipment. Alternative methods may be found elsewhere14,15,16,17. After total protein extraction, the proposed protocol involves a testing phase, in which sub-protocols for ammonium sulfate precipitation and ionic exchange chromatography are discussed (Figure 1). After defining these sub-protocols, the protein of interest is extracted via a sequential strategy using ionic exchange and size-exclusion chromatography with FPLC. Based on these guidelines, the final protocol may be adapted individually for other proteins of interest.

Figure 1

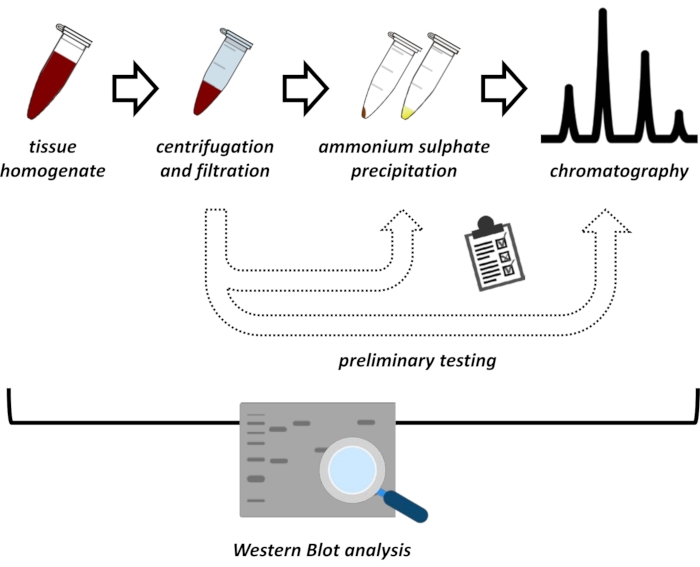

Figure 1: The overall strategy of this protocol. From top to bottom: Protein is extracted from tissues. Tissue homogenate is prepared, centrifuged, and filtrated. For each pair of supernatant and pellet-derived samples, tests for ammonium sulfate precipitation and ionic exchange chromatography (FPLC) need to be performed to probe for optimal conditions. After establishing these sub-protocols, the protein may be extracted via a sequential procedure of ammonium sulfate precipitation, ionic exchange chromatography, and repetitive size exclusion chromatography (FPLC) at varying pH and salt concentrations. All steps need to be controlled by western blot. Please click here to view a larger version of this figure.

Subscription Required. Please recommend JoVE to your librarian.

Protocol

or Start trial to access full content. Learn more about your institution’s access to JoVE content here

All experiments were performed in compliance with institutional guidelines. Swine kidney was obtained fresh from the local supermarket. Liver tissues were harvested from C57BL6 wild-type mice maintained at the Institute for Biomedical Aging Research at Innsbruck University, Rennweg 10, 6020 Innsbruck, Austria under the supervision of Univ.-Doz. Dr. Pidder Jansen-Dürr, covered by ethical permission as project leader issued in 2013 (BMWF-66.008/0007-II/3b/2013). Maintenance and use of the mice for the project are covered under ethical permission No. 2020-0.242.978 from May 5th, 2020, issued by the Austrian Ministry for Education, Science, and Research (BMBWF).

1. Preparations

NOTE: Before the protocol starts, several things need to be prepared, i.e., the protein lysis buffer, the crude tissue sample, and a specific antibody, besides general chemicals, and materials.

  1. Prepare 250 mL of protein lysis buffer per 100 g of net weight of tissue: 250 mL of 1x PBS with 50 mM NaF, 1 mM PMSF, 2 µg/mL aprotinin, and 1 mM activated orthovanadate (see Table 1). Filter the solution using a 0.22 µm syringe filter unit.
    NOTE: Activation of orthovanadate is required before use to convert it into a more potent inhibitor of protein tyrosine phosphatases18. Activated orthovanadate may be obtained from commercial suppliers, but also prepared as follows.
    1. Prepare a 200 mM stock solution of (sodium) orthovanadate in ddH2O. For preparing 10 mL of solution, add 368 mg of Na3VO4 to 9 mL of water and dissolve by stirring. Once dissolved, make up the volume to 10 mL with ddH2O.
      NOTE: The starting pH of the sodium orthovanadate solution may vary with the source of material, and the pH needs to be adjusted to 10 in a repetitive approach as follows.
    2. Depending on the initial pH of the solution, adjust the pH to 10 with NaOH or HCl. At pH > 10, the solution will have a yellow color. Boil the solution until it turns colorless, cool it down to room temperature, and check the pH. If pH is >10, add a small volume of HCl to adjust the pH to 10. At this point, the solution may turn yellow again.
    3. Repeat the boiling and cooling until the solution remains colorless and the pH stabilizes at 10 (approximately 5-7 times). At this point, adding HCl results in a faint appearance of yellow color in the solution. Store activated orthovanadate in 1 mL aliquots at -20 °C.
  2. Prepare tubes with 2 mL of lysis buffer per gram of tissue and place them on ice.
    NOTE: This protocol used eight 50 mL tubes, each filled with 30 mL of lysis buffer in total for one swine kidney (about 100-150 g), and two tubes each filled with 40 mL of lysis buffer for 20 mouse livers (each 1-2 g) in total.
  3. Prepare the tissue: dissect the tissue on a pre-cleaned glass plate placed on ice in a polystyrene foam box. Cut tissue pieces of about 100 mg each to be easily transferred into respective tubes for subsequent lysis. Transfer the tissue pieces into the prepared tubes (step 1.2).
  4. Prepare a saturated ammonium sulfate solution: heat 500 mL of ddH2O to 70 °C and while stirring, gradually add ammonium sulfate powder (see Table of Materials) until no more ammonium sulfate is dissolved. Cool this (over)saturated solution to room temperature and store it at 4 °C overnight.

2. Total protein extraction

NOTE After preparing the sample in cold protein lysis buffer (see step 1.3), homogenize the tissue as best as possible via sonication by an ultrasonic probe, or using an electric homogenizer as follows.

  1. Homogenization of tissues
    1. In the case of a swine kidney, sonicate the suspension preferably by an ultrasonic probe while keeping the sample on ice (10 cycles of 15 s pulse, with intervals of 30 s between the pulses to cool the sample on ice, at medium amplitude with 50% duty cycle).
    2. In the case of mouse organs, homogenize the suspension using an electric homogenizer (starting with a low force, and slowly accelerating to medium force) while keeping the sample on ice. Regularly wash the electric homogenizer in PBS to remove any organic material clogging the device.
    3. Take 20 µL out of the samples and check under the microscope whether the cells of the homogenized tissue are properly destroyed; otherwise, repeat the homogenization.
  2. Centrifuge the tubes in a tabletop centrifuge at 10,000 x g for 30 min at 4 °C.
    NOTE: Optionally, centrifuge the supernatant a second time at 20,000 x g for 30 min at 4 °C to eliminate small fractions of the initial pellet that may have been transferred. This will simplify the subsequent filtration in step 2.3.
  3. Collect the supernatant in a fresh tube and place it on ice. Sequentially filter the supernatant using 0.45 µm and 0.22 µm syringe filter units. Aliquot the supernatant into 10 mL batches and freeze them at -20 °C for short-term storage or at -80 °C for longer storage.
    NOTE: Pre-filtering with 0.45 µm removes the majority of the particles before a second filtering step with 0.22 µm removes the finer particles. Using the 0.22 µm filter directly can cause the risk of clogging the filters.
  4. Prepare a 50 µL sample for SDS-PAGE/western blot analysis by adding 10 µL of 5x SDS sample buffer (see Table 1) to 40 µL of the supernatant, and then boiling at 95 °C for 10 min.
    1. Optionally, resuspend about 100 µL of pellet obtained in step 2.2 in 900 µL of ddH2O, and prepare a sample for SDS-PAGE/western blot analysis as described above.
      NOTE: Inclusion of pellet-derived samples in the western blot analysis, in addition to the positive control, will indicate whether the expression of the protein is low, or the antibody is problematic.

3. SDS-PAGE and western blot analysis

NOTE: Western blot analysis is required to check for protein solubility. The following describes a protocol for electroblotting, using a Wet/Tank blotting system (see Table of Materials). An alternate protocol for SDS-PAGE may be found elsewhere19.

  1. Prepare a discontinuous 12.5% polyacrylamide SDS-PAGE gel according to the manufacturer's instructions (i.e., a stacking gel on top of a resolving gel; see Table 1). Run the samples previously prepared during step 2 (similar to steps 4, 5, and 6; see below).
    1. Load a protein marker ladder into the first well (see Table of Materials). Load 5 ng of hFAHD1 recombinant protein (obtained from bacteria12; see Table 1) as a positive control into the second well.
    2. Subsequently, load 20 µL of the sample to be analyzed, and fill all the remaining wells with 20 µL of prepared SDS-PAGE 1x sample buffer (i.e., 5x sample buffer diluted with ddH2O). Run the SDS-PAGE gels at 125 V using the SDS-running buffer (see Table 1).
  2. After SDS-PAGE is complete, perform a western blot analysis and probe the membranes using the available antibody raised against FAHD1 (see Table 1).
    NOTE: As the samples are taken from crude tissue homogenate, usually the quality of the SDS-PAGE and the western blot analysis at this point is compromised; however, it is important to check whether the protein to extract is soluble in the supernatant. The following protocol was tested for swine kidney, and different mouse organs, including liver, heart, brain, and kidney.
    1. Prepare the 10x western blot transfer buffer (see Table 1). Prepare the 1x western blot transfer buffer (see Table 1) and cool it to 4 °C.
    2. Activate a PVDF membrane for 2 min in methanol. Wash the membrane in ddH2O for 2 min. Equilibrate the membrane for 15 min in 1x western blot transfer buffer.
    3. Wash the SDS-gel with 1x PBS for 10 min while shaking to remove the SDS-running buffer, and then incubate the gel in 1x western blot transfer buffer for 10 min for equilibration. Assemble the electroblotting cassette (i.e., combining the activated PVDF membrane and gels) according to the manufacturer's instructions.
    4. Run the blot via electroblotting at 300 mA for 1 h in a polystyrene foam box filled with ice or in the cold room (4 °C). Transfer the PVDF membrane into a 50 mL tube with its exposed side facing the inner side of the tube. Incubate the membrane in 20 mL of western blot blocking buffer (see Table 1) overnight at 4 °C while rolling on a tube roller (see Table of Materials).
    5. The next day, wash the membrane for 5 min with 20 mL of western blot washing buffer (PBS with 0.1% (v/v) Tween 20) in the same tube while rolling. Incubate the membrane in the same tube with the primary antibody2 (targeting FAHD1; see Table 1) diluted 1:500 in western blot blocking buffer for 1 h at room temperature while rolling.
    6. Wash the membrane in the same tube three times for 10 min each with 20 mL of western blot washing buffer while rolling. Incubate the membrane for 30 min at room temperature with HRP-conjugated secondary antibody (see Table of Materials) diluted 1:3000 in 5 mL of western blot blocking buffer.
    7. Wash the membrane in the same tube three times for 10 min each with 20 mL of western blot washing buffer and twice for 5 min each with 1x PBS. Dry the membrane by carefully holding it with tweezers on one edge, and by touching a piece of cellulose or a piece of Whatman paper with the opposite (lower) edge of the membrane. Put the membrane (exposed side up) on a cleaned glass plate.
    8. Carefully cover the whole membrane with 1 mL of prepared ECL western blot substrate using a pipette, taking care not to create any air bubbles. Let the ECL solution incubate for 3 min, and immediately develop the membrane using X-ray film or using an imaging system.
      NOTE: If the protein was detected in none of the samples but only in the positive control, this may indicate that the protein is insoluble, or not present in adequate amounts to be detected by the antibody. If only nanograms of the positive control were loaded, the first scenario is more likely. If no protein was detected at all, check the quality of the antibody, and maybe switch to a polyclonal antibody rather than a monoclonal antibody. In rare occasions, i.e., for some hydrophobic proteins, the protein may be detectable after centrifugation, but not after filtration. In such a case, it is recommended to use special filter units for hydrophobic proteins.
  3. Optionally, stain the PVDF membranes after western blot to control the successful transfer of the protein from the SDS-PAGE gel to the PVDF membrane.
    NOTE: Coomassie staining is recommended for troubleshooting, method development, and documentation, but mind that after applying this protocol, membranes are lost to further western blot analysis. Ponceau S staining gives weaker staining but may be used if the membranes are to be re-probed.
    1. Prepare small trays containing the staining (Coomassie or Ponceau S) and de-staining solutions.
    2. Using tweezers, put the membrane into the staining solution and gently shake until the membrane is stained well (5-10 min).
    3. Transfer the membrane into the destaining solution and shake until the solution is saturated (5-10 min). Repeat the destaining step until the protein bands can be observed on the membrane; if no bands are observed at all, repeat the staining with a longer incubation time. Dry the membrane by placing it on a glass plate using tweezers.

4. Testing: Ammonium sulfate precipitation

NOTE: Ammonium sulfate precipitation is a method of protein purification by altering the solubility of the protein. In a preliminary experiment, the ammonium sulfate concentration is sequentially increased to a value that precipitates a maximum amount of protein contaminants, while leaving FAHD1 in solution. The solubility of the protein is again probed via western blot analysis.

  1. Proceed from step 2.3: either thaw an aliquot of the sample or proceed directly after protein extraction (i.e., without freezing the sample). Filter the sample using a 0.22 µm filter unit to exclude possible precipitates after thawing. Prepare six 1.5 mL tubes on ice, and transfer 250 µL of sample into each tube.
  2. Prepare a dilution series of 5%, 10%, 15%, 20%, 25%, and 30% ammonium sulfate in the tubes prepared above, and make up the final volume to 1000 µL with protein lysis buffer. Incubate the samples at 4 °C overnight on a tube rotator (see Table of Materials).
  3. Using a tabletop centrifuge, centrifuge at 10,000 x g for 30 min at 4 °C and carefully transfer all of the supernatants into separate tubes. Air-dry the resulting pellets and resuspend each of them in 1000 µL of ddH2O.
  4. For each pair of resuspended pellet and supernatant from the previous step, mix 40 µL with 10 µL of 5x SDS sample buffer and boil at 95 °C with open lids until most of the liquid has vaporized. Then, resuspend the pellet in a mixture of 50% DMSO in ddH2O.
  5. Perform SDS-PAGE (step 3) but run the gels at 80 V for 3 h. For each concentration of ammonium sulfate, load the samples derived from the resuspended pellet and supernatant (step 4.3) in pairs. Perform a western blot analysis (step 3).
  6. Check for the highest concentration of ammonium sulfate, at which the protein to be purified (i.e., FAHD1) remains in the sample derived from the supernatant. Based on the results, define an ammonium sulfate precipitation protocol for the protein of interest, to be used in future experiments.
    NOTE: Ammonium sulfate is well known to distort SDS-PAGE and western blot. As the concentration of ammonium sulfate increases, the quality of the western blot analysis will be compromised. However, as with step 3 before, this analysis is used to check for the solubility of the protein of interest at given concentrations of ammonium sulfate. This protocol aims to precipitate other proteins, while the protein to be purified must remain soluble.

5. Testing: ionic exchange chromatography with FPLC

NOTE: Molecules with charged functional groups are bound to a silica particle column for FPLC, enabling the differentiation of proteins according to their surface charge. Perform this step twice, using the cationic exchange column and anionic exchange column (see Table of Materials). The protocol steps are the same for either cationic or anionic exchange chromatography, but the buffers to be used are different (see Table 1); both with "low salt" 15 mM NaCl and "high salt" 1 M NaCl conditions. For the columns used, a flow rate of 1 mL/min is recommended.

  1. Set up the FPLC system with the anionic or cationic exchange column. Wash the column with 5 column volumes (CVs) of 20% EtOH (in H2O), followed by 5 CVs of ddH2O. Alternately, wash the column with 1 CV of low salt buffer, high salt buffer, and again low salt buffer in the order until no more peaks are observed in the chromatogram, but wash at least once.
  2. After determining the optimal protocol for ammonium sulfate precipitation on the small scale (step 4), apply the precipitation protocol to 10 mL of original tissue homogenate (step 2). Optionally, dialyze the sample against the low salt buffer.
    1. Apply the sample onto the column (e.g., by injection or by using a sample pump) and collect the flow-through. Wash the column with 1 CV of the low salt buffer.
  3. Set up a linear gradient elution from 100% low salt buffer/ 0% high salt buffer to 0% low salt buffer/100% high salt buffer within 3 CVs. Continuously collect 1 mL fractions. After the gradient has finished, continue to run with the high salt buffer until no more protein-associated peaks (UV absorption at 280/255 nm) are detected in the chromatogram over the range of 1 CV.
  4. Apply 1 mL of 25% SDS dissolved in 0.5 M NaOH (in ddH2O) to clean the column. Consecutively, wash the column with 3 CVs of ddH2O and 3 CVs of 20% EtOH (in ddH2O).
  5. Collect SDS-PAGE samples of all peak-fractions and the flow-through, and probe them via western blot for the presence of the protein of interest (step 3). Snap-freeze the collected fractions in liquid nitrogen and store them at -80 °C.
  6. After western blot analysis is complete, thaw and pool the fractions containing the protein of interest and discard the others. Repeat steps 5.1-5.5 with the alternate column (i.e., cationic or anionic exchange column).
  7. After both columns have been probed, define an FPLC protocol for the protein of interest, to be used in future experiments. Reduce the volume of the protein solution using ultra-centrifugation filter units (10 kDa, see Table of Materials) down to 2 mL.
    NOTE: There are two expected outcomes of this series of experiments. Either the protein of interest has attached to one of the columns, and the protein solution is already quite pure after elution, or the protein remained in the flow-through in both cases. In the latter scenario, although the protein is in the flow-through, the cleaning effect of this step might still be significant. In such a case, as for FAHD1 in swine kidney and mouse liver, this step of ionic exchange will still be performed. If neither the cationic or anionic exchange column can provide a proper cleaning effect, one may try to modify the pH of the lysate and buffer, and to dialyze the sample against the running buffer before application to FPLC.

6. Protein extraction using defined sub-protocols for ammonium sulfate-precipitation and FPLC

NOTE: Porous particles in a silica gel column for FPLC (See Table of Materials) enable the differentiation of proteins according to their hydrodynamic radius. The described steps are to be performed with an FPLC system, using size exclusion chromatography (SEC). For the SEC column used (see Table of Materials), a flow rate of 0.3 mL/min is recommended.

  1. Prepare all the required materials (see step 1), and extract the total protein from the tissue (see step 2). Perform an ammonium sulfate precipitation with all the tissue homogenate that was not used for testing (see step 4). For larger volumes, concentrate the lysate using ultra-centrifugation filter units (10 kDa; see Table of Materials) down to a smaller volume of 50 mL or less.
  2. Perform a first purification step using ionic exchange chromatography (see step 5).
    1. Prepare samples for western blot, as described in the previous steps. Perform western blot analysis and pool all FAHD1 containing fractions from ionic exchange chromatography.
    2. Reduce the volume of the protein solution down to 2 mL using ultra-centrifugation filter units (10 kDa). Sequentially filter the solution with 0.45 µm and 0.22 µm syringe filter units to remove any micro-precipitation.
  3. Equilibrate the SEC column with 1 CV of SEC running buffer (see Table 1), containing 1 mM DTT. Load the sample onto the column and run the chromatography until all the proteins are eluted (1-2 CV).
    1. Collect fractions of 1 mL of the flow-through that corresponds to significant peaks in the chromatogram (UV absorption at 280/255 nm) and prepare 50 µL samples of each collected fraction for SDS-PAGE and western blot analysis, as described in the previous steps. Snap-freeze all the fractions using liquid nitrogen, and store them at -80 °C.
  4. Consecutively wash the SEC column with 1 CV of ddH2O and 1 CV of 20% EtOH (in ddH2O). Perform western-Blot analysis, and pool all FAHD1 containing fractions. Reduce the volume of the protein solution down to 2 mL using ultra-centrifugation filter units (10 kDa, see Table of Materials).
  5. Assess the protein concentration using a commercial BCA assay kit (see Table of Materials).
    NOTE: The pH and salt content of the mobile phase may influence the elution profile of globular proteins20. Acidic or basic conditions may result in peaks being less defined and increased protein-matrix interactions leading to partial retention of protein on the column20. This effect may be exploited for further protein purification. A repetition of step 6 with different flow rates, pH, and salt concentrations may enhance the purity of the protein20.

7. Silver staining

NOTE: Silver staining analysis of SDS-PAGE gels is required to check for protein contaminations that may not be seen with Coomassie staining. The following protocol is one among many versions that can be found in the literature21. Perform all the incubation steps by shaking in a clean glass tray. Collect all silver- and formaldehyde-containing liquids in a special waste container and properly discard them.

  1. Incubate the SDS-PAGE gels in silver staining fixing solution (see Table 1) overnight in the cold room. Incubate the gels in silver staining incubation solution (see Table 1) for 3 h at room temperature. Optionally, add glutaraldehyde (see Table 1) to improve the detection of faint bands. Wash the gels four times in ddH2O for 10 min each.
  2. Incubate the gels in silver staining silver solution (see Table 1) for 1 h.
    NOTE: Mind that from now on all the liquids and the gel itself contain silver and formaldehyde which are toxic.
  3. Incubate the gels in silver staining developer solution (see Table 1) with vigorous shaking until bands are clearly visible. To stop the reaction, discard the developer solution and immediately incubate the gels in silver staining stop solution (see Table 1) for a minimum of 10 min.
    NOTE: Bands stained in steps 7.2 and 7.3 will constantly become more developed. Adding more formaldehyde to the solution than stated may be necessary if the staining is weak.

Subscription Required. Please recommend JoVE to your librarian.

Representative Results

or Start trial to access full content. Learn more about your institution’s access to JoVE content here

FAHD1 protein was extracted from swine kidney and mouse liver using the presented protocol. For mouse tissue, multiple organs are required to obtain several µg after the final purification step. For this reason, this article focuses on the extraction of FAHD1 from swine kidneys, which is a much more exemplary experiment. The extraction of FAHD1 from the mouse liver is performed to present the difficulties and possible pitfalls of this protocol. It is generally recommended to use organs that show a high expression level of the protein one wants to purify. The Human Protein Atlas22 may be of help to estimate the expression in the model system, or one may perform preliminary western blot experiments with different crude tissue lysates to assess these levels. The positive control used in all western blot analyses was a tagged recombinant protein, running at a slightly higher molecular weight.

As a first experiment, the extraction of FAHD1 from the swine kidney is presented. The process of tissue homogenization (step 1) and total protein extraction (step 2) is presented in Supplementary Figure 1 (see the legend for a description of the individual steps). An aliquoted tenth of the total lysate was used for the following experiments.

Ammonium sulfate precipitation was tested once for this lysate, by adding ammonium sulfate to the lysate in different concentrations (step 4) (Figure 2). After centrifugation, pellets, and supernatants were sampled and analyzed with western blot using a defined polyclonal antibody2 raised against human FAHD1. 200 ng of recombinant His/S tagged human FAHD1 obtained from E. coli12 was loaded as the positive control. The FAHD1 protein band can be seen at 25 kDa, while the tagged positive control runs at 34 kDa. Based on this data, a protocol was defined where the lysate is treated with 25% ammonium sulfate, i.e., conditions at which FAHD1 is still in the supernatant, while the majority of other proteins is precipitated. This is a major step in the purification strategy. Ammonium sulfate precipitation is an effective cleaning step before proceeding with other methods. Of note, amounts of ammonium sulfate higher than 30% will not be used, because ammonium sulfate gradually distorts the quality of SDS-PAGE and western blot.

Figure 2

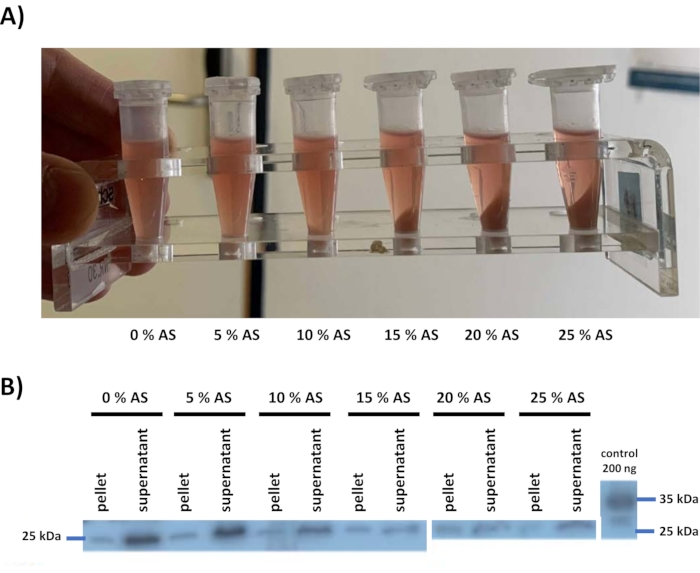

Figure 2: Ammonium sulfate precipitation and western blot screening for swine FAHD1. (A) Ammonium sulfate was added to the lysate in different concentrations (5% to 25% maximum) to precipitate proteins from the solution. (B) The presence of swine FAHD1 (25 kDa) was determined in the individual pairs of pellets and supernatant corresponding to varying ammonium sulfate concentrations via western blot using a polyclonal antibody raised against human FAHD1. The supernatant corresponding to 25% ammonium sulfate precipitation still shows the presence of swine FAHD1 in the supernatant, at the same time precipitating a good amount of other proteins. 200 ng of His/S-tagged recombinant protein was loaded as a positive control (34 kDa). Please click here to view a larger version of this figure.

After testing ionic exchange columns with FPLC, a strategy was defined where swine FAHD1 remains in the flow-through of an anionic exchange chromatography at pH 9 (step 5). Starting with lysate obtained by ammonium sulfate precipitation at 25% (as defined by previous testing experiments), anionic exchange chromatography was used to eliminate further proteins from the solution (Figure 3A). Binding proteins were removed by elution from the column, while the flow-through was further purified via SEC at pH 7.4 (Figure 3B). Following both steps, western blot analysis identified all the fractions that contained swine FAHD1, that were pooled and concentrated to 2 mL.

Figure 3

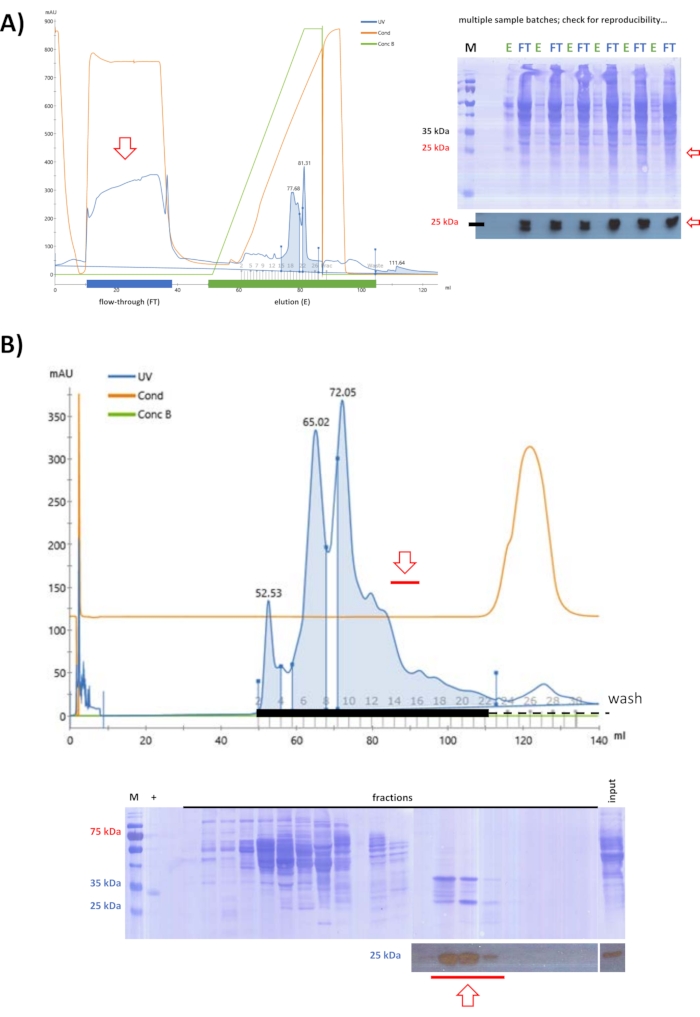

Figure 3: Purification of swine FAHD1 with FPLC - part 1. Red arrows in the chromatogram and blots indicate the presence of FAHD1. In the chromatogram, "UV" denotes the UV absorption at 280 nm, "Cond" denotes the conductivity (related to the salt concentration in the buffer), and "Conc B" denotes the percentage of high salt buffer in the buffer gradient (0% pure low salt buffer; 100% pure high salt buffer). (A) Purification of swine FAHD1 from lysate obtained by ammonium sulfate precipitation at 25% with an anionic exchange column (FPLC). While many proteins bind to the column, swine FAHD1 is found in the flow-through. Dirt and non-protein contaminants are removed by elution from the column, while the flow-through is further processed. (B) Flow-through from the previous anionic exchange chromatography in (A) is further purified via size exclusion chromatography (FPLC) at pH 7.4. (A,B) Western blot analysis (cropped blots at the bottom) identified fractions containing swine FAHD1, that are pooled and concentrated. The full blots depict the Coomassie-stained membrane after western blot analysis. Please click here to view a larger version of this figure.

The filtered sample was applied again to SEC but at buffer conditions at pH 9 (see Table 1) (Figure 4). The rationale behind this approach is that the pH and salt content of the mobile phase may influence the elution profile of globular proteins20, and an enhanced elution profile for FAHD1 was found under these buffer conditions. One fraction contained protein of adequate purity levels for basic enzyme activity assays12 to finally confirm the protein's identity.

Figure 4

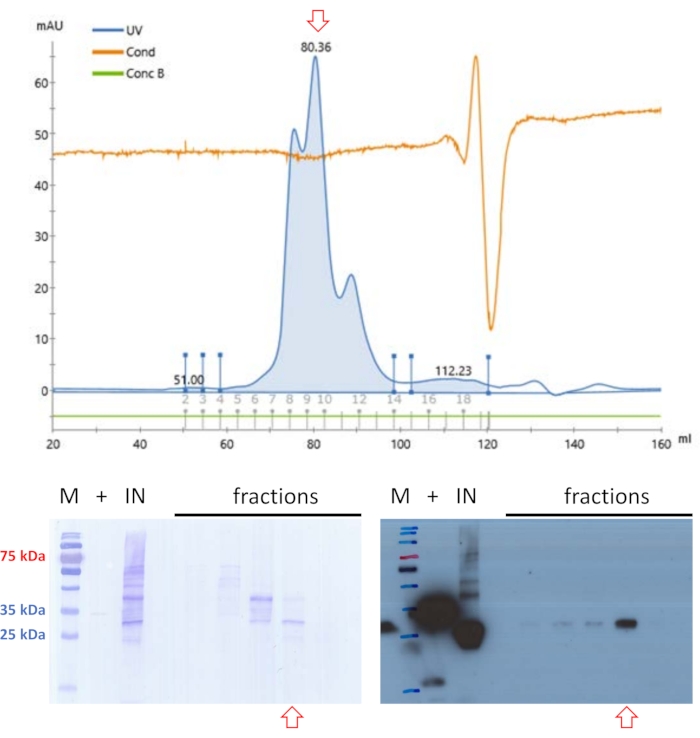

Figure 4: Purification of swine FAHD1 with FPLC - part 2. Red arrows in the chromatogram and blots indicate the presence of FAHD1. Protein samples previously purified with anionic exchange and size-exclusion chromatography are further purified via size exclusion chromatography (FPLC) at pH 9 (top panel). Western blot analysis depicted in the lower right identifies fractions that contain swine FAHD1, that are pooled and concentrated (bottom panels). The blot in the lower left shows the Coomassie staining of the membrane after the western blot. Please click here to view a larger version of this figure.

An alternate strategy (i.e., SEC followed by ionic exchange chromatography) was tested with 2 mL of the lysate obtained after ammonium sulfate precipitation (step 4) (Supplementary Figure 2). The rationale for this experiment is that by first using SEC, the FAHD1 containing fractions may be separated from the majority of other proteins, while a subsequent ionic exchange chromatography may be used to further purify the protein. Firstly, the lysate was fractionated using SEC at pH 7.4 (step 6). Western blot analysis identified all fractions that contained swine FAHD1. Secondly, these fractions were concentrated and further purified using an anionic exchange column at pH 9 (step 5). The chromatograms and western blot analysis (Supplementary Figure 2) show that this strategy is encouraging because the ionic exchange chromatogram shows a defined narrow peak that is associated with enriched protein levels in the western blot. However, the drawback of this strategy is that it is limited by the initial volume to be applied on the SEC (2 mL), so the throughput of this method is very low. Processing a whole swine kidney, for example, is not practical.

As another modification to this protocol, a cationic exchange column was included before the anionic exchange column when the swine FAHD1 was also present in the flow-through. At each step of the protocol, samples of the swine FAHD1 containing fractions were sampled and tested with an ODx assay, as described elsewhere12 (Supplementary Figure 3). The specific enzymatic activity increases along with the level of purity, i.e., along with the increasing relative amount of FAHD1 per total protein.

As a second example, the extraction of FAHD1 from mouse liver, i.e., a collection of liver tissue obtained from 20 mice is presented. Compared to the extraction of FAHD1 from the swine kidney presented above, this extraction proved to be more tedious. Problems were encountered at several steps of the protocol, which will be presented in the following. Total protein was extracted as described in step 2 (Supplementary Figure 4). As mouse liver homogenate tends to be a very sticky and slimy entity, filter papers (similar to coffee filter units) were used to pre-filter the lysate, which was diluted 1:3 in lysis buffer after extraction, to make the solution more like a liquid. This dilution enhanced the filtration procedure; however, it made the subsequent detection of the protein with western blot more tedious. After filtration, the prepared lysate had to be concentrated before further use. An aliquoted tenth of the total lysate was used for the following experiments.

A first testing step for the ammonium sulfate precipitation (Supplementary Figure 4I) displayed a possible problem that may be encountered. Ammonium sulfate at higher concentrations disrupts SDS-PAGE gels and causes a smile effect when run at 150 V (Supplementary Figure 5A; negative result). The same SDS-PAGE run at 80 V displays a positive result (Supplementary Figure 5B). In the latter case, the smile effect forms initially but is ultimately resolved because of the lower voltage applied. As the initial solution had to be heavily diluted to be able to filtrate the lysate, initial western blot analysis of these samples was unsuccessful, i.e., the positive control was detected by the antibody, but not the protein in the applied samples. This problem was solved using a higher concentration of both the lysate (concentrated using centrifugal filter units) and the antibody, and by applying the antibody overnight in the cold room while shaking. Ultimately, the western blot analysis provided both the pieces of information that the protein was present in the lysate, and that the protein was still present in the supernatant at 15% ammonium sulfate (Supplementary Figure 5C). Of note, SDS samples containing higher amounts of ammonium sulfate (>15%) precipitated while heating and the protein was lost. This can also be seen in the Coomassie staining and the western blot (Supplementary Figure 5C). This effect was not observed for the swine kidney, so it may be tissue-specific.

Following ammonium sulfate precipitation at 15%, 10 mL of lysate was applied to cationic exchange chromatography at pH 6.8. Western blot analysis displayed the mouse FAHD1 protein to be in the flow-through (Figure 5A). The eluted protein fraction seems to be minor; however, this example displays a secondary effect of ionic exchange chromatography. At this step of the protocol, the solution may still contain many compounds that might not be protein. Ionic exchange chromatography is a fast and easy way to get rid of such contaminations. Given that performing ionic exchange chromatography takes a few hours to perform (including all washing steps, the experiment itself takes half an hour), it provides a simple method of clearing the sample from non-protein contaminations.

Figure 5

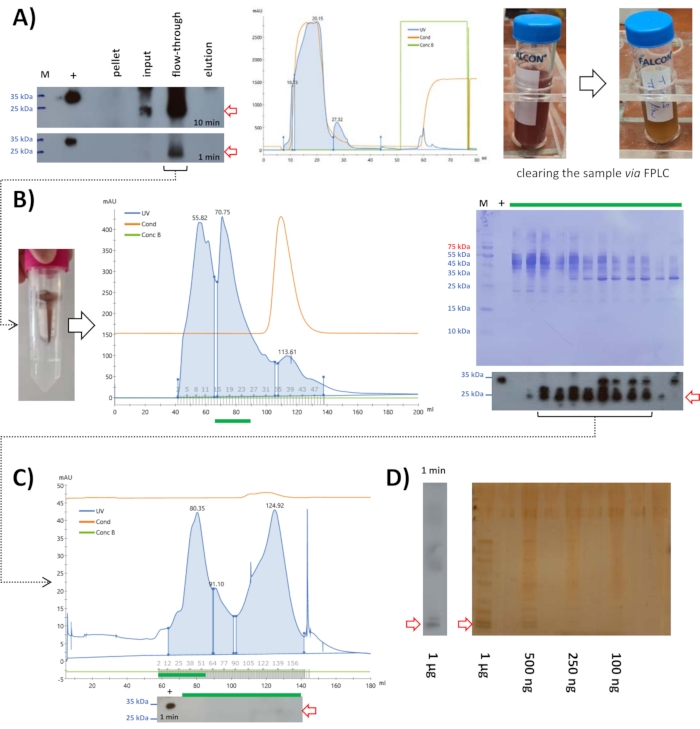

Figure 5: Purification of mouse FAHD1 with FPLC. Red arrows in the chromatogram and blots indicate the presence of FAHD1. (A) After ammonium sulfate precipitation at 15%, the sample was centrifuged, filtered (0.22 µm), and applied to a cationic exchange column. Western blot analysis shows that the protein is in the flow-through and the chromatogram shows that not much of the other proteins has been removed by this step. However, comparing the appearance and viscosity of the input with the flow-through shows that the collected flow-through is much clearer (right panel comparing input and flow-through). (B) The flow-through collected from the cationic exchange column was reduced to 2 mL via centrifugation filters and applied to size exclusion chromatography at pH 7.4. (C) The fractions containing FAHD1 were pooled, concentrated, and applied to a second round of size exclusion chromatography at pH 9. (D) The fractions containing FAHD1 were again pooled and applied to SDS-PAGE with silver staining, to see the remaining contaminations. Please click here to view a larger version of this figure.

The sample was further applied to size exclusion chromatography at pH 7.4 (Figure 5B). Western blot analysis displayed fractions containing the mouse FAHD1 protein, that were pooled and concentrated to 2 mL. This 2 mL concentrate was frozen at -20 °C with 10 µL of β-mercaptoethanol and thawed the next day. A precipitate was formed that was filtered via syringe filter units (0.22 µm). Samples for SDS-PAGE and western blot analysis were taken to assure that the mouse FAHD1 protein was still in solution.

Samples containing the protein (from western blot analysis) were pooled, concentrated via centrifugation filters, and applied to SDS-PAGE with silver staining to see the remaining contaminations (Figure 5D). This revealed that the protein solution is not highly pure and that the amounts of protein obtained via this method from mouse liver were not very high either (a few µg in total as determined using BCA assay kit; see Table of Materials). The protein yield was much higher in the case of swine FAHD1 (about 1 mg in this step). The level of purityof FAHD1 protein extracted from the swine kidney is about 80% (estimated after silver staining; data not shown). This purity may be further increased via, for example, affinity chromatography using a defined antibody. Such and other limitations of this protocol will be discussed in detail further below.

Name of Buffer/Solution/Material Composition
Coomassie destaining solution 30% (v/v) EtOH; 5 % (v/v) HOAc; in ddH2O
Coomassie staining solution 0.05% Coomassie Brilliant Blue R-250; 50 % (v/v) MeOH; 10 % (v/v) HOAc; in ddH2O
Mono Q high salt buffer 20 mM Tris-HCl; 1 M NaCl; 10 % glycerol; in ddH2O; adjust pH to 9.0 with NaOH
Mono Q low salt buffer 20 mM Tris-HCl; 15 mM NaCl; in ddH2O; adjust pH to 9.0 with NaOH
Mono S high salt buffer 44 mM NaH2PO4; 6 mM Na2HPO4; 1 M NaCl; in ddH2O; adjust pH to 6.8 with HCl
Mono S low salt buffer 44 mM NaH2PO4; 6 mM Na2HPO4; 15 mM NaCl; in ddH2O; adjust pH to 6.8 with HCl
Protein lysis buffer 1x PBS (250 mL); 50 mM NaF; 1mM PMSF; 2 µg/mL aprotinin, 1 mM activated orthovanadate; in ddH2O
Rabbit Anti-hFAHD1 polyclonal antibody (affinity isolated) Custom made; polyclonal anti-hFAHD1 antibody purified from rabbit serum and purified with FPLC according to reference 12
Recombinant hFAHD1 protein western blot control Western blot control protein expressed in E.coli and purified with FPLC according to reference 12.
SDS-PAGE 5x sample buffer 300 mM Tris HCl; 500 mM DDT; 10% (w/v) SDS; 50% (v/v) glycerin; 0.05% (w/v) bromophenol blue; in ddH2O; adjust pH to 6.8 with HCl
SDS-PAGE resolving  gel (12.5 %) for discontinuous PAGE ddH2O (9.5 mL); 3 M Tris HCl (2.2 mL); 5.5 mL of 40% Acrylamide/Bis Solution (29:1 ratio); 20% SDS (175 µL); TEMED (17 µL); 10% ammonium persulfate (175 µL); cast before the stacking gel and let it polymerize; cast the stacking gel on top
SDS-PAGE running buffer 25 mM Tris HCl; 190 mM glycine; 0.5 % (w/v) SDS; in ddH2O; adjust pH to 8.3 with NaOH
SDS-PAGE stacking gel (12.5 %) for discontinuous PAGE ddH2O (3.8 mL); 1 M Tris HCl (630 µL); 500 µL of 40% Acrylamide/Bis Solution (29:1 ration); 20% SDS (25 µL); TEMED (5 µL); 10% ammonium persulfate (50 µL); cast after the resolving gel has polymerized; apply a gel comb to create wells
SEC (G75) running buffer 15 mM Tris-HCl; 300 mM NaCl; in ddH2O; adjust pH to 7.4 with NaOH
Silver staining developing solution 250 mM Na2CO3 in ddH2O; add 12 µL of 37% (v/v) formaldehyde to 100 mL before use
Silver staining fixing solution 40% (v/v) EtOH; 10% (v/v) HOAc; in ddH2O
Silver staining incubation solution 30% (v/v) EtOH; 500 mM NaOAc; 8 mM Na2S2O3; in ddH2O; optional: add 600 µL of 50% (v/v) glutaraldehyde per 100 mL before use
Silver staining silver solution 0.1% (w/v) AgNO3; in ddH2O; add 25 µL of 37% (v/v) formaldehyde to 100 mL before use
Silver staining stop solution 40 mM EDTA solution at pH 7.6; transfer 744 mg of EDTA into 40 mL ddH2O and then add NaOH to dissolve and adjust pH to 7.6. Finally, adjust the total volume to 50 mL.
Western blot blocking buffer PBS with 0.1% (v/v) Tween 20 and 5% (w/v) skim milk powder; filtrated
Western blot transfer buffer (10x) Tris-HCl 250 mM; glycine 1.92 M; in ddH2O; adjust pH to 8.3 with NaOH; store at room temperature
Western blot transfer buffer (1x) Western blot transfer buffer (10x) 100 mL; 800 mL of ddH2O; 100 mL of MeOH; store at 4 °C
Western blot washing buffer (PBS-T) PBS with 0.1% (v/v) Tween 20

Table 1.

Supplementary Figure 1: Total protein extraction from swine kidney. (A) Kidney tissue was cut using a scalpel on a prepared properly cleaned glass plate put on polystyrene foam to prevent sliding; (B) 50 mL tubes containing 20 mL of ice-cold lysis buffer with protein/protease inhibitors are incubated on ice; (C) kidney tissue pieces were put into the buffer until the volume reached about 30 mL; (D) kidney tissue was homogenized using ultrasound (i.e., sonication); (E) crude homogenate was centrifuged in a table-top centrifuge at medium speed for 30 min; (F) several samples were processed simultaneously; (G) after first centrifugation, the supernatant was transferred into centrifuge tubes (compare to E), and centrifuged at high speed (10,000 x g) for 30 min; (H) this centrifugation step yields another pellet and supernatant, which is transferred into 50 mL tubes; (I/J) the pre-lysate is sequentially filtered by 0.45 µm and 0.2 µm filter units, aliquoted into 10 mL batches, and snap-frozen with liquid nitrogen for subsequently storing at -80 °C. Western blot analysis is used to verify the presence of the protein in all samples (pellets, supernatants, filtered lysate). Please click here to download this File.

Supplementary Figure 2: Purification of swine FAHD1 with FPLC; alternate strategy. Red arrows in the chromatogram and blots indicate the presence of FAHD1. (A) Purification of swine FAHD1 from lysate obtained by ammonium sulfate precipitation at 25% with size exclusion chromatography (FPLC) at pH 7.4. Western blot analysis identified fractions that contain swine FAHD1, that were pooled and concentrated. (B) Protein samples previously purified with size-exclusion chromatography (panel A) were further purified via anionic exchange chromatography (FPLC). Western blot analysis identifies fractions that contain swine FAHD1, that were pooled and concentrated. Please click here to download this File.

Supplementary Figure 3: Specific enzyme activity of swine FAHD1. Measured specific enzyme activity as a function of increasing level of purity. The table compares relative enzyme activity (nmol/min) with specific enzyme activity (µmol/min/mg). The assay shows a constantly increasing activity of swine FAHD1 after every purification step. Compared to the recombinant His/S-human FAHD1 (green) obtained from E. coli.12, swine FAHD1 showed a slightly higher activity (red) (n = 3). Please click here to download this File.

Supplementary Figure 4: Total protein extraction from mouse liver. (A,B,C) Snap-frozen liver tissue from 20 mice and lysis buffer were prepared on ice in 50 mL tubes; (D,E,F) liver tissue was homogenized using ultrasound (i.e., sonication); crude homogenate was centrifuged in a table-top centrifuge at medium speed for 30 min; the supernatant was transferred into centrifuge tubes, and centrifuged at high speed (10,000 x g) for 30 min; (G,H,I) the pre-lysate is sequentially filtered by paper filters, 0.45 µm and 0.2 µm filter units, aliquoted into 10 mL batches, and snap-frozen with liquid nitrogen for subsequently storing at -80 °C; (J) ammonium sulfate was added to the lysate in different concentrations (5% to 30% maximum) to precipitate protein from the solution; (K) pellets obtained after ammonium sulfate precipitation (panel J) were resuspended in H2O to take samples for SDS-PAGE and western blot analysis. Please click here to download this File.

Supplementary Figure 5: Ammonium sulfate precipitation and western blot screening for mouse FAHD1. Red arrows in the blots indicate the presence of FAHD1. (A) SDS-PAGE with samples obtained after ammonium sulfate precipitation was run at 125 V. This gel displayed a drastic smile effect, and such a gel cannot be evaluated. This is an example of a negative result. (B) SDS-PAGE with the same samples (panel A) was run at 80 V until complete. There is no smile effect in this gel, and this is an example of a positive result. (C) SDS PAGE and western blot analysis of the samples obtained after ammonium sulfate precipitation. Samples at higher concentrations of ammonium sulfate may precipitate inside the sample buffer, as indicated. They are lost and cannot be detected anymore, either via Coomassie staining (left) or western blot analysis (right). The best concentration of ammonium sulfate, in this case, was determined to be 15%. Please click here to download this File.

Subscription Required. Please recommend JoVE to your librarian.

Discussion

or Start trial to access full content. Learn more about your institution’s access to JoVE content here

Critical steps in the protocol
Following common guidelines for the handling of proteins is essential, such as working on ice and at moderate pH and salt conditions. The use of protease inhibitors is beneficial to the method, while the use of proteasome inhibitors is highly recommended. Freezing and thawing the sample may always result in protein precipitation (at least partially), so any thawed aliquot of initial protein lysate (step 2) should be processed continuously without a break. Centrifugation and filtration after thawing is generally recommended to remove microprecipitation.

The initial protein lysate obtained from a tissue still contains many substances besides proteins. Ionic exchange chromatography columns can be used to clear the lysate. Even if the protein one wants to extract does not bind to the ionic exchange column, the flow-through may be much clearer than the input solution, and easier to be processed in subsequent steps. This is shown for the extraction of FAHD1 from mouse kidneys (see Figure 5A).

Limitations and modifications of the method
This protocol describes a protocol for the extraction of FAHD1 from the tissue. Based on this strategy, a general approach for the extraction of FAHD proteins (FAHD1, FAHD2) from other tissue may be derived, while specific adaptions may be required for individual cases. The implicit limitation of this method is the relative expression levels of FAHD1 (or FAHD proteins) in a given tissue and the availability of this tissue in adequate quantities. The overall scheme described in this protocol requires a high expression of the protein in a suitable amount of tissue to start with. Examples for the extraction of FAHD1 from swine kidney and mouse liver have been provided, which are two organs that show high expression levels of the protein. At each step described in this protocol, there is an implicit loss of sample, i.e., the low initial amount of protein is even further lessened. Ultimately, only low amounts of protein can be achieved using this protocol. Because the swine kidney is a large organ, about a gram of protein (about 80% purity; estimated) could be extracted by this approach from two kidneys. Applying the same protocol for the extraction of FAHD1 from mouse liver required collecting liver samples from 20 mice, to obtain only a few µg of protein in the end. Obtaining higher purity of the protein using the outlined methods may be tedious, and silver staining reveals that after size exclusion chromatography there might still be many other proteins in solution. One could augment this protocol via affinity chromatography (NHS activated columns), using a monoclonal antibody (e.g., CAB025530).

All the protocols listed here necessitate that the protein one wants to extract is soluble. Optimal conditions of ammonium sulfate precipitation and pH/salt adjustments for chromatography need to be tested and defined. In case the ionic exchange chromatography does not provide any good purification results, dialysis against a chromatography buffer before performing FPLC may be an option of improving the solubility of the protein and the resolution of the chromatography. It is not recommended, however, to dialyze the crude lysate, as this may lead to massive and uncontrolled protein precipitation inside the dialysis tube. Problems may occur if the protein tends to be hydrophobic, and the protocols may not be applicable if the protein is highly hydrophobic (e.g., membrane proteins). If FAHD proteins are partly insoluble as found for FAHD2 (data not shown) in a given tissue lysate, other types of chromatography, for example, hydrophobic interaction chromatography (HIC) may be explored as well12.

Two modifications of the standard protocol have been shown in the results section. For the purification of FAHD1 from a swine kidney, size exclusion chromatography was used before ionic exchange chromatography (see Supplementary Figure 2). A problem with this method is that size exclusion chromatography features larger running tracks, and the sample volume increases strongly during the run. The sample volume should not exceed 2% of the bed volume to achieve high resolution23, and the final dilution factor also depends on the collected elution volume. In the provided example using a 120 mL column, an initial volume of 2 mL is recommended. The initial sample may be collected from several mL of the lysate after ammonium sulfate precipitation, by concentration using centrifugal filter units, without aggregation or precipitation artifacts. An example for the purification of FAHD1 from a swine kidney is provided as a representative result (also see Supplementary Figure 2). However, the limitation to only small sample volumes may render this approach to be unpractical.

Applications or directions of the method
Expression and purification of recombinant proteins from bacteria is a straightforward and well-established method, to obtain feasible amounts (in grams) of protein24,25. This has been presented for FAHD112. However, there are several possible drawbacks in using these methods, such as possible poor growth of the host, inclusion body formation, loss of or altered protein activity, and, therefore, the possibility of not obtaining any protein at all, or resulting in a biased form of the protein (misfolding, bad post-translational modifications, etc.). Developing methods that can extract well-folded and properly modified protein from tissue directly is, therefore, appealing. The major problem, however, is that most proteins are not expressed at significant levels, and compared with the implicit induction and subsequent extraction of protein from bacteria, the amount of protein to be obtained is typically several orders of magnitude lower. There is a tradeoff between the inexpensive and easy extraction of recombinant protein from bacteria and the more expensive and tedious extraction of protein from tissue. The major advance with the latter is that one may extract the protein in its physiological form that is present in the tissue, including all mutual effects that may impact its folding and/or catalytic activity.

Protein extracted and purified by this protocol will help to identify competent inhibitors of FAHD113, possible protein interaction partners9, and possible yet undiscovered roles of the protein9. The study of enzymatic inhibitors, the development of monoclonal antibodies, and the study of the protein structure in the first place are greatly supported when having protein at high purity extracted from tissue rather than extracted from bacteria.

Subscription Required. Please recommend JoVE to your librarian.

Disclosures

The authors have no competing financial interests.

Acknowledgments

The authors are very thankful for the technical assistance by Ayse Öztürk and Eva Albertini. Mice used for the generation of liver tissue were maintained under the supervision of Univ.-Doz. Dr. Pidder Jansen-Dürr (Institute for Biomedical Aging Research at Innsbruck University, Rennweg 10, 6020 Innsbruck, Austria).

Materials

Name Company Catalog Number Comments
0.22 µm filter units MERCK SLGP033RS Millex-HP, 0.22 µm, PES 33 mm, not steril
0.45 µm filter units MERCK SLHP033NS Millex-HP, 0.45 µm, PES 33 mm, not steril
15 mL Falcon tubes VWR 734-0451 centrifugal tubes
50 mL Falcon tubes VWR 734-0448 centrifugal tubes
96-Well UV Microplate Thermo-Fischer 8404 UV/VIS transparent flat-bottom 96 well plates
Acrylamide/Bis Solution (40%, 29:1 ratio) BIO-RAD #1610147 40% acrylamide/bis-acrylamide, 29:1 (3.3% crosslinker) solution for casting polyacrylamide gels
ÄKTA FPLC system GE Healthcare Life Sciences / Cytiva - using the FPLC system by GE Healthcare; different custom versions exist; this work used the "ÄKTA pure" system
Amicon Ultra-15, PLGC Ultracel-PL Membran, 10 kDa MERCK UFC901024 centrifigal filters for protein enrichment; 10 kDa molecular mass filter; 15 mL
Amicon Ultra-4, PLGC Ultracel-PL Membran, 10 kDa MERCK UFC801024 centrifigal filters for protein enrichment; 10 kDa molecular mass filter; 4 mL
Ammonium sulfate powder MERCK A4418 ammonium sulphate for molecular biology, ≥99.0%
Ammoniumpersulfat reagent grade, 98% MERCK 215589 Catalyst for acrylamide gel polymerization.
Coomassie Brilliant blue R 250 MERCK 1125530025 Coomassie Brilliant blue R 250 (C.I. 42660) for electrophoresis Trademark of Imperial Chemical Industries PLC. CAS 6104-59-2, pH 6.2 (10 g/l, H2O, 25 °C)
Dialysis tubing cellulose membrane MERCK D9277 Cellulose membranes for the exchange of buffers via dialysis.
Eppendof tubes 1.5 mL VWR 525-1042 microcentrifugal tubes; autoclaved
HiLoad 26/600 Superdex 75 pg GE Healthcare Life Sciences / Cytiva 28989334 HiLoad Superdex 75 pg prepacked columns are for high-resolution size exclusion chromatography of recombinant proteins
Immun-Blot PVDF Membrane BIO-RAD #1620177 PVDF membranes are protein blotting membranes optimized for fluorescent and multiplex fluorescent applications.
Mini Trans-Blot Electrophoretic Transfer Cell BIO-RAD #1703930 Use the Mini Trans-Blot Cell for rapid blotting of Mini-PROTEAN precast and handcast gels.
Mini-PROTEAN Tetra Vertical Electrophoresis Cell for Mini Precast Gels BIO-RAD #1658004 4-gel vertical electrophoresis system, includes electrode assembly, companion running module, tank, lid with power cables, mini cell buffer dam.
Mono Q 10/100 GL GE Healthcare Life Sciences / Cytiva 17516701 Mono Q columns are strong anion exchange chromatography columns for protein analysis or small scale, high resolution polishing of proteins.
Mono S 10/100 GL GE Healthcare Life Sciences / Cytiva 17516901 Mono S columns are strong cation exchange chromatography columns for protein analysis or small scale high resolution polishing of proteins.
PageRuler Prestained Protein Ladder, 10 to 180 kDa Thermo-Fischer 26616 A mixture of 10 blue-, orange-, and green-stained proteins (10 to 180 kDa) for use as size standards in protein electrophoresis (SDS-PAGE) and western blotting.
Pierce BCA Protein Assay Kit Thermo-Fischer 23225 A two-component, high-precision, detergent-compatible protein assay for determination of protein concentration.
Sonifier 250; Ultrasonic Cell Disruptor w/ Converter Branson - New models at https://www.emerson.com/documents/automation/brochure-sonifier-sfx250-sfx550-cell-disruptors-homogenizers-branson-en-us-168180.pdf
Swine Anti-Rabbit Immunoglobulins/HRP (affinity isolated) Agilent Dako P0399 The antibody used for horseradish peroxidase conjugation reacts with rabbit immunoglobulins of all classes.
TEMED, 1,2-Bis(dimethylamino)ethane, TMEDA MERCK T9281 TEMED (N,N,N′,N′-Tetramethylethylenediamine) is molecule which allows rapid polymerization of polyacrylamide gels.
Tube Roller - - A general tube rotator roller; e.g. a new model at https://labstac.com/de/Mixer/Roller/c/71
Tube Rotator - - A general tube rotator wheel; e.g. a new model at https://labstac.com/de/Tube-Roller/p/MT123
ULTRA-TURRAX; T 25 digital IKA 0003725000 New models at https://www.ika.com/de/Produkte-Lab-Eq/Dispergierer-Dipergiergeraet-Homogenisierer-Homogenisator-csp-177/T-25-digital-ULTRA-TURRAX-cpdt-3725000/

DOWNLOAD MATERIALS LIST

References

  1. Pircher, H., et al. Identification of FAH domain-containing protein 1 (FAHD1) as oxaloacetate decarboxylase. Journal of Biological Chemistry. 290, (11), 6755-6762 (2015).
  2. Pircher, H., et al. Identification of human Fumarylacetoacetate Hydrolase Domain-containing Protein 1 (FAHD1) as a novel mitochondrial acylpyruvase. Journal of Biological Chemistry. 286, (42), 36500-36508 (2011).
  3. Kang, T. -W., et al. Senescence surveillance of pre-malignant hepatocytes limits liver cancer development. Nature. 479, (7374), 547-551 (2011).
  4. Hong, H., Seo, H., Park, W., Kim, K. K. -J. Sequence, structure and function-based classification of the broadly conserved FAH superfamily reveals two distinct fumarylpyruvate hydrolase subfamilies. Environmental Microbiology. 22, (1), 270-285 (2020).
  5. Timm, D. E., Mueller, H. A., Bhanumoorthy, P., Harp, J. M., Bunick, G. J. Crystal structure and mechanism of a carbon-carbon bond hydrolase. Structure. 7, (9), London, England. 1023-1033 (1999).
  6. Bateman, R. L., et al. Mechanistic inferences from the crystal structure of Fumarylacetoacetate Hydrolase with a bound phosphorus-based inhibitor. Journal of Biological Chemistry. 276, (18), 15284-15291 (2001).
  7. Weiss, A. K. H., et al. Structural basis for the bi-functionality of human oxaloacetate decarboxylase FAHD1. Biochemical Journal. 475, (22), 3561-3576 (2018).
  8. Etemad, S., et al. Oxaloacetate decarboxylase FAHD1 - a new regulator of mitochondrial function and senescence. Mechanisms of Ageing and Development. 177, 22-29 (2019).
  9. Weiss, A. K. H., et al. Regulation of cellular senescence by eukaryotic members of the FAH superfamily - A role in calcium homeostasis. Mechanisms of Ageing and Development. 190, 111284 (2020).
  10. Petit, M., Koziel, R., Etemad, S., Pircher, H., Jansen-Dürr, P. Depletion of oxaloacetate decarboxylase FAHD1 inhibits mitochondrial electron transport and induces cellular senescence in human endothelial cells. Experimental Gerontology. 92, 7-12 (2017).
  11. Wiley, C. D., et al. Mitochondrial dysfunction induces senescence with a distinct secretory phenotype. Cell Metabolism. 23, (2), 303-314 (2016).
  12. Weiss, A. K. H., et al. Expression, purification, crystallization, and enzyme assays of Fumarylacetoacetate Hydrolase Domain-containing proteins. Journal of Visualized Experiments: JoVE. (148), e59729 (2019).
  13. Weiss, A. K. H., et al. Inhibitors of Fumarylacetoacetate Hydrolase Domain Containing Protein 1 (FAHD1). Molcules. 26, (16), 5009 (2021).
  14. Mizutani, H., Kunishima, N. Purification, crystallization and preliminary X-ray analysis of the fumarylacetoacetase family member TTHA0809 from Thermus thermophilus HB8. Acta Crystallographica Section F Structural Biology and Crystallization Communications. 63, (9), 792-794 (2007).
  15. Lee, C. H. A simple outline of methods for protein isolation and purification. Endocrinology and Metabolism. 32, (1), Seoul, Korea. 18-22 (2017).
  16. Amer, H. E. A. Purification of proteins: Between meaning and different methods). Proteomics Technologies and Applications. (2019).
  17. Niu, L., Yuan, H., Gong, F., Wu, X., Wang, W. Protein extraction methods shape much of the extracted proteomes. Frontiers in Plant Science. 9, 802 (2018).
  18. Gordon, J. A. Use of vanadate as protein-phosphotyrosine phosphatase inhibitor. Methods in Enzymology. 201, 477-482 (1991).
  19. Gallagher, S. R. SDS-polyacrylamide gel electrophoresis (SDS-PAGE). Current Protocols in Essential Laboratory Techniques. (2012).
  20. Ahmed, U., Saunders, G. Effect of pH on Protein Size Exclusion Chromatography. Available from: https://www.agilent.com/cs/library/applications/5990-8138EN.pdf (2011).
  21. Sørensen, B. K., et al. Silver staining of proteins on electroblotting membranes and intensification of silver staining of proteins separated by polyacrylamide gel electrophoresis. Analytical Biochemistry. 304, (1), 33-41 (2002).
  22. Fagerberg, L., et al. Analysis of the human tissue-specific expression by genome-wide integration of transcriptomics and antibody-based proteomics. Molecular & Cellular Proteomics. 13, (2), 397-406 (2014).
  23. Cytiva Life Fundamentals of size exclusion chromatography. Available from: https://www.cytivalifesciences.com/en/us/solutions/protein-research/knowledge-center/protein-purification-methods/size-exclusion-chromatography (2022).
  24. Rosano, G. L., Ceccarelli, E. A. Recombinant protein expression in Escherichia coli: advances and challenges. Frontiers in Microbiology. 5, 172 (2014).
  25. Rosano, G. L., Morales, E. S., Ceccarelli, E. A. New tools for recombinant protein production in Escherichia coli: A 5-year update. Protein Science: A Publication of the Protein Society. 28, (8), 1412-1422 (2019).
Extraction and Purification of FAHD1 Protein from Swine Kidney and Mouse Liver
Play Video
PDF DOI DOWNLOAD MATERIALS LIST

Cite this Article

Andric, A., Wagner, E., Heberle, A., Holzknecht, M., Weiss, A. K. H. Extraction and Purification of FAHD1 Protein from Swine Kidney and Mouse Liver. J. Vis. Exp. (180), e63333, doi:10.3791/63333 (2022).More

Andric, A., Wagner, E., Heberle, A., Holzknecht, M., Weiss, A. K. H. Extraction and Purification of FAHD1 Protein from Swine Kidney and Mouse Liver. J. Vis. Exp. (180), e63333, doi:10.3791/63333 (2022).

Less
Copy Citation Download Citation Reprints and Permissions
View Video

Get cutting-edge science videos from JoVE sent straight to your inbox every month.

Waiting X
Simple Hit Counter
