We report a method to quantify muscle area, which is an indirect method to determine muscle mass in Drosophila adults. We demonstrate the application of our methodology by analyzing the indirect flight muscles in a Drosophila model of Myotonic Dystrophy disease.
Muscle mass wasting, known as muscle atrophy, is a common phenotype in Drosophila models of neuromuscular diseases. We have used the indirect flight muscles (IFMs) of flies, specifically the dorso-longitudinal muscles (DLM), as the experimental subject to measure the atrophic phenotype brought about by different genetic causes. In this protocol, we describe how to embed fly thorax muscles for semi thin sectioning, how to obtain a good contrast between muscle and the surrounding tissue, and how to process optical microscope images for semiautomatic acquisition of quantifiable data and analysis. We describe three specific applications of the methodological pipeline. First, we show how the method can be applied to quantify muscle degeneration in a myotonic dystrophy fly model; second, measurement of muscle cross-sectional area can help to identify genes that either promote or prevent muscle atrophy and/or muscle degeneration; third, this protocol can be applied to determine whether a candidate compound is able to significantly modify a given atrophic phenotype induced by a disease-causing mutation or by an environmental trigger.
The thorax of the fruit fly contains two different classes of flight muscles, which are functionally, physiologically and anatomically distinct. These muscles are: the indirect flight muscles (IFM), which are composed of dorso-longitudinal (DLM) and dorso-ventral (DVM) muscles (Figure 1), and the synchronous flight control muscles1,2. These muscles together generate the elevated mechanical power required for flight. The size, distribution and rostro-caudal disposition of the IFMs allow an easy orientation for transversal sectioning3 (Figure 2A). For this reason, we have selected these muscles to study muscle atrophy in Drosophila melanogaster.
Figure 1. Diagram of the thorax of the fruit fly showing the indirect flight muscles (IFMs) arrangement. (Left) represents a lateral view and (Right) represents a cross section of the thorax. The IFMs are composed of the Dorso-longitudinal (DLM) muscles (in red) and the Dorso-ventral (DVM) muscles (in green).
Preservation of tissue structure and the control over dorso-ventral axis orientation of histological sections are critical to ensure proper assessment of muscle cross-sectional area. To preserve muscle structure we used a fixation mixture modified from Tomlinson et al.4 . Moreover, because muscles are internal tissues, the impermeability of Drosophila's exoskeleton is a problem as fixation mixtures cannot penetrate to the target tissues. To circumvent this problem, we removed the fly head, legs, wings and the last two segments of the abdomen to create holes that allowed the fixation mixture to enter. As part of the fixation protocol we included treatment with osmium tetroxide (OsO4)5, which is extensively used because of its ability to fix fats, including triglycerides. OsO4 preserves most structures extremely well, particularly at the cytological level and at the same time provides contrast to the image. After fixation, Drosophila thoraces were embedded in resin for transversal semi-thin sectioning (1.5 µm). For improved contrast, tissue can be additionally stained with toluidine blue. Images of complete thoraces were taken at 10X and muscle area was quantified by binarizing images (of equal dimensions) and quantifying percentage of pixels corresponding to muscle tissue (black pixels) out of total, with ImageJ software.
Modifications on the tissue preparation and fixation mixtures, as the increase of the concentration of OsO4 and glutaraldehyde solution, introduced in this protocol, allowed unique preservation of muscle tissue. This is because the protocol avoids the degradation and deformation of the tissue, making the posterior analysis of the samples more reliable even in highly atrophic conditions associated with neuromuscular degenerative diseases such as Myotonic Dystrophy (DM). In its more common form, DM type 1, this rare genetic disorder is brought about by expanded CUG repeats in myotonic dystrophy protein kinase (DMPK) transcripts. Mutant DMPK RNA aggregates form ribonuclear foci that sequester the Muscleblind-like nuclear RNA-binding proteins (MBNL1-3; Muscleblind (Mbl) in Drosophila)6. We generated a Drosophila model of Myotonic Dystrophy by expressing 250 CTG repeats under the muscular myosin heavy chain promoter (Mhc-Gal4). Model flies were flightless with a typical 'up-held wings' phenotype and had serious muscle atrophy in their IFMs (Figure 2B). Previous studies performed in our laboratory have shown that determination of the muscle area of IFMs is a reliable method to quantify the effects of different chemical or genetic modifiers of the muscle atrophy in these model flies7. As an example, overexpression of Mbl isoform C in flies expressing the 250 CTG repeats in the muscle, achieved a rescue of muscle area, as Mbl depletion by sequestration is the triggering factor in DM1 pathogenesis8 (Figure 2C). Muscle area was also rescued after feeding the DM model flies with Abp1, a hexapeptide with proven anti-DM1 activity9 (Figure 2D).
Figure 2. Quantification of dorsoventral sections of resin-embedded adult thoraces. (A-D) Indirect flight muscles of Drosophila melanogaster with the indicated relevant genotypes. (A) Control flies (yw). (B) Expression of 250 non-coding CTG repeats in muscle (UAS-CTG(250)x) caused a reduction of muscle area in DLMs in comparison to control flies. (C) This muscle atrophy phenotype was rescued by overexpression of Muscleblind (MblC) (UAS-CTG(250)x UAS-MblC) and (D) feeding the model flies with the hexapeptide Abp1 (UAS-CTG(250)x Abp1). In all images the dorsal side is on top. Transgenes were driven to muscle using a Myosin heavy-chain promoter (Mhc)-Gal4. (E) Quantification of percentage of muscle area relative to the control flies confirmed that the differences were significant. The histogram shows means ± S.E.M. **p<0.01 and *p<0.05 (Student´s t-test). Scale bar: 200 µm. Please click here to view a larger version of this figure.
The method here reported will be of interest to researchers focusing on muscle development, maintenance and aging, disease pathology and drug testing as it provides reliable information about how muscle tissue responds to both endogenous and external factors.
1. Fixation and resin embedding
2. Trimming and Sectioning of Blocks
Figure 3. Dorsoventral sections of resin-embedded adult thoraces of the Myotonic Dystrophy model flies. In (A), the trimming of the sample was not correct as the section in the dorsal-right part of the image was not completely transversal to the muscles. As a consequence, the three muscle bundles on the upper right side seem bigger than the ones of the left side. This mistake would result in an overestimation of the muscle area. (B) Section from a correctly trimmed resin block. Scale bar: 200 µm.
3. Staining IFM sections
Figure 4. Dorsoventral sections of resin-embedded adult thoraces with different contrast stainings. Both panels show images of DM1 model flies fed with Abp1 as in Figure 2D. (A) Image of a section with the OsO4 contrast. (B) Section stained with toluidine blue allows better visualization of the muscle bundles. Scale bar: 200 µm.
4. Mounting IFM sections
5. Acquisition of images and quantification of muscle area

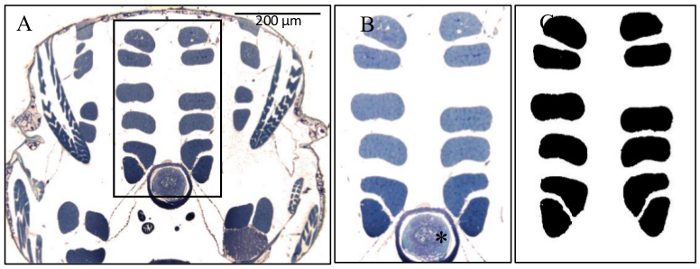

Figure 5. Image analysis procedure for muscle area determination. (A) Transversal section of Myotonic Dystrophy type 1 model fly thorax with a rectangle containing the DLM. (B) Selected area with only the indirect flight muscles and the intestine (*). (C) Binarized image. The black areas correspond to the muscles of interest. The intestine has been erased for an accurate quantification of muscle area. Scale bar: 200 µm.
To quantify whether the overexpression of MblC or the administration of Abp1 had any effect in the atrophic phenotype of the Myotonic Dystrophy fly model we focused on the DLMs, which are part of IFMs (Figure 1). We determined that the model flies, which express 250 non-coding CTG repeats throughout the musculature driven by the Myosin heavy-chain promoter (Mhc)-Gal4, had a 50% reduction of muscle area compared to control flies. In contrast, co-expression of MblC and expanded CTG repeats with the same driver, strongly suppressed such phenotype and crossectional muscle area was 70% of control (normal) flies. Administration of the Abp1 hexapeptide in the nutritive media similarly suppressed the atrophic phenotype, and model flies that had taken the compound showed approximately 60% of normal muscle area (instead of 50% that is typical of DM1 flies; Figure 2E). For the quantification of these samples, we used sections stained with toluidine blue to enhance contrast (Figures 4 and 5).
We note that during the procedure a number of technical glitches may significantly interfere with the final quantification. A common one is that resin blocks are not correctly trimmed, which may misorient the sample and lead to oblique sectioning of the DLMs. As a consequence, some DLM muscles may look bigger on one side compared to the contralateral one (see for example Figure 3), which introduces a significant error in the final quantification. Another mistake that may occur is inadequate penetration of the fixative in the muscle tissue (Figure 6), which looks degraded and deformed making the accurate quantification of the muscle area impossible.
It has been demonstrated that Drosophila melanogaster is a useful model to study human neuromuscular diseases7,10,11, including Myotonic Dystrophies, which are characterized by the appearance of muscular atrophy. The protocol presented here is a useful tool for quantifying the muscle degeneration caused by the onset or progression of a particular disease in a fly model. For example, it is also possible to follow and quantify the degeneration of muscle fibers by performing this analysis in flies of different ages.
There are critical steps in the protocol. The time needed to dissect the flies before their fixation must be minimized to avoid the degradation of the tissue. For penetration of the fixative solution in the muscles (Figure 6), it is important to remove the head, wings and legs of the flies to ensure access of the solutions to the interior of the fly. It is essential to obtain transversal sections in which the muscles of interest are totally visible. The binarization of the samples for the quantification is critical so note that the selected pixels (black pixels) correspond to the tissue of interest and the whole area of interest is selected.
Figure 6. Adult Drosophila thorax with inadequate penetration of the fixative in the muscles (*), which causes degradation and deformation of the tissue during the processing of the sample. Scale bar: 200 µm.
One of the reagents used in this protocol is OsO4, which preserves most structures extremely well, particularly at the cytological level, and at the same time provides contrast to the image5. However, an important drawback of the method is the toxicity of the OsO4, which must always be used in a fume hood and requires safe handling and disposal. This protocol not only allows accurate quantification of muscle tissue due to the fixing and embedding procedure, it can also be used for another application such as electron microscopy (EM) preparation. However, it suffers an intrinsic limitation because the resulting histological sections cannot be used in subsequent assays, such as immunohistochemistry.
Finally, this method is also optimized to detect small muscle area differences thus allowing the reliable identification of modifiers in genetic or chemical screens8,9. Nevertheless, since increased muscle area does not necessarily imply better muscle function, cross-sectional muscle area determination should be ideally correlated with functional assays such as flight assays12.
The authors have nothing to disclose.
The authors would like to thank members of the Translational Genomics Group and Kathryn J Hanson for the feed-back and the improvements on this protocol. This project was carried out with research grant SAF2015-64500-R, which includes European Regional Development Funds, awarded to R.A by the Ministerio de Economia y Competitividad.
Image-J software | National Institutes of Health | https://imagej.nih.gov/ij/ | |
Ultramicrotome | Leica | Leica UC6 | |
Microscope | Leica | Leica MZ6 | Bright field technique. |
Razor blades | Electron Microscopy Sciences | 71970 | Several alternative providers exist. |
Scissors | World Precision World | 14003 | Several alternative providers exist. |
Embedding molds | Electron Microscopy Sciences | 70900 | Several alternative providers exist. |
Glutaraldehyde | Fluka (Sigma) | 49624 | Toxic. |
OsO4 | Polyscience | 0972A | Extremely toxic. |
Propylene oxide | Sigma Aldrich | 82320-250ML | Extremely toxic. |
resin (Durcupan) | Sigma Aldrich | 44611-44614 | Carcinogenic when it is unpolymerized. |
Toluidine blue | Panreac | 251176 | Toxic. |
Mountant Medium (DPX) | Sigma Aldrich | 44581 | Dangerous. |
Paraformaldehyde | Sigma Aldrich | P6148-500G | Harmful. |
Na2HPO4 | Panreac | 122507 | 0.2 M dilution. |
NaH2PO4 | Panreac | 121677 | 0.2 M dilution. |
Borax | Panreac | 3052 | Toxic. |
