A Semiautomated ChIP-Seq Procedure for Large-scale Epigenetic Studies

doi: 10.3791/61617 Published: August 13, 2020
Justin Cayford1, Sara Herrera-da la Mata1, Benjamin Joachim Schmiedel1, Vivek Chandra1, Pandurangan Vijayanad1, Grégory Seumois1

ERRATUM NOTICE

Abstract

Chromatin immunoprecipitation followed by sequencing (ChIP-Seq) is a powerful and widely used approach to profile chromatin DNA associated with specific histone modifications, such as H3K27ac, to help identify cis-regulatory DNA elements. The manual process to complete a ChIP-Seq is labor intensive, technically challenging, and often requires large-cell numbers (>100,000 cells). The method described here helps to overcome those challenges. A complete semiautomated, microscaled H3K27ac ChIP-Seq procedure including cell fixation, chromatin shearing, immunoprecipitation, and sequencing library preparation, for batch of 48 samples for cell number inputs less than 100,000 cells is described in detail. The semiautonomous platform reduces technical variability, improves signal-to-noise ratios, and drastically reduces labor. The system can thereby reduce costs by allowing for reduced reaction volumes, limiting the number of expensive reagents such as enzymes, magnetic beads, antibodies, and hands-on time required. These improvements to the ChIP-Seq method suit perfectly for large-scale epigenetic studies of clinical samples with limited cell numbers in a highly reproducible manner.

Introduction

The wide use of ChIP-Seq assays for determining fragments of DNA associated with specific histone modifications is in part due to its ability to identify cis-regulatory DNA elements, including active enhancers, promoters, silencers, heterochromatin, and others1,2,3,4. Identification of non-coding regulatory regions across the genome has shown valuable insight to better understand gene regulation in health and diseases4. Previous work from the lab has used ChIP-Seq to show that cis-regulatory elements can play important roles in different cell types5. Transcription factor (TF) ChIP assays has been utilized to show disease associated risk single-nucleotide polymorphisms6.

The use of ChIP-Seq with human clinical samples is challenging, mainly due to the limitation of cell numbers or the desired tissue sample. As a result, there has been a concerted effort in the field to improve and microscale these techniques and as a result, several assays have emerged, such as CUT&TAG5,7,8,9,10,11,12. This assay utilizes a transposase to tagment and isolate genomic regions bound by a specific antibody9. This technique has been able to reduce the cell numbers down to 1,000s and in some cases to a single-cell, however, the use of this technique in translational research and clinical set-up has shown limitations due to the requirements of using live cells for this method9,12. The live cell requirement makes clinical samples logistically difficult to handle and can introduce batch effects if the samples are not processed at the same time. Others have optimized microscaled techniques for formaldehyde-fixed cells, including the development of ChIPmentation11, which is adapted here in a high-throughput manner. The use of fixed cells allows samples to be stored until collection and subsequent processing of all samples together to minimize batch effects.

Here, a semiautomated microscaled ChIP-Seq assay is described which reduces experimental hands-on time to profile histone modifications10. The semiautomated method allows for high-throughput ChIP-Seq assays, allowing for up to 48 samples to be fully processed and ready for sequencing in as little as 5 days, for as few as 10,000 cells per sample using a ChIP liquid-handler. The handler completes the immunoprecipitation (IP) and subsequent washes in an autonomous manner, which helps to reduce variability between samples. The semiautomated method lowers both the hands-on time by over 15 h for 48 samples and the technical variability, enabling large-scale epigenetic studies to be conducted in a reproducible and rapid manner for either primary or cultured cells. The protocol explains the process from start to finish for high quality ChIP-Seq. If the specific machines are not available, the protocol will still be a useful resource to set up and trouble-shoot ChIP-Seq experiments manually.

The assay was performed with three different primary human immune cell types and one cultured cell line (HUT78 – ATCC: TIB-161). For clarity, the protocol has been divided into seven sections: cell fixation, chromatin shearing via sonication, automated chromatin immunoprecipitation, library preparation by DNA fragment tagmentation, library amplification, library purification, followed by DNA quantification. For buffer recipes please refer to Supplementary Table 1.

Protocol

The Institutional Review Board (IRB) of the La Jolla Institute for Allergy and Immunology (LJI; IRB protocol no. SGE-121-0714) approved the study. Healthy volunteers were recruited and provided leukapheresis samples after written informed consent.

1. Cell fixation

  1. Bring the cell suspension concentration to 1 to 2 x 106 cells/mL with complete cell culture medium in a 15 mL tube (<10 mL of suspension) or 50 mL tube (10-30 mL of cells). If <1 x 106 cells, use 0.5 mL of the medium in a 1.5 mL tube.
  2. Gently vortex the cell suspension, add 10x cell fixation buffer dropwise (1:10; vol:vol) and rotate at a low speed for 10 min at room temperature (RT).
  3. Stop the reaction by gently vortexing and add 2.5 M glycine in the ratio of 1:20 (vol:vol). Invert the tubes a few times and incubate on ice for at least 5 min.
  4. Perform the remaining steps at 4 °C or on ice. Spin the tubes at 800 x g for 5 min at 4 °C and discard the supernatant.
  5. Resuspend the pellet gently with 5 mL of ice-cold 1x PBS and incubate for 2 min on ice.
  6. Repeat 1.4 and 1.5 with 1 mL of ice-cold 1x PBS and transfer the sample to a precooled 1.5 mL tube (labeled for long-term storage). If applicable, preparation of aliquots is recommended.
  7. Spin the tubes at 1,200 x g at 4 °C and remove as much of the supernatant as possible without disturbing the cell pellet. Snap freeze the pellet in liquid nitrogen. Store at -80 °C.
    CAUTION: Take appropriate protection when handling liquid nitrogen.

2. Chromatin shearing

NOTE: This protocol is optimized for the chromatin shearing of pellets with 0.3 to 3 x 106 cells in 0.65 mL low binding tubes.

  1. Remove the samples tube with frozen cell pellets from -80 °C and store on dry ice to avoid any thawing of the pellet prior to adding the lysis buffer. This step is critical.
  2. Add 70 µL of fresh, RT complete lysis buffer to the pellet and keep at RT for 1 min.
  3. Resuspend the pellet for 1 min without the introduction of any bubbles and then incubate the cell suspension at RT for 1 min before putting the sample on ice.
  4. Transfer the resuspended pellet into a 0.65 mL low binding tube and keep on ice.
    NOTE: To obtain reproducible sonication, pre-warm the sonicator by running it with only blank tubes for 3-6 cycles prior to sonicating the samples.
  5. Place the samples into the tube holder of the sonicator and fill any gaps with balance tubes filled with 70 µL of water. Leave the samples in the water bath for about 1 min before starting the sonication.
  6. Perform sonication for x cycles (depending on the cell type) with 16 s ON / 32 s OFF per cycle.
    NOTE: This step will require validation experiments to determine the optimal number of cycles for efficient sonication.
  7. After every 3 cycles, remove the samples from the sonicator, gently vortex and pulse spin the tubes before putting them back into the holder. Ensure there are no small droplets on the outside of the tube as that can cause bubble formation.
  8. After completing the necessary cycles, spin samples at >14,000 x g for 15 min at 4 °C. Transfer the supernatant to a new, pre-cooled, low-binding 0.65 mL low binding tube and keep on ice.
  9. Decrosslink a fraction of the sonicated samples to check for the sonication efficiency.
    1. Transfer 1-7 µL of the supernatant (equivalent to about 250 ng of sheared chromatin) to a 0.2 mL PCR tube and make the volume up to 10 µL with short-term lysis buffer at RT.
    2. Add 1 µL RNase A and incubate for 30 min at 37 °C at 800 rpm, then add 1 µL proteinase K.
    3. Incubate for 2 h at 55 °C with shaking at 1,000 rpm.
  10. Remove 2 µL of the decrosslinked sample for DNA quantification using fluorescent quantification assay10 (a spectrophotometer is not recommended as soap and degraded protein can produce bias in the results).
  11. Run the remaining sample on a 1.2% agarose gel for 1 h at 70 V. Stain with nucleic acid dye (1:20,000) and read the gel using a UV transilluminator.
  12. Prepare chromatin stock aliquots for storage (dilute the sample to 25 ng/µL in 20 µL with complete lysis buffer). Store all sheared chromatin at -80 °C.

3. Automated ChIP-Seq for histone modification

NOTE: This protocol is designed to run on a ChIP liquid-handler. Although the system can use customized buffers, all buffers are provided with the ChIP kit. The ChIP strips with 8 tubes used in this section are specific to the ChIP liquid-handler.

  1. Transfer 16 sample aliquots with 500 ng of sheared chromatin in 20 µL from -80 °C and place them on ice to slowly thaw the chromatin. Once thawed fully, vortex briefly and pulse-spin.
  2. Preparation of chromatin
    1. Pipette 100 µL of tC1 buffer supplemented with 1x protease inhibitor and 20 mM sodium butyrate (complete tC1 buffer) into two ChIP 8-tube strips.
    2. Transfer 20 µL of each chromatin sample into an appropriate tube of the ChIP 8-tube strips containing the 100 µL of complete tC1 buffer. Wash the chromatin tubes by adding 80 µL complete tC1 buffer to the chromatin tubes and then transfer back into the appropriate tube of the ChIP 8-tube strips for a final volume of 200 µL.
  3. Preparation of the antibody
    1. Calculate the volume of antibody such that 0.5 µg of antibody is in each tube.
      Volume of antibody = (number of samples x antibody per reaction) / antibody concentration
    2. Add the calculated amount of antibody into 500 µL of tBW1 buffer. Quickly vortex and pulse-spin.
    3. Pipette 70 µL of tBW1 into each of the two ChIP 8-tube strips and add 30 µL of the antibody + tBW1 to each of the tubes. This will bring the total volume in each of the tubes to 100 µL.
  4. Preparation of the magnetic bead
    1. Vortex the protein A bead solution thoroughly. For 0.5 µg of antibody, pipette 5 µL of beads into a new set of ChIP 8-tube strips and pulse spin.
  5. Fill the last row of the ChIP liquid-handler with labeled, empty ChIP 8-tube strips.
  6. Follow the ChIP-16-IPure-200D program specifications for the placement of all the strips in the ChIP liquid-handler machine. Add the buffers in the correct position but use tW4 instead of tE1 buffer.
    NOTE: Organize the day such that the ChIP liquid-handler will perform the ChIP overnight. The program will run for about 16 h for 16 samples. This marks the end of Day 1.

4. Transposase integration of library adaptors for library preparation

  1. Pre-set a thermomixer to 37 °C and 500 rpm. Cool down a magnet for 0.2 mL tube strips on ice.
  2. For 16 samples, prepare 440 µL of tagmentation buffer on ice. Pipette 53 µL into a single new 8-tube strip and keep on ice.
  3. In a new 0.2 mL 8-tube strip, add 220 µL of cold tC1 buffer and keep on ice. The 8 strip tubes can hold this volume and still be capped.
  4. Remove the “IP samples” strip tube from the ChIP liquid-handler machine (row 12) and cap the tubes prior to pulse-spinning. Capture the beads using the magnet for 8-tube strips for 2 min and carefully remove the supernatant.
  5. Transfer 25 µL of the tagmentation buffer to the beads with a multi-channel, remove from the magnet, and mix gently until the beads are homogenous (about 5 times up and down with the pipette set to 20 µL).
  6. Cap the tubes and place into the pre-heated thermomixer and incubate for 3 min. Increasing the time will decrease the efficiency of the library preparation.
  7. Transfer the tubes to a chilled metal rack and add 100 µL chilled tC1 buffer to each sample. Set a multi-channel pipette to 80 µL and mix the sample until the beads are homogenous, stopping the tagmentation reaction.
  8. Place the samples back into the ChIP liquid-handler and proceed with the wash procedure Washing_for_IP-reacts_16_Ipure. Ensure the washing is performed twice with tC1 buffer and twice with tW4. The elution should be completed as marked by the program layout, with buffer tE1.
  9. Decrosslinking of the DNA
    1. Remove the ChIP 8-tube strips in the last row of the ChIP liquid-handler and add 2 µL RNase A to each sample.
    2. Cap the tubes, pulse-spin, gently mix the beads with a multichannel pipette until the mixture is homogenous, and re-cap the tubes.
    3. Incubate the samples in a thermomixer for 30 mins at 37 °C and 900 rpm.
    4. Remove the samples from the thermomixer, add 2 µL of Proteinase K. Follow the same procedure as 4.9.2 after the addition.
    5. Incubate the samples in a thermomixer for 4 h at 55 °C and 1,250 rpm, followed by 65 °C at 1,000 rpm overnight.
      NOTE: This is the end of Day 2.

5. Tagmented DNA fragments purification

  1. Label sixteen 1.5 mL tubes with the appropriate sample number and add 400 µL of DNA binding buffer from the DNA clean-up kit to each.
  2. Remove the 8-tube strips from the thermomixer and pulse-spin the strips to ensure any evaporated product is retained. Place strips on an 8-strip magnet to capture the beads.
  3. Transfer 100 µL of decrosslinked DNA into each of the 1.5 mL tubes. Add 100 µL of the DNA binding buffer to the 8-tube strips to wash the beads and then transfer to the appropriate 1.5 mL tube.
  4. Vortex for about 10 s and pulse-spin the 1.5 mL tubes.
  5. Load the columns with the 600 µL containing the DNA binding buffer and ChIP sample.
  6. Spin samples for 20 s at 10,000 x g and reload the column with the flow-through. Spin again with the same conditions and discard the flow-through.
  7. Wash the columns twice with 200 µL wash buffer (same centrifugation as the previous step) and discard the flow-through.
  8. Dry the columns by centrifuging for 2 min at 12,000 x g.
  9. Transfer the column to a new 1.5 mL collection tube and add 9 µL warm TE Buffer (pre-heated to 55 °C) directly to the column matrix. Allow the column to incubate for 1 min before centrifugation for 1 min at 10,000 x g.
  10. Transfer the 9 µL of the elute to an appropriate new set of 8-tube strips.
  11. Complete the elution again with 8 µL TE Buffer as before. Transfer the elute into the appropriate 8-tube strips (final volume 17 µL per sample) and keep on ice.

6. Amplification and size-selection of the purified samples

  1. The following steps use qPCR to determine the number of cycles required for optimal amplification (CtD – Ct determination)
  2. Prepare the CtD mix for all samples by multiplying the contents of the CtD Mix Buffer by the number of samples.
  3. Dispense 3.6 µL of CtD mix into a qPCR plate and add 1.4 µL of tagmented DNA samples (~10 % of the total volume). Perform the following qPCR: 98 °C for 3 min, 72 °C for 5 min, 98 °C for 30 s, 26 cycles of 98 °C for 10 s, 63 °C for 30 s, and 72 °C for 30 s.
  4. Prepare the Amp Mix for all samples by multiplying the contents of the AMP Mix Buffer by the number of samples. Dispense 14 µL of tagmented DNA into separate wells of a PCR plate, then add 2.5 μL of two sequencing index primers (25 μM) to each sample (final reaction volume is 50 µL).
  5. Mix the samples by multichannel pipette and perform the amplification program used in the CtD with the appropriate number of cycles.
    NOTE: This is a good stopping point as the amplified samples can be stored at -20 °C for a few weeks. However, the purification can be completed on the same day. For 48 samples, the steps 3 - 6.5 were completed with two other separate batches and then amplified in one batch as described below.
  6. Perform post-amplification, size selection, and quantification of tagmented DNA as described below. This can usually be completed with 48 samples (can be completed with fewer samples as desired).
    1. Add 90 µL of paramagnetic beads (1:1.8 ratio) into each well, mix, and allow it to incubate at RT for 2 min.
    2. Capture the beads using a plate magnet and discard the supernatant. Wash the beads 3 times with 200 µL of fresh 80% ethanol without disrupting the bead pellet.
    3. Remove any excess ethanol with 20 µL tips after final wash and leave the beads to dry for 10 min or until cracks appear in the bead pellets.
    4. With the plate still on the magnet, add 40 µL of the pre-warmed water to each well. Seal the plate, vortex thoroughly, and briefly pulse-spin the plate.
    5. Capture the beads by placing the plate back on the magnet and transfer the 40 µL elute to a new “sample” Plate. The samples are now purified, and the next steps enrich fragments ranging from 200-1,000 bp.
    6. Optional QC step: Remove 4 µL from the samples and transfer to a QC plate. Add 4 µL water back to the samples. This determines the percentage of large fragments.
    7. Add 22 µL of paramagnetic beads (1:0.55 ratio) to the samples, carefully mix, and incubate at RT for 2 min.
    8. Place on magnet to capture the beads for 5 min and transfer the supernatants to columns 7-12 of the “sample” plate. Remove the plate from the magnet and add 30 µL of beads (final ratio of 1:1.3). Mix carefully and allow it to sit at RT for 2 min.
    9. Capture the beads for 5 min and then discard the supernatant.
    10. Wash all beads 3 times with 200 µL fresh 80 % ethanol as described previously (step 6.6.2 – 6.6.3).
    11. Once the pellets are dry, elute DNA with 8 µL pre-warmed TE buffer to each well, while still on the magnet.
    12. Remove the plate from the magnet, seal, and vortex thoroughly. Allow the plate to incubate for 2 min at RT, pulse-spin, and place the plate back on the magnet for 2 min. Transfer the supernatant to a new plate (Plate 2).
    13. For maximum recovery, repeat elution with an extra 8 µL of pre-warmed TE buffer. Place the samples into the appropriate wells such that each sample has 16 µL of final library.
      NOTE: At the end of this step there should be two plates (one if no QC plate was completed). The QC plate will have the pre-size-selected fragments and the second plate should have 48 wells of final library (16 µL total).

7. Quantify the final libraries and QC samples using a fluorescence assay

  1. Complete DNA quantification using a fluorescence quantifying assay or a similar method.
  2. If QC quantification was completed, determine the percentage of loss of sample that were < 1,000 bp. There should be no more than about 20% loss – if there was more, there could be an issue with the applied bead ratios.
  3. Determine the size of the fragments of each sample, preferably using a capillary electrophoresis machine. To calculate the molar concentration use the following equation: [Library concentration (ng/μL) * 106]/[660 * Median fragment size (bp)]).
    NOTE: The libraries are ready to be pooled (equimolar amounts) and sequenced following standard next generation sequencing procedures.

Representative Results

As proof of concept, ChIP-Seq was completed for six human donors with three sets of immune cell types: naive CD4 T cells (CD4), classical monocytes (MO) and natural killer cells (NK), enriched by FACS sorting as described before13. The underlined procedure consists of nine distinct procedures as represented in Figure 1.

Figure 1

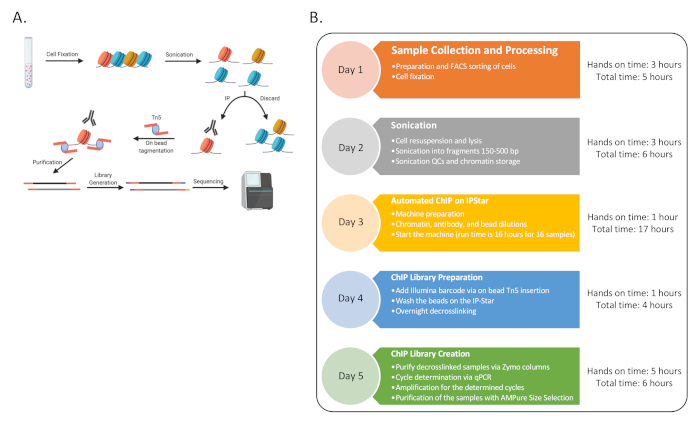

Figure 1: General Flowchart for the procedure. (A) A cartoon of the overall procedure (generated in BioRender). (B) Flow-chart for all the major steps for the protocol and the estimated hands-on and total time associated with each day. The sequencing could happen at the end of Day 5 or later with multiple rounds. The timeline can also be staggered throughout the week, where sequential Day 3-4 can be completed multiple times in a week to generate 48 ChIP samples. Please click here to view a larger version of this figure.

After cell isolation by flow cytometry13, sorted cells were centrifuged and cells fixed and stored as described above. Once all the samples were collected, the samples were lysed and prepared for chromatic shearing in batches of 12 as described above. For each sample, the  number of cycles to reach optimal sonication was completed10. Quantitative measurement, as well as sheared chromatin fragment size measurements showed great reproducibility of our method on the three sets of immune cells (Figure 2A). The different human immune cells were sonicated in separate batches and yielded very consistently with > 70% of the sample between 100 - 500 bp for 14 cycles (16 s ON, 32 s OFF per cycle). At this point, samples with large fragments after sonication (< 70% of the sample between 100 - 500 bp) were considered as failed. These samples could either sonicated for 1-2 additional cycles or were discarded and replaced later with cells from another pellet. Our method showed none of the samples required more sonication or were eliminated, suggesting absolute robustness of the procedure.

Figure 2

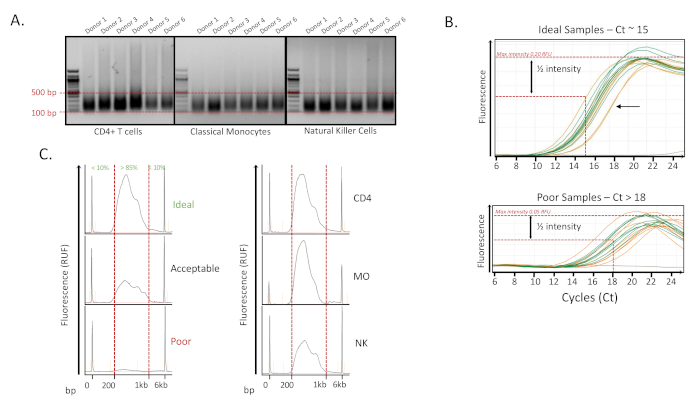

Figure 2: Pre-sequencing QC examples. (A) 1.2% agarose gels show reproducibility of sonication. Sonication samples for 6 donors in three cell types: naive CD4 T cells (CD4), Classical monocytes (MO), and Natural killer cells (NK). The samples were sonicated for 14 cycles (16 s ON, 32 s OFF per cycle). For each sample about 200 ng of decrosslinked chromatin were loaded on a 1% agarose gel. Samples were considered good if more than 70 % of the fragments are within 100-500 bp. (B) Top - Analysis qPCR amplification curves to determine the optimal number of cycles for amplification (Ct where there is ½ the max intensity). The ideal samples have a Ct of about 15 and amplification can be completed up to 2 cycle more of the measured Ct. The arrow is an example of a bad example where the Ct is greater than 18. Bottom - An example of a poor set of samples is shown which have a Ct greater than 18. These samples also showed lower fluorescence intensity. (C) Left - Fragment analyzer electrophoresis traces showed the distribution of final tagmented libraries after amplification and size-selection. Samples with more than 85 % of fragment library lies within 200-1,000 bp were considered as good samples. Measurement of peak intensity of fluorescence is also considered as an important QC parameter, indeed if signal is low, the sample is unlikely to sequence well. Right - Examples for positive samples in CD4, MO, and NK are shown. Please click here to view a larger version of this figure.

After quantification, the samples were run on a ChIP liquid-handler with H3K27ac antibodies, followed by tagmentation with Tn5 transposase enzyme. To determine the appropriate number of amplification cycles by qPCR, 10% of tagmented samples were used. For the determination of the number of cycles for the amplification of the samples, we find the cycle at which the intensity of the sample is half the average maximum for cycle determination (Figure 2B). Samples with Ct values of more than 18 did not perform well post sequencing and their Ct value was thus indicative of a failed ChIP sample. These samples generally also yielded a lower amount of DNA after amplification. Samples (100,000 cells input) with a Ct value equal or lesser than 15 were ideal and samples between 15 and 18 were acceptable but less consistent post sequencing. For samples with less than 100,000 input cells, the Ct values were usually found between 15 and 18 but did not need more than 18 cycles to yield enough product for sequencing.

After DNA-tagmented amplification, libraries were purified and size-selected to obtain an ideal size distribution, ranging from 200 to 1,000 bp, for the NextGen sequencing. Size distribution assessment on each of the libraries was completed because best sequencing data were obtained when more than 85% of the DNA fragments ranged between 200 to 1,000 bp (Figure 2C). Notably, as the same quantity of DNA (measured by fluorescence quantification) was loaded, it was noticed the samples with lower fluorescence intensity generally sequenced poorly (Figure 2C).

Post sequencing, standard quality controls based on the ENCODE ChIP-Seq guidelines were applied5,14,15.

Figure 3
Figure 3: Reproducibility of the immune-cell samples. (A) H3K27ac tracks (UCSC Genome Browser, maximum intensity, smoothing function of 4, all with equally scaled Y-axis) for 6 donors (100,000 cells per replicate) in each cell type (CD4, MO, and NK). Four exemplary loci are shown, two with (IL2RA locus and PTPRC) and two without enrichment for H3K27ac (CCR4 and MS4A1). (B) Pearson correlation between the donors and corresponding correlation plots generated using a 300 bp extension and 500 bp window within the MEDIPS package for each of the cell type replicates16. (C) Merged donor files for each cell type showing H3K27ac tracks (UCSC Genome Browser maximum intensity, smoothing function of 4) in cell type-specific regions (IL17R for CD4, CCR2 for MO, and KLRC1 for NK) and the house-keeping gene B2M, present in all cell types. Please click here to view a larger version of this figure.

For visual quality control, H3K27ac enrichment tracks for display in the UCSC genome browser were prepared. For four gene loci, individual tracks for each sample showed high mapping quality and signal-to-noise ratio reflecting the high consistency and robustness of our assay (Figure 3A). The two loci to the left harbor well-expressed genes in these cell types, while the genes in the two loci to the right are not expressed and served as background controls13 (Figure 3A). Further, the MEDIPS analysis package was used as post-sequencing variable to assess the correlation index between technical replicates (Figure 3B)5,16,17, establishing the degree of correlation for reads enrichment level for 500 bp bins16. For the majority of the pairwise comparisons, Pearson correlations indexes showed more than 90% correlation suggesting high level of consistence between the biological replicates (Figure 3B). Replicates with acceptable correlation were merged to increase signal-to-noise ratio. While cell type-specific loci showed high enrichment in the appropriate cells, a house-keeping gene (B2M) showed very consistent histone modification (Figure 3C). For the analysis, merging tracks from replicates will increase the enrichment, reinforce the specific signal, including for important cell type-specific enhancers, and reduces the inter-individual variability inherent to human samples5.

Although 100,000 cells were used for this study, there was high reproducibility for as few as 10,000 cells in a human cultured T-cell line (HUT78). Correlation analysis between ChIP-Seq dataset performed from samples with less than 100,000 cells showed high reproducibility and correlation down to 10,000 cells (Figure 4A).

Figure 4

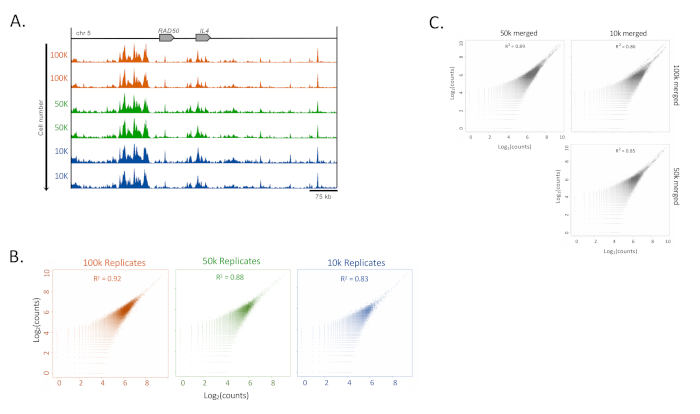

Figure 4: Reproducibility of low input samples. (A) Examples of the consistency of H3K27ac ChIP-Seq for cells 100,000 down to 10,000 in HUT-78 cells (a T-cell lymphoma cell line). The tracks (UCSC Genome Browser, maximum intensity, smoothing function of 4, all with equally scaled Y-axis) show the IL4 locus. (B) Pearson correlations of the replicates using a 300 bp extension and 500 bp window within the MEDIPS package16.  (C) Pearson correlations between the different cell number groups (100,000, 50,000, and 10,000 cells) using the same MEDIPS parameters as in (B)16. Please click here to view a larger version of this figure.

Pearson correlation analysis showed high correlation index (83% to 92%), suggesting maintenance of signal in low cell number samples. However, there was increased background as the cell numbers were reduced as well as a dropping of the correlation coefficients (Figure 4B). To maintain low background signals, technical duplicates were merged, and the correlation was tested between groups (Figure 4C).

10X Cell Fixation Buffer
Compound Final Concentration
Formaldehyde solution 11%
NaCl 100 mM
EDTA, pH 8.0 1 mM
EGTA, pH 8.0 0.5 mM
HEPES, pH 7.5 50 mM
Complete Lysis Buffer
Compound Final Concentration
Tris-HCI, pH 8.0 50 mM
EDTA, pH 8.0 10 mM
SDS 0.25%
Sodium Butyrate 20 mM
Protease Inhibitor Cocktail 1X
Short-term Lysis Buffer
Compound Final Concentration
Tris-HCI, pH 8.0 50 mM
EDTA, pH 8.0 10 mM
SDS 0.25%
Tagmentation Mix
Compound Final Concentration
Tris-HCI, pH 8.0 10 mM
MgCl2 5 mM
N,N-dimethylformamide 10%
Illumina tagmentation enzyme 1:24 vol:vol
CtD Mix
Compound Per sample (µL)
NextEra Index Primer A (25 µM) 0.275
NextEra Index Primer B (25 µM) 0.275
2X KAPA HiFi HotStart Ready Mix 2.75
1:1000 SYBR Green dye 0.11
ROX passive dye 0.11
Water Fill to 4 µL
AMP Mix
Compound Per sample (µL)
2X KAPA HiFi HotStart Ready Mix 27.5
Water Fill to 31 µL

Supplementary Table 1: Buffer recipes.

Supplementary Table 2:  Spearman and Pearson sample correlations for the 6 donors and each cell type. Please click here to download this table.

Discussion

The method described here expands on the ChIPmentation procedure11, which implements a tagmentation library preparation protocol prior to DNA purification, by automating and microscaling the protocol. Since the onset of ChIP-Seq, the required cell numbers have been reduced drastically, from about 20 million cells for histones down to hundreds and even single-cells1,7,10,12,18,19,20,21. These newly developed methods have allowed for a deeper understanding of how cis-regulatory mechanisms are working in cells by increasing the sensitivity and allowing for rare clinical cell populations to be tested5,6,12,17. For instance, one of the more recent and popular procedure, called CUT&TAG, as robust and sensitive ChIP-Seq alternative9. It produces an excellent signal-to-noise ratio as the Tn5 enzyme is covalently bound to protein A and recognizes the Fc chain of the ChIP antibody with high specificity9. Background activity of Tn5-enzyme is reduced as the enzyme is not functional before binding to the target antibody9. However, the implementation of this method in a clinical context is limited since it requires non-fixed, live cells. Also, the removal of DNA fragments from the hypotonic nucleus could have negative effects on the chromatin as it is removed from during the assay. The necessary requirement to work with fresh and living cells is a source of issues for rare clinical samples and for large cohorts of samples, since large cohorts can take numerous years to collect5. Another type of method, drop-ChIP, elegantly uses a microfluidics device to generate droplet based tagmention prior to processing the ChIP19. However, it uses a highly specialized microfluidic device and, while it is possible to complete single-cell ChIP-Seq, it is also limited to the use of live cells7,8,9,18,19. Newer methods relying on ChIP-Seq such as PLAC-Seq or HiChIP, attempt to understanding 3-dimension (3D) interactions between the ChIP-Seq peaks22,23. These 3D methods are exciting as they are identifying cis­-regulatory or TF mediated interactions across the genome and better the understanding of the regulation of gene expression in cell types of interest, in healthy tissues and in the context of disease.

There are a few critical steps to consider for the protocol to be successful such as quality of the sonicated chromatin and quality of the antibody. Shearing efficiency is critical, if the chromatin is not sonicated well, the efficiency of the assay decreases drastically24. Sonication is a challenging aspect of ChIP-Seq due to the cell numbers required. On the sonicator used in the protocol, efficiency was drastically reduced under 300,000 cells. This is a challenging aspect in ChIP-Seq as to sonicate under that level would often require enzymatic fragmentation, which is less impartial. As a result, sonication is a major limited factor for true microscaled ChIP-Seq. Other sonication platforms and commercially available kits were tested for sonicating chromatin, but the sonicator used here had the most robust and reproducible results. Another advantage of the sonicator is not having to purchase specialized tubes to run the sonication, which reduces costs when dealing with large number of samples. For optimal sonication, firstly, it is important to pre-warm the sonicator as described above. Second, to lyse the pellet, it is recommended to have the pipette tip touching the bottom of the tube while lysing to break up the cells with more physical constrains. Third, any bubble formation prior to sonication hinders the ability of the sample to be sonicated evenly. If there are any bubbles formed during the lysis, it is important to remove them with a pipette. This can be challenging without removing a lot of sample, but if the tip is lightly pressed against the bubble it can be slowly drawn up without loss of much sample. Lastly, when determining the number of cycles, complete a time-course where every three cycles, sample is removed, purified, and ran on an agarose gel. Avoid over/under sonication of samples as this decreases the ChIP efficiency. If the sample is under sonicated, the large fragments can have a negative effect on the ChIP-Seq quality24. On the other hand, if the sample is over sonicated, there is a risk of the target epitope getting lost in the process.

Another essential part of ChIP-Seq is the quality of the antibody. Prior to running any large-scale study, it is necessary to optimize the antibody which will be used. The goal is to obtain a significantly high signal to noise ratio of known regions of the genome and another is the reproducibility. If the antibody is pulling a lot of background signal, it might be recommended to use a larger input or try a different lot/supplier. This will add time before starting a large-scale experiment, but it is an essential step. To test for the signal-to-noise it is recommended to use qPCR with regions known to be a target of your antibody and another region known to be absent. It has been noticed histone modifications are more robust and easier to optimize than TFs.

The protocol described above provides a robust method for high-throughput histone-modification ChIP-Seq in a semiautonomous, microscaled manner. The method limits the amount of hands-on time and increases the reproducibility over manual ChIP-Seq. Previous studies completed in the lab used manual ChIP on technical replicates and obtained a Spearman correlation average of 0.505, however, with the semiautomated system, the Spearman correlation between different donors with an NK cells average of 0.66 (Supplementary Table 2). This was also completed with about 40% less hands-on time. The method described here has been optimized for histone-modifications (H3K27ac shown here, but the protocol should not need any modification for others) and would only require minor modifications for to be implemented for TF ChIP-Seq. Despite the quality of the antibody, the main modification would be for the sonication time and potentially the buffers used during the IP. Usually, for TF ChIP assays, the method may work better with slightly longer fragments of chromatin (with a range of around 350-800 bp) as TF:DNA complexes are likely less able to be maintained through rigorous sonication6. The buffers might also need to change to a custom mix or other industry available kits, as TFs can behave differently than histone modifications.

Although the automated ChIP liquid-handler was been tested for as few as 10,000 cells, there was a noticeable decrease in reproducibility at lower chromatin concentrations. Due to this, the protocol was not recommended to less than 10,000 cells, with 100,000 cells being the optimal conditions. The protocol was also completed using industry ChIP buffers, which was an added expense but provided higher quality data. The protocol could be modified with regard to the sonication conditions (as long as the sheared chromatin is kept within the same range), buffers could be customized for the immunoprecipitation (IP; optimization may be required), or the ChIP liquid-handler may not be used. A limitation of the protocol is the use of the ChIP liquid-handler, which can be an expensive investment and can only run 16 samples at once. The ChIP liquid-handler is limited to small-scale reactions and cell numbers greater than one million are not recommended. However, the protocol could be completed without it, by completing the IP and wash steps manually. If the IP and washes were completed by hand, the time to complete the assay will increase and the reproducibility may decrease, but this guide will still be useful running a high-quality ChIP-Seq experiment. Of note, other liquid handlers could be adapted to run semiautomated ChIP reactions.

To summarize, the major benefits of this system is the high-throughput nature, since the IP and washing steps are completed autonomously. As such, sequential rounds of ChIP experiments can be completed, allowing up to 48 samples to be fully processed and ready for sequencing in 5 days, with limited hands-on time compared to manual ChIP-Seq experiments. Another benefit is the increased reproducibility since ChIP-Seq can be difficult to obtain highly reproducible results. Other methods either require live cells, complex micro-pipetting systems, or the work to be completed all by hand. This system will have to be optimized for low-input samples (<10,000 cells), ultimately allowing single-cell ChIP reactions. The system is also capable of being adapted for the newer ChIP methods, such as PLAC-Seq and HiChIP22,23

Disclosures

The authors have nothing to disclose.

Acknowledgments

We thank the Vijayanand lab members for technical help and constructive discussions and Dr. Sharron Squazzo and Mr. Geoffrey Berguet from Diagenode for technical assistance with the sonicator and ChIP liquid-handler machine and protocols. This work was supported by NIH grants AI108564, R01HL114093, S10RR027366 (BD FACSAria II), and S10OD016262 (Illumina HiSeq 2500).

Materials

Name Company Catalog Number Comments
200 µl tube strips (8 tubes/strip) + cap strips Diagenode C30020002 Strip tubes for use on the IP Star; ChIP 8-tube strip
AMPure XP for PCR Purification Beckman Coulter A63880 SPRI beads
Axygen 0.6 mL MaxyClear Snaplock Microcentrifuge Tube Corning MCT-060-C 0.65 mL low binding tube
Bioruptor Pico Sonicator Diagenode B01060010 Sonicator used in the lab but others can be used
ChIP DNA Clean & Concentrator (Capped Columns) Zymo Research D5205 DNA clean-up kit
Dynabeads Protein A for Immunoprecipitation ThermoFisher 10001D
EDTA (0.5 M), pH 8.0, RNase-free ThermoFisher AM9260G
EGTA pH 8.0 Millipore Sigma E3889-25G
Eppendorf ThermoMixer C Eppendorf 2231000667
Formaldehyde solution Millipore Sigma 252549-1L
Glycine Millipore Sigma 50046-250G
H3K27ac polyclonal antibody - Premium Diagenode C15410196
HEPES (1 M) pH 7.5 ThermoFisher 15630080
IDT for Illumina Nextera DNA Unique Dual Indexes Illumina 20027213
Illumina Tagment DNA Enzyme and Buffer Small Kit Illumina 20034197
IP-Star Compact Automated System Diagenode B03000002 Automated system for ChIP-Seq studies; ChIP liquid handler
KAPA HiFi HotStart ReadyMix Roche KK2601 PCR mix
Medium reagent container for SX-8G IP-Star Compact Diagenode C30020003
MgCl2 (magnesium chloride) (25 mM) ThermoFisher R0971
N,N-Dimethylformamide Millipore Sigma D4551-250ML CAUTION - low flash point
NaCl (5 M), RNase-free ThermoFisher AM9760G
PBS (10X), pH 7.4 ThermoFisher 70011044
PCR Flex-free 8-tube stripes, attached individual optical caps USA Scientific 1402-4700 8 strip tubes, 0.2 mL 8-tube strip
Proteinase Inhibitor Cocktail Millipore Sigma P8340
Proteinase K Solution (20 mg/mL), RNA grade ThermoFisher 25530049
PureLink RNase A (20 mg/mL) ThermoFisher 12091021
Quant-iT PicoGreen dsDNA Reagent ThermoFisher P7581 Used in the flourescence quantification
QuantStudio 6 Flex Real-Time PCR System ThermoFisher 4485699 qPCR
ROX Reference Dye ThermoFisher 12223012
Sodium butyrate Millipore Sigma 303410-100G
SYBR Gold Nucleic Acid Gel Stain (10,000X Concentrate in DMSO) ThermoFisher S11494 nucleic acid dye
SYBR Green I Nucleic Acid Gel Stain - 10,000X concentrate in DMSO ThermoFisher S7563
TE Buffer ThermoFisher 12090015
Tips (bulk) Diagenode C30040020 Tips for the IP Star
True MicroChIP Kit Diagenode C01010130 Contains all the buffers for the IP; ChIP kit
UltraPure 1M Tris-HCI, pH 8.0 ThermoFisher 15568025
UltraPure SDS Solution, 10% ThermoFisher 24730020

DOWNLOAD MATERIALS LIST

References

  1. Barski, A., et al. High-resolution profiling of histone methylations in the human genome. Cell. 129, (4), 823-837 (2007).
  2. Johnson, D., Mortazavi, A., Myers, R., Wold, B. Genome-Wide Mapping of in Vivo Protein-DNA Interactions. Science. 316, 1497-1502 (2007).
  3. Mikkelsen, T. S., et al. Genome-wide maps of chromatin state in pluripotent and lineage-committed cells. Nature. 448, (7153), 553-560 (2007).
  4. Furey, T. S. ChIP-seq and beyond: new and improved methodologies to detect and characterize protein-DNA interactions. Nature Reviews Genetics. 13, (12), 840-852 (2012).
  5. Seumois, G., et al. Epigenomic analysis of primary human T cells reveals enhancers associated with TH2 memory cell differentiation and asthma susceptibility. Nature Immunology. 15, (8), 777-788 (2014).
  6. Schmiedel, B. J., et al. 17q21 asthma-risk variants switch CTCF binding and regulate IL-2 production by T cells. Nature Communication. 7, 13426 (2016).
  7. Ai, S., et al. Profiling chromatin states using single-cell itChIP-seq. Nature Cell Biology. 21, (9), 1164-1172 (2019).
  8. Brind'Amour, J., et al. An ultra-low-input native ChIP-seq protocol for genome-wide profiling of rare cell populations. Nature Communication. 6, 6033 (2015).
  9. Kaya-Okur, H. S., et al. CUT&Tag for efficient epigenomic profiling of small samples and single cells. Nature Communication. 10, (1), 1930 (1930).
  10. Youhanna Jankeel, D., Cayford, J., Schmiedel, B. J., Vijayanand, P., Seumois, G. An Integrated and Semiautomated Microscaled Approach to Profile Cis-Regulatory Elements by Histone Modification ChIP-Seq for Large-Scale Epigenetic Studies. Methods Molecular Biology. 1799, 303-326 (2018).
  11. Schmidl, C., Rendeiro, A. F., Sheffield, N. C., Bock, C. ChIPmentation: fast, robust, low-input ChIP-seq for histones and transcription factors. Nature Methods. 12, (10), 963-965 (2015).
  12. Skene, P. J., Henikoff, S. An efficient targeted nuclease strategy for high-resolution mapping of DNA binding sites. Elife. 6, 21856 (2017).
  13. Schmiedel, B. J., et al. Impact of Genetic Polymorphisms on Human Immune Cell Gene Expression. Cell. 175, (6), 1701-1715 (2018).
  14. Landt, S. G., et al. ChIP-seq guidelines and practices of the ENCODE and modENCODE consortia. Genome Research. 22, (9), 1813-1831 (2012).
  15. Chen, L., et al. Genetic Drivers of Epigenetic and Transcriptional Variation in Human Immune Cells. Cell. 167, (5), 1398-1414 (2016).
  16. Lienhard, M., Grimm, C., Morkel, M., Herwig, R., Chavez, L. MEDIPS: genome-wide differential coverage analysis of sequencing data derived from DNA enrichment experiments. Bioinformatics. 30, (2), 284-286 (2014).
  17. Engel, I., et al. Innate-like functions of natural killer T cell subsets result from highly divergent gene programs. Nature Immunology. 17, (6), 728-739 (2016).
  18. Grosselin, K., et al. High-throughput single-cell ChIP-seq identifies heterogeneity of chromatin states in breast cancer. Nature Genetics. 51, (6), 1060-1066 (2019).
  19. Rotem, A., et al. Single-cell ChIP-seq reveals cell subpopulations defined by chromatin state. Nature Biotechnology. 33, (11), 1165-1172 (2015).
  20. Wang, Q., et al. CoBATCH for High-Throughput Single-Cell Epigenomic Profiling. Molecular Cell. 76, (1), 206-216 (2019).
  21. Consortium, E. P. An integrated encyclopedia of DNA elements in the human genome. Nature. 489, (7414), 57-74 (2012).
  22. Fang, R., et al. Mapping of long-range chromatin interactions by proximity ligation-assisted ChIP-seq. Cell Research. 26, (12), 1345-1348 (2016).
  23. Mumbach, M. R., et al. HiChIP: efficient and sensitive analysis of protein-directed genome architecture. Nature Methods. 13, (11), 919-922 (2016).
  24. Diagenode. The Ultimate Guide for Chromatin Shearing Optimization with Bioruptor Standard and Plus. Diagenode. (2012).

Erratum

Formal Correction: Erratum: A Semiautomated ChIP-Seq Procedure for Large-scale Epigenetic Studies
Posted by JoVE Editors on 09/14/2020. Citeable Link.

An erratum was issued for: A Semiautomated ChIP-Seq Procedure for Large-scale Epigenetic Studies. An author's name was updated.

The name was corrected from:

Pandurangan Vijayanad

to:

Pandurangan Vijayanand

This article has been published
Video Coming Soon
PDF DOI DOWNLOAD MATERIALS LIST

Cite this Article

Cayford, J., Herrera-da la Mata, S., Schmiedel, B. J., Chandra, V., Vijayanad, P., Seumois, G. A Semiautomated ChIP-Seq Procedure for Large-scale Epigenetic Studies. J. Vis. Exp. (162), e61617, doi:10.3791/61617 (2020).More

Cayford, J., Herrera-da la Mata, S., Schmiedel, B. J., Chandra, V., Vijayanad, P., Seumois, G. A Semiautomated ChIP-Seq Procedure for Large-scale Epigenetic Studies. J. Vis. Exp. (162), e61617, doi:10.3791/61617 (2020).

Less
Copy Citation Download Citation Reprints and Permissions
View Video

Get cutting-edge science videos from JoVE sent straight to your inbox every month.

Waiting X
simple hit counter
