Microscopy Techniques for Interpreting Fungal Colonization in Mycoheterotrophic Plants Tissues and Symbiotic Germination of Seeds

Summary

This protocol aims to provide detailed procedures for collecting, fixing, and maintaining mycoheterotrophic plant samples, applying different microscopy techniques such as scanning and transmission electron microscopy, light, confocal, and fluorescence microscopy to study fungal colonization in plants tissues and seeds germinated with mycorrhizal fungi.

Abstract

Structural botany is an indispensable perspective to fully understand the ecology, physiology, development, and evolution of plants. When researching mycoheterotrophic plants (i.e., plants that obtain carbon from fungi), remarkable aspects of their structural adaptations, the patterns of tissue colonization by fungi, and the morphoanatomy of subterranean organs can enlighten their developmental strategies and their relationships with hyphae, the source of nutrients. Another important role of symbiotic fungi is related to the germination of orchid seeds; all Orchidaceae species are mycoheterotrophic during germination and seedling stage (initial mycoheterotrophy), even the ones that photosynthesize in adult stages. Due to the lack of nutritional reserves in orchid seeds, fungal symbionts are essential to provide substrates and enable germination. Analyzing germination stages by structural perspectives can also answer important questions regarding the fungi interaction with the seeds. Different imaging techniques can be applied to unveil fungi endophytes in plant tissues, as are proposed in this article. Freehand and thin sections of plant organs can be stained and then observed using light microscopy. A fluorochrome conjugated to wheat germ agglutinin can be applied to the fungi and co-incubated with Calcofluor White to highlight plant cell walls in confocal microscopy. In addition, the methodologies of scanning and transmission electron microscopy are detailed for mycoheterotrophic orchids, and the possibilities of applying such protocols in related plants is explored. Symbiotic germination of orchid seeds (i.e., in the presence of mycorrhizal fungi) is described in the protocol in detail, along with possibilities of preparing the structures obtained from different stages of germination for analyses with light, confocal, and electron microscopy.

Introduction

Structural research in botany, covering plant morphology and anatomy, is basic in understanding the whole organism^1,2, and provides indispensable perspectives to integrate and contribute to knowledge regarding the ecology, physiology, development, and evolution of plants³. Methods in plant morphology and anatomy currently comprise protocols, equipment, and knowledge developed recently as well as more than a century ago². The continuous execution and adaptation of classical methods (e.g., light microscopy) along with more recent techniques (e.g., confocal microscopy, X-ray microtomography) have the same essential basis: theoretical knowledge enabling the development of a methodology.

The main tool in plant anatomy and morphology is the image. Despite the misconception that such analyses are simple observations, giving space to subjective interpretations², analyzing and understanding images in this area requires knowledge of the methods applied (the equipment, type of analysis, methodological procedures), cell components, histochemistry, and the plant body (tissue organization and function, ontogeny, morphological adaptations). Interpreting the images obtained via a variety of methods can lead to correlating form and function, deciphering the chemical composition of a structure, corroborating in describing taxa, understanding infections by phytopathogens, and other such assessments.

When researching mycoheterotrophic (MH) plants (i.e., non-photosynthetic plants that obtain carbon from mycorrhizal fungi^4,5), remarkable aspects of their structural adaptations, the patterns of tissue colonization by fungi, and the morphoanatomy of subterranean organs can enlighten their development strategies and relationships with hyphae, which are the source of nutrients. The subterranean organs of MH plants usually show important adaptations related to their association with soil fungi, hence it is essential to perform these anatomical and morphological investigations⁶. MH species' aerial organs should not be ignored, as endophytes can be also present in these tissues, even if they are not mycorrhizal fungi (personal observations, not published yet).

Besides the well-established essentiality of mycorrhizal fungi association with MH species during their entire life cycle⁷, every orchid species, even the autotrophic ones, have an initial obligate mycoheterotrophic stage in natural environments. It occurs because the orchids' embryo is undifferentiated and lacks an endosperm or cotyledons, thus being incapable of developing and establishing itself in natural environments without the nutritional support of fungal partners^4,8. Considering that, symbiotic germination protocols can be applied not only to MH species but also to photosynthesizing orchids, aiming to investigate orchid-fungus specificity in germination and protocorm development, a vastly applied methodology in initiatives for the conservation of threatened species^9,10,11.

In this methods assembly, we describe important steps involved in collecting, fixing, and storing MH plant samples for anatomical studies (section 1), surface analysis and sample selection (section 2), sectioning methods (freehand: section 3, microtomy: section 4, cryomicrotomy: section 5), staining and mounting (section 6), fluorescence and confocal microscopy of fungal endophytes (section 7), scanning electron microscopy (section 8), and transmission electron microscopy (section 9). Additionally, we describe a symbiotic germination method for orchid seeds (MH and autotrophic, section 10), as the imaging methods previously mentioned can be successfully applied to analyze fungal colonization of seeds, protocorms, and seedlings in the germination process.

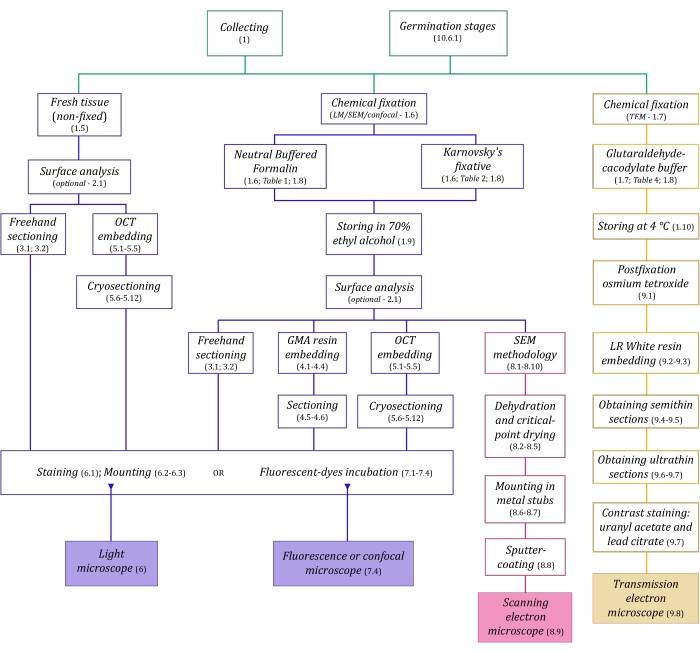

Figure 1: Schematic summarization of imaging methods. The schematics provide indications of protocol steps in which they are detailed. Abbreviations: GMA = glycol methacrylate, OCT = optimal cutting temperature compound, SEM = scanning electron microscopy. Please click here to view a larger version of this figure.

The microscopy techniques described here in detail (Figure 1) are preceded by the following essential steps: collecting, fixing, dehydrating, embedding, and sectioning samples. As the steps are variable (Figure 1) depending on the chosen technique(s), it is important to think ahead, considering the fixatives to be prepared and transported to the collection site, how the samples must be prepared before fixing, the dehydration processes to be used (section 1), and different embedding possibilities and sectioning methods (sections 4, 5, and 9). Figure 1 summarizes sequentially all the steps required for each microscopy technique thoroughly described below.

Protocol

1. Collecting, fixing, and maintaining samples

NOTE: Fully MH plants can usually be found in the dark forest understory^12,13, mainly in humid and litter-abundant areas, whereas partially MH plants can be found in more open forests^12,13. MH plants usually have well-developed subterranean organs in a variety of shapes and sizes.

1. When collecting MH species, explore the soil around the plant base, taking care not to damage underground organs, and avoid pulling the plants from the ground to prevent disconnecting the aerial organs from the subterranean ones.
2. Carefully dig around aerial structures using a gardening trowel while exploring the subterranean organs like roots, stems, rhizomes, and storage organs, without damaging these structures.
3. Remove soil particles to preserve fragile structures, and delicately wash these organs with tap water to rinse off the remaining soil particles before fixing the samples.
4. MH plants associated with leaf litter demand extra attention; carefully collect organs connected to the decomposing material through their hyphae, avoid pulling these organs from the connected structures, and collect them carefully as these parts are highly delicate. Preserve structures with such connections and collect the litter as well for analysis.
5. If opting to analyze fresh material using imaging techniques, maintain the samples in closed plastic bags with adequate moisture, enough water evaporating and moisturizing the plant, preventing excessive water being in contact with the samples. Transport them to the laboratory immediately and analyze the samples on the same day they were collected, while paying attention if the samples are still preserved when analyzing them.
6. Carry fixatives to the collection site in well-sealed containers. Fix samples quickly after collection for light microscopy (LM) and scanning electron microscopy (SEM) in any of the following fixatives: 10% neutral buffered formalin (NBF¹⁴, Table 1) or Karnovsky's solution (modified¹⁵, Table 2). Karnovsky's solution can be prepared with 0.2 M phosphate buffer¹⁵, the recipe for which is described in Table 3.
7. For analysis by transmission electron microscopy (TEM), section the samples with a thickness of 4-3 mm inside a drop of glutaraldehyde-sodium cacodylate buffer (modified¹⁶, Table 4) into smaller sections of 1-2 mm thickness. Discard the edges cut outside the drop. Immediately transfer the sections to a collection tube with a volume of fixative more than 10 times greater than the volume of the samples, as it is an additive fixative (i.e., its molecules are chemically added to the proteins fixed¹⁶).
   CAUTION: The three described fixatives are highly toxic. Avoid inhalation, especially during their use in the field. Prepare all the fixatives in a fume hood using gloves. Do not mix cacodylate and acids, as arsenic gas can be formed¹⁶.
8. If the fixed samples float in the fixative, this indicates the presence of gas in plant tissues. Air and other gases prevent the fixative from penetrating the whole sample². Remove gas from tissues by resampling them in smaller parts and using a vacuum pump (-300 to -400 inHg pressure) until all the samples sink to the bottom of the solution¹⁷. Be careful as excessive pressure exerted by the pump can damage samples.
9. After at least 48 h in Karnovsky's solution or 10% NBF, wash the samples in 0.2 M PB (Table 3) and dehydrate them with a series of 10%, 30%, 50%, and finally 70% ethanol. For delicate samples, dehydrate for 30 min in each concentration; for larger samples, dehydrate for 1 h or longer.
   NOTE: A 70% ethanol solution is the ideal medium for storing samples. Samples in 70% ethanol can be stored at room temperature for years. Do not store plant material for long periods in the fixatives, as removing fixing agents is an essential step after fixation².
10. Store samples in glutaraldehyde-cacodylate at 4 °C before proceeding to postfixation (step 9.1).

10% neutral buffered formalin (NBF)14
step 1	add 10 mL of 37-40% formaldehyde solution in 80 mL of distilled water
step 2	add 0.4 g of sodium phosphate monobasic monohydrate (NaH2PO4·H2O) to the solution
step 3	add 0.65 g of sodium phosphate dibasic, anhydrous (Na2HPO4)
step 4	make up the volume to 100 mL

Table 1: 10% neutral buffered formalin recipe¹⁴.

Karnovsky's solution (modified15)
step 1	in 20 mL of distilled water at 60-70 °C
step 2	add 0.8 g of paraformaldehyde (to obtain 4% w/v), stirring
step 3	add 1-4 drops of 40% NaOH and stir until the solution becomes clear
step 4	cool it and add 30 mL of 0.2 M phosphate buffer pH 7.2 (Table 3)
step 5	dilute 25% glutaraldehyde in 0.1 M PB (pH 7.2) to obtain 1% glutaraldehyde (final volume: ~60 mL)
step 6	add 1% glutaraldehyde (step 5) to the solution obtained in step 4 until making up to 100 mL of fixative

Table 2: Karnovsky's solution recipe (modified¹⁵).

0.2 M phosphate buffer (PB) pH 7.2
step 1	add 14.196 g of sodium phosphate dibasic, anhydrous (Na2HPO4) to 400 mL of distilled water
step 2	add 13.8 g of sodium phosphate monobasic monohydrate (NaH2PO4·H2O)
step 3	stir until the solution is clear
step 4	adjust the final volume to 500 mL with distilled water
step 5	adjust pH to 7.2
step 6	for a 0.1 M PB, dilute 1:1

Table 3: 0.2 M phosphate buffer recipe.

3% glutaraldehyde 0.2 M sodium cacodylate buffer (modified16)
step 1	0.2 M cacodylate buffer: add 4.28 g of sodium cacodylate trihydrate in 100 mL of distilled water
step 2	adjust pH to 7.2
step 3	add 12 mL of 25% glutaraldehyde in 25 mL of the solution in step 2 (0.2 M cacodylate buffer pH 7.2)
step 4	make up the volume to 100 mL with distilled water

Table 4: 3% glutaraldehyde 0.2 M sodium cacodylate buffer recipe (modified¹⁶).

2. Surface analysis of organs in fixed and non-fixed material

1. To analyze superficial hyphae in organs, especially subterranean ones, and those in contact with leaf litter, observe fixed or fresh material in a dissecting microscope (stereomicroscope) at a magnification of 7.5x or above, depending on the samples analyzed.
   1. Visualize the samples immersed in the fixative, 70% ethanol (if stored in it), or tap water in the case of fresh material. Prevent direct light from the dissecting microscope as it can dry and damage samples.
   2. Search for areas of interest in the samples, guided by the superficial hyphae and rhizomorphs. Select samples which contain areas with superficial rhizomorphs as these can be sectioned to visualize pelotons and hyphae coils within cortical cells in roots and stems.
   3. After selection, follow steps 1.6 and 1.9 if the samples are not yet fixed. If desired, photograph fresh samples using a light microscope without fixing, as described in section 3.
   4. Use the camera coupled to the stereomicroscope to collect images from organ surfaces, rhizomorphs, and other structures observed. In such cases, arrange for an adequate background color to contrast well with the material and, if possible, choose a background material with a less rough surface (e.g., paper).

3. Freehand sections of plant organs

NOTE: Freehand sections of plant organs can be challenging, especially for small and thin structures. However, these sections of tissues with fungal endophytes can, in some cases, better evince hyphae and other features in comparison with thin sections.

1. Section fresh or fixed samples with a sharp blade, cutting them as thin as possible and placing them immediately in a small Petri dish with water (if fresh) or 70% ethanol (if fixed). Use a small paintbrush to manipulate the sections without damaging them.
2. To facilitate sectioning more challenging materials (i.e., small, thin, flexible organs), surround the sample in a structure, for instance, polystyrene or Cecropia petiole. Carve the support to accommodate the sample and make a thin section of the sample and the support altogether.
3. Stain and mount the samples as described in section 6.

4. Embedding plant samples in resin and sectioning

1. Further dehydrate the samples stored in 70% ethanol in 80%, 96%, and 2x in 100% ethanol, for 30 min to 2 h depending on the samples' size and composition.
2. Use a glycol methacrylate (GMA) resin kit according to the manufacturer's instructions. Check Gerrits and Horobin (1996)¹⁸ for further considerations. Follow infiltration and embedding steps accordingly.
   CAUTION: GMA resin is toxic, it can cause allergic reaction and skin, eyes, and mucosa irritation. Use the reagents in a fume hood and use gloves.
3. Use polyethylene molding trays for embedding, selected by samples size (e.g., 13 mm x 19 mm x 5 mm for larger samples, 6 mm x 8 mm x 5 mm for smaller ones). Pay attention to the desired sample orientation inside the mold, and use a needle to help orientate.
4. Leave for polymerization, preferably at room temperature, until completely solidified. The hardening process usually takes a few hours, although it is recommended to unmold the blocks on the following day. After polymerization, carefully detach the resin blocks from the molds and proceed to attach the blocks as soon as possible to avoid block curving.
5. Sand the face of the resin block that will be attached, creating a flat surface. Glue the resin block to a wooden cuboid (2 cm x 2 cm x 3 cm recommended) with a liquid cyanoacrylate adhesive of medium viscosity (see Table of Materials). Ensure that the resin is completely attached to avoid compromising sectioning.
6. Perform sectioning in a rotary microtome as described below.
   CAUTION: The blades of microtome knives are very sharp and can cause accidents. Be sure to handle them following all safety measures. Before approaching the knife (e.g., to change the block, to moist the resin), lock the coarse handwheel and place the blade safety cover on. Store disposable blades in appropriate cases. Be extremely careful when replacing blades.
   NOTE: Different types of knives (e.g., disposable or fixed; glass or steel) can be used to section GMA resin¹⁸. The quality of the sections depends on how sharp the knife is. Make sure the knife is well attached and cannot move. Disposable knives may need to be regularly changed to achieve better sectioning.
   1. Attach the wooden cuboid firmly to the block holder. Adjust the orientation of sectioning using the orientation screws and ensure an adequate angle of the knife using the knife tilt. Select the thickness of the sections; use a thicker setting for trimming and a thinner setting for selected sections, as GMA sections adhere more appropriately to the glass slide when thinner; suggested thickness for plant tissues is 5-8 µm.
   2. Before starting, cool the room, if necessary, as higher temperatures worsen the quality of sections. Prepare the following for sectioning: a beaker with distilled water, a hot plate, paintbrushes (at least two), fine point tweezers, a Pasteur pipette, glass slides, filter paper (or tissue paper), and a pencil (to identify the samples being sectioned).
   3. Adjust the hot plate to 50 °C and place the beaker on it. Pay attention to differences in heating depending on the area of the hot plate (usually, the middle area heats more than the edges; heat the water in the middle, preferably).
   4. Pick a glass slide, identify it with a pencil, and pipette the warm distilled water all over the slide surface. If necessary, use a solution (e.g., detergent and water, or 70% ethanol) to break the tension between the water and the glass, so that the whole slide is equally covered. Some slide types must be pre-cleaned with 70% ethanol to obtain adequate section adherence.
   5. Start by gradually advancing the face of the resin block towards the knife blade. Do not try sectioning without advancing the block first, or else the equipment and the block can be damaged. If necessary, trim the block using a higher thickness (10 µm and above).
   6. When approaching a suitable section, make a firm one-way movement with the handwheel, so the section is made at once. Keep a check on the resin moisture. During sectioning, regularly moisturize the face of the block being cut using a paintbrush dipped in distilled water if there is a problem with curling sections. Remove excess water with a tissue paper.
   7. With a pair of fine point tweezers, place the obtained section in the water over the slide. Upon coming in contact with water, GMA resin stretches. If necessary, use a paintbrush to gently unfold and stretch the sections. Use another paintbrush to constantly keep the blade free of resin debris. Do not switch between the paintbrushes to avoid wetting the blade.
   8. After queueing up all the desired sections in the slide, dry the bottom face of the slide and place it above the hot plate. Remove the excess water from the top of the slide by gently dabbing with a filter paper (optional). The sections will adhere when the water evaporates from the slide. Do not leave the slides too long to prevent the sections being damaged by excessive heat.
   9. Store the slides in a slide box, away from dust and the sun, and use them for staining and other procedures. The slides can be stored for several years.

5. Freezing plant samples and sectioning with a cryostat

NOTE: The essential consideration in cryosectioning biological tissue is to reduce damage due to ice crystal formation when freezing samples. Cryoprotection is usually done by infusing chemically inert solutions such as glycerol or sucrose^19,20.

1. One day before sample sectioning, perform the following steps.
   1. Dilute 100 mL of 0.2 M PB (Table 3) in 100 mL of distilled water to obtain 200 mL of 0.1 M PB. Prepare 10%, 20%, and 30% sucrose solutions in 0.1 M PB (e.g., for a 10% solution, add 2 g of sucrose in 20 mL of buffer).
   2. For fresh samples, wash them in 0.1 M PB for 30 min. For samples in a fixative, wash them in the same buffer used for preparing the fixative for 30 min. For samples in 70% ethanol, hydrate them in 50% and 30% ethanol and wash in 0.1 M PB for 1 h in each solution.
   3. Incubate the samples for 2 h in 10% sucrose, 2 h in 20% sucrose, and 2 h in 30% sucrose, at room temperature. Afterwards, incubate overnight in 30% sucrose at 4 °C (or at least for 3 h; maximum time is 48 h).
2. On the day of sectioning, prepare 40% and 50% sucrose in 0.1 M PB; do not prepare sucrose solutions more than 12 h in advance. Incubate for 2 h in each sucrose concentration, at 4 °C.
3. For embedding, in small molds, make a layer of OCT compound (optimal cutting temperature medium, used for embedding and freezing the samples) and keep it at -20 °C to freeze. The molds can be regular histological molds, although to facilitate unmolding the blocks, paper or tinfoil ones can be made using a small cuboid as a frame and adhesive tape.
4. After the bottom layer of the OCT compound is frozen in the molds, work inside a cryostat chamber (ca. -27 °C). Place the samples incubated in 50% sucrose in the molds, in the orientation in which they will be sectioned. The upper face of a cuboid block is usually a better face of sectioning. Mark in the mold where the samples are placed, so the block can be easily trimmed, and the correct orientation maintained.
5. Surround the samples in OCT compound and burst any air bubble touching the samples. Freeze them at -20 °C. With the blocks fully frozen, place them inside the cryostat chamber (ca. -27 °C). Unmold each one only before using and pay attention to the marks that indicate sample location inside the block.
6. As OCT compound is easily cut with a blade, appropriately trim the blocks before positioning them onto the chucks. Put some OCT compound in the cryostat chuck and position the block so the upper face is sectioned. Faces with smaller areas provide better sections. Wait until the block is well attached to the chuck and test it before starting to section.
7. Place the chuck firmly in the chuck holder. Adjust the orientation of sectioning using the orientation screws. Adjust the angle of the knife using the knife tilt. Select the thickness of the sections. The samples can be sectioned thicker than usual resin sections. Sections in a range between 5-20 µm are successfully obtained, with thicker sections being easier to make (less curling and less damage of structures).
8. Advance the face of the frozen block toward the knife blade. Do not try sectioning without doing so, or else the block can be detached from the chuck and damaged. If necessary, trim the block using a higher thickness (10 µm and above).
9. When approaching a suitable section, place the anti-roll plate (i.e., a transparent plate that will retain the section) above the knife and make a firm one-way movement with the handwheel, so the section is made at once. Curling problems can be caused if the anti-roll plate needs to be adjusted (it is usually adjustable in reference to the blade) or if there is debris in the blade. Clean the blade constantly with a paintbrush to remove debris.
10. Use special slides so the sections attach easily, like silanized slides (commercial or prepared with 2% aminoalkylsilane in acetone²¹), or slides prepared with 500 µg/mL poly-L-Lysine in distilled water²¹ or 0.2% gelatin (see details²¹). Maintain the slides at room temperature.
11. To adhere the section to a slide, lift the anti-roll plate and rapidly make the slide touch the section. As the slide is at room temperature, the section immediately melts and adheres to the slide. Pay attention to turn the treated face of the slide to the section, which may remain above the knife or on the inner face of the anti-roll plate. To avoid curling of sections, perform this step rapidly as soon as the plate is lifted and be careful not to contort the section.
12. Leave the slide outside the cryostat chamber (at room temperature) if new sections are to be added to it. After adhering all the wanted sections to the slide, keep it inside the cryostat chamber or in the freezer (-20 °C or below). Do not expose the slides to humidity. Keep them in a slide box and remember to identify the slides with a pencil.
    NOTE: Slides and blocks of OCT can be stored at -20 °C, although not for too long. To achieve better results, use the slides and the blocks within a few days.

6. Staining plant sections and endophytes for light microscopy

NOTE: Many types of stains can be used for plant sections. It is challenging to differentially stain endophytic fungi and plant tissues. Although not a staining procedure, a method for marking fungi structures is presented in section 7 (fluorescence with a wheat germ agglutinin conjugate). Freehand sections (explained in section 3), resin sections (section 4), and cryosections (section 5) can be stained, although phenol and alcohol-based stains are challenging for these samples as GMA resin and OCT lose adherence to the slide in these cases.

1. Use one or combine the following usual staining methods for plant samples.
   1. Toluidine blue O^22,23, a vastly applied method for general staining of plant sections. Prepare a solution of 0.05% toluidine blue O in 0.1 M phosphate (pH 6.8) or 0.09 M citrate buffer (pH 4.5-4.8), depending on the species and types of tissue. Incubate GMA resin sections for 2-10 min using a slide staining jar or by placing some drops above the sections if few slides are stained. Wash carefully with distilled water or buffer after incubation and mount the slides with water or dry them on a hot plate to produce permanent slides as described in step 6.3.
   2. Lugol reagent² indicates the presence of starch. Prepare a 5% iodine (I₂) and 10% potassium iodide (KI) solution in distilled water. Stain sections for 2 min, by adding few drops above the slide, and then wash with distilled water. This histochemical test is usually applied to temporary slides.
   3. Sudan III, IV, and black B^24,25 stain for different lipids. Prepare a solution of 0.3% Sudan (III, IV, or black B) in 70% ethanol, warm it until boiling, and let cool. Use the supernatant, filter it, and incubate sections for 15-30 min in a closed Petri dish. Wash the sections carefully with 70% ethanol and distilled water. Mount the slides with water (usually applied only to temporary slides).
      NOTE: As Sudan is an alcohol-based dye, it is more suitable for freehand sections. Conduct GMA resin section staining carefully as they usually detach from the slide.
2. For temporary slides, mount the sections in water or glycerin and observe subsequently. Seal the coverslip with nail polish for preserving them a little longer.
3. For permanent slides, mount the sections with synthetic resins (e.g., rapid mounting medium, see Table of Materials). Drip a few drops of the mounting medium (it can overflow the coverslip), put the coverslip carefully to avoid bubbles, and use clothes pegs to press the slide against the coverslip until fully dry. Remove the excess of dried mounting medium with a razor blade.

7. Application of a fluorochrome conjugated to wheat germ agglutinin in fluorescence and confocal microscopy

NOTE: This method can be applied to freehand sections (explained in section 3), resin sections (section 4), and cryosections (section 5). Cryosections can be adequate for confocal microscopy purposes, as thicker samples can be provided when compared to resin sections, but not as thick as freehand ones. A fluorochrome conjugated to wheat germ agglutinin (WGA, see Table of Materials) is applied to fungal imaging in fluorescence microscopy²⁶. A confocal microscope is not essential, although it can provide clear three-dimensional images of plant structures²⁷.

1. Prepare a solution of 0.2 mg/mL WGA-fluorochrome conjugate in 0.1 M PB²⁸ (pH 7.2, check step 5.1.1 and Table 3). Prepare a solution of 1% Calcofluor White in 0.1 M PB (pH 7.2). Prepare small amounts of these solutions, as the sections are directly incubated with them.
2. Incubate the sections in the glass slides for 30 min in the WGA-fluorochrome conjugate solution²⁹, using enough volume to cover the sections, then wash in 0.1 M PB.
3. Incubate the sections in the calcofluor solution, using enough volume as a mounting medium. The solution can be maintained during the observation period.
4. Put coverslips on the slides and observe in a confocal microscope or a fluorescence light microscope using the following filters: TC/GFP (excitation: 470-440, emission: 525-550, for WGA-fluorochrome in the Table of Materials - fungal cell wall fluoresces green under this filter²⁹) and DAPI (excitation: 358, emission: 463, for Calcofluor White)³⁰.
   NOTE: Three-dimensional images can be obtained using the Z-series function in the confocal microscope²⁷.

8. Scanning electron microscopy of plant organs

1. After fixing samples, performing dehydration, and storing in 70% ethanol (section 1), one possibility is to cut samples to expose any desired surface for SEM analysis, if necessary (e.g., internal tissues, ovary structure). Use a sharp and new razor blade and make cuts with a one-way movement, avoiding a damaged appearance of these areas in SEM. If necessary, use a stereomicroscope to select the samples and consider the metal stubs area to determine sample sizes.
2. Further dehydrate samples for SEM in an ethanolic series: 80%, 96%, and 2x in absolute ethyl alcohol (≥99.8%). Maintain small and delicate samples for 30 min in each concentration and larger and denser samples for 1 h.
3. Fold small envelopes using tissue paper to organize samples for the next steps, larger samples can be handled without an envelope. Identify the envelopes with a pencil by writing a letter or a number, and keep a log of all the samples in each one. Keep the samples in absolute ethanol, although not for long, and proceed to step 8.4 as soon as possible.
4. Proceed for critical-point (CP) drying. Operate a CP dryer according to standard operating procedures. Place samples in absolute ethanol (intermediate fluid) in a pressure chamber. At the CO₂ critical point (31 °C, 7.3 x 10⁶ Pa) the intermediate fluid dissolves into the transition fluid (liquid carbon dioxide), and the samples are dried³¹.
5. After CP drying, store samples as soon as possible in a desiccation container, for instance, a sealed flask containing silica gel. Atmospheric humidity can destroy the samples if reabsorbed³¹.
6. Use metal stubs to mount the samples. Before mounting, put gloves on to manipulate the stubs, immerse them in acetone for 5 min to eliminate any fat, and let them dry. Use a conductive double-sided carbon adhesive tape to fix samples on the stub, and a stereomicroscope to help position samples, keeping in mind that the sight from above is the only possible perspective in SEM images.
7. Manipulate samples with fine-point tweezers, being careful as the sample part touched by the tweezers is usually damaged, so try touching parts positioned away from the areas of interest (e.g., areas in contact with the tape). Maintain the stubs with samples in a sealed Petri dish with silica gel. Proceed to step 8.8 as soon as possible.
8. Use a sputter coater to deposit a layer of metal, usually gold or platinum, on the surface of the samples in a low-pressure atmosphere of an inert gas, frequently argon³¹. Follow standard operating procedures when using a sputter coater. The coating thickness depends on the topography of the samples, usually between 15-40 nm³².
9. Maintain the coated stubs in a sealed Petri dish with silica gel, and provided that the silica gel is retaining humidity, samples can be stored this way for weeks. Use a scanning electron microscope to analyze the samples. The samples in vacuo are struck by a beam of electrons, and the emission of signals from such interaction is interpreted as images³¹. For details on operating a scanning electron microscope, read Jeffree and Read (1991)³¹ and Bozzola and Russell (1999)³².
10. To reuse the stubs, pull the adhesive tape and scrub them with wire wool. Wash in tap water, immerse in absolute ethanol, and dry them adequately, preventing oxidation of the constituent metal.

9. Transmission electron microscopy

1. Prefix samples with glutaraldehyde-cacodylate buffer as explained in steps 1.7 and 1.10. After 12-24 h of prefixation, wash the samples 3x in 0.2 M cacodylate buffer (pH 7.25) for 10 min. Perform postfixation with 1% osmium tetroxide (OsO₄) in 0.2 M cacodylate buffer, for 12 h in the dark, at room temperature. Wash 3x with distilled water for 5 min.
   CAUTION: Cacodylate and osmium tetroxide are highly toxic and should not be inhaled. Use them in fume hoods, following the respective safety data sheets.
2. Dehydrate the samples with 30%, 50%, 70%, and 96% ethanol, 2x in each concentration, for 10 min. Then, dehydrate 3x in absolute alcohol, for 15 min each time.
3. Infiltrate the samples in hydrophilic acrylic resins (see Table of Materials), once with 1:1 resin + absolute ethanol and 3x with pure resin for 8-12 h each. Conduct polymerization in gelatin capsules at 60 °C until completely solidified (12 h maximum¹⁷).
4. Closely evaluate the orientation of samples inside the resin block; cut the top part of the block, with a razor blade, making a pyramidal shape that concentrates the sample in the sectioning area. Obtain semithin sections (250-500 nm)³³ in an ultramicrotome with a diamond knife and place on glass slides in few drops of water.
5. Keep the slides on a hot plate at 60 °C. Stain the sections with toluidine blue O as in step 6.1.1 and let the stain dry completely. Wash carefully with tap water. Evaluate the obtained section by drawing four quadrants and selecting the most suitable quadrant for analysis.
6. Trim the block so the pyramidal shape concentrates the chosen quadrant on the block's upper face. Produce ultrathin sections (50-100 nm)^33,34. Thickness is evaluated according to the interference color of the sections: sections with about 70 nm appear silver-gold, with about 100 nm appear gold, and with about 200 nm appear blue³⁴.
7. Collect the ultrathin sections from water using copper grids and proceed to the contrast staining method with uranyl acetate and lead citrate, as described below.
   1. Prepare a lead citrate solution (Table 5) and freeze the final solution in microcentrifuge tubes with 1 mL of solution in each, only thawing right before use.
   2. Prepare a uranyl acetate solution: dissolve 0.625 g of uranyl acetate [UO₂(CH₃COO)₂] in 25 mL of recently boiled and cooled distilled water. Store in a dark flask in the freezer.
      CAUTION: Lead nitrate is toxic if ingested. 1 N NaOH is highly corrosive. Uranyl acetate is radioactive and toxic. It must not be ingested, inhaled, or come in contact with the skin.
   3. When staining, put both prepared reagents in separate 3 mL syringes with filter units (0.22 µm pore, see Table of Materials). Prepare a Petri dish turned upside-down with a sealing thermoplastic film over it (see Table of Materials) and inside a wider dish, with NaOH pellets on the edges as a trap for CO₂³² (see Figure 2).
   4. Discard the first drop, and over the film place a drop of uranyl acetate and three drops of distilled water for each grid stained. Do the same with lead citrate and add three more drops of distilled water.
   5. Incubate the grid (with the opaque side downwards, where the sections are) in uranyl for 30 min (variable time). Wash 3x in the distilled water drops, drying the grid each time gently with filter paper on the brilliant side. Repeat with the lead citrate drop (30 min) and wash it.
8. After at least 4 h, analyze the grids in a transmission electron microscope. In this microscope, a beam of electrons passes through the sections in vacuo and the image is projected on a fluorescent screen. For details on operating a transmission electron microscope, read Bozzola and Russell (1999)³².

lead citrate solution (for TEM contrast staining)
step 1	surround a beaker with tinfoil
step 2	dissolve 0.266 g of lead nitrate [Pb(NO3)2] in 6 mL of recently boiled and cooled distilled water
step 3	agitate for 2 min
step 4	add 0.352 g of trisodium citrate [Na3(C6H5O7).2H2O] (the solution must acquire a milky appearance)
step 5	agitate for 15 min, seal the beaker with tinfoil and transfer the solution to a 10 mL beaker
step 6	add 1.6 mL of 1N NaOH and 2.4 mL of distilled water (the solution must be translucent)
step 7	if necessary, adjust the pH close to 12

Table 5: Lead citrate solution recipe.

Figure 2: Contrast staining scheme with lead citrate and uranyl acetate solutions. (A) Prepare the Petri dishes, one turned upside-down (in the center) with thermoplastic film so drops can be placed above it, inside a wider one. NaOH pellets are places around the central dish. (B) Uranyl acetate drops are placed in the circles with the letter U, and lead citrate drops in the circles marked L. DW indicates drops of distilled water. The grids are stained sequentially in the column, so five grids can be stained simultaneously as represented. Please click here to view a larger version of this figure.

10. Symbiotic germination of orchid seeds

1. Ensure that the solutions and all the materials used in symbiotic germination of seeds are sterile to avoid contamination. Start by autoclaving them for 20 min at 121 °C. The symbiotic germination steps are summarized in Figure 3.
2. Superficially disinfect fruits and seeds by immersing them in sodium hypochlorite solution containing 2% active chlorine for 10-15 min for fruits and 7-10 min for seeds, considering the stiffness and thickness of seed coat⁹. Slim and fragile seeds can be immersed in a 1:1 diluted sodium hypochlorite solution. Afterwards, wash 3x in autoclaved distilled water to remove the hypochlorite solution.
3. Recuperate the seeds by filtering in serigraphic fabric and use the seeds to proceed with germination tests (preferably). If necessary, store them in filter paper envelopes inside glass flasks with silica gel, at 4 °C, hermetically close the flasks and seal them with cling film. Transfer some drops of water from the last wash to potato dextrose agar (PDA, 39 g/L), to evaluate the effectiveness of the washing process.
4. Before sowing seeds in the culture medium, evaluate their viability through the tetrazolium test (optional) as described below³⁵.
   1. Incubate approximately 10 mg of seeds in a microcentrifuge tube with 1 mL of 10% sucrose in distilled water, for 24 h at room temperature (ca. 25 °C), in light.
   2. Remove the sucrose solution with a micropipette and add 1 mL of 1% tetrazolium solution (triphenyltetrazolium chloride) in distilled water. Incubate at 40 °C in a thermoblock for 24 h in the dark.
   3. Remove the tetrazolium solution with a micropipette and wash the seeds with distilled water 2x or until the solution is removed. Remove all liquids. If necessary, the seeds can be stored in the freezer for up to a week (as in step 10.3) before being analyzed.
   4. Resuspend the seeds in distilled water and analyze them under a light microscope. Viable seeds acquire light to dark red color, while non-viable seeds retain their natural color.
5. Perform the following adapted⁹ protocol for symbiotic germination of orchid seeds.
   1. Incubate the seeds over autoclaved filter paper discs (1-2 cm in diameter) placed in Petri dishes with oatmeal agar (OMA) culture medium (2.5 g/L of oat flakes and 7 g/L of agar, pH 6).
   2. In the center of the Petri dish, inoculate a fragment of culture medium (ca. 1 cm²) containing mycelium from the chosen isolated fungus for germination procedure. Seal the Petri dishes with cling film and incubate them in the dark at around 25 °C or room temperature, as it is more adequate for fungal growth.
   3. Prepare some dishes with seeds and without fungal inoculation, as a negative control for the germination test.
6. Analyze the germination results weekly, by collecting quantitative and qualitative data and photographing protocorms and seedlings. The observation of seeds and protocorms should be performed using a stereomicroscope for a more accurate assessment of germination. Use a light source coming from below, as it allows for greater contrast, making it possible to discriminate the fungal mycelium from protocorms more easily.
   1. Collect samples in different developmental stages and fix for anatomical analyses (section 1). Apply all the image analyses previously described to investigate fungal endophytes in seeds, protocorms, and seedlings during germination (light microscopy - sections 4, 5, and 6; confocal and fluorescence - section 7; SEM and TEM - sections 8 and 9).
   2. Generate quantitative results following the classification of stages according to Table 6. The stages describe the usual development of seeds from mycoheterotrophic orchids. Collect data weekly and table with the initial dates of each observed stage.
   3. Additionally, collect quantitative data estimating germination percentage and rate. Count at least 100 seeds or define counting fields³⁵. Demarcate three or more counting fields per Petri dish, consisting of fixed regions with a standardized area, and evaluate weekly. Calculate collected data according to the growth index (GI) equation:

      where N₀ is the number of counted seeds in stage 0, N₁ refers to stage 1, and it follows until stage 6 (registered as N₆)³⁶.

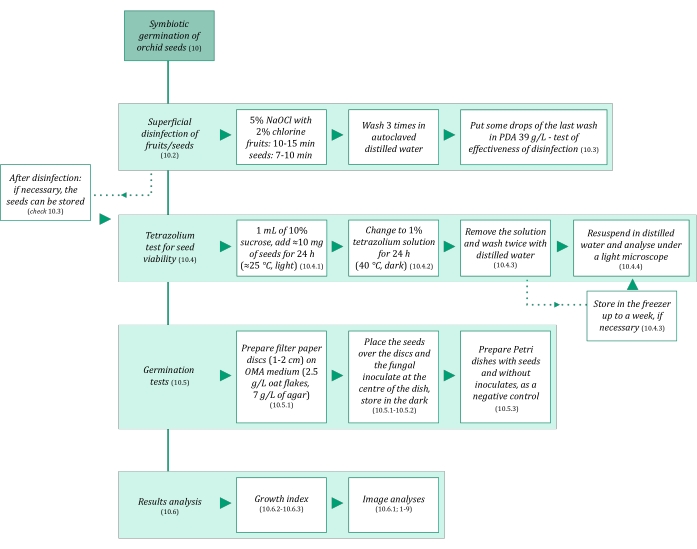

Figure 3: Schematic summarization of symbiotic germination of seeds methodology. The schematics provide indications of detailed steps in the protocol. Abbreviations: OMA = oatmeal agar, PDA = potato dextrose agar. Please click here to view a larger version of this figure.

Germination stage	Description
0	No germination
1	Swelling of the embryo
2	Testa rupture
3	Absorbent hairs develop
4	Stem projection develops
5	Protecting scales (bracts) develop
6	First roots develop

Table 6: Description of protocorm developmental stages applied to periodic analyses of germination tests. Modified from stages described in Otero et al.³⁶.

Representative Results

Following the essential stages of fixing plant tissue yields cellular structures as similar as possible to the living state, considering the morphology, volume, and spatial organization of cellular components and tissues¹⁶. Observe such traits in the samples after chemical fixation (Figure 4). Figure 4C-F represents adequately fixed samples under light microscopy. Following the fixation procedures described and acquiring familiarity with the samples structure help analyze fixation success.

Figure 4: Superficial analysis and sections from filiform roots of the MH orchid Wullschlaegelia aphylla (Sw.) Rchb.f. (A and B) Rhizomorphs in filiform root surface. (C and D) Freehand sections not stained, evincing pelotons in cortical cells. (E and F) Thin sections stained with toluidine blue O. Abbreviations: en = endodermis, ep = epidermis, ct = cortex, hy = hypha, pc = parenchymatous cell, pe = phloem elements, pl = peloton, rfl = root (filiform), rm = rhizomorph, vc = vascular cylinder, xe = xylem element. Scale bars: A = 2 mm; B = 500 µm; C and E = 200 µm; D = 100 µm; F = 20 µm. Please click here to view a larger version of this figure.

Note in Figure 4C,D the regularity of structures and absence of damaged areas in a freehand section of a sample fixed by 10% NBF. The cellular volume is preserved, resembling living tissues. Comparing with a freehand-sectioned fresh organ is also important in recognizing well-fixed samples. In Figure 4E,F, sections from samples embedded in GMA resin and fixed by 10% NBF were stained with toluidine blue O. Note the well-preserved structures of cell walls, without distortions or damaged areas, showing very similar traits as in a freehand-sectioned sample (Figure 4C,D).

When analyzing the surface of subterranean organs, the presence of rhizomorphs indicates hyphae colonizing internal tissues. Rhizomorphs are vegetative structures composed of an aggregate of highly differentiated hyphae and formed by a few species of fungi, mainly saprotrophic that decompose wood^37,38. The rhizomorphs can be easily recognized, usually as dark shoestring-like structures³⁷, seen in Figure 4A,B and Figure 7D. Searching for these fungal structures facilitates sample selection to observe the pattern of fungal colonization in plant organs. In Figure 4C,D, the sections were obtained in areas with superficial rhizomorphs, whereas in Figure 4E, a section of the same organ without selection of such criterium is shown. Individualized hyphae can also be identified under a dissecting microscope with a perceptive observation.

Figure 5: Freehand sections of Uleiorchis sp. storage structure. (A) Section under a dissecting microscope. (B) Pelotons under a light microscope, concentrated in a region of the cortex of the organ. (C and D) Hyphae details of the pelotons analyzed. Abbreviations: hy = hypha, pc = parenchymatous cell, pl = peloton, s = septa. Scale bars: A = 2 mm; B = 500 µm; C and D = 50 µm. Please click here to view a larger version of this figure.

As previously explained, freehand sectioning can be preferred in comparison to thin sectioning depending on the aim. Freehand or other methods of obtaining thicker sections (more than 10 µm thick) can better evince pelotons and provide more representative images of fungal patterns of colonization (for instance, Figure 4C,D and Figure 5A,B). Freehand sections can also be suitable for hyphae analysis in higher amplification, as demonstrated in Figure 5C,D, although details are better achieved in thinner sections, as in Figure 7A, from a sample embedded in GMA resin. Some details of plant cell structures are adequately observed in thin sections, for instance, Figure 4F. Mounting is also an important step, as better-quality images can depend on the mounting medium. GMA resin slides can be mounted in water or glycerin, although a commercial mounting medium (see Table of Materials) will improve the final image as it fills imperfections from the sectioning process. In Figure 6C, imperfections can be seen (arrowheads) in a GMA resin section, as the slide was mounted with water.

Figure 6: Sections of fusiform roots of W. aphylla stained with Lugol solution. (A) Freehand section stained with toluidine blue O and Lugol. (B) Stained only with toluidine blue O. (C) Thin section in GMA resin stained with lactophenol cotton blue and Lugol, arrowheads: imperfections from blade irregularities. (D) Freehand section stained only with Lugol. Abbreviations: cw = cell wall, pc = parenchymatous cell, sg = starch grains, vc = vascular cylinder. Scale bars: A = 200 µm; B and C = 100 µm; D = 50 µm. Please click here to view a larger version of this figure.

The main benefit in using toluidine blue O (more adequate results in thin sections) is the important metachromatic properties of this stain, meaning it acquires different colors depending on the cellular component it binds to and functions as a polychromatic stain suitable to differentiate different compositions of cell walls²³. In Figure 4F, secondary cell walls in xylem elements can be easily identified by the light color toluidine acquires. Meanwhile phloem elements, composed only of primary cell walls, are identified by their thinner and darker cell walls. Another important stain, mainly considering MH plants, is Lugol solution, as starch grains are easily identified when stained by it. Sections are represented in Figure 6A-D: freehand section stained with toluidine blue O and Lugol in Figure 6A and only toluidine blue O in Figure 6B; thin section in GMA resin stained with lactophenol cotton blue and Lugol in Figure 6C; freehand section stained only with Lugol in Figure 6D.

Incubation of freehand (Figure 7C), GMA resin (Figure 7B), or OCT sections with WGA-fluorochrome conjugate and Calcofluor White can enhance the structures of the fungal cell wall and plant cell wall, respectively. It is an important method of confirming hyphae, as WGA conjugate has specificity to N-acetylglucosaminyl residues, present in the cell wall of fungi. Figure 7A demonstrates a section of floral stem stained with toluidine blue O, while Figure 7B is from the same organ and confirms the structures seen in Figure 7A are hyphae. Artifacts by autofluorescence can be seen in GMA resin sections (arrowheads, Figure 7B). These artifacts are usually related to fluorochrome concentration and can be avoided by washing the samples more number of times with the buffer. In Figure 7C, a freehand section of root is shown, with internal and external hyphae. The same organ can be seen by SEM in Figure 7D, with an abundance of rhizomorphs and individual hyphae on its surface. Adequate SEM micrographs have good contrast between shades of grey, so tridimensionality can be seen and well interpreted. Choose representative images and avoid misleading ones (further reading: tips for choosing electron micrographs³²).

Figure 7: Sections from the floral stem and filiform roots of W. aphylla and superficial analysis of filiform root by SEM. (A) Thin section of floral stem in GMA resin, stained with toluidine blue O. (B) Thin section of floral stem in GMA resin incubated with WGA-fluorochrome conjugate + Calcofluor White, arrowheads: artifacts by autofluorescence. (C) Freehand section of filiform root incubated with WGA-fluorochrome conjugate + Calcofluor White. (D) Scanning electron micrograph of the filiform root surface. Abbreviations: cw = cell wall, hy = hyphae, pc = parenchymatous cell, pl = peloton, rfl = root (filiform), rm = rhizomorph. Scale bars: A, C, and D = 100 µm; B = 20 µm. Please click here to view a larger version of this figure.

Fruits from different orchid species were immersed in sodium hypochlorite with 2% active chlorine for 15 min, to guarantee complete superficial disinfection of the organs (Figure 8A). Seeds with more rigid seed coats as from Vanilla sp. (Figure 8A) and Pogoniopsis schenckii (Figure 9B-D) were immersed in the same solution for 10 min (Figure 8C), whereas slimmer ones, as from Laelia sp. and Cattleya sp., maintained for 7 min (Figure 9A). Transferring an aliquot of water from the last wash confirmed the effectiveness of the disinfection process before proceeding to the germination tests, considering both durations of immersion described.

Figure 8: Superficial disinfection of fruits and seeds of Vanilla panifolia, a photosynthetic orchid species. (A) Fruit immersion in sodium hypochlorite with active chlorine. (B) Fruit longitudinally sectioned. (C) Seeds filtered using serigraphic fabric after immersion in sodium hypochlorite, ready to be sown or stored in silica gel. Please click here to view a larger version of this figure.

Sowing the seeds over filter paper discs assure there is enough humidity and oxygen for germination and embryo development (Figure 9A-D) without being completely submerged under the superficial water layer from the culture medium. Some fungal isolates can grow vigorously over the seeds. The medium containing 2 g/L of crushed oat flakes provides better control of fungal growth, improving the visualization and analysis of seeds (Figure 9B). After ca. 50-60 days of isolate inoculation, the medium must be renewed, so the fungus remains active. This can be done by transferring the seeds to a new OMA medium of the same formulation. The seeds can be transferred with the filter paper, facilitating their transference without damaging protocorms' delicate structures, besides keeping them in the original position without compromising the counting fields previously established.

Figure 9: Protocol of symbiotic germination. (A) Seeds arranged over filter paper in OMA medium. (B) Petri dishes with seeds and an inoculated fungus (potentially mycorrhizal), incubated for ca. 21 days. (C and D) Symbiotic germination dishes with different fungal isolates. Please click here to view a larger version of this figure.

Most orchid species germinate within some weeks after being infected by the inoculated fungus or until nearly more than a month (Figure 10). Seeds that do not germinate within 3 months will probably not germinate unless adjusting the methodology. In such cases, consider possibilities such as seed dormancy or the fungal isolate not being mycorrhizal. Some species need specific protocols to break dormancy, others simply present a high specificity to certain mycorrhizal partners, different from the ones chosen for the symbiotic germination test (data not published).

Figure 10: Pogoniopsis schenckii seeds, an achlorophyllous and MH orchid, in OMA medium with fungal inoculate³⁹ capable of stimulating germination. (A-D) Not germinated seeds and protocorms in different developmental stages. Abbreviations: ng = no germination, pt = protocorm, ri = ruptured integument, ts = turgid seed. Scale bars = 200 µm. Please click here to view a larger version of this figure.

In the first few weeks after inoculating the isolate, the dishes are evaluated, as it usually takes 7-14 days until the hyphae achieve the seeds. Consider this period, as it is preponderant to start registering the development of the embryos. The subtle changes during germination stages can only be detected under a dissecting microscope, considering the structures are so minute. Some species protocorms must be analyzed under a light microscope to identify absorbent hairs and tell them apart from hyphae. GI analysis can provide more plausibly comparable results, generating a representation of collected data and conferring more weight to values corresponding to more advanced germination stages. The final values can range between zero and six (or according to the last stage defined). Different statistical tests can be applied to GI analyses (e.g., ANOVA, significance level), depending on the researcher's questions and demands when carrying out symbiotic germination tests.

Discussion

Image analyses in plant anatomy and morphology have an important potential to fulfil objectives and help understand the relationships between mycoheterotrophic plants and their indispensable fungal endophytes, as demonstrated by studies of subterranean organs^6,40, structural analyses of symbiotic germination of seeds³⁹, and aerial and reproductive structures⁴¹. Structural botany, despite having lost its prestige and space to other areas of plant sciences in the last decade¹, is still prominent in answering questions and helping to unveil novelties and essential plant traits related to development, ecology, physiology, and evolution. These methods are collectively a basis for structural studies of plants, considering important aspects of MH plant analysis.

Essential information is provided to carefully collect MH plants, as otherwise the well-developed underground organs can be damaged and not completely collected. Remarkable adaptations of these structures⁶ and the intimate contact with fungi from soil, connected to autotrophic plants⁴² or decomposing leaf litter⁴⁰ are to be considered when collecting and preserving the underground structures. The essential steps of sample fixation need to be adequately followed, regarding correct preparation of fixatives and time issues, minimum time required between collecting and fixing, and minimum time required in the fixative before proceeding to storage. Structural analysis of well-preserved samples depends on the fixation process, and the most common and best-preserving fixatives applied to study plant anatomy and electron microscopy are described in the protocols section. Other fixatives^14,16,25 can also be applied.

As previously stated, the process of using chemical fixatives is decisive and can be evaluated when obtaining sample images. In LM, cellular structures should be as similar as possible in comparison with living tissues¹⁶. The volume, morphology, and spatial disposition of identifiable cellular components should resemble as much as possible to the fresh tissues (non-fixed). In TEM, well-preserved tissues can be evinced when the tonoplast is visible, with smooth contours, and not pulled away from the cytoplasm¹⁶. The plasma membrane cannot be detached and shrunk away from the cell wall. Samples for TEM must be collected as thinly as possible and inside a drop of fixative, as explained in the protocol section. The use of buffers associated with fixing agents provides important conditions of osmolarity and ionic composition to the samples being fixed, avoiding as many changes as possible in cellular structure and ultrastructure¹⁶. In SEM, one major concern is with isotonic fixatives and preparing them with buffers, so there are no considerable changes in sample volume (swelling or shrinkage)¹⁶.

Many different embedding methods for LM are available to obtain sections for various purposes. Considering staining and fluorescent-dyes incubation, two important methodologies are presented to analyze MH plants organs. The ones described above (freehand sections, GMA resin, and OCT embedding) are among the most common and simple, providing methodological freedom and suitability to many types of analysis. The conjugate WGA-fluorochrome has considerable potential in MH plants studies, as it is currently more applied to fungal pathogens^28,29,30 and scarcely used with MH plants fungal endophytes. The basic and essential steps for scanning and transmission electron microscopy are detailed, as these techniques can greatly contribute to the structural analysis of plants. SEM and TEM literature is rich, and further reading^32,33,34,43 is recommended if other types of electron microscopy analyses are to be tested.

Regarding symbiotic germination procedures, it is possible to conduct fruit asepsis before dehiscence, without the necessity of disinfecting the seeds directly. However, seeds from fruits already open or colonized by endophytes (already described for MH species^39,41) must be directly disinfected. An important remark: time and conditions of storage and asepsis processes can reduce the viability of the seeds from some species as observed while performing these experiments. Tetrazolium reagent confers a color ranging from light to dark red to embryos from viable seeds. Embryos from non-viable seeds remain with their natural color. Seeds with heavily pigmented teguments or rigid seed coats may need a pre-treatment before the germination test. It is recommended to perform scarification of their tegument, enabling the visualization of the embryo³⁵.

Some potential mycorrhizal fungal isolates from tropical orchids, for instance, Ceratobasidium species, have a vigorous and accelerated growth in a nutrient-rich culture medium. During the treatment, it is possible that the isolates completely cover the seeds when they grow, making data collection difficult or even impossible. The commonly used protocol containing 4 g/L of crushed oat flakes⁹ prevented data collection in symbiotic germination of P. schenckii, demanding an adequation to 2 g/L of crushed oat flakes³⁹. Using approximately 2.5 g/L of oat flakes to compose OMA medium in symbiotic germination appears to be satisfactory in limiting the growth of more vigorous fungal isolates (unpublished data).

Limitations can arise from the methods described, some of which can be effectively overcome by adapting the procedures or applying other methods. As discussed before, GMA embedding is only effective for sectioning up to 8 µm thick. However, OCT embedding provides different thickness sections, including thicker ones (e.g., 10-20 µm). Staining only fungi structures in plant tissues is not easily conducted, although WGA-fluorochrome is an important and effective conjugate fluorochrome that marks fungal cell walls, although it is expensive. Other cost limitations can arise in SEM and TEM methods, as the high costs and essentiality of equipment make such analyses not trivial and usual to every research group. The symbiotic germination of seeds tests, although simple and less expensive, demand mycorrhizal fungi to inoculate the seeds and careful procedures avoiding contaminations.

Materials

Name	Company	Catalog Number	Comments
Acetone	Sigma-Aldrich	179124	(for SEM stubs mounting)
Agar-agar (AA)	Sigma-Aldrich	A1296	(for seeds germination tests)
Calcofluor White Stain	Sigma-Aldrich	18909	fluorescent dye (detects cellulose)
Citrate Buffer Solution, 0.09M pH 4.8	Sigma-Aldrich	C2488	(for toluidine blue O staining)
Conductive Double-Sided Carbon Tape	Fisher Scientific	50-285-81	(for SEM)
Confocal Microscope	Zeiss		(any model)
Copper Grids	Sigma-Aldrich	G4776	(for TEM)
Critical-point dryer	Balzers		(any model)
Cryostat	Leica Biosystems		(any model)
Dissecting microscope	Leica Biosystems		(= stereomicroscope, any model)
Entellan	Sigma-Aldrich	107960	rapid mounting medium for microscopy
Ethyl alcohol, pure (≥99.5%)	Sigma-Aldrich	459836	(= ethanol, for dehydration processes)
Formaldehyde solution, 37%	Sigma-Aldrich	252549	(for NBF solution preparation)
Formalin solution, neutral buffered, 10%	Sigma-Aldrich	HT501128	histological tissue fixative
Gelatin capsules for TEM	Fisher Scientific	50-248-71	(for resin polymerisation in TEM)
Gelatin solution, 2% in H2O	Sigma-Aldrich	G1393	(dilute for slides preparation - OCT adherence)
Glutaraldehyde solution, 25%	Sigma-Aldrich	G6257	(for Karnovsky’s solution preparation)
HistoResin	Leica Biosystems	14702231731	glycol methacrylate (GMA) embedding kit
Iodine	Sigma-Aldrich	207772	(for Lugol solution preparation)
Lead(II) nitrate	Sigma-Aldrich	228621	Pb(NO3)2 (for TEM contrast staining)
Light Microscope	Olympus		(any model)
LR White acrylic resin	Sigma-Aldrich	L9774	hydrophilic acrylic resin for TEM
Lugol solution	Sigma-Aldrich	62650	(for staining)
Metal stubs for specimen mounts	Rave Scientific		(for SEM, different models)
Microtome	Leica Biosystems		manual rotary microtome or other model
Oatmeal agar (OMA)	Millipore	O3506	(for seeds germination tests)
OCT Compound, Tissue-Tek	Sakura Finetek USA	4583	embedding medium for frozen tissues
Osmium tetroxide	Sigma-Aldrich	201030	OsO4 (for TEM postfixation)
Parafilm M	Sigma-Aldrich	P7793	sealing thermoplastic film
Paraformaldehyde	Sigma-Aldrich	158127	(for Karnovsky’s solution preparation)
Poly-L-lysine solution, 0.1% in H2O	Sigma-Aldrich	P8920	(for slides preparation - OCT adherence)
Poly-Prep Slides	Sigma-Aldrich	P0425	poly-L-lysine coated glass slides
Polyethylene Molding Cup Trays	Polysciences	17177A-3	(6x8x5 mm, for embbeding samples in GMA resin)
Polyethylene Molding Cup Trays	Polysciences	17177C-3	(13x19x5 mm, for embbeding samples in GMA resin)
Potassium iodide	Sigma-Aldrich	221945	(for Lugol solution preparation)
Potato Dextrose Agar (PDA)	Millipore	70139	(for seeds germination tests)
Scanning Electron Microscope	Jeol		(any model)
Silane [(3-Aminopropyl)triethoxysilane]	Sigma-Aldrich	A3648	(for slides preparation - OCT adherence)
Silane-Prep Slides	Sigma-Aldrich	S4651	glass slides coated with silane
Silica gel orange, granular	Supelco	10087	(for dessicating processes)
Sodium cacodylate trihydrate	Sigma-Aldrich	C0250	(for glutaraldehyde-sodium cacodylate buffer)
Sodium hydroxide	Sigma-Aldrich	S5881	NaOH (for Karnovsky’s solution preparation and TEM contrast staining)
Sodium hypochlorite solution	Sigma-Aldrich	425044	NaClO (for seeds surface disinfection)
Sodium phosphate dibasic, anhydrous	Sigma-Aldrich	71640	Na2HPO4 (for NBF solution and PB preparation)
Sodium phosphate monobasic monohydrate	Sigma-Aldrich	S9638	NaH2PO4·H2O (for NBF and PB)
Sputter coater	Balzers		(any model)
Sucrose	Sigma-Aldrich	S0389	C12H22O11 (for cryoprotection and germination test)
Sudan III	Sigma-Aldrich	S4131	(for staining)
Sudan IV	Sigma-Aldrich	198102	(for staining)
Sudan Black B	Sigma-Aldrich	199664	(for staining)
Syringe			(3 mL, any brand, for TEM contrast staining)
Syringe Filter Unit, Millex-GV 0.22 µm	Millipore	SLGV033R	PVDF, 33 mm, gamma sterilized (for TEM contrast staining)
Tek Bond Super Glue 793	Tek Bond Saint-Gobain	78072720018	liquid cyanoacrylate adhesive, medium viscosity
Toluidine Blue O	Sigma-Aldrich	T3260	(for staining)
Transmission Electron Microscope	Jeol		(any model)
Triphenyltetrazolium chloride	Sigma-Aldrich	T8877	(for the tetrazolium test in seeds germination)
Trisodium citrate dihydrate	Sigma-Aldrich	S1804	Na3(C6H5O7)·2H2O (for TEM contrast staining)
Ultramicrotome	Leica Biosystems		(any model)
Uranyl acetate	Fisher Scientific	18-607-645	UO2(CH3COO)2 (for TEM contrast staining)
Vacuum pump			(any model)
Wheat Germ Agglutinin, Alexa Fluor 488 Conjugate	TermoFisher Scientific	W11261	fluorescent dye-conjugated lectin (detects sialic acid and N-acetylglucosaminyl residues)
